ASSA ABLOY ACCENTRA R3301, R3501 Door Closer Regular Rigid Heavy Duty Non-Hold Open Arm Multi-Size 1_7303-0601
Open the original PDF document

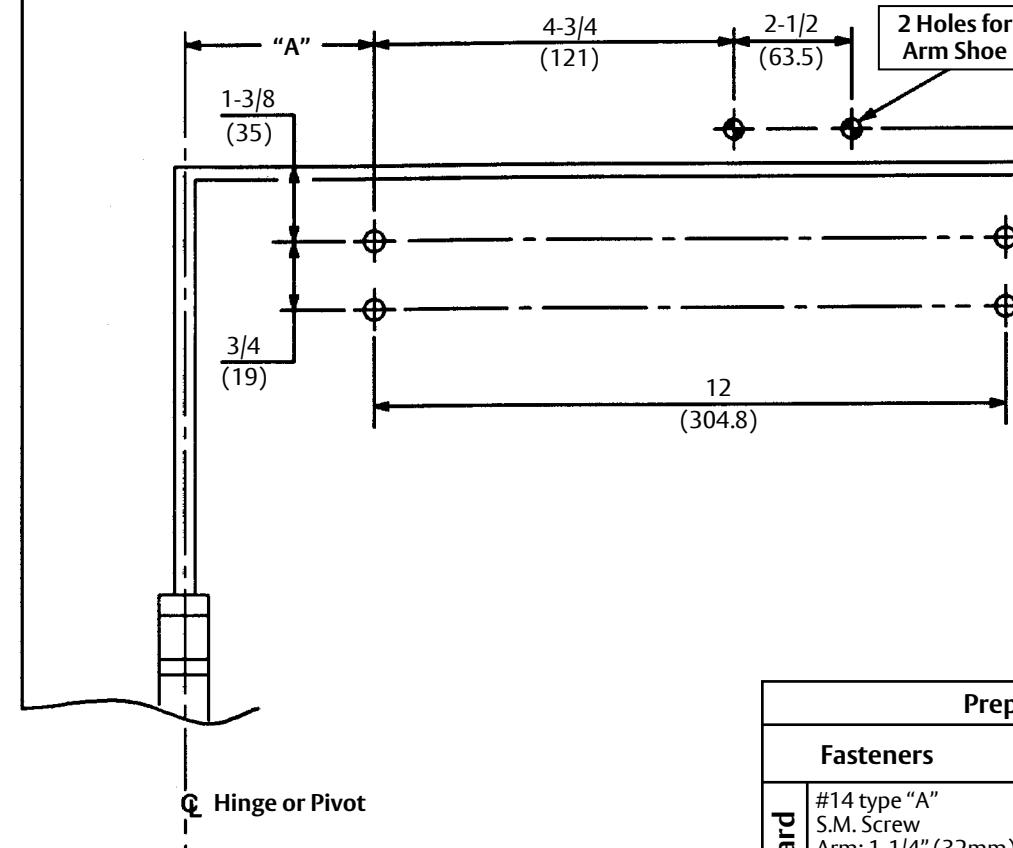

View PDF| Door Opening | Dim. "A" |
|---|---|
| To 100° | 7-1/2 (191) |
| 101° to 130° | 6 (152) |
| 131° to 180° * | 4-1/2 (114) |
* 180° Conditions Permitting
Caution: Door swing may be limited by door, frame, wall or hardware conditions (including closer projection).
Notes:
- 1. Do not scale drawing.
- 2. Right hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- 5. Sex bolts may be required for wood or plastic faced fire door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
| Preparation for Fasteners | |||
|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill Sizes | |
|
dard
n Sta |
#14 type "A"
S.M. Screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm) |
Wood | 7/32" (5.5mm) |
|
1/4-20 machine
screw |
Metal |
drill: #7 (.201")
tap: 1/4-20 |
|
|
nal
o pti O |
Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door opposite to closer |
|
Aluminum
or Wood |
3/8" (9.50mm) thru | ||
|
Thru bolts and
grommet nuts |
All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door opposite to closer |
|
4 Holes for Closer
(25) 1
Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
R3000 Series Door Closer (R3100, R3300, R3500) Individually Sized Units 2 thru 6 and Multi-Sized Units 1 & 1BF Regular Rigid Heavy Duty Arm Non-Hold Open Installation Date: 12/23
Template Number: 7303-0601
Sheet: 1 of 1
