ASSA ABLOY ACCENTRA PR3301, PR3501, PR3311, PR3511 Door Closer Parallel Rigid Non-Hold Open or Hold_7303-0251
Open the original PDF document
View PDF
| Opening | Dimension "A" | Dimension "B" | ||
|---|---|---|---|---|
| Inches | mm | Inches | mm | |
| To 120° | 9-1/2 | 241 | 3-3/4 | 95 |
| Over 120°* | 7 | 178 | 1-1/4 | 32 |
| *Door openings to 180° conditions permitting | ||||
-

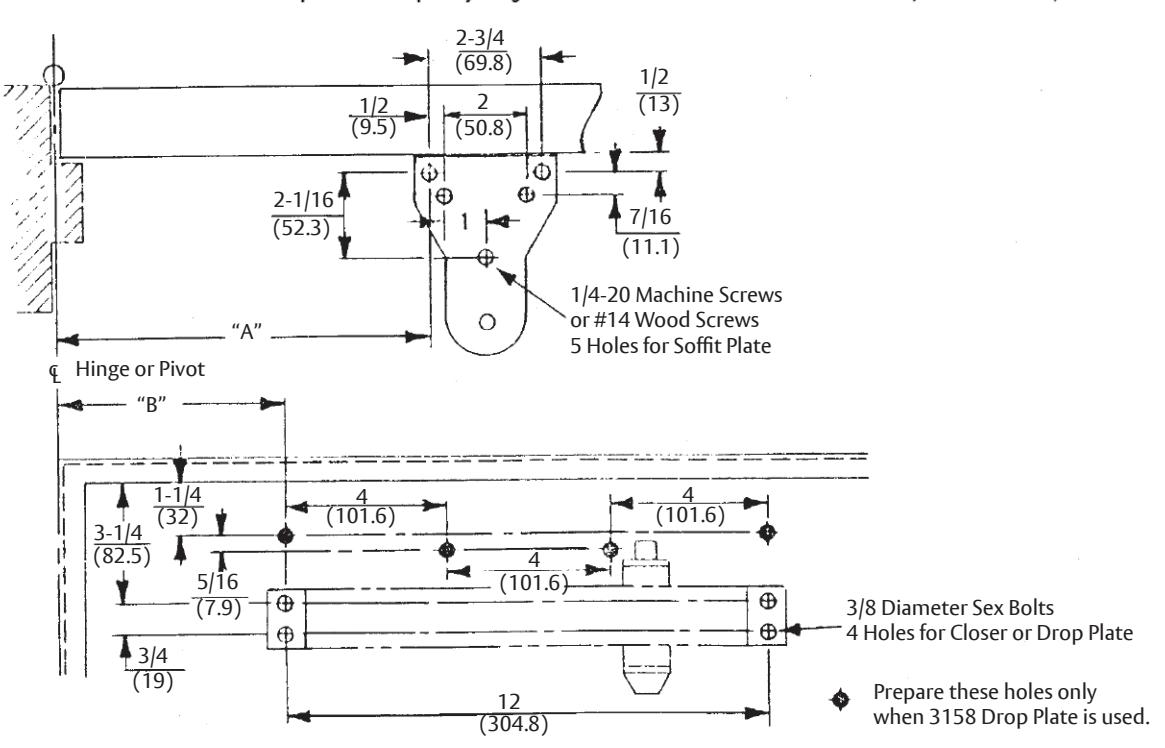

Do not scale drawing.
- Left hand door shown.
- Dimensions are in inches (mm) unless otherwise noted.
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- Sex bolts may be required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
- Hold Open Arms are not permitted to be used on fire doors.
Experience a safer and more open world
Copyright © 2010, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

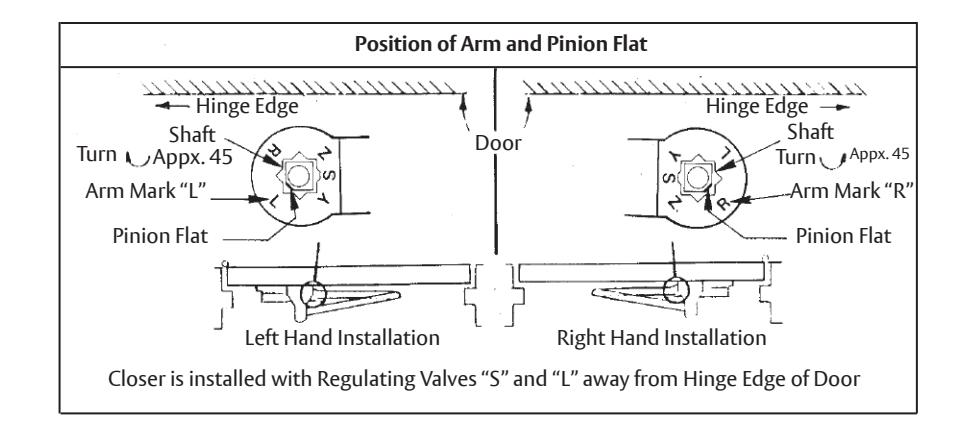

PR3000 or PR3010 Series Door ClosersWith or Without 3158 Drop Plate Parallel Rigid Non-Hold Open or Hold Open Arm Application Series PA3100, PA3300, and PR3500 Sized and Multi-size Units
Template Number: 7303-0251 Sheet: 1 of 1
Date: 01/24
