ASSA ABLOY ACCENTRA PR1902, 4, PR1905, 6, PR1912, 4, PR1915, 6 Door Closer Parallel Rigid Non-Hold Open_7319-0252

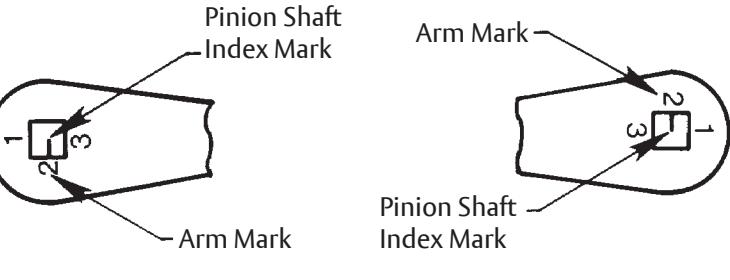

Indexing of Main Arm

Left Hand Door Right Hand Door

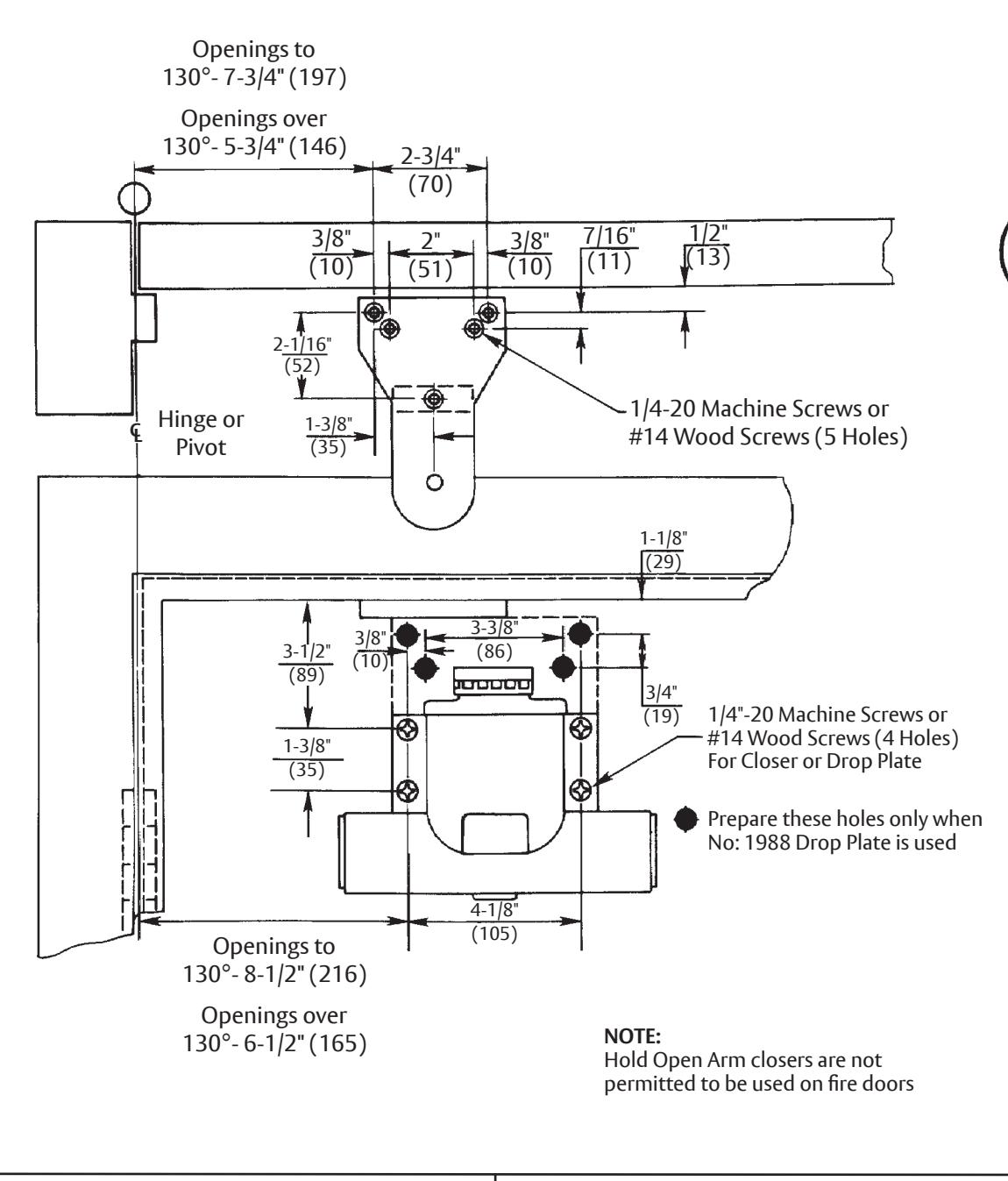

Measurements are given in inches (mm)

Do Not Scale Drawing Left Hand Door Shown

Experience a safer and more open world

Copyright © 2003, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

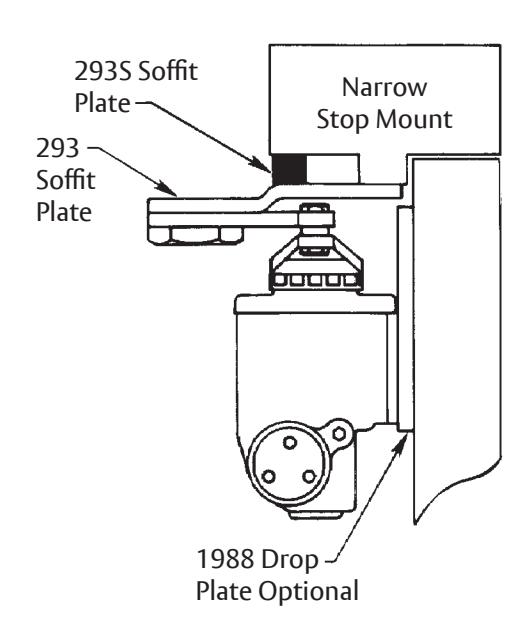

PR1900 or PR1910 Series Door Closers with 293S Spacer Block Rigid Parallel Arm Installation With or without No. 1988 Drop Plate Non-Hold Open Sizes PR1902/4 or PR1905/6; Hold Open Sizes PR1912/4 or PR1915/6

Template Number: 7319-0252 Sheet: 1 of 1

Date: 12/23
