ASSA ABLOY ACCENTRA PR150BC, PR151 x 890 Bkt, 214 Drop Plate Optional Template_7350-1254
Open the original PDF document
View PDFPrinted in U.S.A. 80-7350-1254-010

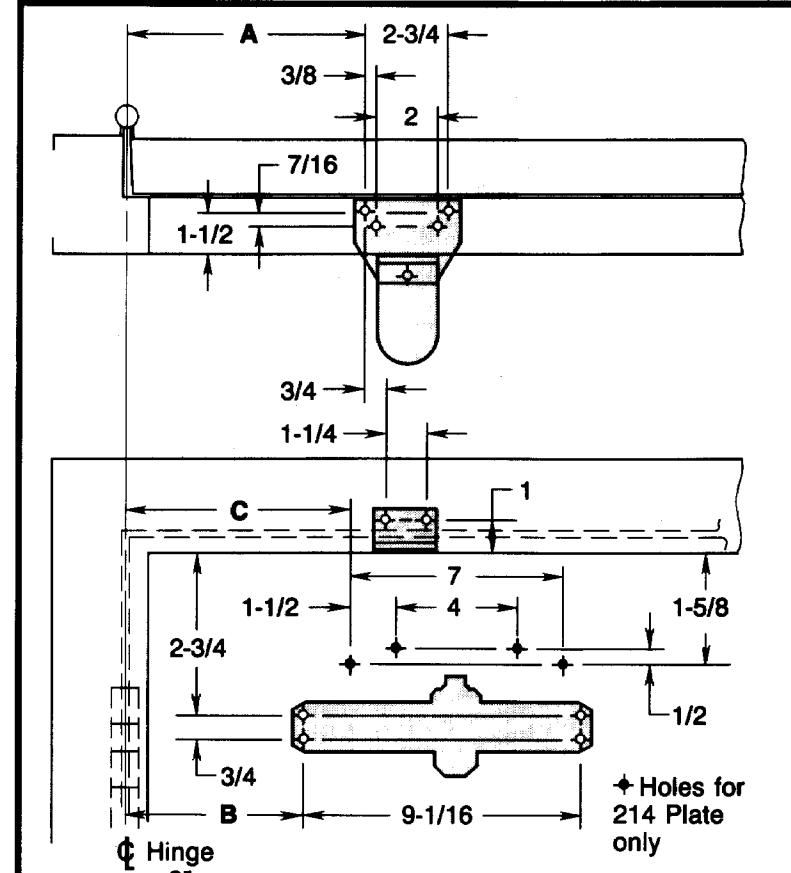

| Opening | Dim. A | Dim. B | Dim. C |
|---|---|---|---|
| To 100° | 9-5/8 | 7-5/8 | 8-5/8 |
| 101° to 130° | 8-1/8 | 6-1/8 | 7-1/8 |
| 131° to 180° | 6-1/8 | 4-1/8 | 5-1/8 |

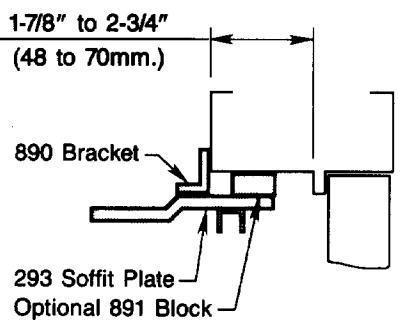

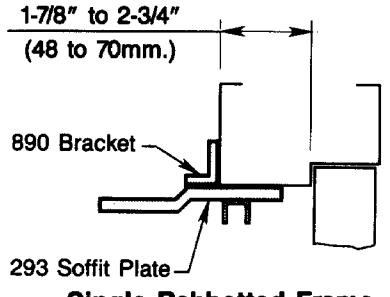

Blade Stop Frame
| inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|
| 3/8 | 9.5 | 1-5/8 | 41 | 7 | 177.8 |
| 7/16 | 11.1 | 2 | 50.8 | 7-1/8 | 181 |
| 1/2 | 12.7 | 2-3/4 | 69.9 | 7-5/8 | 194 |
| 3/4 | 19.1 | 4 | 101.6 | 8-1/8 | 206 |
| 1 | 25 | 4-1/8 | 105 | 8-5/8 | 219 |
| 1-1/4 | 31.8 | 5-1/8 | 130 | 9-1/16 | 230.2 |
| 1-1/2 | 38.1 | 6-1/8 | 156 | 9-5/8 | 244 |
Notes:
- · Do not scale drawing.
- · Left hand door shown.
- Dimensions are in inches. See conversion chart for metric dimensions.
Hold Open Arm closers without fusible-link release are not permitted to be used on fire doors.
Door swing may be limited by door, frame, wall or hardware conditions.
Hollow-metal doors require channel or boxtype reinforcement when thru-bolt mount is specified.
Sex-bolts may be required for wood or plastic faced fire-door mounting.
Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm.) unless otherwise noted.
| Fastener | Frame | Door | Drill |
|---|---|---|---|
| #14 type "A" sheet metal screw | wood | none | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal | none |
#7 (.201 dia.) or 5.10mm. drill
1/4-20 tap |
| SNB | none |
hollow
metal |
9/32" (7.00mm.) thru
3/8"(9.50mm.) door face opposite to closer |
|
aluminum
or wood |
3/8" (9.50mm.) thru |

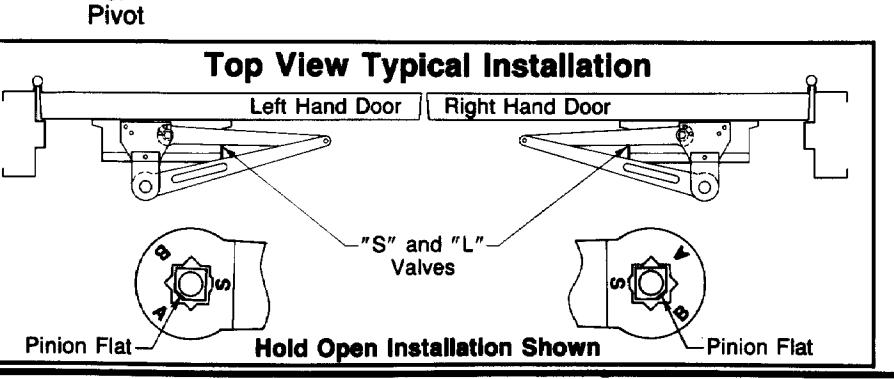

PR50 or PR150 Series Door Closers Parallel Rigid Arm Application with 890 Reinforcing Bracket and with or without 891 Spacer Block and/or 214 Drop Plate Non Hold Open (50) or Hold Open (150) Closer Sizes 1, 1BF, 2, 3, 4, 5, or 6
