ASSA ABLOY ACCENTRA PR150BC, PR151, 214 Drop Plate Optional Template_7350-1252

Printed in U.S.A. 80-7350-1252-010

1-5/8

1/2

+ Holes for

214 Plate

only

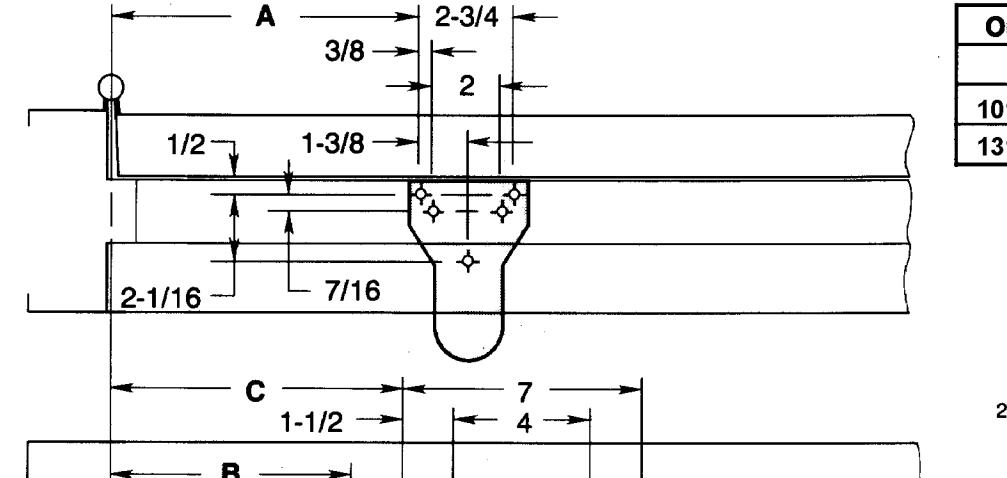

Opening	Dim. A	Dim. B	Dim.C
To 100°	9-5/8	7-5/8	8-5/8
101° to 130°	8-1/8	6-1/8	7-1/8
131° to 180°	6-1/8	4-1/8	5-1/8

inches	mm.	inches	mm.	inches	mm.
		1-5/8	41	7	177.8
3/8	9.5	2	50.8	7-1/8	181
7/16	11.1	2-1/16	52.4	7-5/8	194
1/2	12.7	2-3/4	69.9	8-1/8	206
3/4	19.1	4	101.6	8-5/8	219
1-3/8	34.9	4-1/8	105	9-1/16	230.2
1-1/2	38.1	5-1/8	130	9-5/8	244
		6-1/8	156

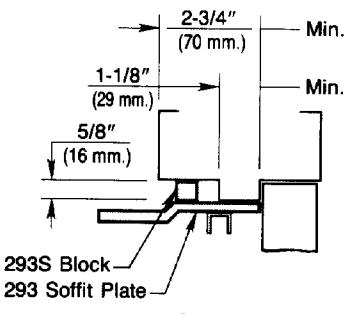

Wide Stop Frame

Narrow Stop Frame

Notes:

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches. See conversion chart for metric dimensions.

Hold Open Arm closers without fusible-link release are not permitted to be used on fire doors.

Door swing may be limited by door, frame, wall or hardware conditions.

Hollow-metal doors require channel or boxtype reinforcement when thru-bolt mount is specified.

Sex-bolts may be required for wood or plastic faced fire-door mounting.

Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm.) unless otherwise noted.

Top View Typical Installation
Left Hand Door Right Hand Door	_
"S" and "L" Valves
Pinion Flat — Hold Open Installation Shown — Pinion Flat

9-1/16

2-3/4

3/4

Hinge

Pivot

Fastener	Frame	Door	Drill
#14 type "A" sheet metal screw	wood	none	7/32" (5.5mm)
1/4-20 machine screw	metal	none	#7 (.201 dia.) or 5.10mm . drill 1/4-20 tap
SNB	none	hollow metal	9/32" (7.00mm.) thru 3/8" (9.50mm.) door face opposite to closer
		aluminum or wood	3/8" (9.50mm.) thru

PR50 or PR150 Series Door Closers Parallel Rigid Arm Application with or without 214 Drop Plate Non Hold Open (50) or Hold Open (150) Closer Sizes 1, 1BF, 2, 3, 4, 5, or 6

Yale Commercial Locks and Hardware

www.yalecommercial.com

80-7350-1252-010

8-01

DATE
