ASSA ABLOY ACCENTRA PA5110, PA5110BC, 5149 or 5158 Plate Opt. Template_7351-0102
Open the original PDF document
View PDF
- Do not scale drawing.
- Left hand door shown.
-
Dimensions are:
- inches millimeters
Notes:
Door swing may be limited by door, frame, wall or hardware conditions.
Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
| Preparation for Fasteners | ||
|---|---|---|
|
Type of
Fastener |
Door of
Frame |
Preparation |
|
#14 type "A"
Sheet Metal Screw |
Wood | 7/32" (5.5mm) |
|
1/4-20
Machine Screw |
Hollow
Metal |
#7 (.201" dia.) or 5.10mm
drill - 1/4-20 tap |
|
SNB
(Sex nut and bolt) (Optional) |
Hollow
Metal |
9/32" (7.00mm) thru
3/8" (9.50mm) door face Opposite to closer |
|
Aluminum
or Wood |
3/8" (9.50mm) thru | |
|
TBGN
(Thru bolt and nut) (Optional) |
All |
9/32" (7.00mm) thru
3/8" (9.50mm) dia. 3/8" (10mm) deep, door Face opposite to closer |
Pinion Index Mark
Valves
Experience a safer and more open world
Copyright © 1997, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

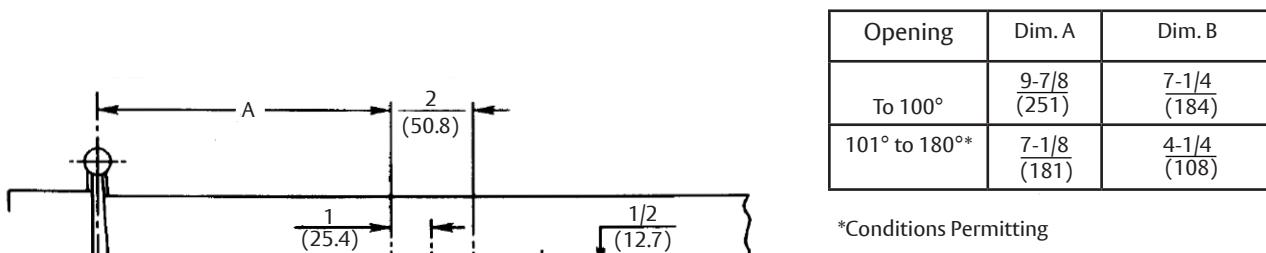

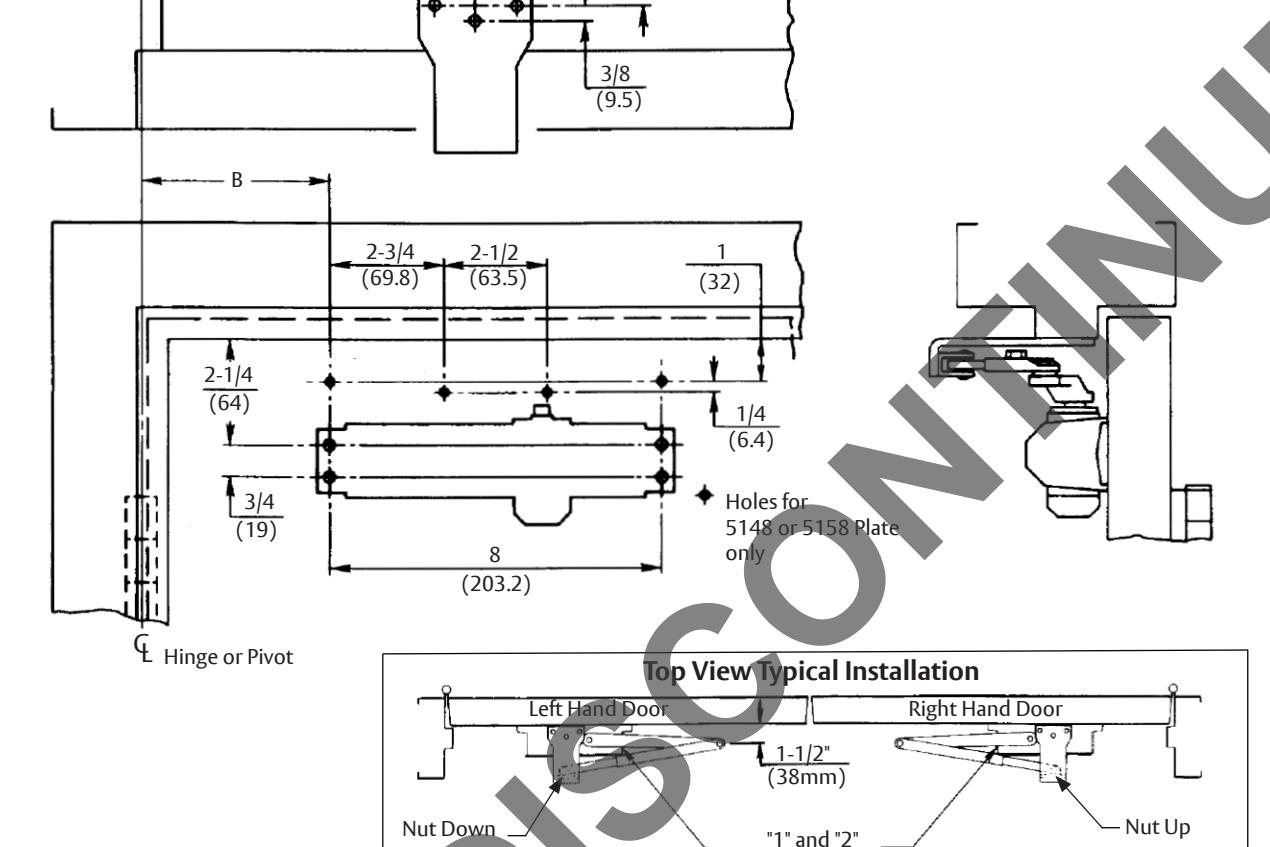

5110 or 5110BC Series Door Closers Door and Frame Preparation Template Parallel Hold Open Arm Application With or Without 5148 or 5158 Drop Plate
Pinion Index Mark
Template Number: 7351-0102 Sheet: 1 of 1
Date: 01/24
