ASSA ABLOY ACCENTRA PA5100, PA5100BC, 5148 or 5158 Plate Optional Template_7351-0101
Open the original PDF document
View PDFThis product is now proudly being offered under the ASSA ABLOY ACCENTRA™ brand, effective June 20, 2023. Visit YaleCommercial.com/en/Today for support and information.

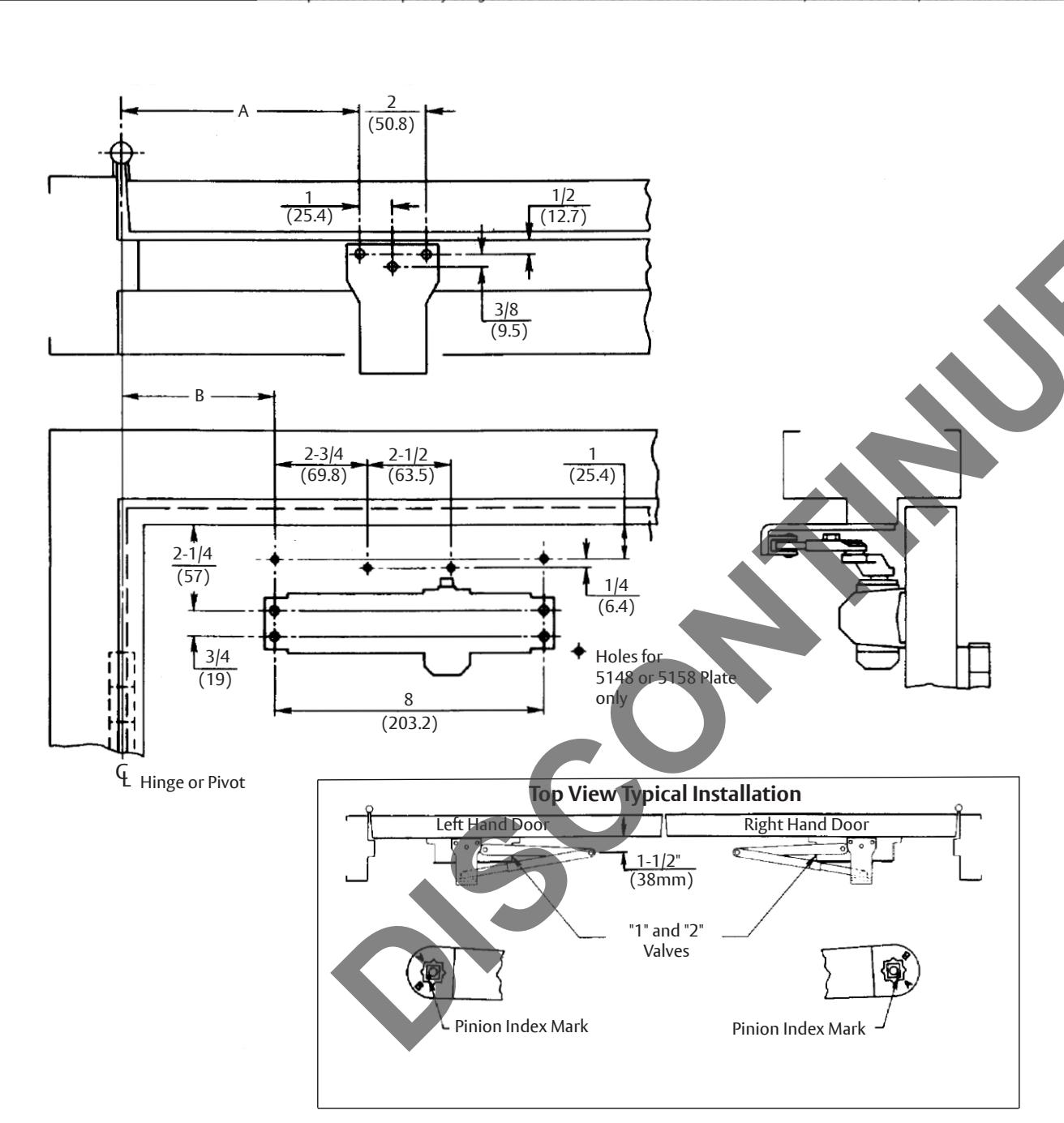

| Opening | Dim. A | Dim. B |
|---|---|---|
| To 100° |
9-7/8
(251) |
7-1/4
(184) |
| 100° to 180°* |
7-1/8
(181) |
4-1/4
(108) |
Conditions Permitting
Notes
- Door swing may be limited by door, frame, wall or hardware conditions
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- Sex bolts may be required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted
- Do not scale drawing.
- Left hand door shown.
- Dimensions are in inches (mm) unless otherwise noted.
| Preparation for Fasteners | |||
|---|---|---|---|
|
Type of
Fastener |
Door of
Frame |
Preparation | |
|
#14 type "A"
Sheet Metal Screw |
Wood | 7/32" (5.5mm) | |
|
1/4-20
Machine Screw |
Hollow
Metal |
#7 (.201" dia.) or 5.10mm
drill - 1/4-20 tap |
|
|
SNB
(Sex nut and bolt) (Optional) |
Hollow
Metal |
9/32" (7.00mm) thru
3/8" (9.50mm) door face Opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm) thru | ||
|
TBGN
(Thru bolt and nut) (Optional) |
All |
9/32" (7.00mm) thru
3/8" (9.50mm) dia. 3/8" (10mm) deep, door face opposite to closer |
|
Experience a safer and more open world
Copyright © 1997, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
5100 or 5100BC Series Door Closers Door and Frame Preparation Template Parallel Non-Hold Open Arm Application With or Without 5148 or 5158 Drop Plate
Template Number: 7351-0101 Sheet: 1 of 1
Date: 01/24
