ASSA ABLOY ACCENTRA PA3311, PA3511 Door Closer Parallel Hold Open Arm with or without 3148 Plate_7303-0212

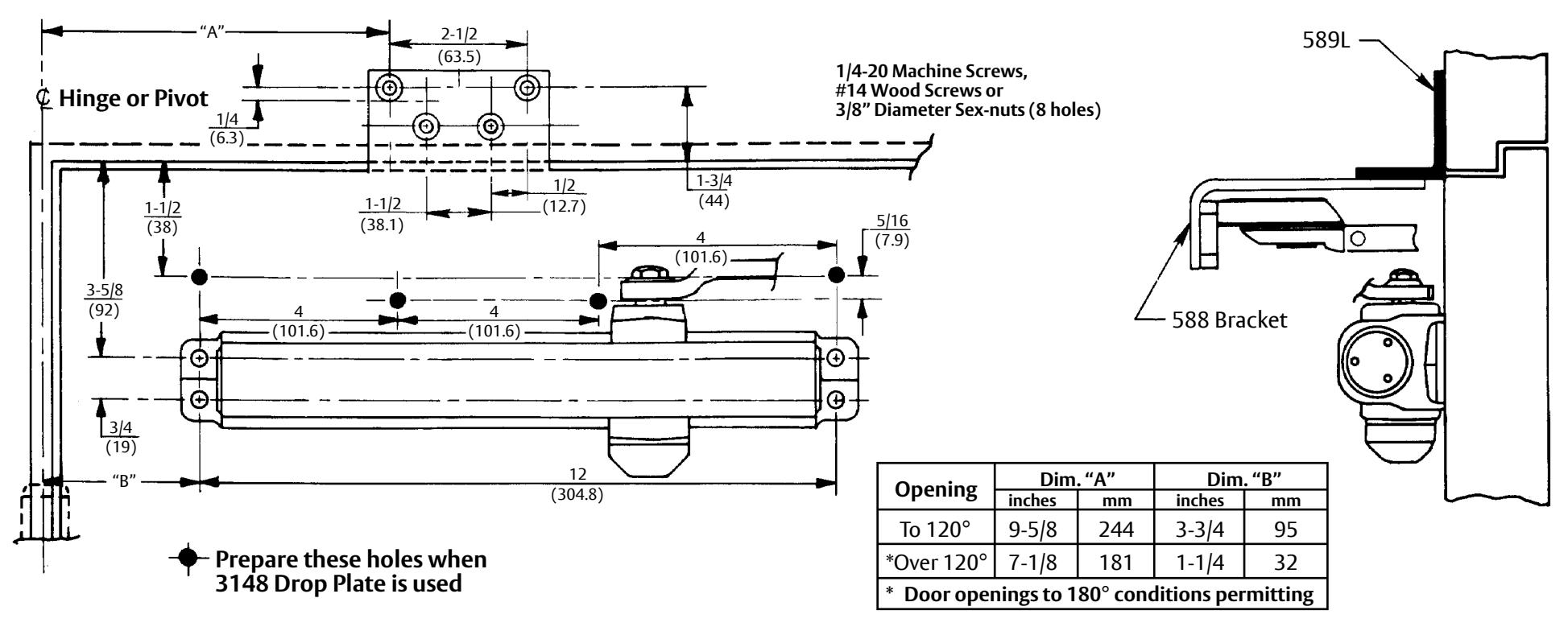

• Do not scale drawing.

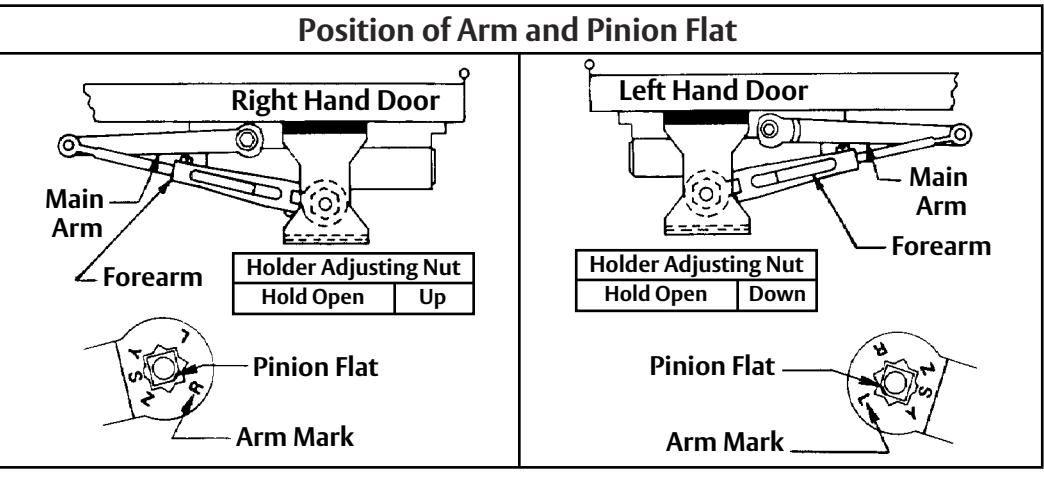

• · Left hand door shown.
• Dimensions are in inches / (mm).
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
• Hold Open Arms are not permitted to be used on fire doors.

Experience a safer and more open world

Copyright © 2003, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

PA3010 Series Door Closer with 589L & 588 Brackets and with or without 3148 Drop Plate Parallel Arm Hold Open Series PA3110, PA3310, and PA3510 Individually Sized Units 3, 4, 5, 6 and Multi-size Units 1 & 1BF

Template Number: 7303-0212

Sheet: 1 of 1

Date: 12/23
