ASSA ABLOY ACCENTRA PA3301, PA3501 Door Closer Parallel Non-Hold Open Arm with or without 3158 Plate_7303-0201

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches (mm) unless otherwise noted.
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

Experience a safer and more open world

Copyright © 2010, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

(38)

(89)

(19)

Hinge

Pivot

€ or

Hinge Edge of Door

101.6

(304.8)

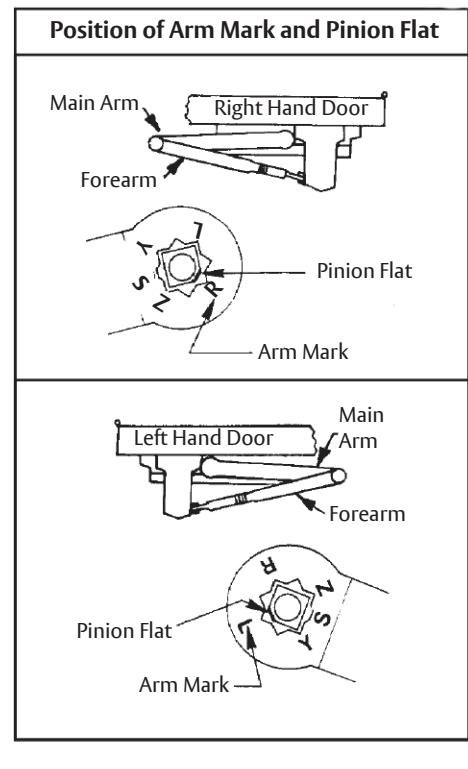

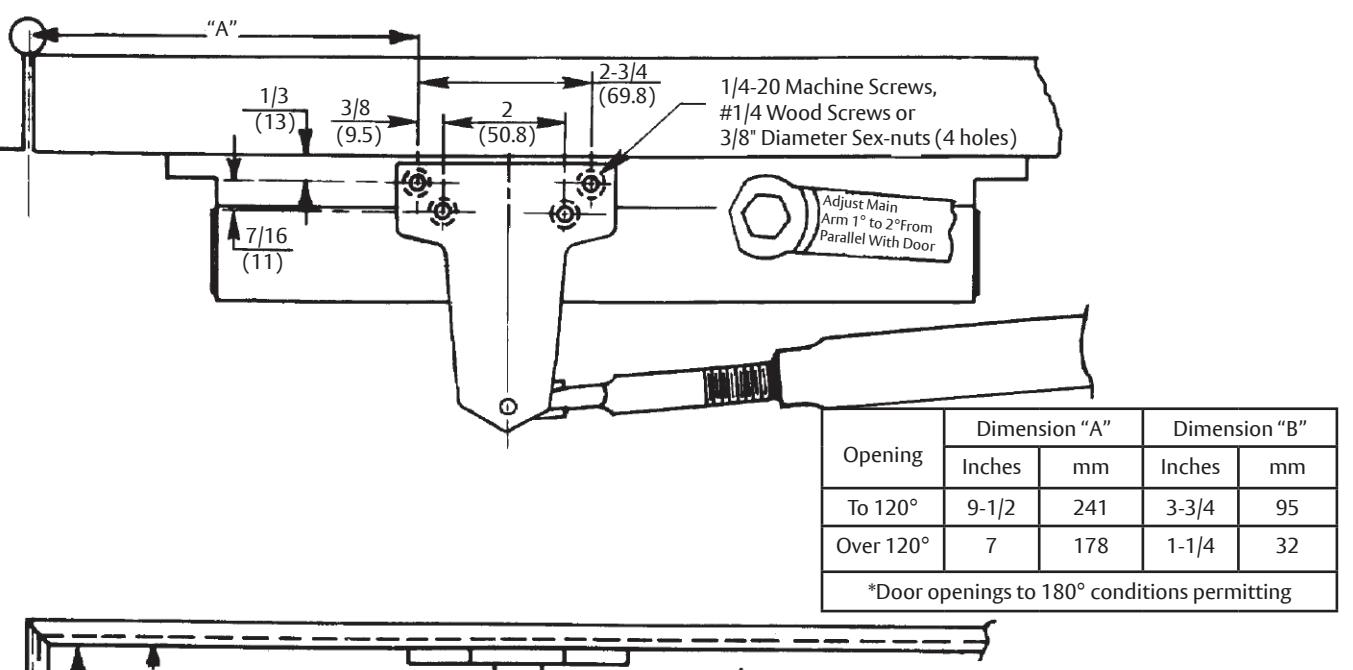

Prepare These Holes Only

When Drop Plate 3158 is used

PA3000 Series Door ClosersWith or Without 3158 Drop Plate Parallel Non Hold Open Arm Application Series PA3100, PA3300, and PA3500 Sized and Multi-size Units

1/4-20 Machine Screws,

3/8" Diameter Sex-nuts (4 holes)

#14 Wood Screws or

Template Number: 7303-0201

Sheet: 1 of 1

Date: 01/24
