ASSA ABLOY ACCENTRA PA3301, PA3501 Door Closer Parallel Non-Hold Open Arm with or without 3148 Plate_7303-0209

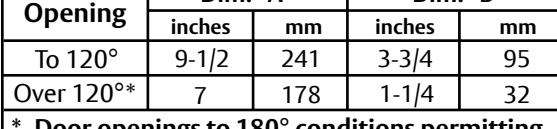

Door openings to 180° conditions permitting

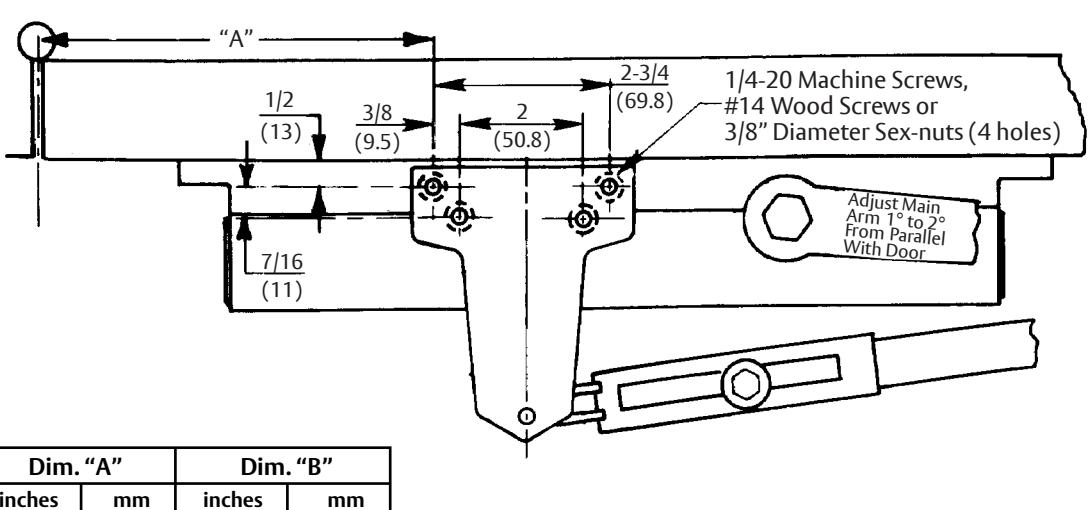

Position of Arm Mark and Pinion Flat Main Arm Right Hand Door Forearm Pinion Flat ∠ Arm Mark Main Arm Left Hand Door Forearm Pinion Flat Arm Mark

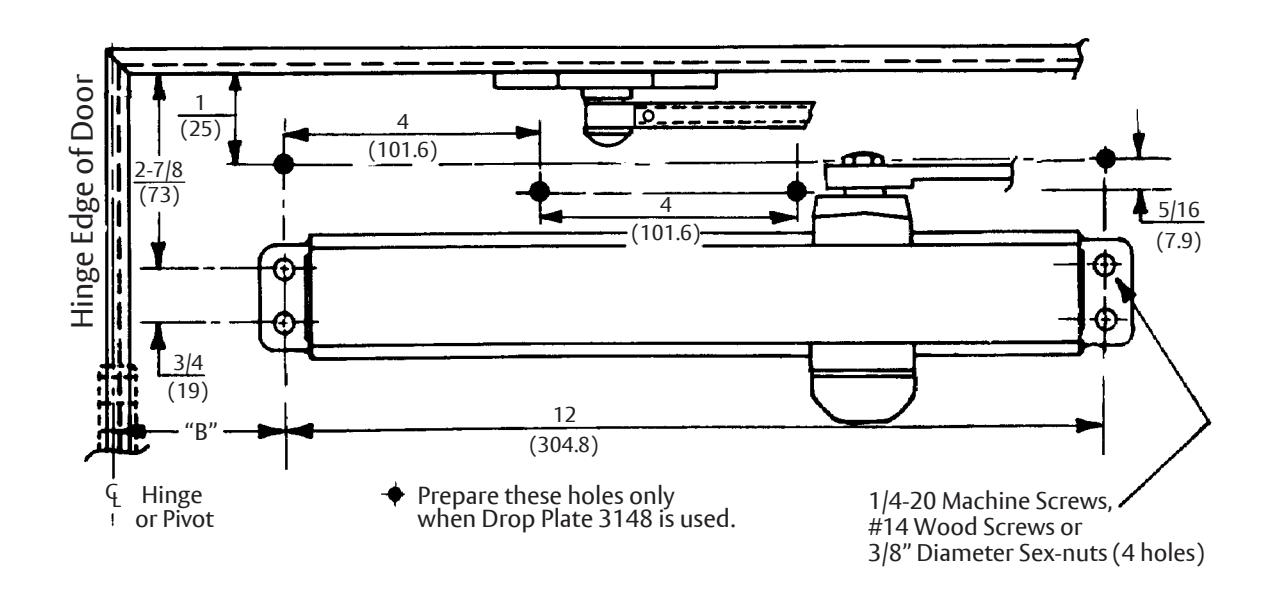

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches (mm).
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046 (2.66mm) unless otherwise noted.

Experience a safer and more open world

Copyright © 2003, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

PA3080 Series Door Closer for Narrow Stile Door with or without 3148 Drop Plate

Parallel Non Hold Open Low Profile Arm Application Series PA3180, PA3380, and PA3580 Individually Sized Units 2 thru 6 and Multi-size Units 1 & 1BF

Template Number: 7303-0209

Sheet: 1 of 1

Date: 12/23
