ASSA ABLOY ACCENTRA PA3301, PA3501 Door Closer Parallel Non-Hold Open Arm with or without 3148 Plate_7303-0207

Position of Arm Mark and Pinion Flat Main Arm Right Hand Door Pinion Flat Arm Mark Pinion Flat Arm Mark

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches (mm).
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolt may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046 (2.66mm) unless otherwise noted.

Experience a safer and more open world

Copyright © 2003, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group. Inc. is prohibited.

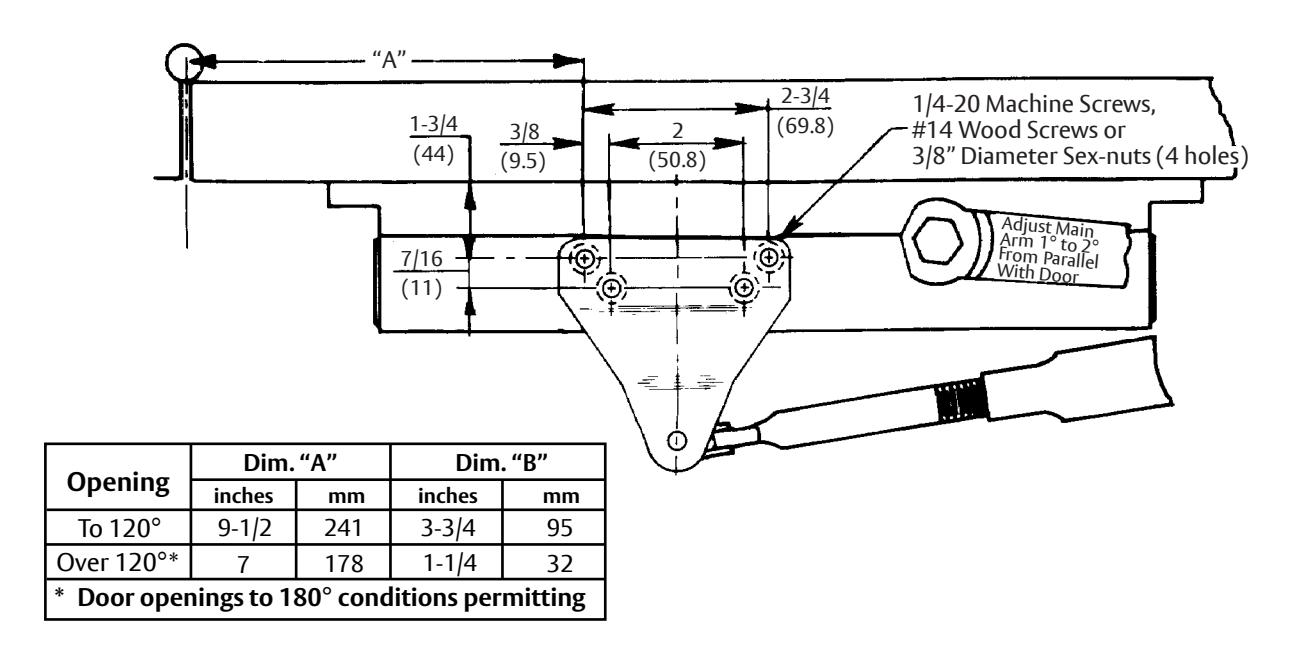

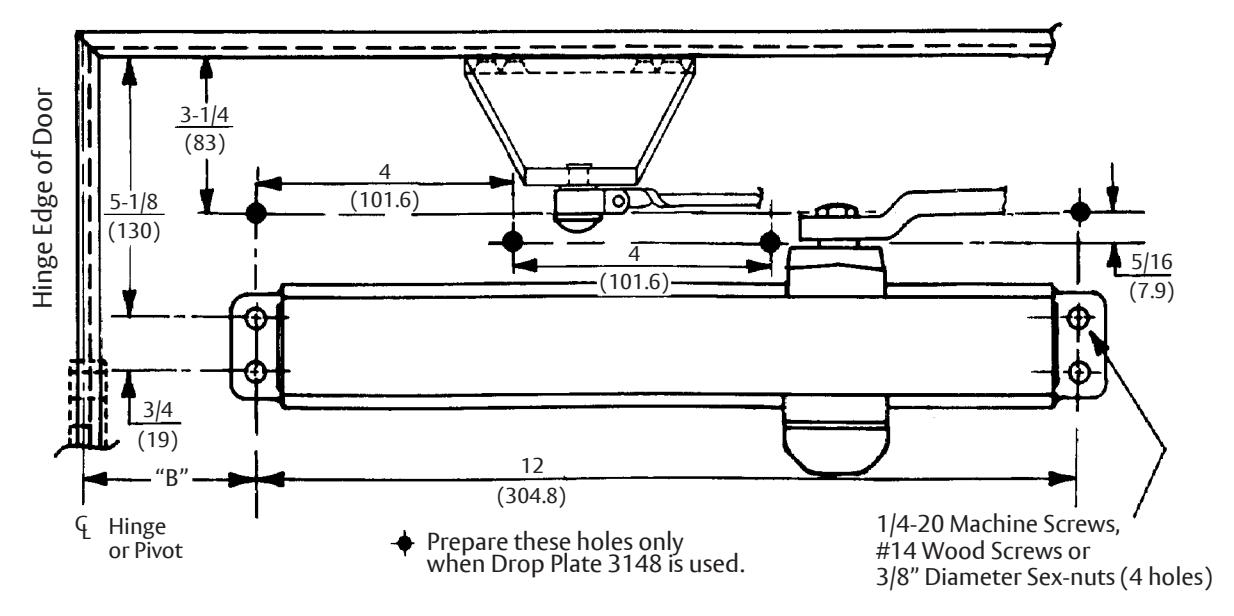

PA3000 Series Door Closer with 290 Bracket and with or without 3148 Drop Plate Parallel Non Hold Open Arm with Offset Plate Application Series PA3100, PA3300, and PA3500 Individually Sized Units 2 thru 6 and Multi-size Units 1 & 1BF

Template Number: 7303-0207

Sheet: 1 of 1

Date: 12/23
