ASSA ABLOY ACCENTRA PA3301, PA3501 Door Closer Parallel Non-Hold Open Arm with or without 3148, 3158_7303-0214

• Do not scale drawing.

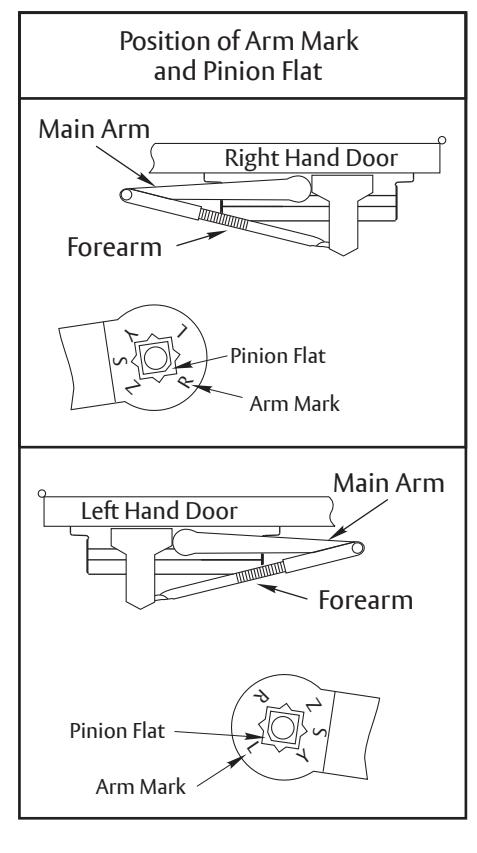

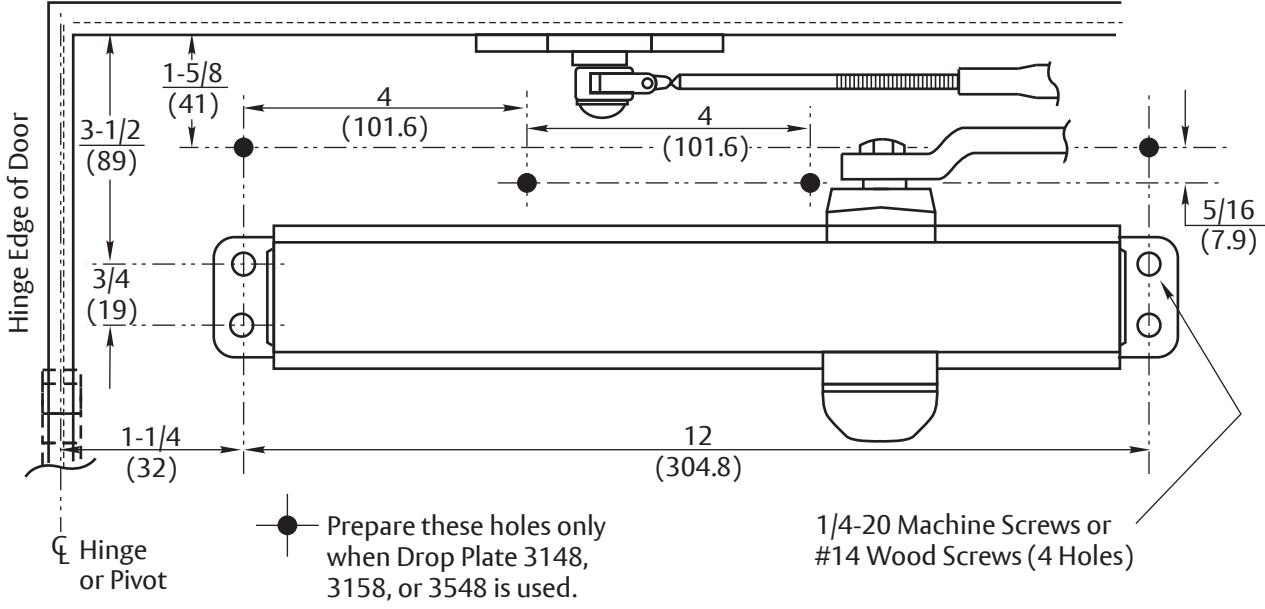

• Left hand door shown.
• Dimensions are in inches (mm).
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolt may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046 (2.66mm) unless otherwise noted.

Experience a safer and more open world

Copyright © 2008, 2009, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

PA3100, PA3300 or PA3500 Series Door Closers x 400-6A Arm Assembly

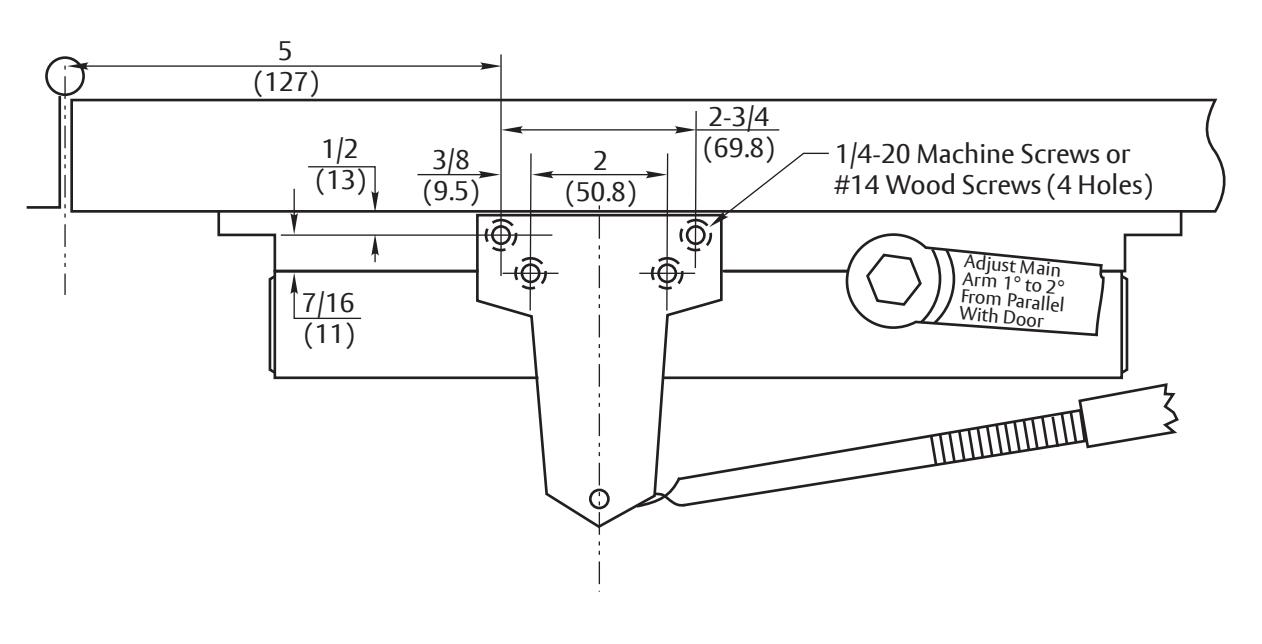

For 180° Door Swing Using Wide Throw Hinges – 8" (200mm) Max. With or Without 3148, 3158 or 3548 Drop Plate Non Hold Open Parallel Arm Application Door Closer Sizes 1 thru 6

Template Number: 7303-0214

Sheet: 1 of 1

Date: 12/23
