ASSA ABLOY ACCENTRA (PA)250BC, PA251, PA Low Profile Arm, 214 Drop Plate Optional Template_7350-1206
Open the original PDF document
View PDF
Notes:
- Do not scale drawing
- Left hand door shown.
- Dimensions are in inches. See conversion chart for metric dimensions.
- Minimum top rail with 5/8" (16 mm.) frame stop is 4" (102 mm.)
- Door swing may be limited by door, frame, wall or hardware conditions.
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified. Sex bolts may be required for wood or plastic faced fire door mounting. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66 mm.) unless otherwise noted.

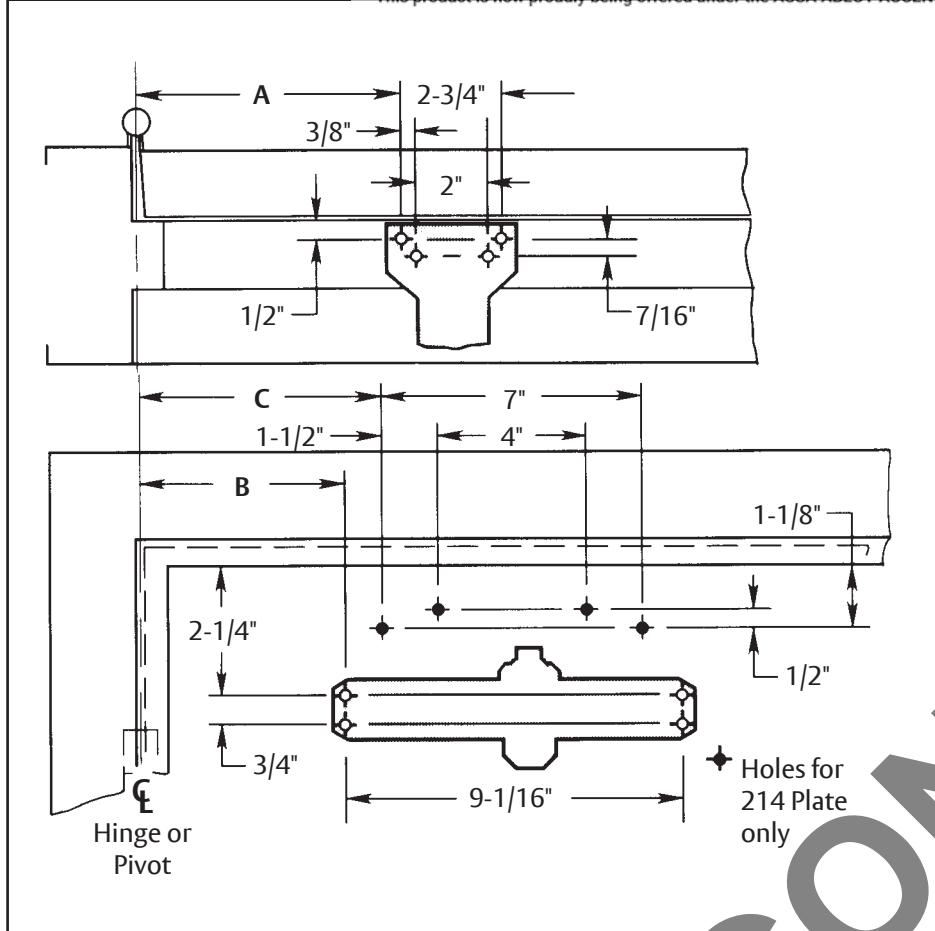

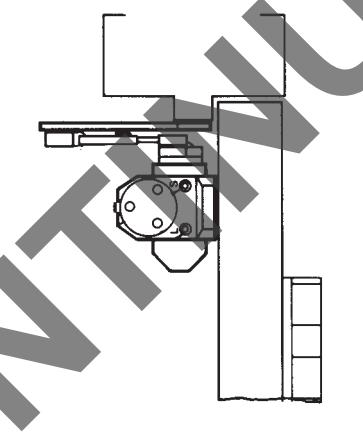

| Opening | Dim. A | Dim. B | Dim. C |
|---|---|---|---|
| To 100° | 9-1/4 | 7-5/8 | 8-5/8 |
| 101° to 130° | 7-3/4 | 6-1/8 | 7-1/8 |
| 131° to 180° | 5-3/4 | 4-1/8 | 5-1/8 |
| inches | mm. | inches | mm. | inches | mm. | inches | mm. |
|---|---|---|---|---|---|---|---|
| 1-1/2" | 38.1 | 5-1/8" | 130 | 7-3/4" | 197 | ||
| 3/8" | 9.5 | 2" | 50.8 | 5-3/4" | 146 | 8-5/8" | 219 |
| 7/16" | 11.1 | 2-1/4" | 57.1 | 6-1/8" | 156 | 9-1/16" | 230.2 |
| 1/2" | 12.7 | 2-3/4" | 69.9 | 7" | 177.8 | 9-1/4" | 235 |
| 3/4" | 19.1 | 4" | 101.6 | 7-1/8" | 181 | ||
| 1-1/8" | 28.5 | 4-1/8" | 105 | 7-5/8" | 194 |
| Top View Typical Installation | |
|---|---|
| Left Hand Door Right Hand Door | ] |
|
1-1/2"
(38 mm.) |
|
| Pinion Flat "S" and "L" Valves Pinion F | lat |
| Preparation for Fasteners | |||||
|---|---|---|---|---|---|
| Fasteners | Door or Frame | Drill | |||
| #14 type "A" Sheet Metal Screw | Wood | 7/32" (5.5 mm.) | |||
| 1/4-20 machine screw | Metal | #7 (.201" dia.) or 5.10 mm. drill tap: 1/4-20 | |||
| SNB (optional) | Hollow Metal |
9/32" (7.00 mm.) thru;
3/8" (9.50 mm.) door face opposite to closer |
|||
|
Aluminum or
Wood |
3/8" (9.50 mm.) thru | ||||
| TBGN (optional) | All |
9/32" (7.00 mm.) thru;
3/8" (9.50 mm.) dia. x 3/8" (10 mm.) deep, door face opposite to closer |
|||
Experience a safer and more open world
Copyright © 1998, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
(PA)250 Series Door Closers with Low Profile Arm Aprallel Arm Application with or without 214 Drop Plate Non Hold Open Arm Closer Sizes 1, 1BF, 2, 3, 4, 5, or 6
Template Number: 7350-1206 Sheet: 1 of 1
1-800-438-1951 Date: 12/23 www.assaabloy.com
