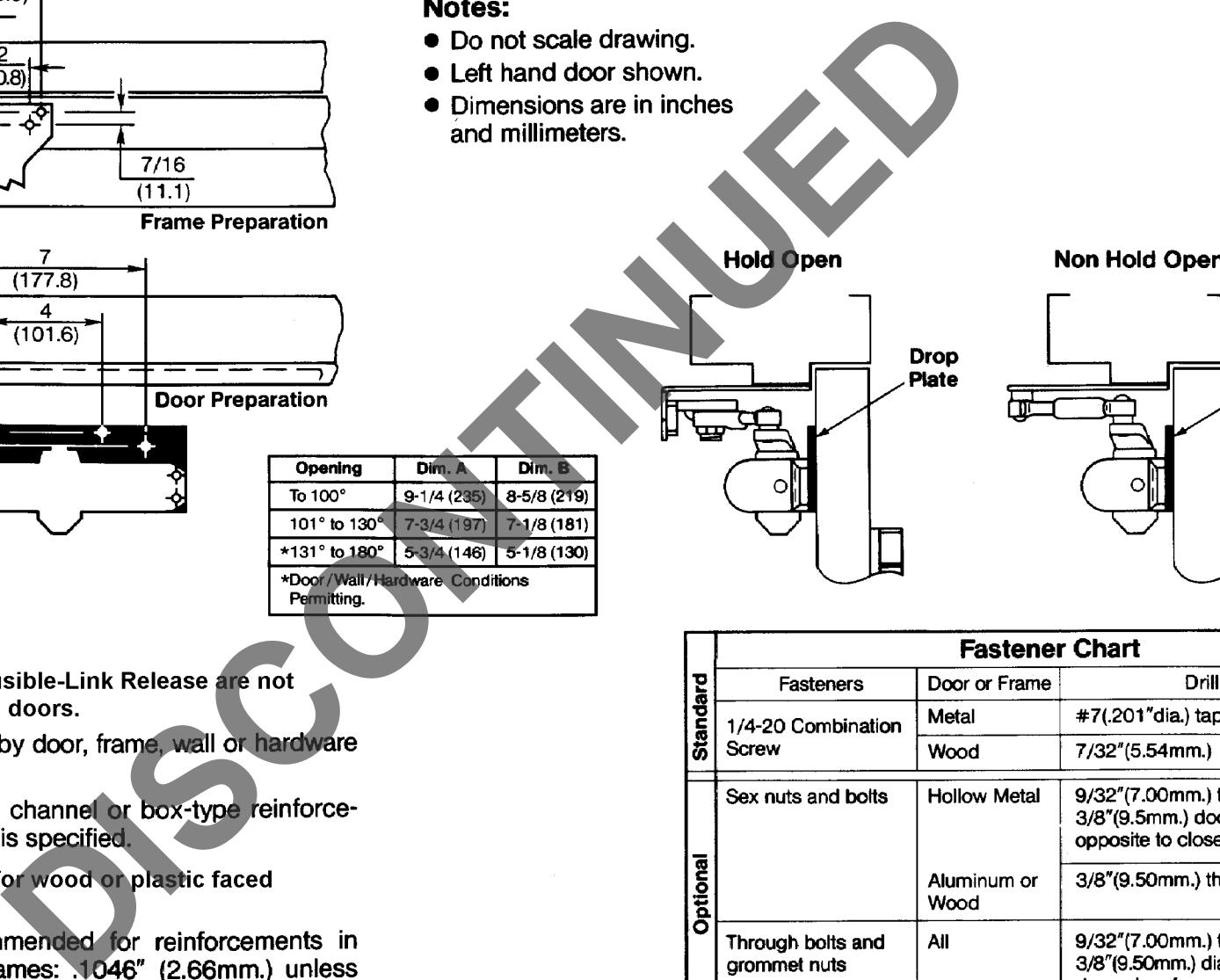

ASSA ABLOY ACCENTRA PA2310 HO, 2300 NHO Door Closer Parallel Arm Using 2388 Drop Plate Template_80-7323-0111-010
Open the original PDF document
View PDF

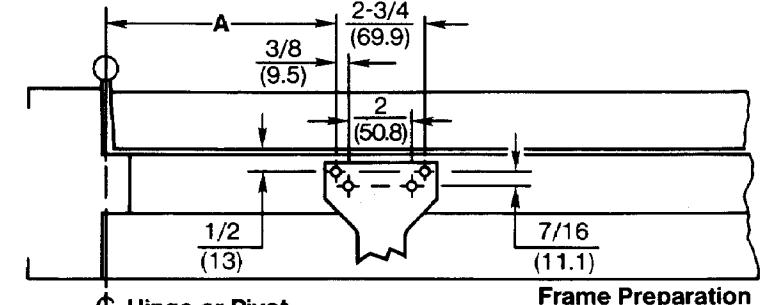

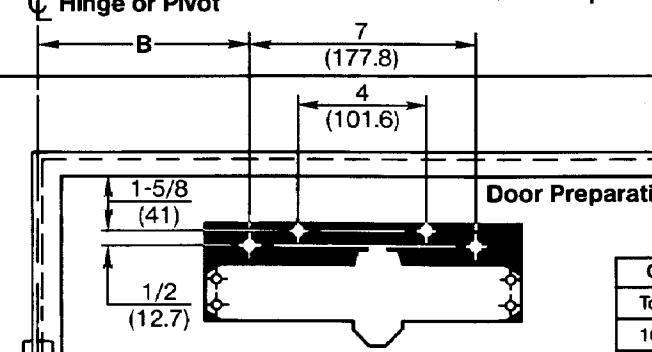

| Opening | Dim. A | Dim. B |
|---|---|---|
| To 100° | 9-1/4 (235) | 8-5/8 (219) |
| 101° to 130° | 7-3/4 (197) | 7-1/8 (181) |
| *131° to 180° | 5-3/4 (146) | 5-1/8 (130) |
| *Door/Wall/Hardware Conditions | ||
| Fastener Chart | |||
|---|---|---|---|
| p | Fasteners | Door or Frame | Drill Sizes |
| Standard |
1/4-20 Combination
Screw |
Metal | #7(.201"dia.) tap: 1/4-20 |
| Wood | 7/32"(5.54mm.) | ||
| Optional | Sex nuts and bolts | Hollow Metal |
9/32"(7.00mm.) through
3/8"(9.5mm.) door face opposite to closer |
|
Aluminum or
Wood |
3/8"(9.50mm.) through | ||
| 0 | Through bolts and grommet nuts | All | 9/32"(7.00mm.) through 3/8"(9.50mm.) dia. × 3/8"(10mm.) deep, door face opposite to closer |
