ASSA ABLOY ACCENTRA PA1400 (Sized 2-6) and (PA)4410 (Multi-Size 2-6) Series with 589L Adaptor_7344-0215

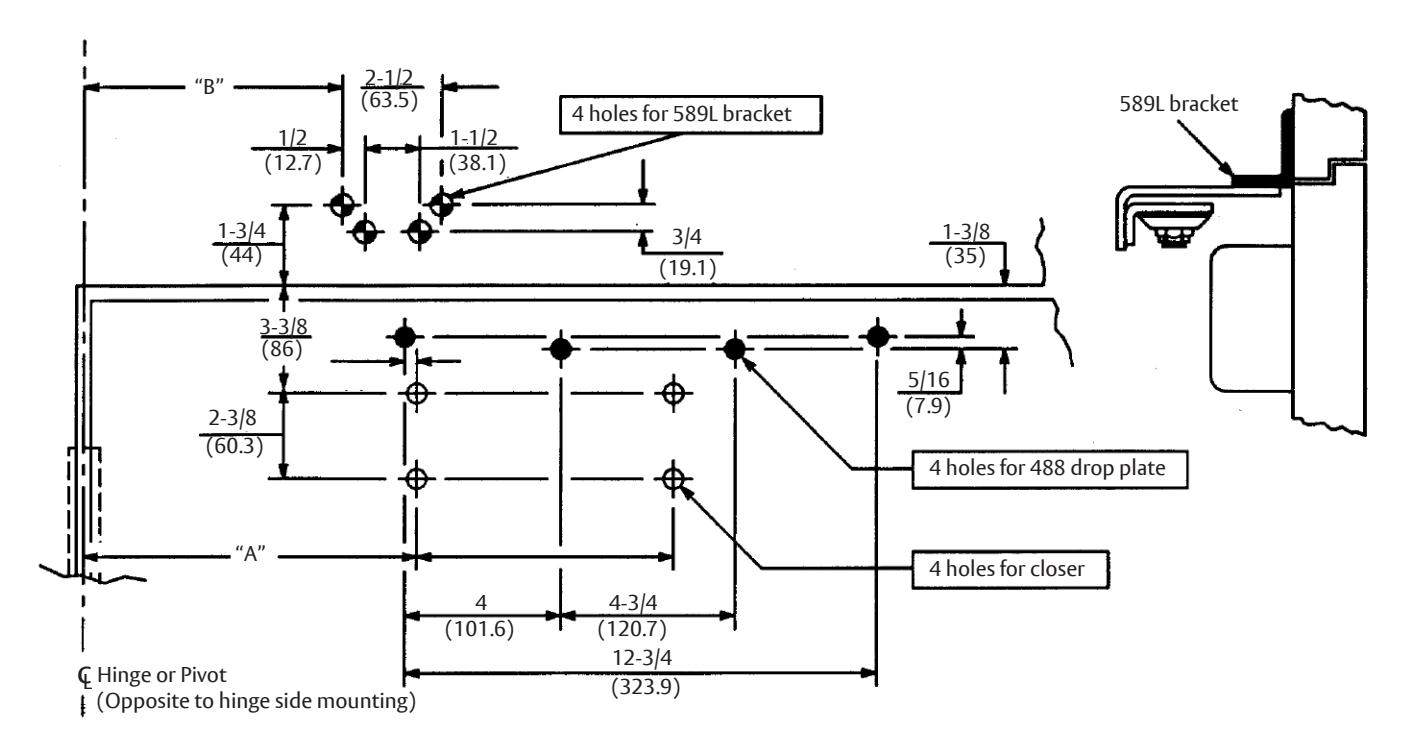

Opening	Dim. "A"	Dim. "B"
To 100°	8-3/4 (222)	9-3/8 (238)
100° to 120°	7-3/4 (197)	8-3/8 (213)
120° to 150°	6-3/4 (171)	7-3/8 (187)
150° to 180°	5-3/4 (146)	6-3/8 (162)

Caution: Door swing may be limited by door, frame wall or hardware conditions.

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions are in inches (mm).
• 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• 5. Sex bolts may be required for wood or plastic faced fire door mounting.
• 6. Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 7. Hold Open Arm closers without fusible link release are not permitted to be used on fire doors.

	Preparation for Fasteners
Fasteners		Door or Frame	Drill Sizes
dard n Sta	#14 type "A" S.M. Screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm)	Wood	7/32" (5.5mm)
		Aluminum
	1/4-20 machine screw	Metal	drill: #7 (.201") tap: 1/4-20
nal o pti O	Sex nuts and bolts	Hollow Metal	9/32" (7.00mm) thru: 3/8" (9.50mm) door or transom face opposite to closer
		Aluminum or Wood	3/8" (9.50mm) thru
	Thru bolts and grommet nuts	All	9/32" (7.00mm) thru: 3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer

Copyright © 2003, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

PA1400 Series Door Closer- Sized 2 thru 6 (PA)4410 Series Door Closer- Multi-Size 2 to 6 With 589L Adaptor Bracket and With or Without 488 Drop Plate Parallel Hold Open Date: 01/24

Template Number: 7344-0215 Sheet: 1 of 1

1-855-557-5078 www.assaabloy.com
