| Preparation for Fasteners | ||||
|---|---|---|---|---|
| Fasteners D | Ooor or Frame Drill-Sizes | |||
| 1/4" - 20 machine screw | Metal |
Drill: #7 (0.201" dia.)
Tap: 1/4" - 20 |
||
| Standard | Sleeve nuts and bolts |
Hollow
Metal |
9/32" (7 mm) through;
3/8" (9.5 mm) door face opposite to closer |
|
| Aluminum or Wood | 3/8" (9.5 mm) through | |||
| Optional | Through-bolts and grommet-nuts | All |
9/32" (7 mm);
3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer |
|

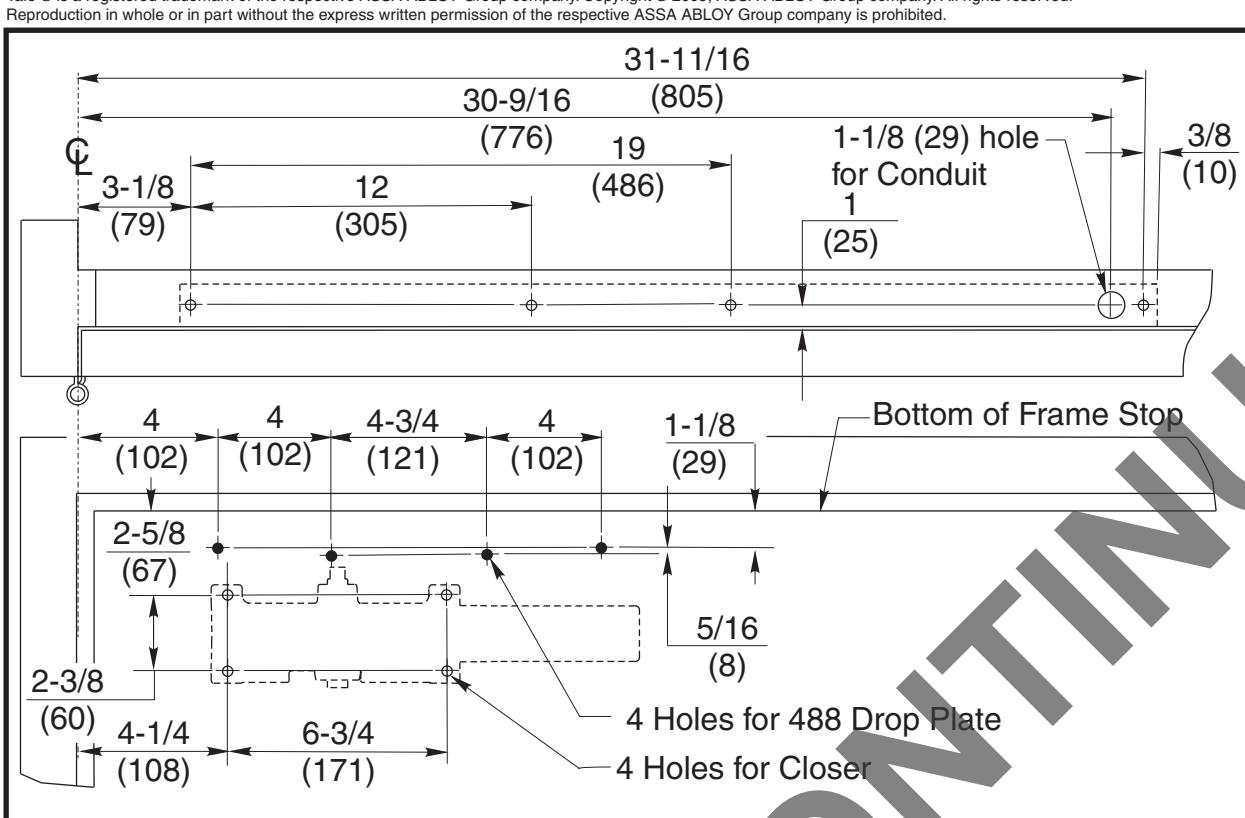

Left Hand Shown
Notes:
- Do not scale drawing.
- Left hand door shown. Same dimensions apply for right hand door, measured from centerline of hinge or pivot.
- Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.
- Dimensions are shown in inches and millimeters (mm).
- Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- Sex-nuts are required for wood or plastic faced fire-door installations.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.
- Maximum door opening is 110°.
Yale Series P400PTO Support Unit With or Without 488 Drop Plate
Combination Door Closer-Holder with Single Point Hold Open Stop (Push) Side of Door Installation
