ASSA ABLOY ACCENTRA Optional Drop Plates for 5800 Series Installation Instructions_80-9358-0004-010
Open the original PDF document
View PDF

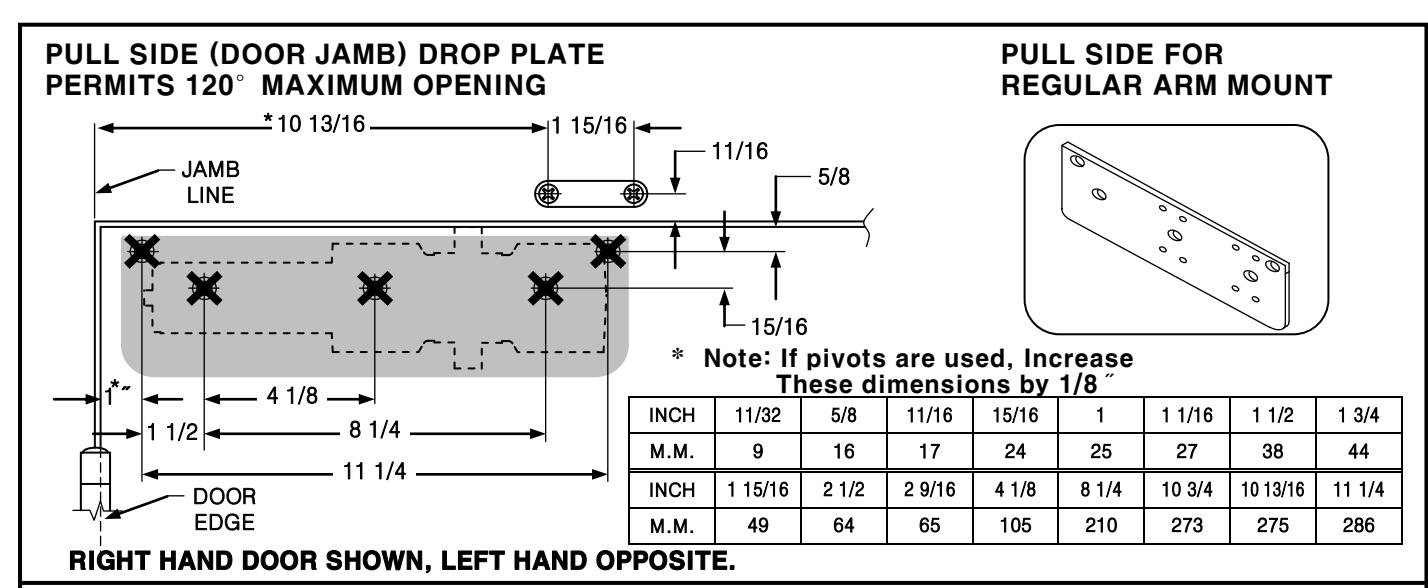

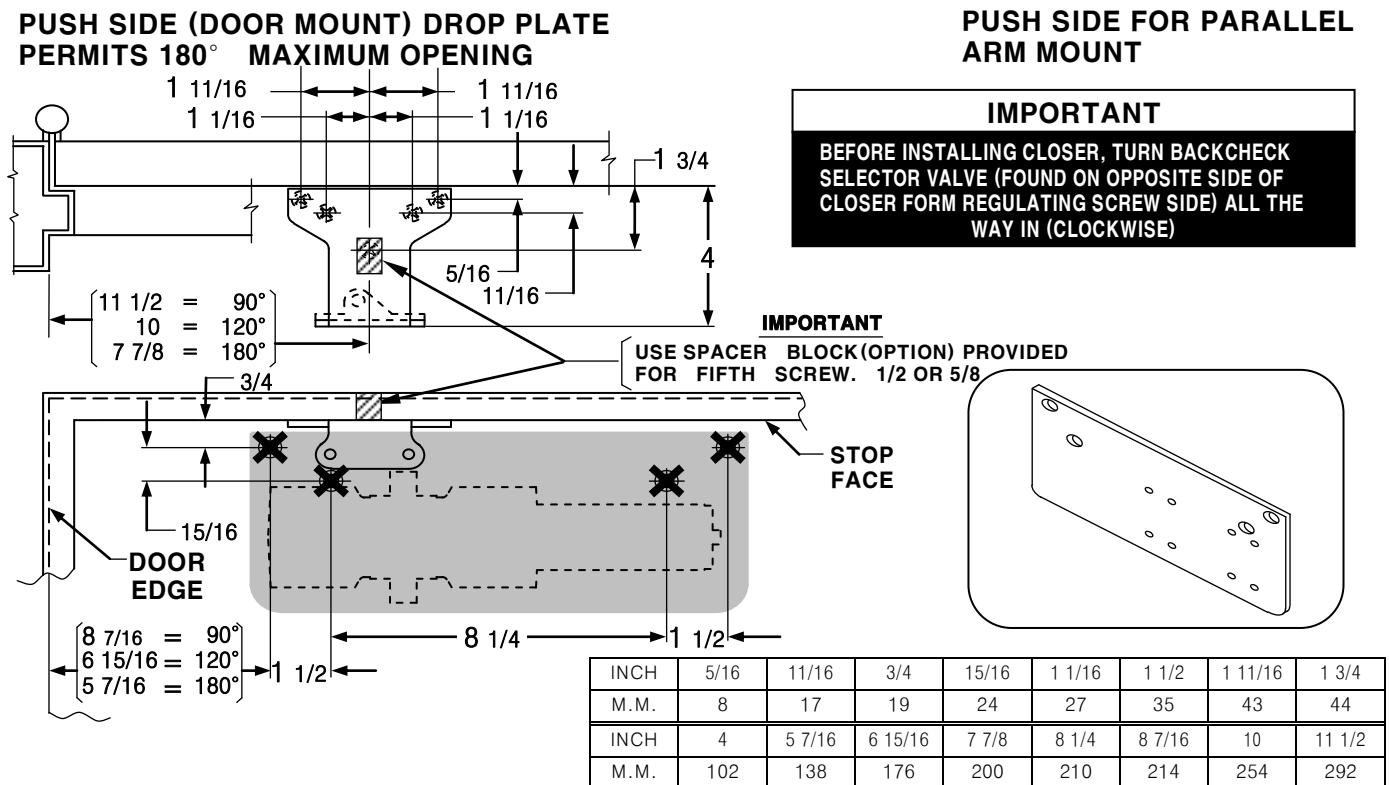

LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.

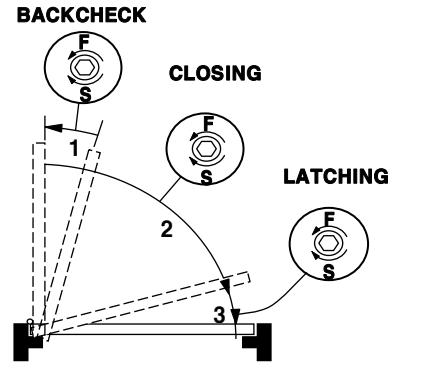

| PLEASE NOTE | |||
|---|---|---|---|
| TURNS REQUIRED ARE APPROXIMATE | |||
| BECAUSE OF VARIOUS DOOR CONDITIONS | |||
| AND LOCATIONS. YOU MAY HAVE TO | |||
| FURTHER ADJUST SPRING TENSION TO | |||
| MAXIMUM DO | TURNS | |
|---|---|---|
|
EXTERIOR
DOORS |
INTERIOR
DOORS |
REQUIRED |
| 5 lb−f | 6 TURNS C.C.W. | |
| 8.5 lb-f | 34" (864) | 3 TURNS C.C.W. |
| 30 ″ (762) | 38" (962) | PRESET |
| 36″ (914) | 48 ″ (1219) | 3 TURNS C.W. |
| 42″ (1067) | 54 ″ (1372) | 7 TURNS C.W. |
| 48 ″ (1219) | 60 ″ (1524) | 12 TURNS C.W. |
