Installation Instructions

80-9344-0705-010 (7-01)

Combination Door Closer-Holder and Releasing Device <u>WITH</u> Integral Smoke Detector

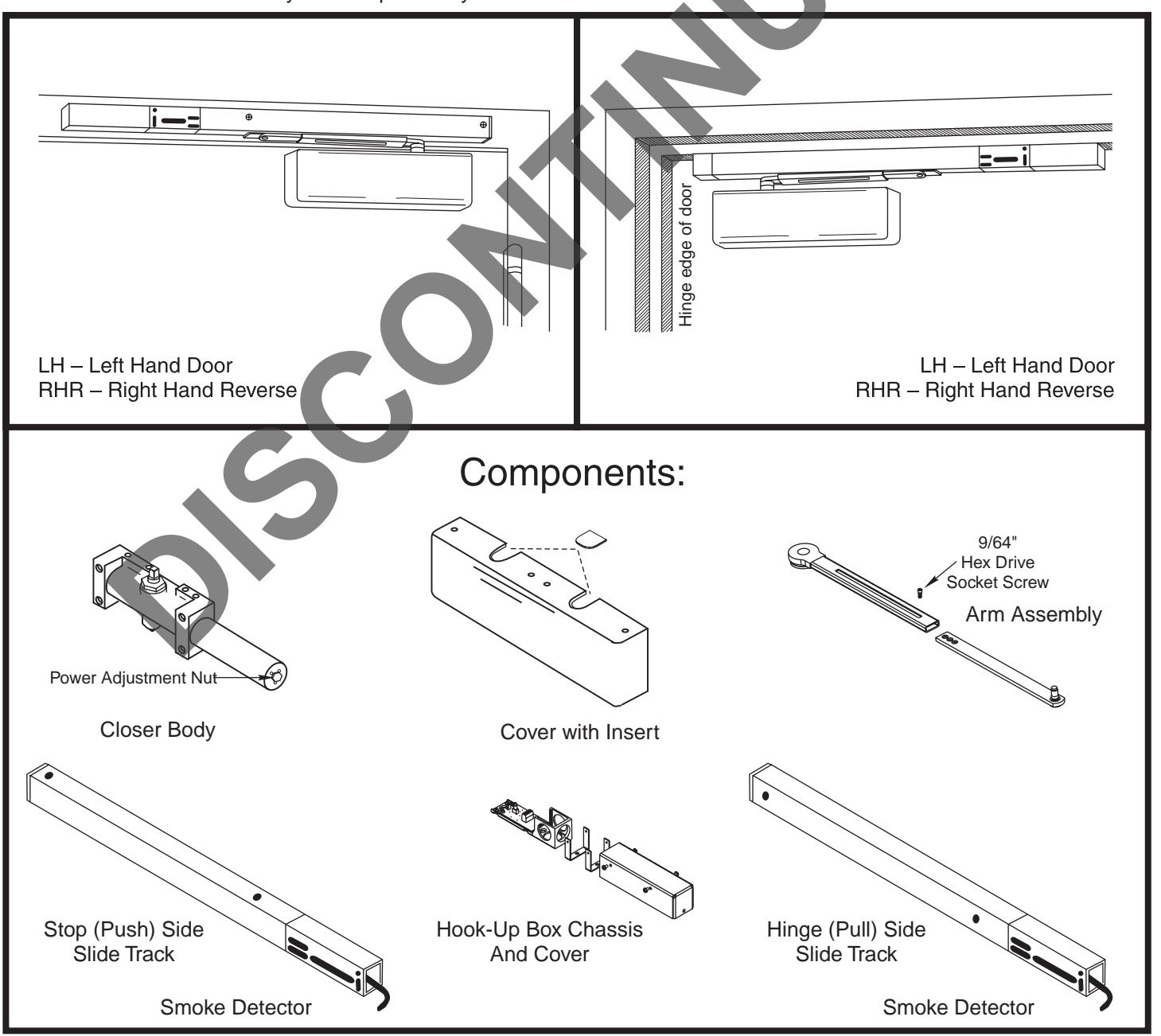

Power Track Series Master Unit – PTD

Models

Hinge (Pull) Side of Stop (Push) Side of Door Application Door Application

400 PTD

P400 PTD

NOTE: For wiring see "Power Track" "Wiring Instructions" No. 80-9342-0900-021

CAUTION

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

• Use of an auxiliary door stop is always recommended.

Fasteners	Opening	Fastener Preparation
8-32 Machine Screw	Metal Frame	Drill: #29 [.136" (3.45mm) dia.] 8-32 UNC Tap
1/4-20 Machine Screw	Metal Door or Frame	Drill: #7 [.201" (5.10mm) dia.] 1/4"-20 UNC Tap
3/8 Dia. Sex Nut	Wood or Composite Door	3/8" [.375" (9.50mm) dia.] through

• 1. Locate and drill 1-1/8" (29mm) diameter hole in frame face for the conduit.

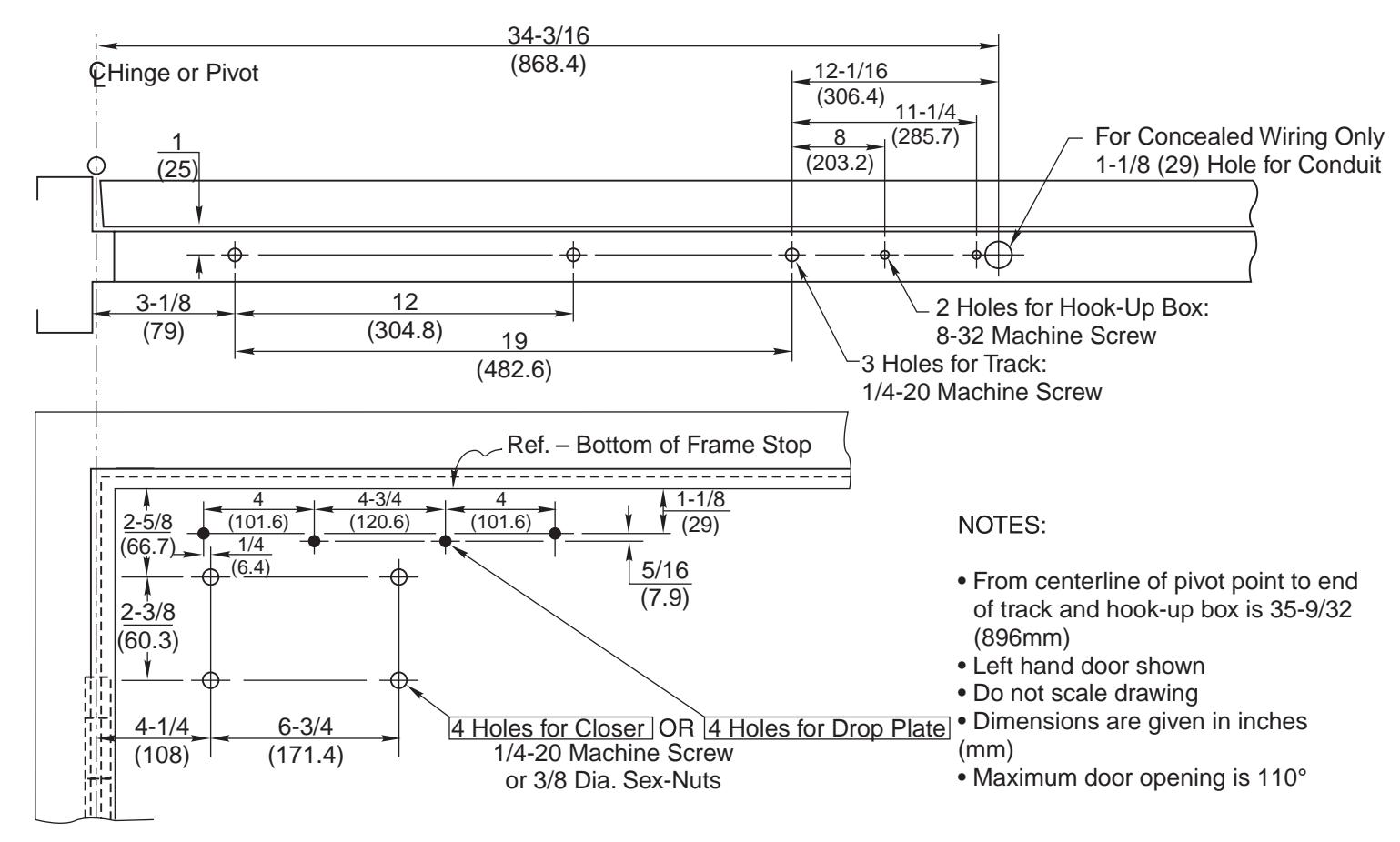

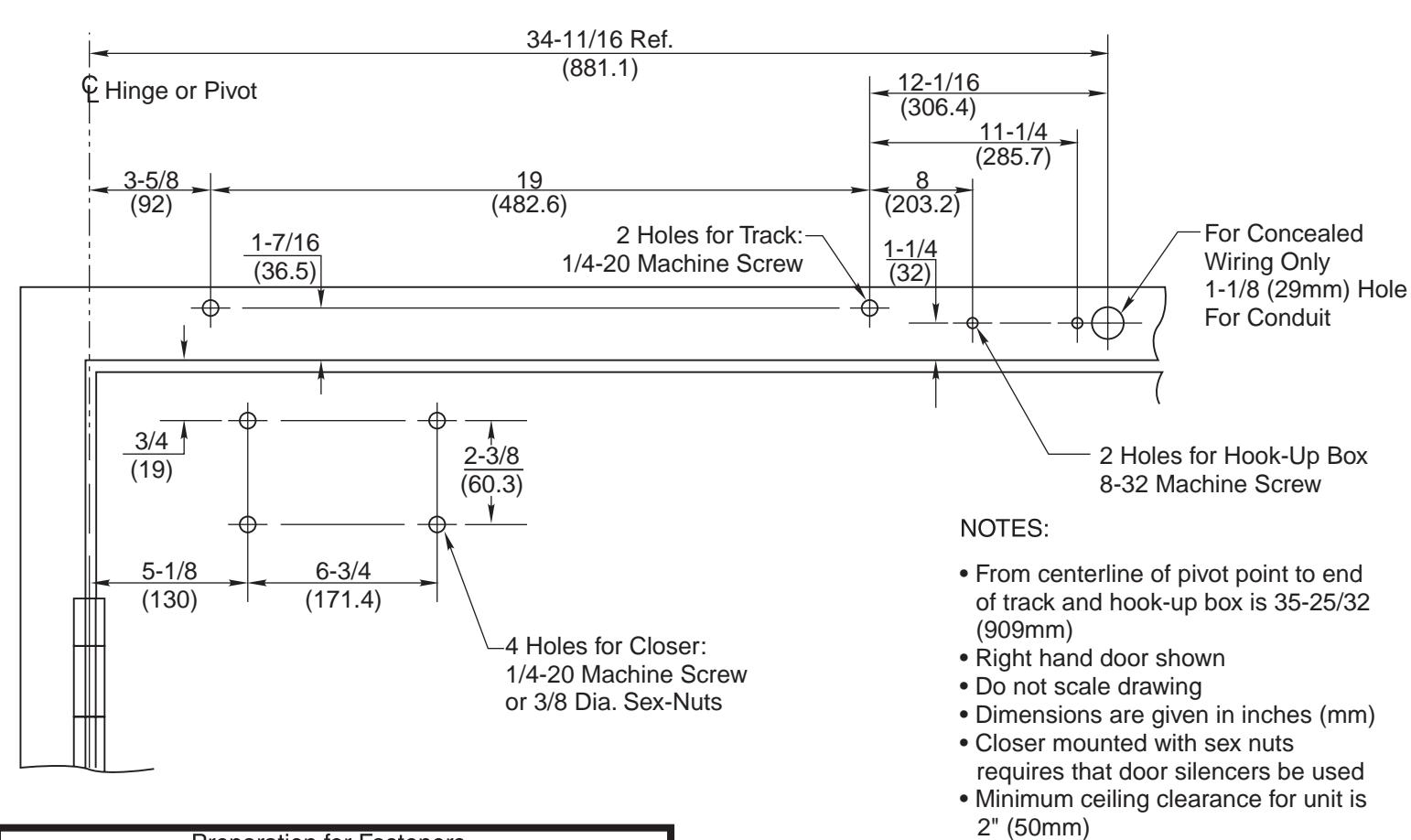

• 2. using above template:

holes for

holes for . holes for

• 3. using "Preparation for Fasteners" chart above.
• 4. with smoke detector toward lock edge of frame and open side facing down.
• 5. from hook-up box assy. Units with a 120V to 24V transformer require that hook-up board be removed from chassis to enable mounting.
• 6. with conduit hole openings away from hinge edge of frame. Place Hook-Up Box straps between frame and chassis. Special conduit nut supplied to anchor 3/4" conduit fitting.

• 7. ith spring adjustment nut toward lock edge of door and closer valves Facing for door Facing for door. w
• 8. and install 9/64" hex drive socket head screw from screw pack.

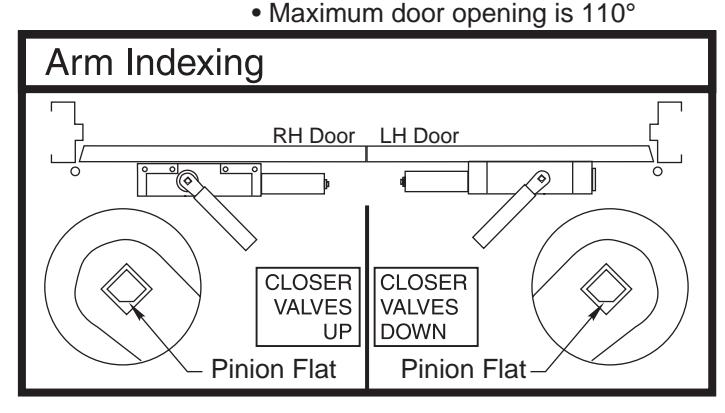

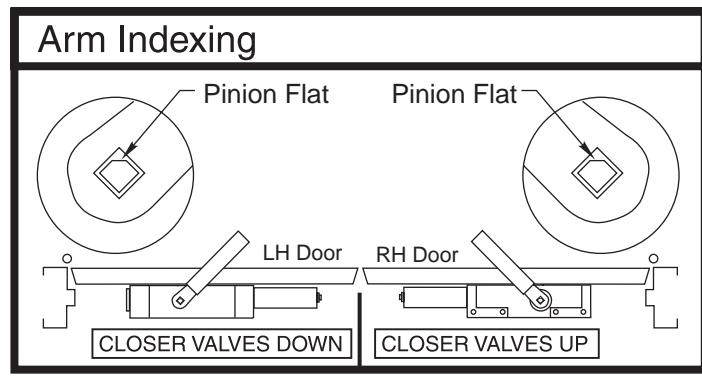

• 9. using Arm Indexing instructions above.
• 10.

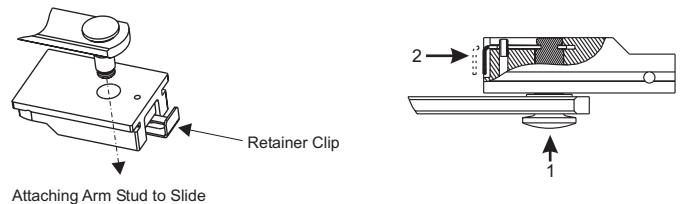

• 11. in track assembly. Secure by pushing in on the retainer clip that extends from the slide block in the track, until it is flush with the slide block.

Page 2 80-9344-0705-010 (7-01)

Fasteners	Opening	Fastener Preparation
8-32 Machine Screw	Metal Frame	Drill: #29 [.136" (3.45mm) dia.] 8-32 UNC Tap
1/4-20 Machine Screw	Metal Door or Frame	Drill: #7 [.201" (5.10mm) dia.] 1/4"-20 UNC Tap
3/8 Dia. Sex Nut	Wood or Composite Door	3/8" [.375" (9.50mm) dia.] through

• 1. Locate and drill 1-1/8" (29mm) diameter hole in frame soffit for the conduit.
• 2. using above template:

holes for or holes for . holes for

• 3. using "Preparation for Fasteners" chart above.
• 4. with smoke detector toward lock edge of frame and open side facing down.
• 5. from hook-up box assy. Units with a 120V to 24V transformer require that hook-up board be removed from chassis to enable mounting.
• 6. with conduit hole openings away from hinge edge of frame. Place Hook-Up Box straps between frame and chassis. Special conduit nut supplied to anchor 3/4" conduit fitting.

7. ith spring adjustment nut toward lock edge of door and closer valves: w

Facing for door Facing for door

• 8. and install 9/64" hex drive socket head screw from screw pack.
• 9. using Arm Indexing instructions above.
• 10.

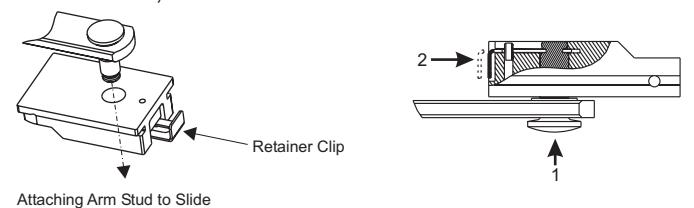

• 11. in track assembly. Secure by pushing in on the retainer clip that extends from the slide block in the track, until it is flush with the slide block.

80-9344-0705-010 (7-01) Page 3

DOOR CLOSER ADJUSTMENTS

Arm Attachment to Track

Insert arm stud into slide block in track.

Secure by pushing in on the retainer clip that extends from the slide block, until it is flush with the slide block, see illustration on page 2 of these instructions.

Hold Open Angle:

Place door in the Hold Open position. Remove 9/64" hex drive socket head screw from arm. Open door to desired angle and install hex-drive socket head screw into hole in adjusting rod that is aligned with the hole in the adjusting tube.

Closing Power

Closing Power can be increased by 50%.

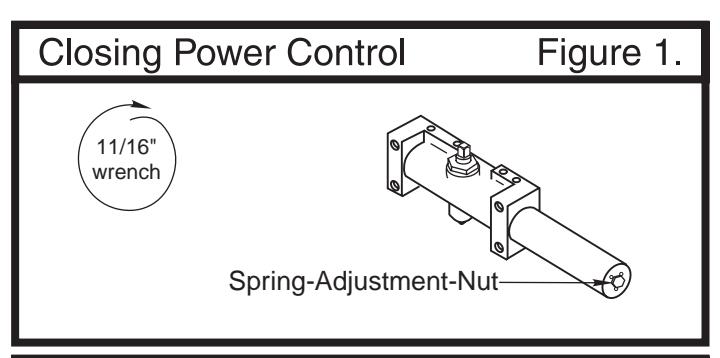

To increase power, see Figure 1, rotate "Spring Adjustment Nut clockwise using a 11/16" wrench or socket. 15 full turns (360°) will provide maximum available power.

Closing Cycle (hydraulic control)

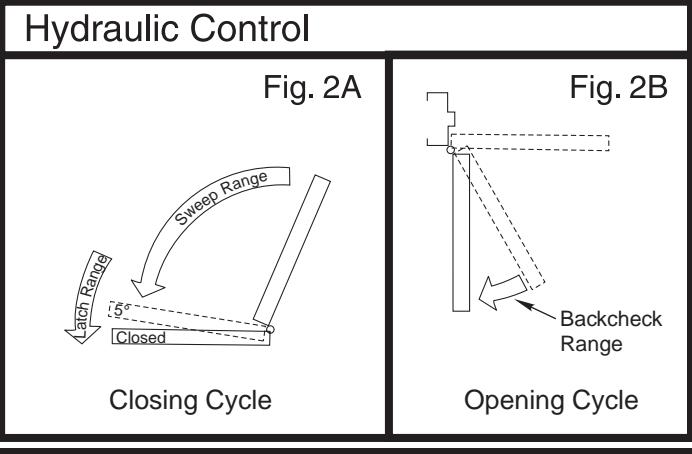

See figure 2A.

Valve "L" controls door speed in Latch range.

Valve "S" controls door speed in Sweep range.

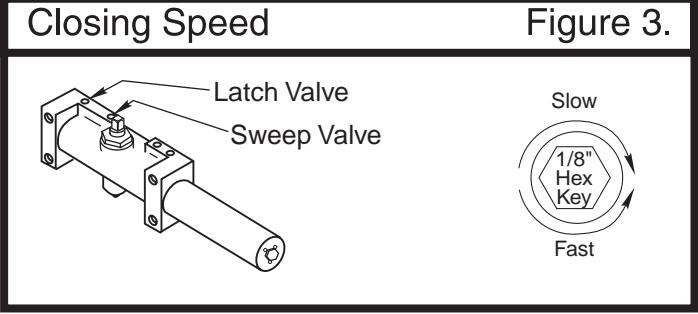

Use 1/8" hex-key furnished and adjust as shown in figure 3

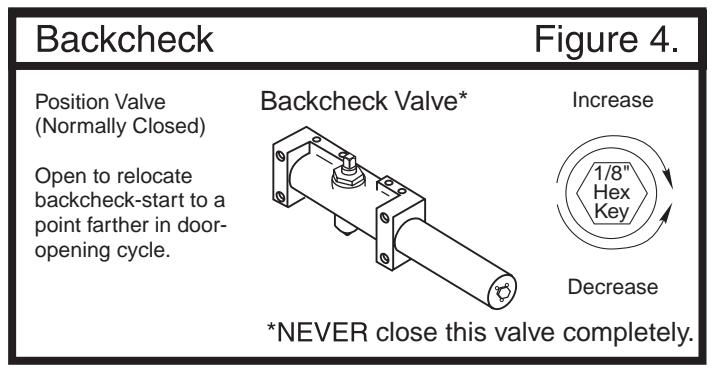

Opening Cycle (hydraulic control)

See figure 2B.

Valve "B" cushions (slows) door opening in the backcheck range.

Note: Never close this valve completely or damage to closer may occur.

Valve "P" allows "backcheck" to begin later in the opening cycle.

Use 1/8" hex-key furnished and adjust as shown in figure 4

Installation of Cover:

Fasten cover to closer with two screws provided:

• Molded Cover fastened at the top of closer.
• Metal Cover fastened at each end of closer.

Using four screws provided, fasten metal hook-up box cover.

Hold Open Power Adjustment:

If more hold open power is required, the power may be increased by turning the adjustment screw in the end of the track nearest the hinges. Use 9/64" hex wrench provided and rotate adjustment screw clockwise to increase holding power.

MAKE ELECTRICAL CONNECTIONS

Refer to "Power Track" "Wiring Instructions"

No. 80-9342-0900-021 for making wiring connections.

IMPORTANT!

After making all wiring connections:

• Turn power to unit "on". Green LED should be illuminated.
• Open door to the hold open position. Manually pull door out of hold open and release ... door should close.
• Again, open door to the hold open position. Depress "Test Switch" button on the hook-up board ... door should close.
