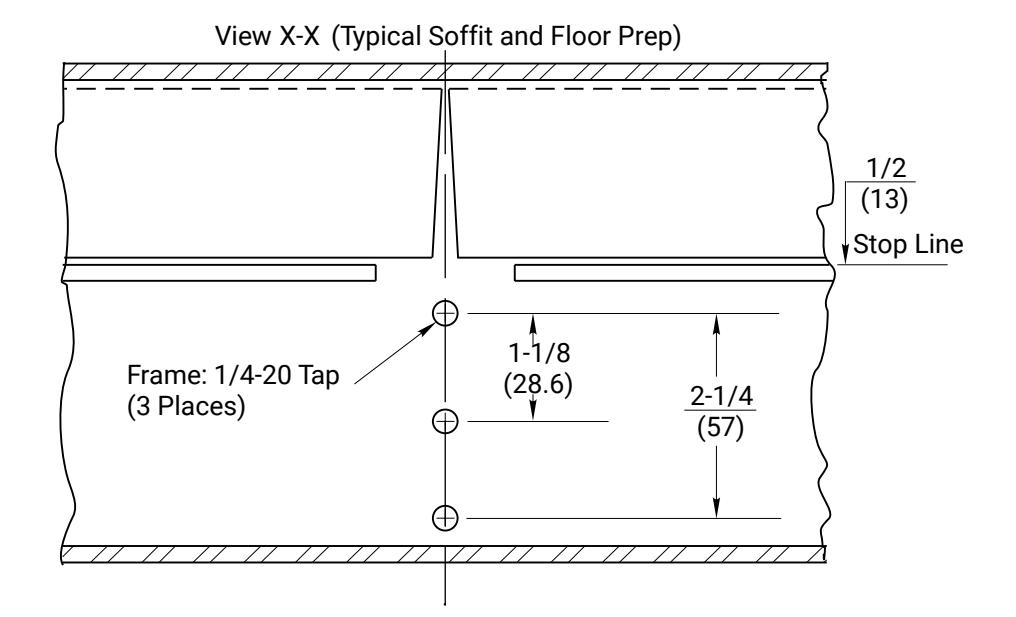

ASSA ABLOY ACCENTRA M300 Narrow Stile Mullion for 6200 and 7200 Series Frame Template-7400-0300

Notes:

• 1. Do not scale drawing. Dimensions are in inches(mm).
• 2. M300 Mullion is made from 1-1/4 x 3 (31.8 x 76.2) aluminum extrusion.
• 3. Mullion has built-in strike for 7200 exit devices. Locate device from mullion face as shown on template 7472-0300, at installation.
• 4. Prepare mounting holes when installing the mullion.
• 5. Doors and frames should provide solid engagement to not less than (3) full screw threads.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

M300 Mullion Frame Preparation

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

SHEET 1 of 1

SUPERSEDES DO NOT SCALE DRAWING 7400-0300 02/24

7400-0300 TEMPLATE NUMBER

DATE 04/24
