Yale® KeyMark® Protected Keyway Cylinders

Table of Contents

Contents

Overview	3
Keys	4
System Specifications	5
Finishes	6
Cylinder Types7-14
Collars 15
Accessories 16
Construction Core Program 17

Yale® Keymark®

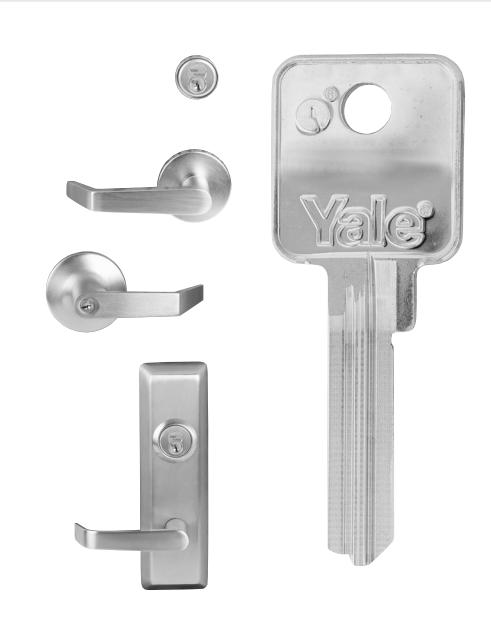

Yale® KeyMark® is a protected keyway line of cylinders. Cylinders include mortise, rim, key-in-lever, key-in-knob, auxiliary, and interchangeable core. Interchangeable core is available in both large and small format. All formats can be tied into one master key system!

Overview

Features	Benefits
• Unique Yale KeyMark Security Leg® keyway angle	• Will not interchange with KeyMark by Medeco
• Protected key control through the Security Leg keyway	• Provides increased resistance against picking and impressioning
• Convenient, simple to service	• No extra internal moving parts such as side bars
• Available in 6- and 7-pin cylinders	• Can easily retrofit into existing systems
• Able to master key SFIC, LFIC and fixed core cylinders to the same keying system	• One key can operate small format IC, as well as large format IC, and fixed core cylinders
• Uses common style pins	• No angle tip or interlocking pins which result in loss of keying capacity
• Different keying specifications from conventional Yale systems	• Increased master keying capacity over conventional Yale keying systems
• New keyways	• Will not interchange with current Yale or KeyMark by Medeco key systems, resulting in increased protection for the owner

Protected

Yale KeyMark keyways are considered as 'protected' by Yale and special procedures are in place to ensure their integrity.

See page 4 for more information.

Applications

Especially recommended for installations requiring protected key control protection. Ideally suited for Educational and Healthcare facilities, Industrial, and Commercial buildings.

Product Specifications Certifications

All cylinders to have an angled keyway that accepts a keyblank that is constructed with the same angle. All cylinders shall be available in any of the mortise, rim, cylindrical or interchangeable core types. All cylinder components (excluding tumbler pins and fasteners) shall be constructed of the same material; this material shall be extruded brass. All cylinders shall be capable of utilizing the same key sections and the same key cutting depth and space specification without any loss of keying capacity. Cylinders shall contain standard pins, a portion of which, both bottom and top, shall be spooled for greater resistance against picking.

ANSI/BHMA A156.5 Grade 1 E09211 (Mortise) E09221 (Rim) E09231 (Bored Lock Cylinders)

Security Leg®

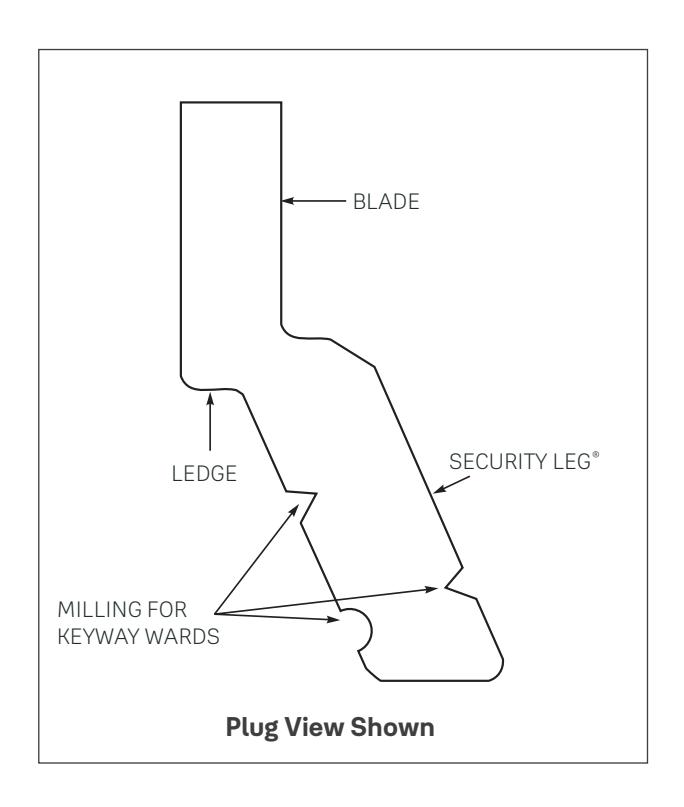

The Yale® KeyMark® keyway has three distinct components: an upper portion or blade, a middle ledge, and a unique, lower angled portion or leg which exits the plug at an angle.

The Security Leg® keyway offers these advantages:

• 1. Keyway differentiation by angle
• 2. Increased picking resistance
• 3. Prevents other manufacturers' or other angle users' keys from entering the cylinder
• 4. A unique and strong protected key with true key control
• 5. A key blank of added thickness for extra strength and durability
• 6. Prevents duplication of keys on standard key machines

Key Warranty

Yale KeyMark keys are covered by a lifetime warranty against breakage under normal usage conditions. Refer to the current Yale pricebook for additional warranty information.

Keys And Key Stamping

	KeyBlank Descriptions
Bow Style	Material	Number	Used For	Keyway
		11	6-pin Master/Change Keys 6-pin SFIC Control Keys	Keyway designations
K	N (Nickel		7-pin Master/Change Keys 7-pin SFIC Control Keys	not printed for security reasons.
	Silver)	117C	6-pin LFIC Control Keys	Refer to system bitting
		118C	7-pin LFIC Control Keys	list for correct keyway.
		91C	6-pin Schlage® Control Keys

How to Order Example

Qty.	Description	Keyway
100	KN11	XX

All keys will come standard with keybow and stampings as shown. Control keys for LFIC will be furnished with a larger keybow.

Stamping Backside Stamping Options

• Keyset (VKC1) standard unless otherwise indicated
• System registry number will be stamped on upper-level keys unless otherwise indicated
• Concealed key control (CKC2 only) available on cylinders
• Visual key control (VKC2 and VKC3) not available on cylinders

System Specifications

Keyways

Keyway Administration and Assignment

For security purposes, the keyway hierarchies and profiles are not printed. All keyways will be noted on the master key system bitting list.

Yale® Key Systems Administration will assign all Yale® KeyMark® keyways. Keyways will be assigned according to facility type, geographic location, and keying system specifications. All keys will direct ship to the end user. All master key systems will be registered with Key Systems Administration.

System Administration & Key Control

Key control will be maintained through compliance with the Yale Security Policy: for a copy contact Key Systems Administration or visit our website at www.yalecommercial.com. System information and/ or systems related product will be forwarded directly to the owner, unless otherwise indicated by the owner's appointed administrator.

Primary Systems Administrators

All Yale KeyMark master key systems must have a signed Notice of Acceptance for the Facility on file with Key Systems Administration. The Notice of Acceptance designates the primary systems administrator of the facility. Unless otherwise indicated by the primary systems administrator by way of a separate specific letter of authorization, all shipments for Yale KeyMark product will go to the shipping address as per the Notice of Acceptance.

All keyblanks to be maintained in the possession of the facility must be accounted for. Any defective, incorrectly cut or damaged key blank must be retained in the facility's possession to be returned to Yale on a quarterly basis.

Keying Specifications

6- or 7-pin with two nickel silver change keys per cylinder. Yale KeyMark cylinders may be furnished uncombinated, master keyed, or grandmaster keyed to a specific facility. Keyed random or 0-bitted cylinders are not available. For uncombinated, specify UC. UC are furnished less pins, springs, pin covers and keys.

System Specifications

Yale KeyMark uses the A2 pinning specification for all types of cylinders. To ensure the security and integrity of each master key system, the following guidelines should be followed:

• Master key systems are independent and cannot be keyed into existing and/or conventional Yale master key systems.
• Master key systems are not to exceed five levels of keying.
• Proper keying nomenclature must be used for all systems.
• Cross keying is not available.
• Construction master keying is not available. See page 17 for construction core program.
• Selective master keys are not recommended. If required, they must be established at the inception of the keying system.

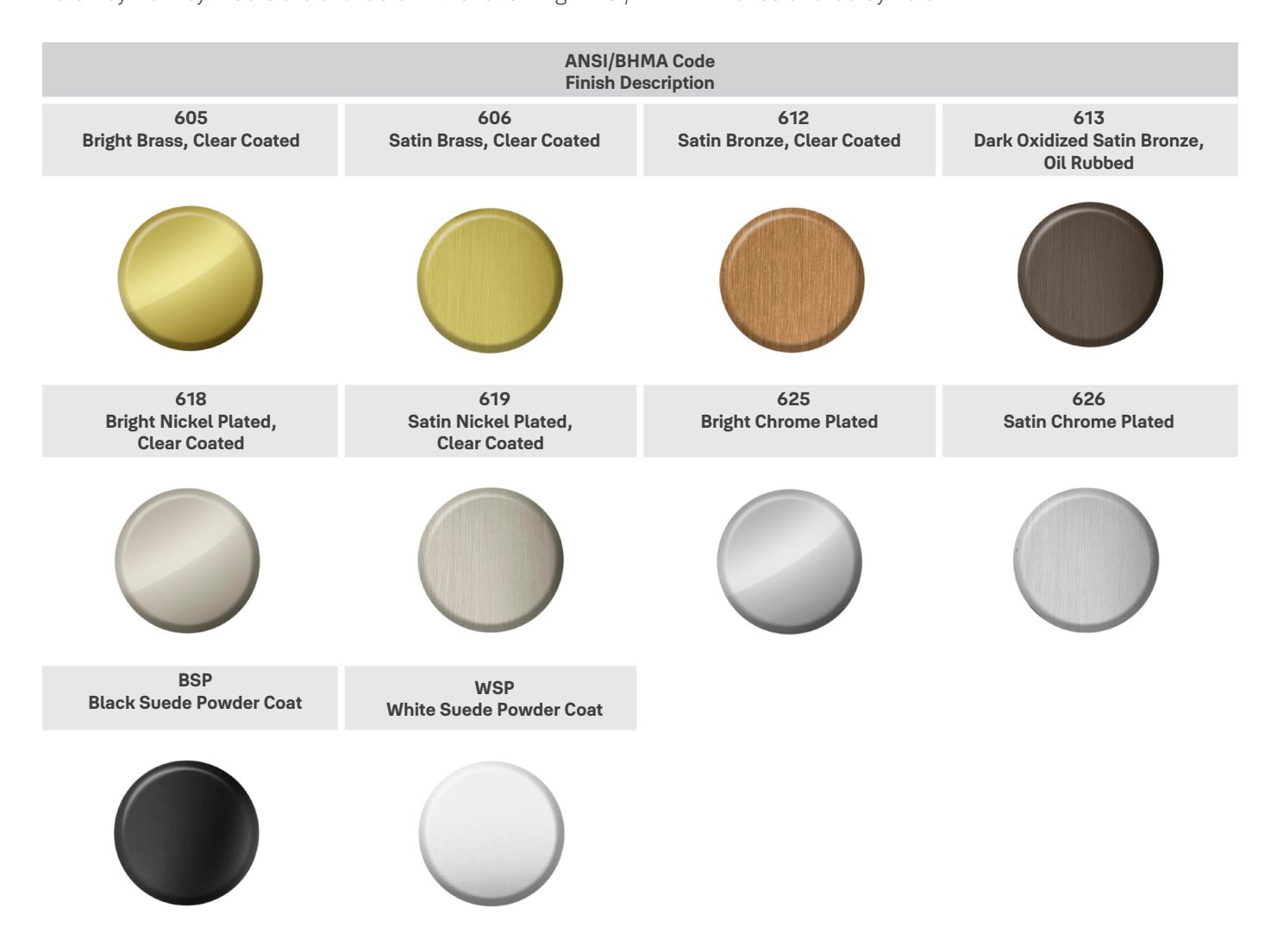

Finishes

Yale KeyMark cylinders are available in the following ANSI/BHMA finishes offered by Yale.

Plugs are provided in 606, 626 or BSP.

Cylinder Finish	Plug Finish
605, 606, 612, 613	606
618, 619, 625, 626, WSP	626
BSP	BSP

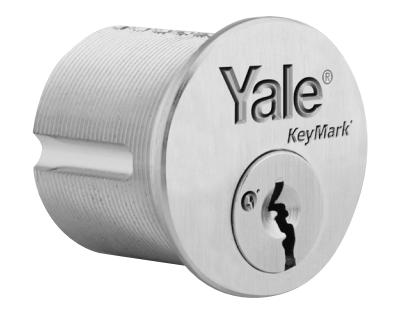

Mortise Cylinders

Fixed Core

For use with mortise and auxiliary locksets.

Cylinder	Length	Pins	Cam
K100	1-1/8" 1-1/4" 1-1/2" 1-3/4" 2"	6 or 7	KC1 (For cam options, see page 16.)
		All cylinders are drilled for 7-pins. Length must be specified.

Mortise Fixed Core (FC)

How To Order Examples

Mortise Cylinder Ordered Separately
Quantity	Cylinder	Length	Pins	Keyway	Cam	Keyset	Finish
50	K100	1-1/4" 6 XX KC1 AA1 626
				Collar not furnished with cylinder ordered separately.

Mortise Lockset with a Yale® KeyMark® Cylinder
Quantity	Trim	Lock	Cylinder	Pins	Keyway	Keyset	Hand	Thickness	Finish
50	AUR 8805FL K100 6 XX AA1 RHR 1-3/4" 626
	Collar - 1765 furnished standard when ordered with lockset.

For Collar applications, see page 15.

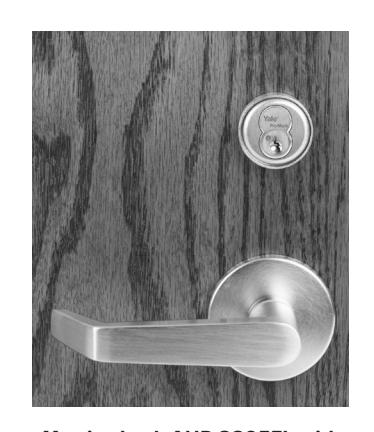

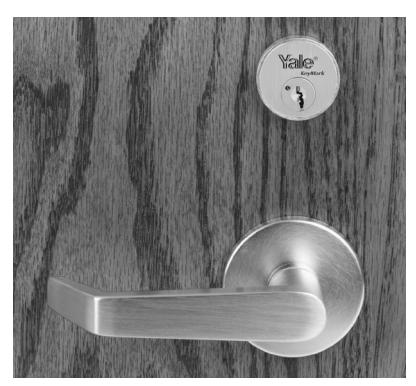

Mortise Lock AUR 8805FL with K100 Cylinder

Exceptions: Yale® KeyMark® cylinders are not available for the following: 8820, 8820FL, 8827, 8827FL, 8832, 8832FL.

Rim Cylinders

Fixed Core

For use with exit devices and auxiliary locking devices.

Cylinder	Length	Pins	Tailpiece
K300	1-1/8"	6 or 7	KT1 Horizontal Break-off *

^* For vertical application change orientation of tailpiece. All cylinders are drilled for 7-pins.

Rim Fixed Core (FC)

How To Order Examples

Rim Cylinder Ordered Separately
Quantity	Cylinder	Pins	Tailpiece	Keyset	Finish
50	K300	6	XX	KT1	AA1	626
	Collar not furnished with cylinder ordered separately.

Exit Device with a Yale® KeyMark® Cylinder
Quantity	Device	Trim	Cylinder	Pins	Keyway	Keyset	Hand	Finish
50	7150	626F	K300	6	XX	AA1	RHR	626
	For Collar applications, see page 15.

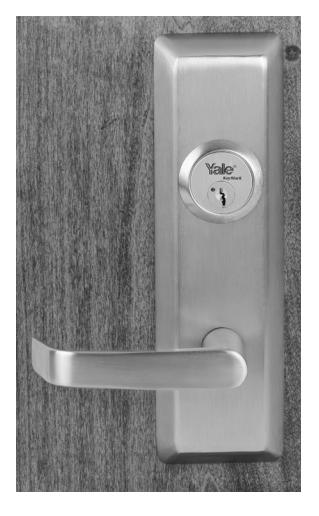

Heavy-Duty Exit Device Trim 626F with K300 Cylinder and KP4 Collar

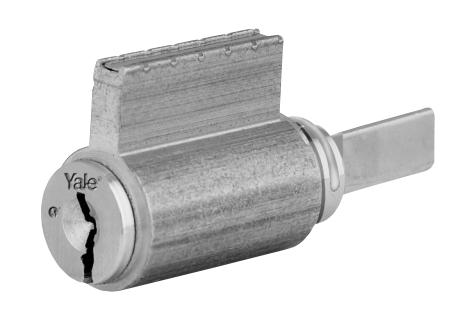

Key-In-Knob and Key-In-Lever Cylinders

Fixed Core Component and Interchangeable Core

For use with lever and knob series locksets.

Cylinder	Trim Type		Pins	Tailpiece*
		6	7
K400	Knob, Yale® 5300, 5400 Series	X	NA**	Na
K402	Lever, Yale 4700LN, 5300LN	X	NA	KT2
		X		KT2
K402	Lever, Yale 5400LN, 6400LN Series		X	KT7
K403-46K	Knob, Yale 4600YC	X		17-1803-1006 (1.106")
	Corbin Russwin CLX3300 (YC) & SARGENT 10X Line (YC-) series
K403-46L	cylindrical locks, mechanical functions, 1-3/8" – 2" doors.	X		17-1803-1006 (1.106")
	Corbin Russwin CLX3300 (YC) & SARGENT 10X Line (YC-) series
K403-46LL	cylindrical locks, mechanical functions, 2-1/4" doors.	X		17-1803-1008 (1.330")
	Corbin Russwin CLX3300 (YC7) & SARGENT 10X Line (YC-7P-)
K403A-46L	series cylindrical locks, mechanical functions, 1-3/8" – 2" doors.		X	17-1803-1007 (.950")
	Corbin Russwin CLX3300 (YC7) & SARGENT 10X Line (YC-7P-)
K403A-46LL	series cylindrical locks, mechanical functions, 2-1/4" doors.		X	17-1803-1009 (1.174")
	Corbin Russwin CLX3300 (YC) & SARGENT 10X Line (YC-) series
K403-46E	cylindrical locks, electrified functions, 1-3/8" – 2" doors.	X		17-1803-1015 (.945")
	Corbin Russwin CLX3300 (YC) & SARGENT 10X Line (YC-) series
K403-46LE	cylindrical locks, electrified functions, 2-1/4" doors.	X		17-1803-1017 (1.108")
	Corbin Russwin CLX3300 (YC7) & SARGENT 10x Line (YC-7P-)
K403A-46E	series cylindrical locks, electrified functions, 1-3/8" – 2" doors.		X	17-1803-1016 (.789")
	Corbin Russwin CLX3300 (YC7) & SARGENT 10X Line (YC-7P-)
K403A-46LE	series cylindrical locks, electrified functions, 2-1/4" doors.		X	17-1803-1018 (.952")
K403-47L	Lever, Yale 4700LN, 5400LN, 440F	X		17-1803-1012 (1.930")
K403-53L	Lever, Yale NexTouch®	X		17-1803-1011 (1.700")
	Lever, Yale 4600LN, 4800LN, Corbin Russwin CL3100, SARGENT 11
K403-54L	Line	X		17-1803-1005 (.692")
	Lever, Corbin Russwin CL3100,
K403A-54L	SARGENT 11 Line		X	17-1803-1007 (.536")
K403-54K	Knob/Lever, Yale 5400CK, YH Collection	X		17-1803-1005 (.692")
	Knob/Lever, Yale 4300, 4300LN,
K404	4800LN Series	X	NA	KT3
K490	Lever, Schlage® A, D & ND Series	X	NA	KT5

Key-in-knob (KIK), Key-in-lever (KIL) Fixed Core (FC)

KIK and KIL cylinders available in 606, 626, and BSP finishes only.

How To Order Examples

	Component Cylinder Ordered Separately
Quantity Cylinder Pins Keyway Keyset Finish
50	K400	6	XX	AA1	626

Cylindrical Lock with a Yale® KeyMark® Fixed Core Cylinder or IC
Quantity	Trim	Lock	Cylinder	Pins	Keyway	Keyset	Finish
50	AU	5407LN	K402 (Fixed Core) or *K600 (Small Format IC) - see page 11, or *K800 (Large Format IC) - see page 10.	6	XX	AA1	626

How To Order With Construction Temporary Cores

(See Page 17 For Construction Core Program)

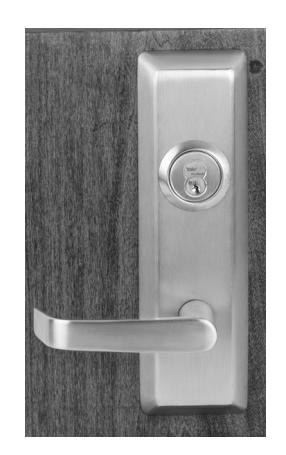

Heavy-duty Cylindrical Lock AU5407LN with K800 Core

	Cylindrical Lock with a Temporary LFIC
Quantity	Trim Lock Cylinder Key Code Hand Finish
50	AU	RHR	626
For permanent core ordered separately, see "Core Only" on page 10.

Cylindrical Lock with a Temporary, Lockable SFIC
Quantity Trim Lock Cylinder Key Code Hand Finish
50 B-AU 5407LN K926 CT6SL RHR 626
For permanent core ordered separately, see "Core Only" on page 11.

^* Length varies by function and application. For tailpiece options, see page 16. **7-Pin available only for CA design with 5300 and for CA and BR designs with 5400.

Large Format Mortise

				Pins		Cam
Complete Cylinder	Core	Housing	Length	6	7
			1-1/2"	X
			1-11/16"		X
K820	Included	Included	1-3/4"	X
			2"	X	X	KC1
	K800			X	X	(For cam
			1-1/2"	X		options,
			1-11/16"		X	see page 16.)
		K860	1-3/4"	X
			2"	X	X
Schlage® LFIC	K890			X	NA

For use with mortise and auxiliary locksets.

Complete Mortise Cylinder (LFIC)

Cylinder Finish	Shell/Plug Finish
605, 606, 611, 612, 613E	606
618, 619, 625, 626, 629, 630, WSP	626
BSP	BSP

LFIC Mortise housings supplied in finish specified

How To Order Examples

	Mortise Cylinder Ordered Separately
	Quantity	Cylinder	Length	Pins	Keyway	Cam	Keyset	Finish
Complete Cylinder	50	K820	1-1/2"	6	XX	KC1	AA1	626
Housing Only	50	K860	1-1/2"	6		KC1		626
Core Only	50	K800		6	XX		AA1	626

Collar not furnished with cylinder ordered separately.

Mortise Lockset with a Yale® KeyMark® LFIC Cylinder
Quantity Trim Lock Cylinder Pins Keyset Hand Thickness Finish
50	AUR	8805FL	K820	6	AA1	RHR	1-3/4"	626

Collar - 1765 furnished standard when ordered with lockset. For Collar applications, see page 15.

How To Order With Construction Temporary Cores (See Page 17 For Construction Core Program)

Mortise Lockset with Temporary LFIC
Quantity Trim Lock Cylinder Key Code Hand Thickness Finish
50	AUR	8805FL	K825	CT6LL	RHR	1-3/4"	626

For permanent core ordered separately, see "Core Only" above.

Mortise Cylinder Separately with Temporary LFIC
Quantity Cylinder Length Cam Key Code Finish
50 K825 1-1/2" KC1 CT6LL 626

For permanent core ordered separately, see "Core Only" above.

Large Format Interchangeable Core (LFIC)

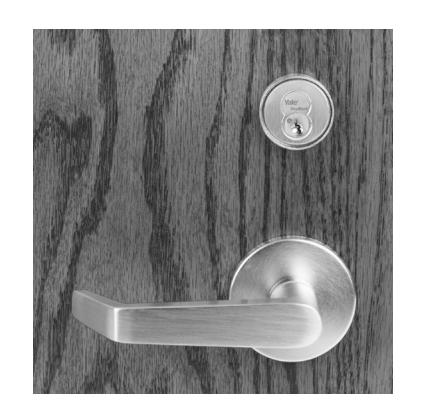

Mortise Lock AUR 8805FL with K820 Cylinder

Small Format Mortise

Complete	Core	Housing	Length	Pi	ns	Cam
Cylinder	Core	Housing	Length	6	7	Calli
			1-1/4"	X
K620	Included	Included	1-3/8"	X	X
			1-3/4"	X
K630	Included	Included	1-1/4"	X		KC1
Tapered*	included	included	1-3/8"	X	X	(For cam
	K600			X	X	options,
NI T			1-1/4"	X		see page
	Non-Tapered Mortise Housing		1-3/8"	X	X	16.)
Mortise Housing			1-3/4"	X
Tapered Mortise Housing		K670	1-1/4"	X
тарегец Мог	use Housing	NOTO	1-3/8"	X	X

^* Tapered housings (not illustrated) are designed for narrow stile/backset applications, (storefront doors). Recessed collars are not necessary.

Cylinder Finish	Shell/Plug Finish
605, 606, 611, 612, 613E	606
618, 619, 625, 626, 629, 630, WSP, BSP	626

SFIC Mortise housings supplied in finish specified

How To Order Examples

	Mortise Cylinder Ordered Separately
	Quantity	Cylinder	Length	Pins	Keyway	Cam	Keyset	Finish
Complete Cylinder	50	K620	1-1/4"	6	XX	KC1	AA1	626
Housing Only	50	K660	1-1/4"	6		KC1		626
Core Only	50	K600		6	XX		AA1	626

Collar not furnished with cylinder ordered separately.

	Mortise Lockset with a Yale KeyMark SFIC Cylinder
Quantity Trim Lock Cylinder Pins Keyset Hand Thickness Finish
50	AUR	8805FL	K620	6	AA1	RHR	1-3/4"	626

Collar - 1765 furnished standard when ordered with lockset. For Collar applications, see page 15.

How To Order With Construction Temporary Cores (See Page 17 For Construction Core Program)

Mortise Lockset with Temporary, Lockable SFIC
Quantity	Trim	Lock	Cylinder	Key Code	Hand	Thickness	Finish
50	AUR	8805FL	K625	CT6SL	RHR	1-3/4"	626

For permanent core ordered separately, see "Core Only" above.

	Mortise Lockset with Temporary, Disposable SFIC
Quantity	y Trim Lock Cylinder Key Code Hand Thickness Finish
50	AUR	8805FL	K625	CT6SD	RHR	1-3/4"	626

For permanent core ordered separately, see "Core Only" above.

For use with mortise and auxiliary locksets.

Complete Mortise Cylinder (SFIC)

Small Format Interchangeable Core (SFIC)

Mortise AUR 8805FL with K620 Cylinder

Large Format Rim

For use with exit devices and auxiliary locking devices.

Complete	Core	Housing	Length	Pi	Tailpiece
Cylinder	Core			6	7	(TP)
1/0/ 0	la alcoda d	la alvala al	1-7/16"	X		KT1
K840 Included	Included	1-5/8"		X	Horizontal
		1/000	1-7/16"	X		Break-off (For vertical
		K880	1-5/8"		X	application,
	K800			X	X	change
Schlage® LFIC	K890			X	NA	orientation of tailpiece)

Cylinder Finish	Shell/Plug Finish
605, 606, 611, 612, 613E	606
618, 619, 625, 626, 629, 630, WSP	626
BSP	BSP

LFIC Rim housings supplied in finish specified

How To Order Examples

	Rim Cylinder Ordered Separately
	Quantity	Cylinder	Length	Pins	Keyway	TP	Keyset	Finish
Complete Cylinder	50	K840	1-7/16"	6	XX	KT1	AA1	626
Housing Only	50	K880	1-7/16"	6		KT1		626
Core Only	50	K800		6	XX		AA1	626

Collar not furnished with cylinder ordered separately.

Exit Device with a Yale* KeyMark* LFIC Cylinder
Quantity Device Trim Cylinder Pins Keyway Keyset Hand Finish
50 7150 626F K840 6 XX AA1 RHR 626								626

For Collar applications, see page 15.

How To Order With Construction Temporary Cores

(See Page 17 For Construction Core Program)

Exit Device with Temporary LFIC
Quantity Device Trim Cylinder Key Code Hand Finish
50	7150	626F	K845	CT6LL	RHR	626

For permanent core ordered separately, see "Core Only" above.

Rim Cylinder Separately with Temporary LFIC
Quantity	Quantity Cylinder Tailpiece Key Code Finish
50	K845	KT1	CT6LL	626

For permanent core ordered separately, see "Core Only" above.

Complete Rim Cylinder (LFIC)

Tailpiece and Mounting Hardware

Heavy-Duty Exit Device Trim 626F with K840 Cylinder and KP4 Collar

Small Format Rim

Complete	Core	Housing	Length		Pins	Tailpiece (TP)
Cylinder				6	7
			1-1/4"	X		KT1
	K640 Included	Included	1-3/8"	X	X	Horizontal Break-off
			1-1/4"	X		(For vertical application, change
		K680	1-3/8"	X	X	orientation of
	K600			X	X	tailpiece.)

Cylinder Finish	Shell/Plug Finish
605, 606, 611, 612, 613E	606
618, 619, 625, 626, 629, 630, WSP, BSP	626

SFIC Rim housings supplied in finish specified

For use with exit devices and auxiliary locking devices.

Complete Rim Cylinder (SFIC)

How To Order Examples

	Rim Cylinder Ordered Separately
	Quantity	Cylinder	Length	Pins	Keyway	TP	Keyset	Finish
Complete Cylinder	50	K640	1-1/4"	6	XX	KT1	AA1	626
Housing Only	50	K680	1-1/4"	6		KT1		626
Core Only	50	K600		6	XX		AA1	626

Collar not furnished with cylinder ordered separately.

Exit Device with a Yale® KeyMark® SFIC Cylinder
Quantity Device Trim Cylinder Pins Keyway Keyset Hand Finish
50	7150	626F	K640	6	XX	AA1	RHR	626

For Collar applications, see page 15.

How To Order With Construction Temporary Cores (See Page 17 For Construction Core Program)

Exit Device with Temporary, Lockable SFIC
Quantity Device Trim Cylinder Key Code Hand Finish
50	7150	626F	K645	CT6SL	RHR	626

For permanent core ordered separately, see "Core Only" above.

Rim Cylinder Separately with Temporary, Disposable SFIC
Quantity	Cylinder Tailpiece Key Code Finish
50	K645	KT1	CT6SD	626

For permanent core ordered separately, see "Core Only" above.

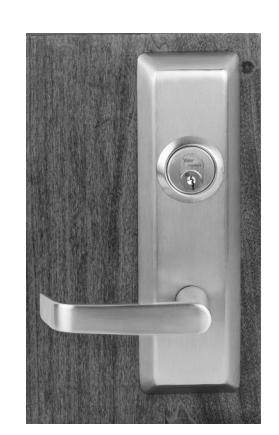

Heavy-Duty Exit Device Trim 626F with K640 Cylinder and KP4 Collar

Auxiliary Locks/Padlocks

Bored Auxiliary Deadlocks

Cylinder		Pins
	Used With	6	7	Tailpiece
K202	Yale 4800LN Series	X	NA	KT8
K290	Schlage® "B"	X	NA	KT6

Note: For D series LFIC, refer to page 10 for K800 information. Deadlock cylinders available in 606, 626, and BSP finishes only.

For use with bored auxiliary deadlocks.

How To Order Examples

	Cylinder Ordered Separately
Quantity Cylinder Pins Keyway Tailpiece Keyset Finish
50	K202	6	XX	KT4	AA1	626

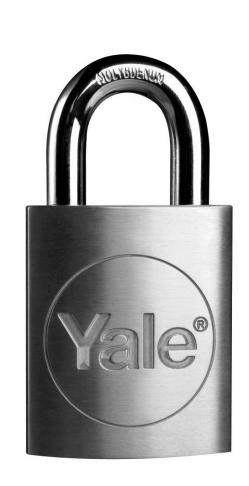

Padlocks

For use with Yale PD500 Series Large or Small Format Interchangeable Core padlocks.

How To Order Examples

Padlock with a Large Format Yale® KeyMark® Core
Quantity Lock Cylinder Pins Keyway Keyset
50	PD524	K800	6	XX	AA1

For How To Order core only, refer to page 10.

Padlock with a Small Format Yale® KeyMark® Core
Quantity Lock Cylinder Pins Keyway Keyset
50	PD515	K600	6	XX	AA1

For How To Order core only, refer to page 11.

Collars

1765 Collar Application Guide For Mortise Lock Standard "Sectional" And All Reflections® Trims

	Cylinder		Door Thickness
Type	Length		2"	2-1/4"	2-1/2"
K100	1-1/8"	.312	.187	.062	*
K100 K620/660	1-1/4"	.375	.281	.125	.062
K620	1-3/8"	.563	.469	.312	.187
K100 K820/860	1-1/2"	.656	.563	.406	.281
K820/860	1-11/16"	.844	.750	.594	.500

^* Indicates cylinder length not sufficient for door/escutcheon thickness; select a longer cylinder.

1765 Solid Recessed

KP3 Wave Washer (Furnished standard with 1765 collar.)

1765 Collar Application Guide For Mortise Lock "Escutcheon" Trim

				Camden			SL or Easton Lenoir		Copenhagen
Cylinder		Door Thickness					Door Thickness		Door Thickness				Door Thickness
Type	Length	1-3/4"	2"	2-1/4"	2-1/2"	1-3/4"	2"	2-1/4"	2-1/2"	1-3/4"	2"	2-1/4"^ 2-1/2"		1-3/4"	2"	2-1/4"	2-1/2"
K100	1-1/8"	NC	*	*	*	.125	KP4	*	*	.187	NC	NC	*	.187	.094	*	*
K100
K620/660	1-1/4"	NC	NC	*	*	.156	.094	*	*	.281	.125	.062	NC	.344	.219	.094	*
K620	1-3/8"	.125	NC^	NC^	*	.375	.250	.156	KP4	.469	.312	.187	.062	.469	.344	.250	KP4
K100
K820/860	1-1/2"	.250	.125	*	NC	.500	.375	.250	.125	.563	.406	.312	.156	.594	.469	.375	.219
K820/860 1-11/16"		.469	.344	.219	.062	.719	.563	.469	.312	.750	.594	.469	.375	.844	.656	.531	.406

^* Indicates cylinder length not sufficient for door/escutcheon thickness, select a longer cylinder. ^Single cylinder only NC=No Collar Required

Collar Application Guide For Exit Device Trim

	Cylinder				Trim
Type	Length	121NL	200	500/510	620/680	630	350/650	660/670
Rim K300	1-1/8"		1765.406	599.544	KP4	1765.250
K640/680	1-1/4"
K640/680	1-3/8"	1765.250	1765.563		1765.187	1765.406
K840/880	1-7/16"		1765.719	599.700	1765.406	1765.500
K840/880	1-5/8"		1765.937	NA	1765.563	1765.719
Mortise/FC K100	1-1/2"						NC	KP4
Mortise/LFIC K820/K860	1-1/2"						NC	KP4
K820/K860	1-11/16"						KP4	1765.375
Mortise/SFIC K620/K660	1-1/4"						NA	NA
K620/K660	1-3/8"						NA	NC
K620/K660	1-3/4"						KP4	1765.375

Collar sizes are based on 1-3/4" door thickness, for sizes other than those shown contact Yale technical support.

Flush Mount

Accessories

Cams*

Number	Reference
KC1†	2160
KC2	2130
KC3	1161/Schlage® straight
KC4	1160
KC5	1161L (AR)
KC6	1161G (KeySwitch)
KC7	Schlage® cloverleaf
KC8	Corbin Russwin cloverleaf (A01)
KC9	Sargent® Straight
KC10	Yale® Affinity®

^† Furnished standard unless otherwise specified.

Cylinder Accessories*
Number	Reference
KP1	Cam Washer
KP2	Screws

^* Note: Yale® KeyMark® cams and cylinder accessories are not interchangeable with other Yale® cylinders.

Tailpieces

Number	Used With	Remarks
KT1	K300/K840	Rim/LFIC Rim
KT2	K402	6-Pin KIL
KT3	K404	KIL
KT4	K200	Auxiliary
KT5	K490	Schlage® KIL Kit
KT6	K290	Schlage® Auxiliary
KT7	K402	7-Pin KIL
KT8	K202	6-Pin Interconnected Lock

Service Tools

Pin Kit

Each pin kit has all the pins necessary to combinate Yale® KeyMark® FC, SFIC and LFIC cylinders.

How To Order

K918

Tools & Fixtures	Number
Key Gauge/Decoder	K915

Construction Core Program

Construction Master Keying

For security reasons, Yale® KeyMark® cylinders are not available construction master keyed. Temporary construction cores are available for both SFIC and LFIC. Temporary cores for SFIC are available with either disposable or locking cores. Temporary cores for LFIC are available with only lockable cores. Please note that temporary cores are not available in competitor formats.

When requesting locksets or cylinders with temporary cores where Yale KeyMark cores will be used for the permanent master key system, the proper ordering procedures must be followed to ensure the issuance of the correct cylinder collars and housings. For all Temporary Construction core orders, both the cylinder and key code designations must be specified. See this page and pages 9-13 for How to Order Examples.

Key Codes	Description
CT6LL	6-pin with large format lockable temporary core
CT6SL	6-pin with small format lockable temporary core
CT6SD	6-pin with small format disposable temporary core
CT7LL	7-pin with large format lockable temporary core
CT7SL	7-pin with small format lockable temporary core
CT7SD	7-pin with small format disposable temporary core

Large Format (LFIC)

Yale's 1210/1220 cores are furnished when the following cylinder designations are used:

Cylinder	Description	Used With
1210	CT6LL	Cylindrical
1220	CT7LL	Cylindrical
K825	Complete Cylinder	Mortise
K845	Complete Cylinder	Rim

All locksets and cylinders ordered with large format interchangeable cores will be provided with keyed alike standard Yale 1210 or 1220 temporary cores. Temporary operating and control keys are required and quantities should be specified. At the completion of the construction phase, these temporary cores can be returned. Refer to the current Yale price book for details. See pages 9-13 for additional examples.

How to Order Example:

Mortise Lockset to be Furnished with Temporary LFIC For the above example, the customer would receive complete mortise locksets with Yale KeyMark K860-1-1/2" housings, 1765.594 collars and 6-pin Yale 1210 keyed alike core. The Yale KeyMark permanent cores, K800, would be ordered separately.

Qty.	Trim	Lock	Cylinder	Key Code	Hand	Thickness	Finish
50	AUR	8805FL	K825	CT6LL	RHR	1-3/4"	626

Small Format (SFIC)

Small format temporary cores can be provided with two options: Disposable or Lockable.

Either disposable or K926 (6-pin lockable) cores are furnished when the following cylinder designations are used:

Cylinder	Description	Used With
K925	6/7-pin Disposable Thumb Turn Only	Cylindrical
K926	6/7-pin Lockable Core Only	Cylindrical
K625	Complete Cylinder	Mortise
K635	Complete Cylinder	Mortise-Tapered
K645	Complete Cylinder	Rim

Option 1: Disposable SFIC (K925)

All locksets and cylinders will be provided with disposable thumbturn type cores. No keys are required. These cores are disposable and cannot be returned. See pages 11 and 13 for additional examples.

How to Order Example:

Mortise Lockset to be Furnished with Temporary, Disposable SFIC For the above example, the customer would receive complete mortise locksets with Yale KeyMark K660 – 1-1/4" housings, 1765.375 collars and disposable thumb-turn cores, K925. The Yale KeyMark permanent cores, K600, would be ordered separately.

Qty.	Trim	Lock	Cylinder	Key Code	Hand	Thickness	Finish
50	AUR	8805FL	K625	CT6SD	RHR	1-3/4"	626

Option 2: Lockable SFIC (K926)

All locksets and cylinders will be provided with keyed alike standard SFIC cores that are unrelated to the permanent master key system. Temporary operating and control keys are required, quantities must be specified. At the completion of the construction phase, these temporary cores can be returned. See pages 11 and 13 for additional examples.

How to Order Example:

Exit Device to be Furnished with Temporary, Lockable SFIC For the above example, the customer would receive complete exit devices and trim with Yale KeyMark K680 housings, KP4 collars and temporary locking SFIC cores, K926. The Yale KeyMark permanent cores, K600, would be ordered separately.

Qty.	Device	Trim	Cylinder	Key Code	Hand	Finish
50	7150	626F	K645	CT6SL	RHR	626

How To Order

Systems requiring SFIC temporary cores must be ordered either completely with disposable, or lockable cores. Locksets and /or cylinder on a particular purchase order may not be mixed with SFIC temporary core types.

Lockable SFIC cores, K926, and disposable SFIC cores, K925, may be purchased separately. Refer to the Yale KeyMark pricing tab for details.

Trusted every day

Phone

1-855-557-5078

Customer Service Email

customerservice.yale@assaabloy.com

Technical Product Support Email

techsupport.yale@assaabloy.com

Order Entry Email

orders.yaleus@assaabloy.com

Fax

1-800-338-0965

Website

www.yalecommercial.com

Contact Us

U.S.A.

Yale Locks & Hardware

Address: 225 Episcopal Road Berlin, CT 06037-4004 Tel: 1-800-438-1951 Fax: 1-800-338-0965 yalecommercial.com

Canada:

ASSA ABLOY Door Security Solutions Canada

Address: 160 Four Valley Drive Vaughan, Ontario L4K 4T9 Tel: 1-800-461-3007 Fax: 1-800-461-8989 assaabloydss.ca

International:

ASSA ABLOY Americas International

Tel: 1-905-821-7775 Fax: 1-905-821-1429 assaabloyai.com

THE YALE BRAND , with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution.

THE ASSA ABLOY GROUP is the world´s leading manufacturer and supplier of locking solutions, dedicated to satisfying end-user needs for security, safety and convenience.

Yale Commercial is a business associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company. Copyright © 2002-2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Part of ASSA ABLOY 42050-10/23
