ASSA ABLOY ACCENTRA KWM200FWS and M200FWS Wide Stile Mullions for 1800, 2100, 6100, and 7100 Series_7400-0210

Notes:

• 1. Do not scale drawing. Dimensions shown in inches(mm).
• 2. Prepare mounting holes when installing the mullion. Use this template for structural frame preparation.
• 3. Metal frames should provide mounts to maintain not less than (3) full screw threadsengaged.
• 4. M200FWS and KRM200FWS mullions are made from 2" x 3" (51 x 76) tubular steel. Locate device from mullion face (strike seat).
• 5. Two flat head 1/4-20 x 1-1/4 machine screws are included with Mullion Spacer Kit (M203 Option) when so ordered.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

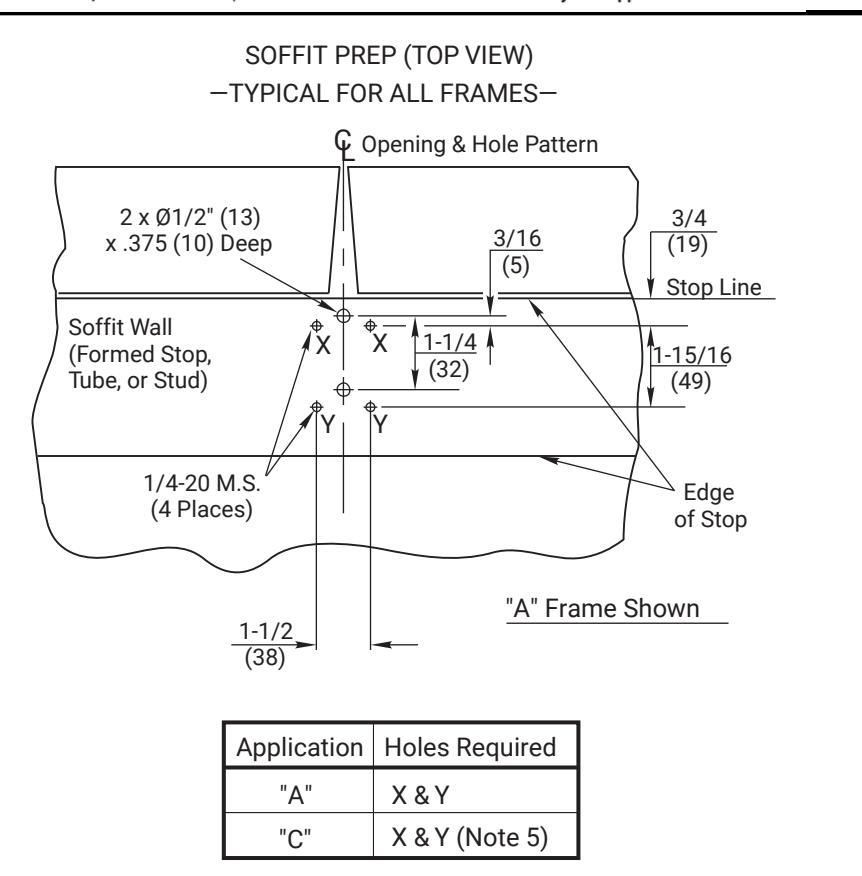

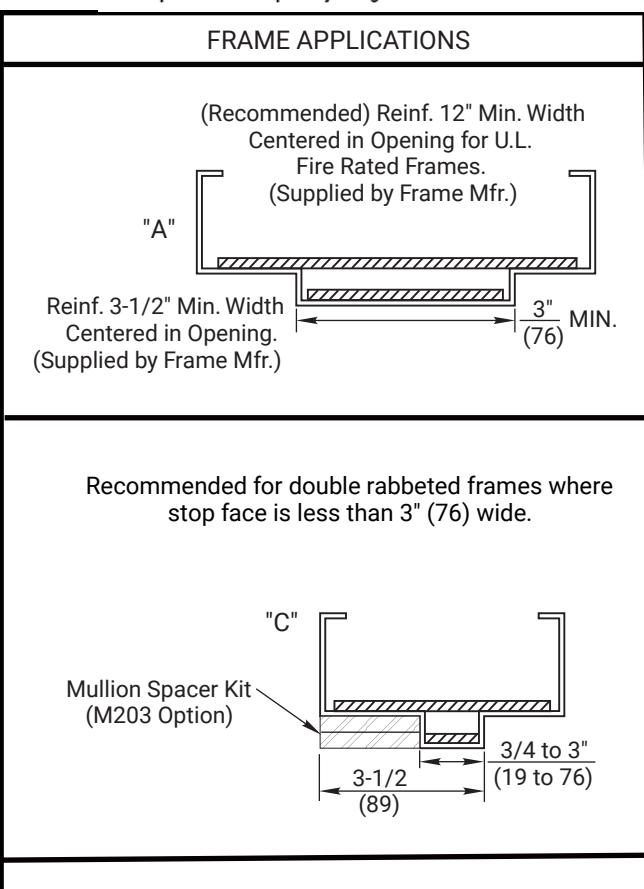

KRM200(F) & M200(F) Mullions Frame Preparation
