View PDFYale is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright Group company. All rights reserved. Reproduction in whol ® © 2010 Yale Security Inc., an ASSA ABLOY e or in part without the express written permission of Yale Security Inc. is prohibited.

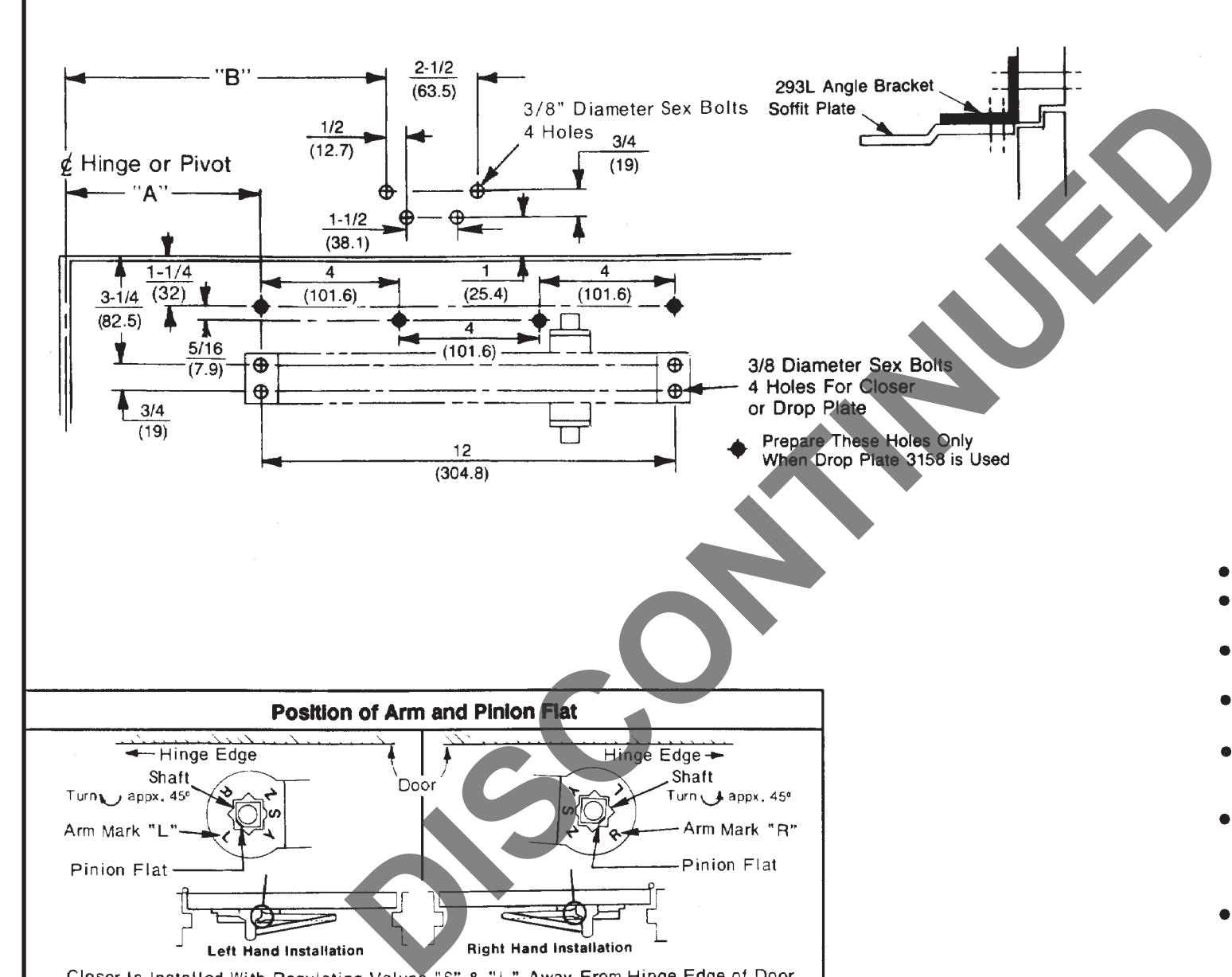

| Position of Arm and Pinion Flat | ||||||
|---|---|---|---|---|---|---|
| Hinge Edge Shaft Turn appx, 45° Arm Mark "L" Pinion Flat Left Hand Installation Right Hand Installation Closer Is Installed With Regulating Valves "S" & "L" Away From Hinge Edge of Door | ||||||
|
DOOR OPENING
ANGLE |
DIMENSIONS SHOWN IN INCHES (mm) | ||||
|---|---|---|---|---|---|
|
BUTT HINGES
OR OFFSET PIVOTS |
CENTER PIVOTS | ||||
|
HOLD
OPEN |
DEAD
STOP |
A | В | А | В |
| 85° | 90° |
5-5/8
(143) |
11-1/4
(286) |
5-1/2
(140) |
11-1/8
(283) |
| 90° | 95° |
4-7/8
(124) |
10-1/2
(267) |
4-3/4
(121) |
10-3/8
(264) |
| 95° | 100° |
4-1/8
(105) |
9-3/4
(248) |
3-7/8
(98) |
9-1/2
(241) |
| 100° | 105° |
3-1/2
(89) |
9-1/8
(232) |
3-1/4
(83) |
8-7/8
(225) |
| 105° | 110° |
2-7/8
(73) |
8-1/2
(216) |
2-5/8
(67) |
8-1/4
(210) |
| 110° | 115° |
2-1/4
(57) |
8
(203) |
2
(51) |
7-3/4
(197) |
2521(T) Door Closer With 293L Bracket for Flush Transoms With or Without 3158 Drop Plate Multi-size Units Holder/Stop Application with Non Hold Open or Hold Open Arms
100 Yale Ave. Lenoir City,TN 37771-3226 1-800-438-1951
www.yalelocks.com
TEMPLATE NUMBER DATE
07-10 7325-0302
