ASSA ABLOY ACCENTRA E4760LN & E4761LN inTouch Stand-alone Touchscreen Access Locks Template_7150-8016

2. For strike preparation refer to: 371 Strike - Template No. 7102-0005 497 Strike - Template No. 7102-0003

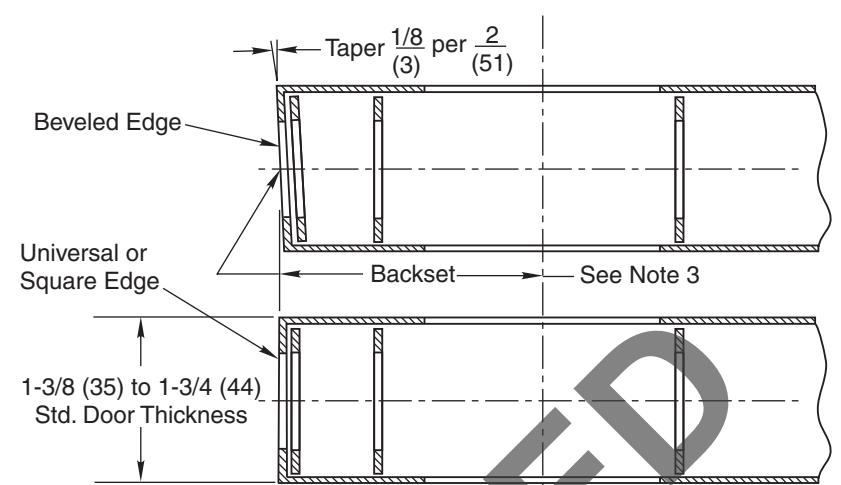

3. Backset: 2-3/4" (70mm) standard

4. For wood door preparation refer to Template No. 7150-8017

5. Door manufacturer must provide supports within the door to keep the door from collapsing when lock is installed. Back of latch case must also be supported.

6. All dimensions given in inches (mm).

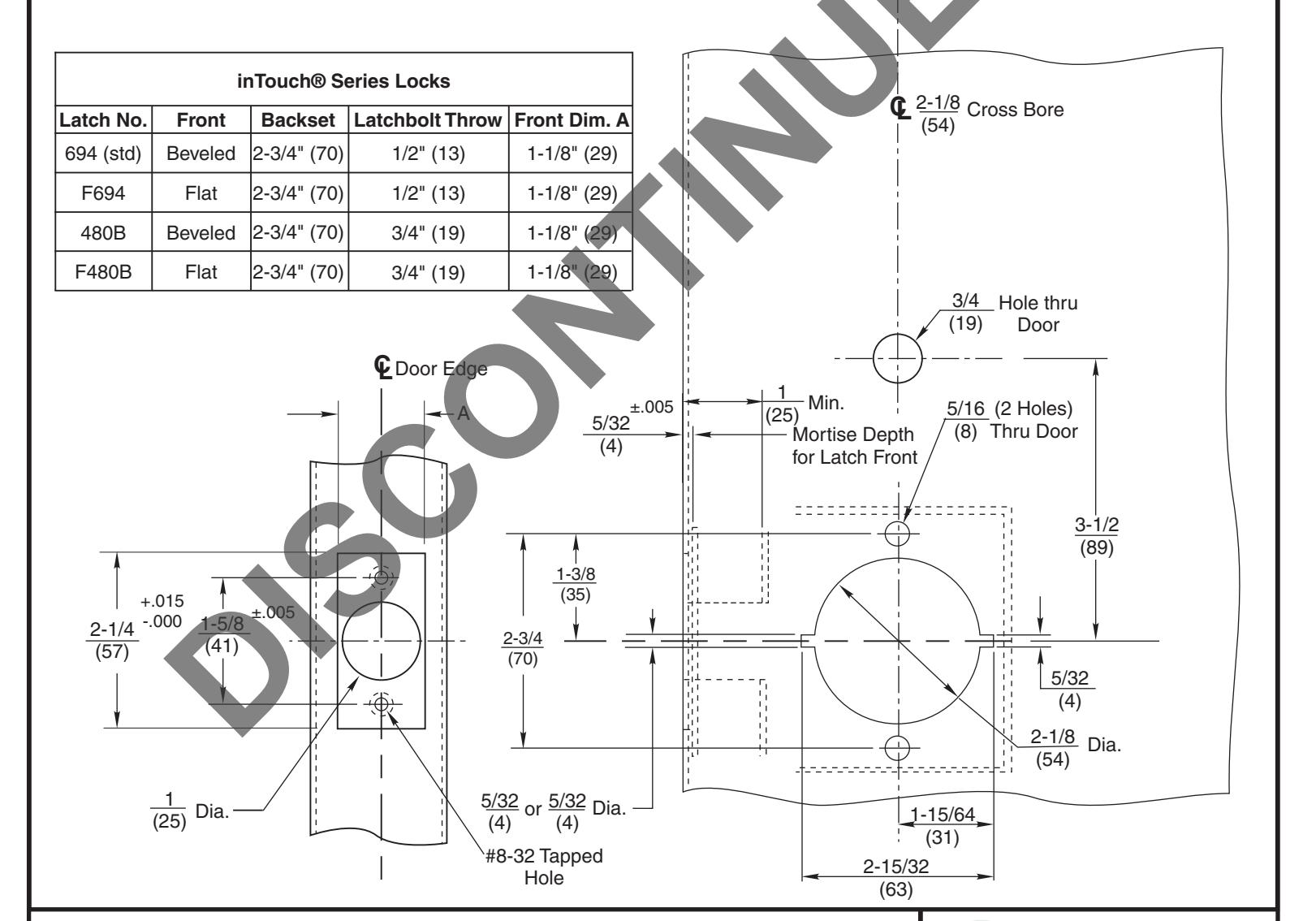

inTouch® Stand-alone Touchscreen Access Locks H.M. Door Preparation 2-3/4" (70mm) Backsets
