ASSA ABLOY ACCENTRA Dummy Trim for 5400CK Series Cylindrical Locks Wood or Metal Door Template_7150-0118

Open the original PDF document

View PDF

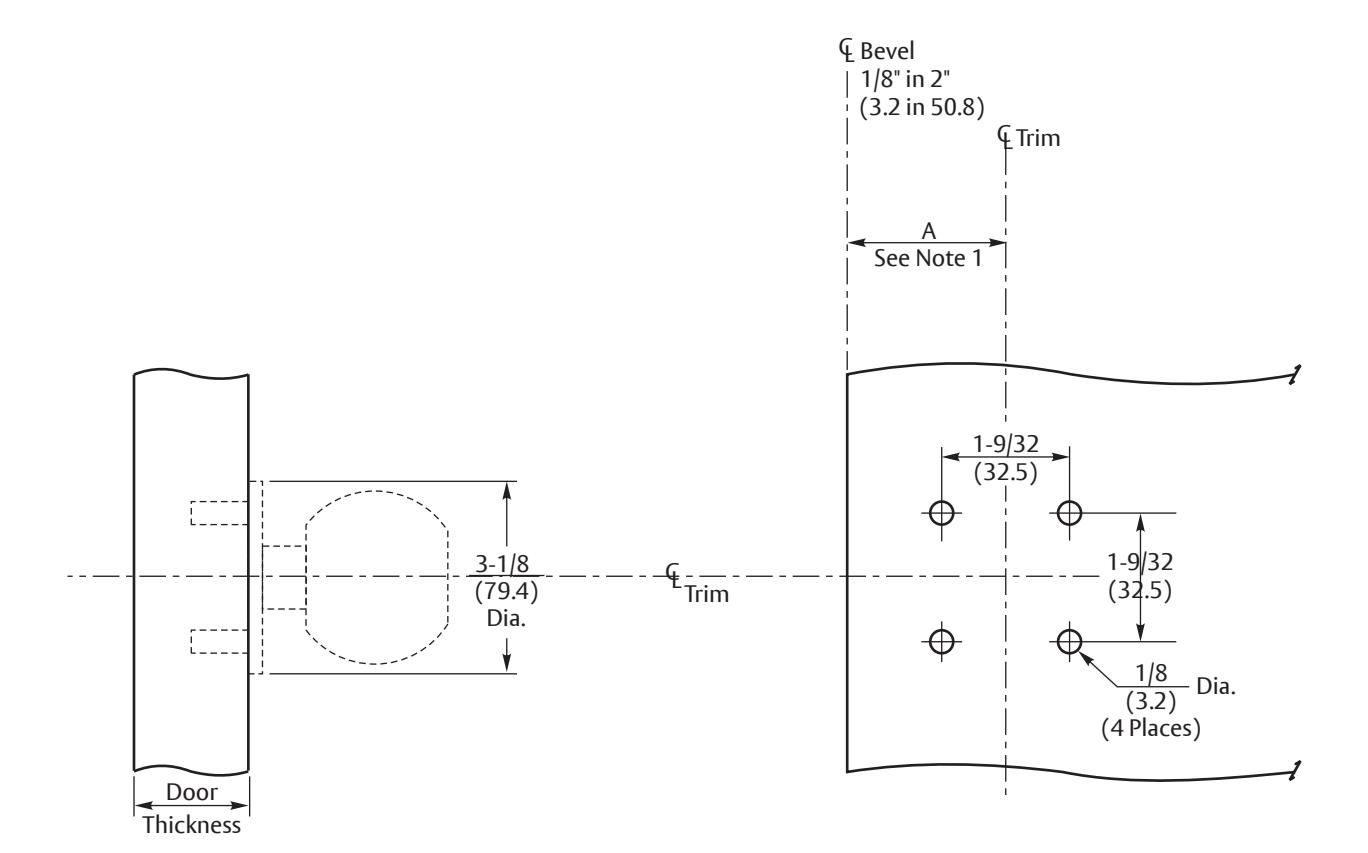

Notes:

  • 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • 2. Door prep with 2-3/4" (70) backset meets ANSI/BHMA A156.115 standards for steel doors and ANSI/BHMA A156.115W standards for wood doors.
  • 3. Dimensions given in inches and (mm).

Backset Dim. "A"
2-3/4 (69.9) Regular
2-3/8 (60.3) Optional

10-23

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

5400CK Series

Grade 1 Knob Locks Dummy Trim Wood or Metal Door Preparation (See ANSI/BHMA A156.115)

7150-0118 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 03/16
