ASSA ABLOY ACCENTRA D200 Series Installation Instructions_A7906B

INSTALLATION INSTRUCTIONS FOR STANDARD DUTY SECURITY DEADLOCK

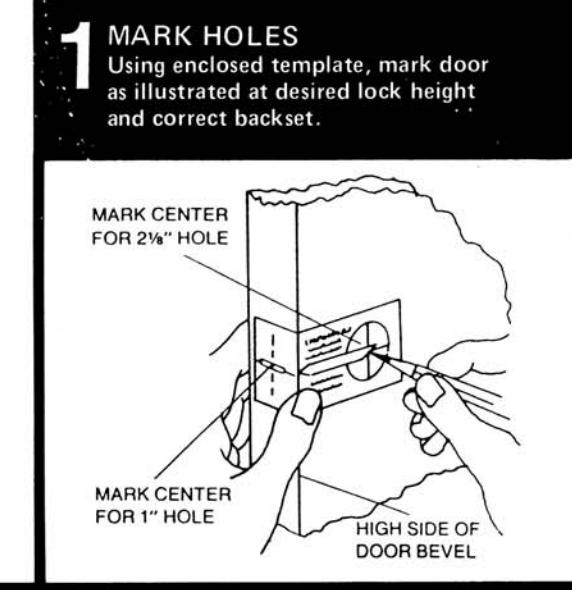

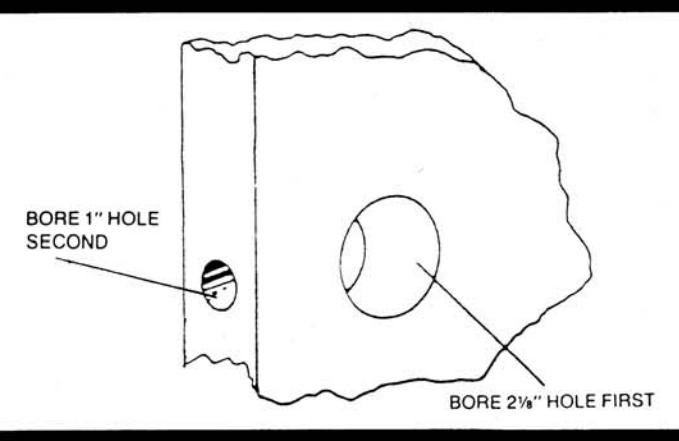

BORE TWO HOLES

Drill 2-1/8" hole through both sides of the door as shown and 1" dia. hole into front face of the door. Be certain holes are perpendicular.

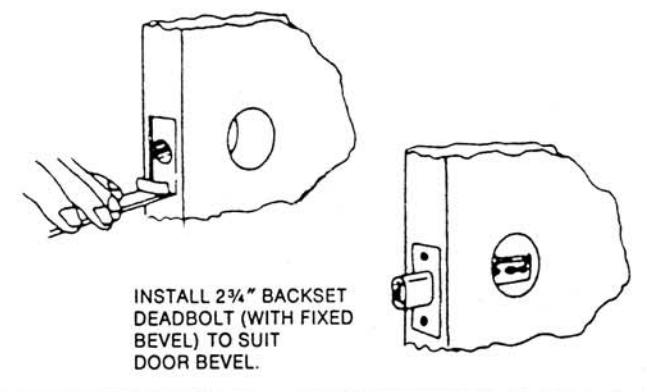

INSTALL DEADBOLT Insert deadbolt in hole, keeping it parallel to face of the door and scribe line around face plate. Remove deadbolt and chisel out scribed area to depth of 5/32" or until face is flush with door edge. Insert deadbolt and fasten with two screws.

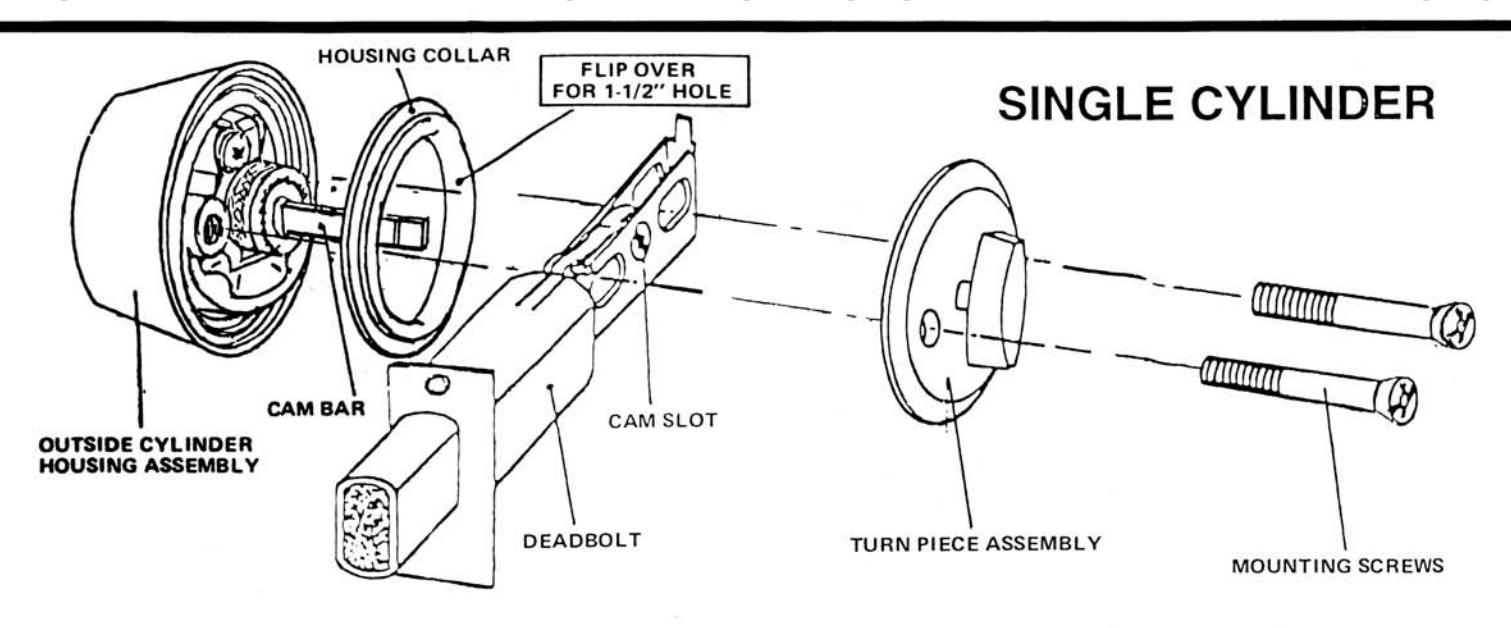

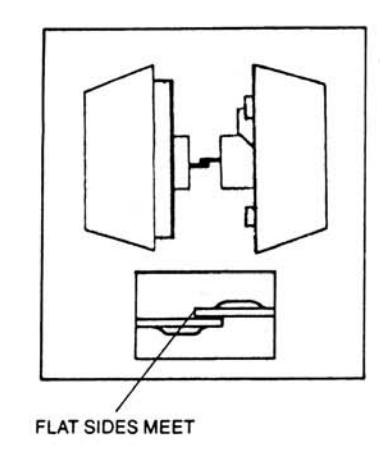

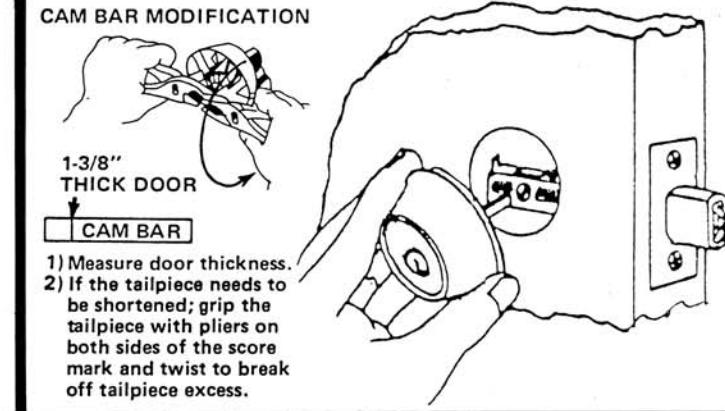

INSTALL OUTSIDE TRIM Extend deadbolt. Install cylinder housing without key, keeping cylinder cam bar\nin line with cam slot.

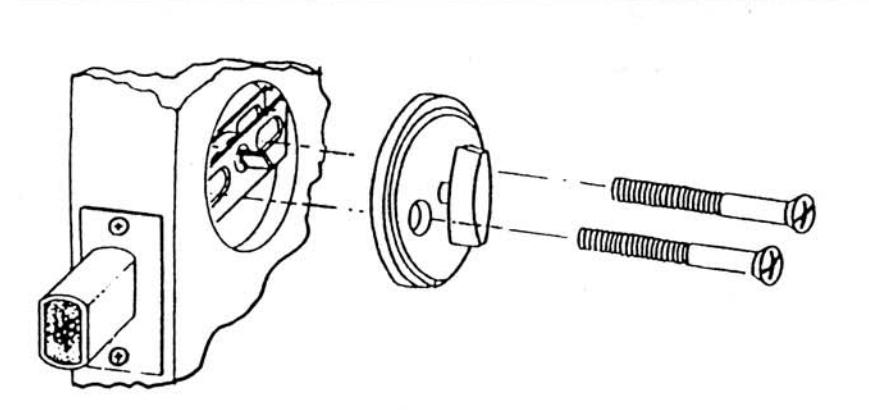

5 ATTACH INSIDE TRIM Place turn piece assembly onto cam bar and align screw holes. Insert and tighten two 1/4-20 machine screws.

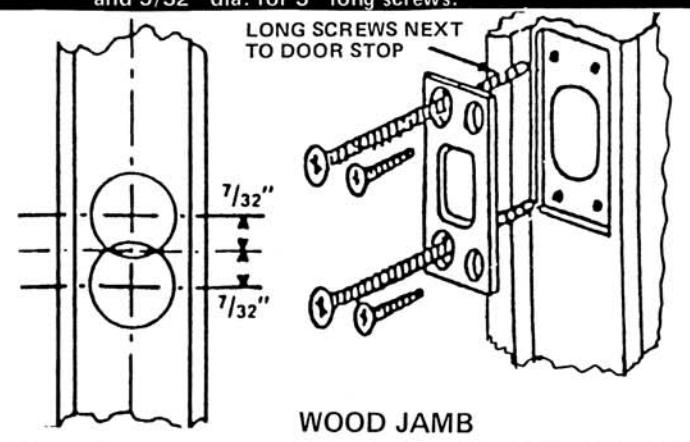

INSTALL STRIKE ON WOOD JAMB Mark jamb exactly opposite centerline of latch hole. Bore two 1" dia. holes 7/32" above and below height line to a depth of 1-1/8". Mortise for strike and box strike. Install and fasten four screws as illustrated. NOTE: Drill 1/8" dia. pilot holes for 3/4" long screws, and 5/32" dia. for 3" long screws.

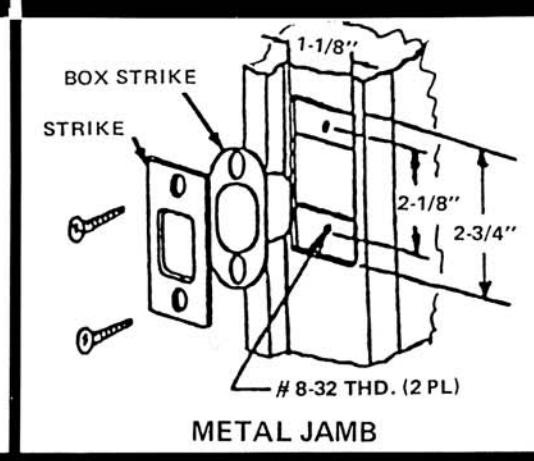

INSTALL STRIKE ON METAL JAMB Fasten strike with 3/4" long screws.

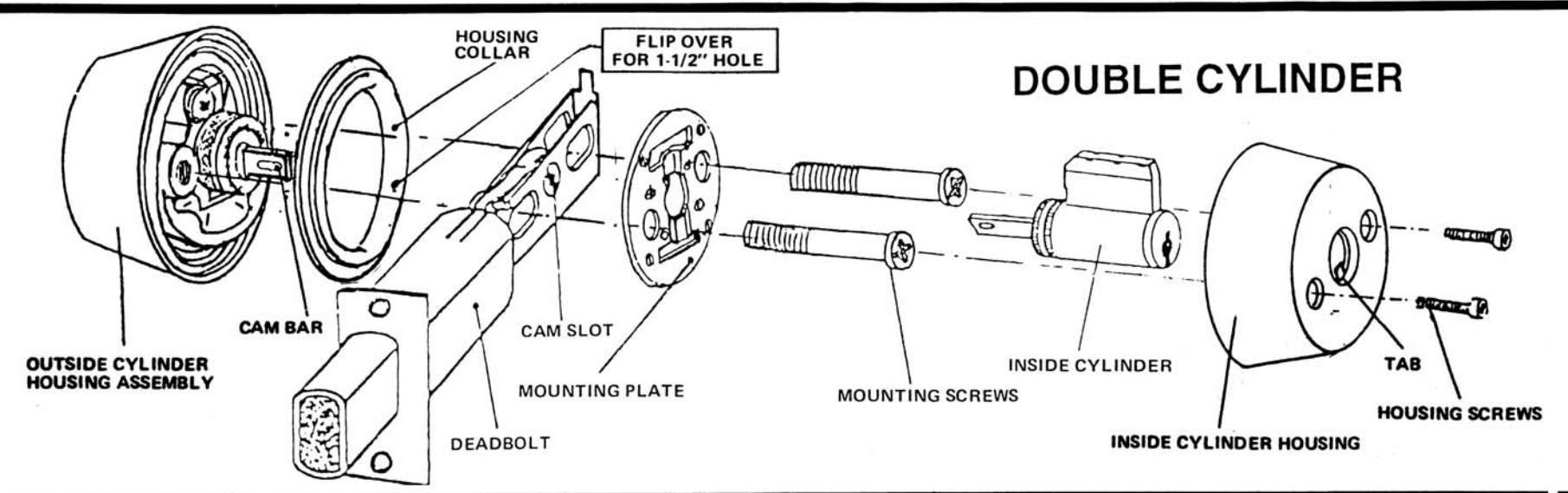

INSTALLATION INSTRUCTIONS FOR STANDARD DUTY SECURITY DEADLOCK

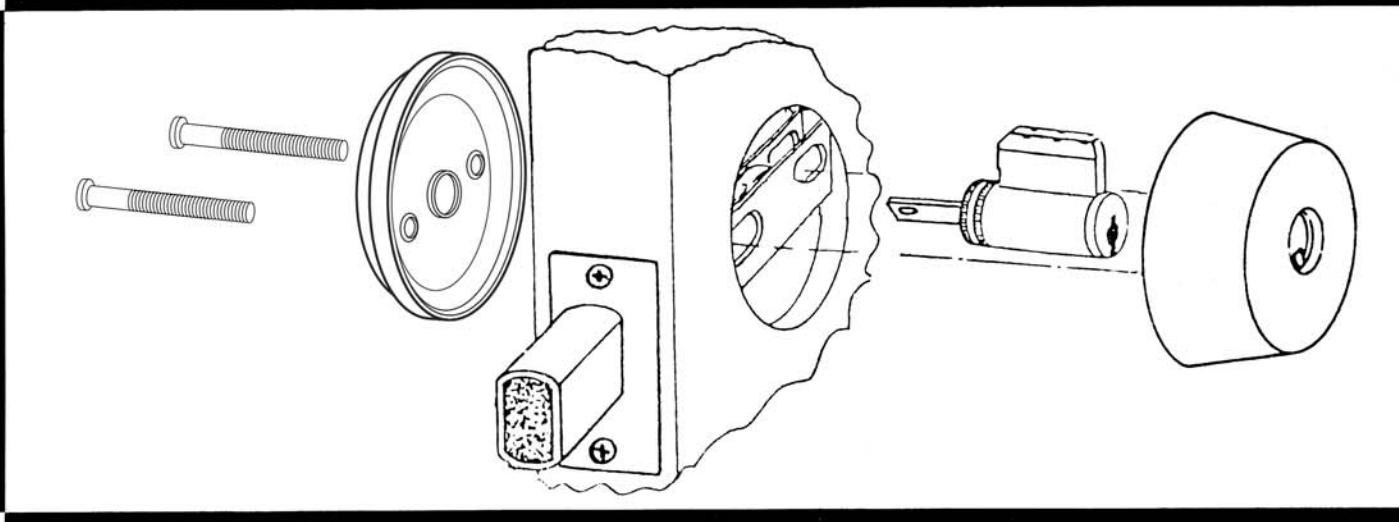

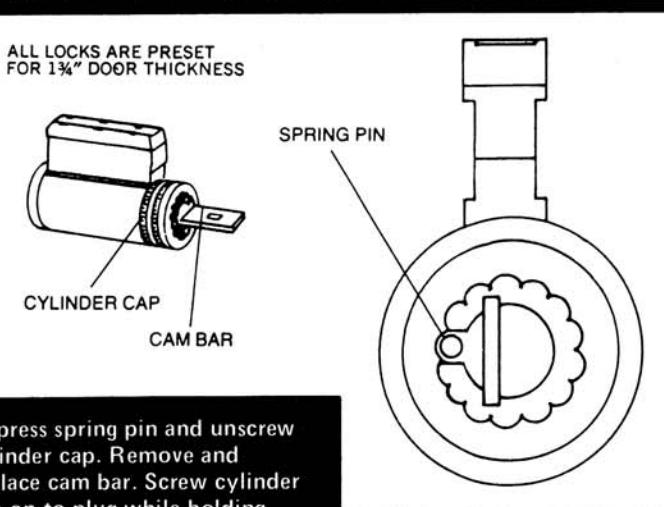

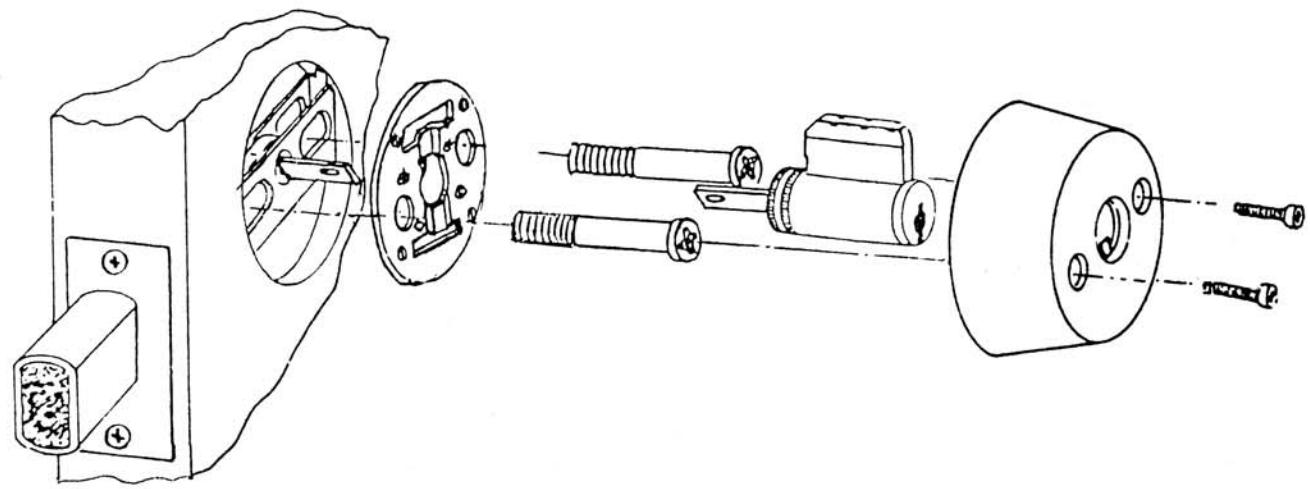

INSTALLATION OF DEADLOCK WITH CYLINDER OUTSIDE, BLANK INSIDE

Extend deadbolt. Install cylinder housing without key, keeping cylinder cam bar in line with cam slot. Install blank plate with two 1 ⁄4-20 machine screws and tighten.
