Yale Accentra Multi-Family Housing Brochure
Easy. Convenient. Secure.
Modernize your multi-family property with solutions from Yale.
With the Yale Multi-Family Solution, you're able to easily manage access for every opening in your multi-resident property. One cloud-based software system. One credential. One manufacturer: Yale, a name trusted every day in residential and commercial door hardware.
Yale Assure™ dataon-credential digital deadbolts and interconnected locks For resident doors

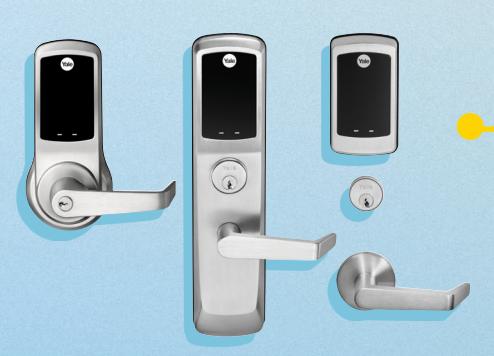

nexTouch® with data-on-credential For common areas, offices, storage areas, stairwells or exterior doors
Credential updaters For electrified openings, such as main entrances or parking garages
Yale Accentra™ software For remote management of access rights
Credentials
Card, fob, and mobile access options to enter every opening

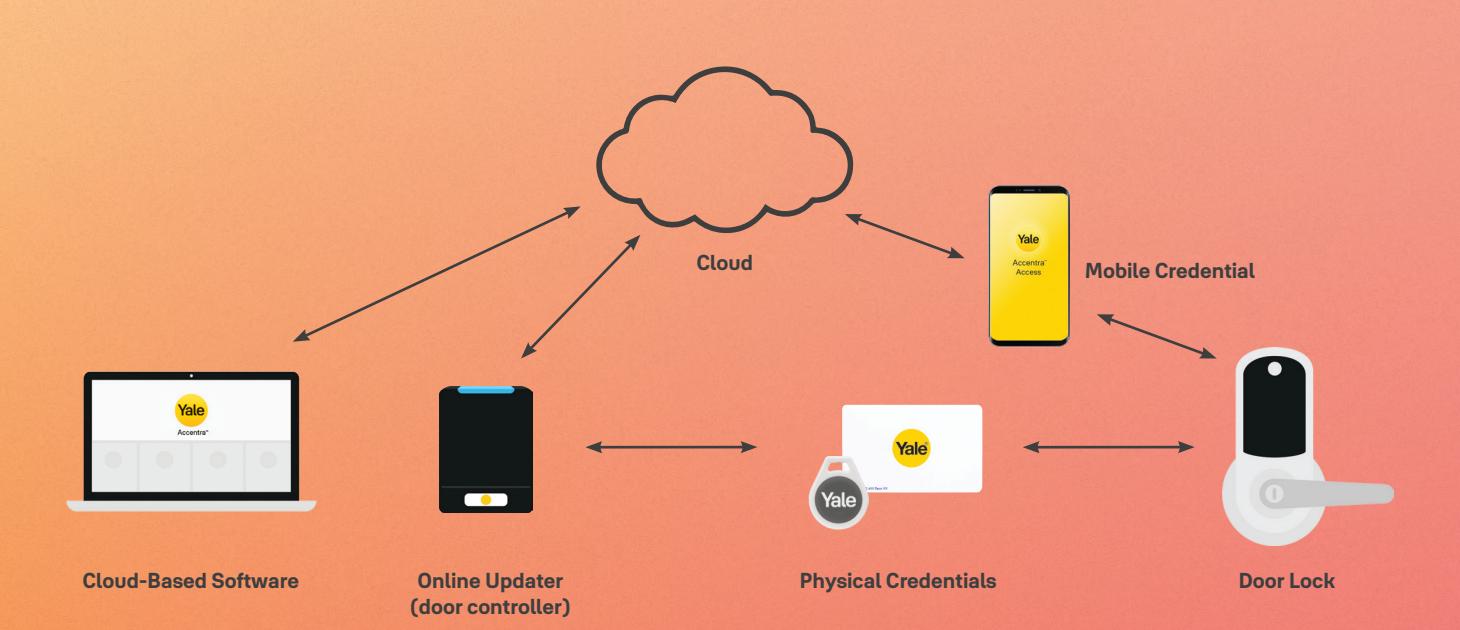

A Multi-Family Access Management Solution that Works for You.
Multi-Family Access Control is as easy as 1, 2, 3.
1. Manage access rights from any internet enabled device from anywhere with Yale Accentra cloud-based multi-family software.
2. Access permissions are enabled instantly.
3. Residents, visitors, and staff access authorized openings.
4
Manage Access Rights for Residents, Visitors, and Staff

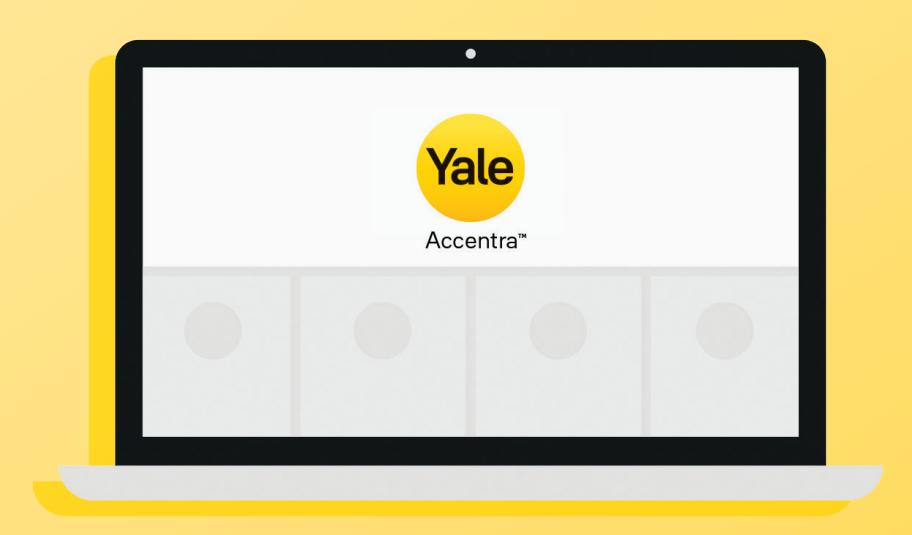

Yale Accentra™ Cloud-Based Software
- Cloud-based access management software designed specifically for multi-family
- Manage resident, visitor, and staff access for multiple properties anytime, anywhere, from any Internet-enabled device
- Intuitive user interface designed for typical management activities such as issuing leases and visitor access
- Issue emergency access through one-time PINs for lost cards or fobs or instantly apply new mobile credential rights
| Dedicated web-based interface accessible from any Internet-connected device (Mac, PC, smart phone, or tablet) | |
|---|---|
| Responsive design accommodates any device (Mac, PC, smart phone, or tablet) | |
| Automatic updates | |
| Certified to ISO/IEC 27001 | |
| Browser: Firefox, Chrome, or similar | |
Continuously Updated Access Rights
Credential Updater Based on Secure HID® Technologies
- Grants access to authorized physical and mobile credentials.
- Activates new physical credentials for residents, visitors, and staff
- Transmits access permissions to physical credentials at the time of entry
- Ensures physical credentials are continuously updated through typical daily use
- Scheduled and remote unlock capabilities for the online updater are managed through the Yale Accentra Cloud Interface
| Sizes |
Available in two sizes, with either pig tail or terminal strip wiring options:
- Mini-mullion for applications requiring a smaller form factor (1.9" x 4.1" x 0.9") - Wall switch for mounting in standard single gang switch boxes (3.3" x 4.8" x 1.0") |
|
|---|---|---|
| Security |
Secured end-to-end with industry standard encryption and authentication, uses digital certificates to secure all
transactions with the cloud service |
|
| UL/cUL | Functions are UL - cUL Fire Listed for use on fire doors having a rating up to and including 3-hours | |
| Warranty | Limited lifetime warranty | |
|
Operating temperature: -31°F to +150°F (-35°C to +65°C) Storage temperature:
-67°F to +185°F (-55°C to +85°C) Environmental Specifications Operating humidity: 5% to 95% relative humidity non-condensing Environmental rating: Indoor/outdoor IP55; IP65 if installed with optional gasket |
||
|
Power Source
Can be powered by PoE or 24VDC |
||
| Credentials | Seos™ cards, fobs, and Yale Accentra mobile credentials | |

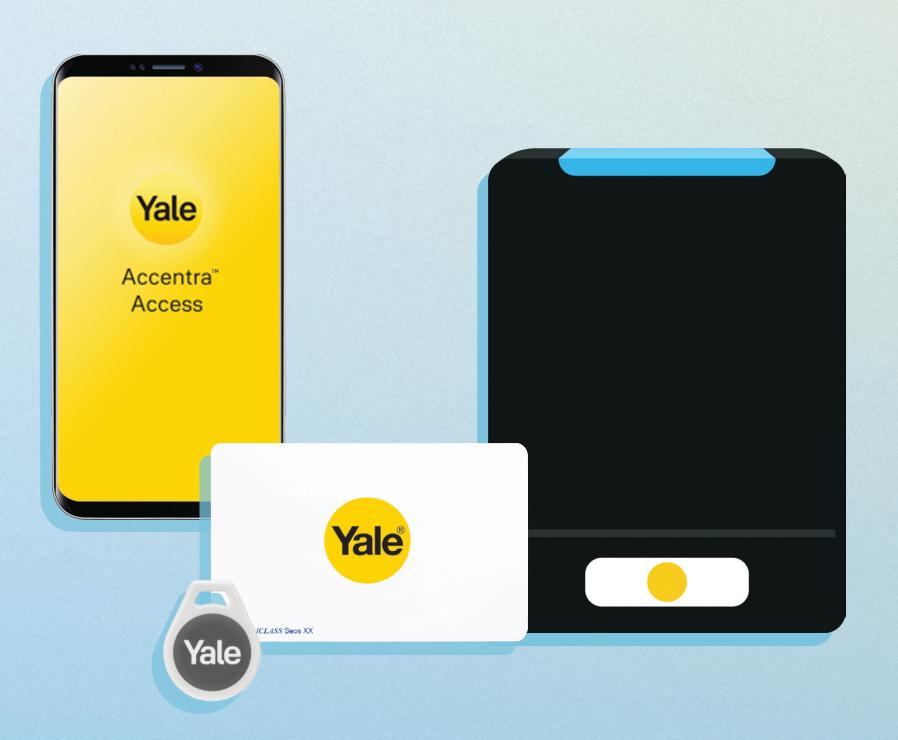

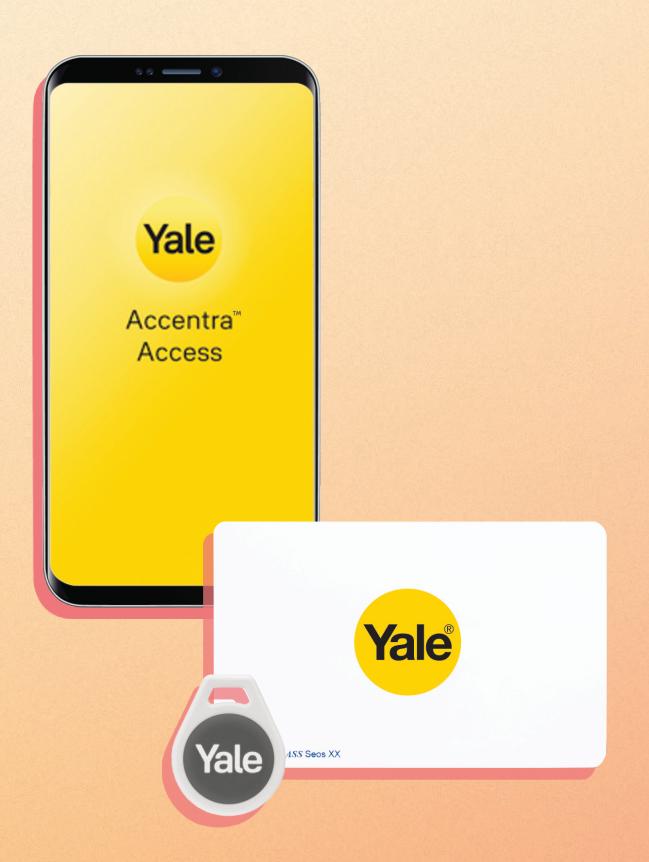

Yale Multi-Family Solution Credentials
- Card, fob, and mobile credential options
- Credentials carry access permissions to access both offline and online openings
- Physical credentials can be reused an unlimited number of times
- Physical credentials are updated at the online updater
- Mobile credential access updates are instantly applied
- Mobile credentials are included as part of the annual subscription fee
| Mobile credentials | Key fob with Seos® | Key card with Seos® |
Key card with Seos®
and custom graphics |
Key card with
Seos® and Prox |
|
|---|---|---|---|---|---|
| Part Number | NTX600-YALFOB-8K | NTX600-YALCRD-8K | NTX600-CUSCRD-8K | NTX600-YALPRX-8K | |
| Technology | |||||
| Seos Offline | X | X | X | X | X |
| Seos Online PACS | X | X | X | X | |
| Prox | X | ||||
| Dimensions |
1.25" x 1.56" x .24"
(3.175 x 3.96 x .6 cm) |
2.127" x 3.375" x 0.033" max (5.40 x 8.57 x 0.084 cm) |

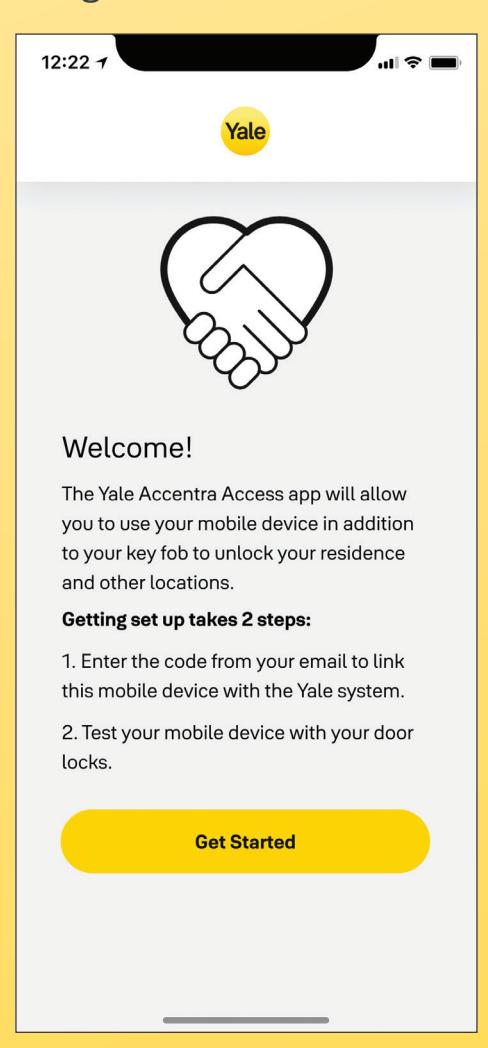

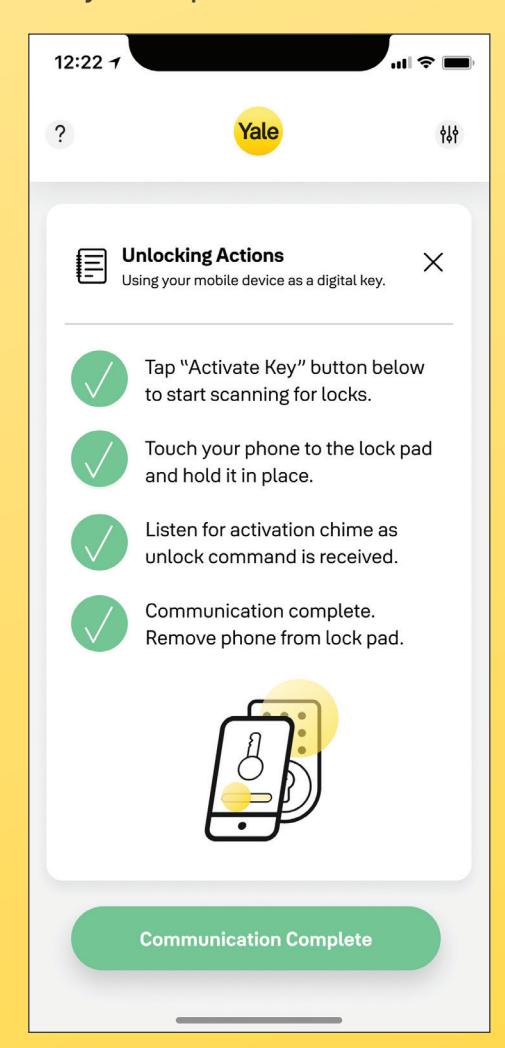

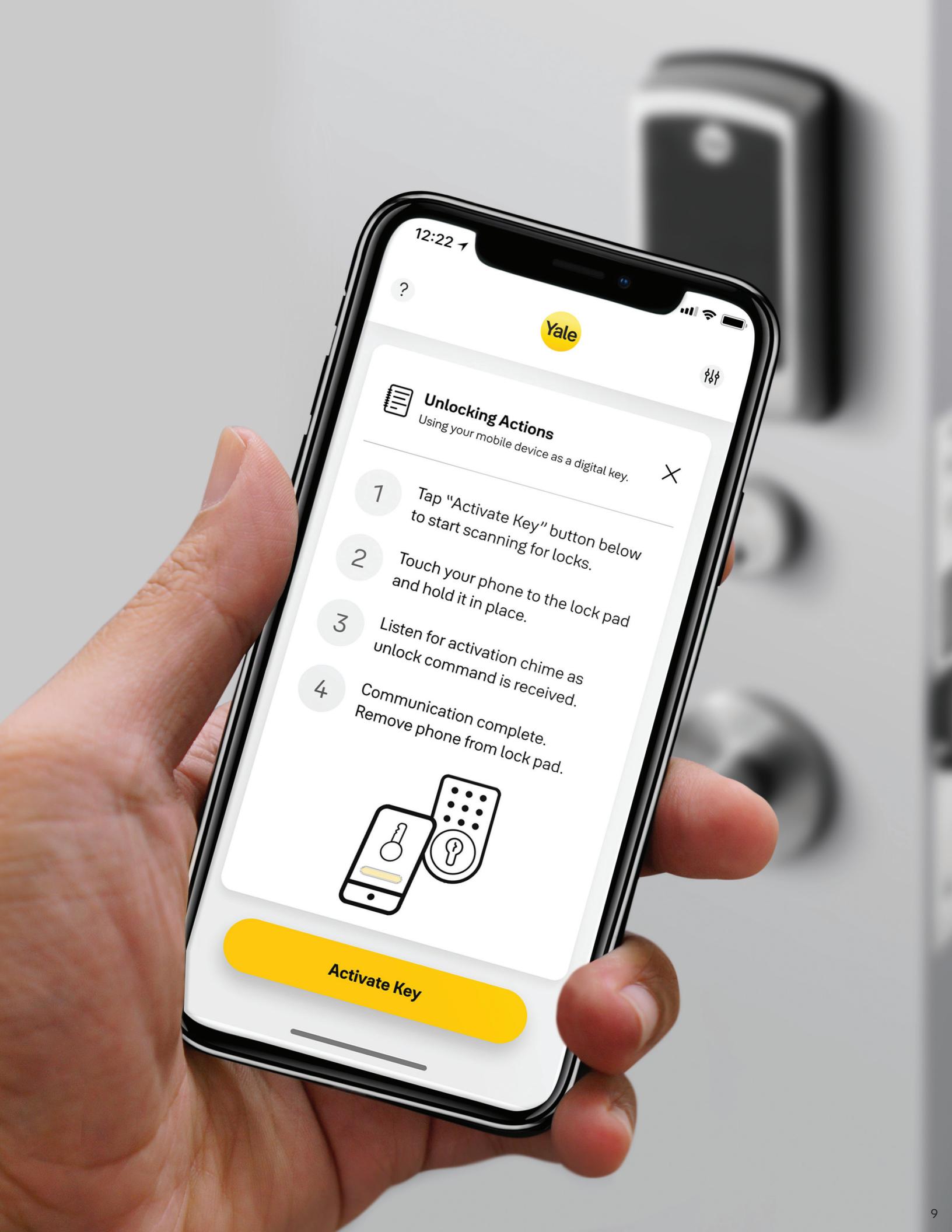

The Yale Accentra Mobile Access Experience
Mobile access capabilities are available for all residents, visitors, and staff through the Yale Accentra Access App
Users download the Yale Accentra Access App, link their mobile device, and can immediately begin accessing authorized doors; cell service or WiFi is not required when using the mobile credential
Dynamic step-by-step instructions make the app easy and quick
Note: screenshots are from an iPhone.
Control Access to Common Areas and Exterior Doors

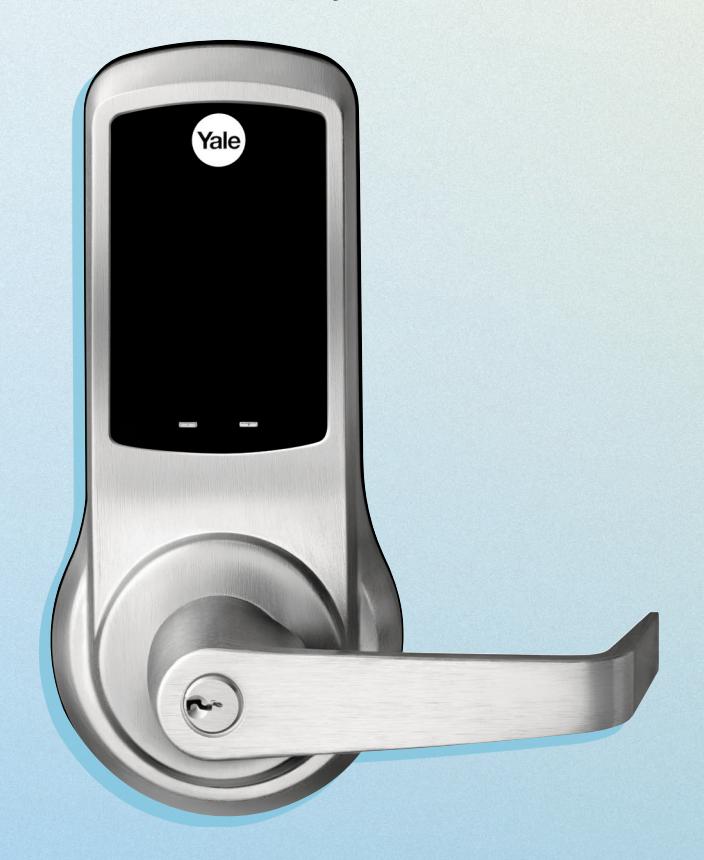

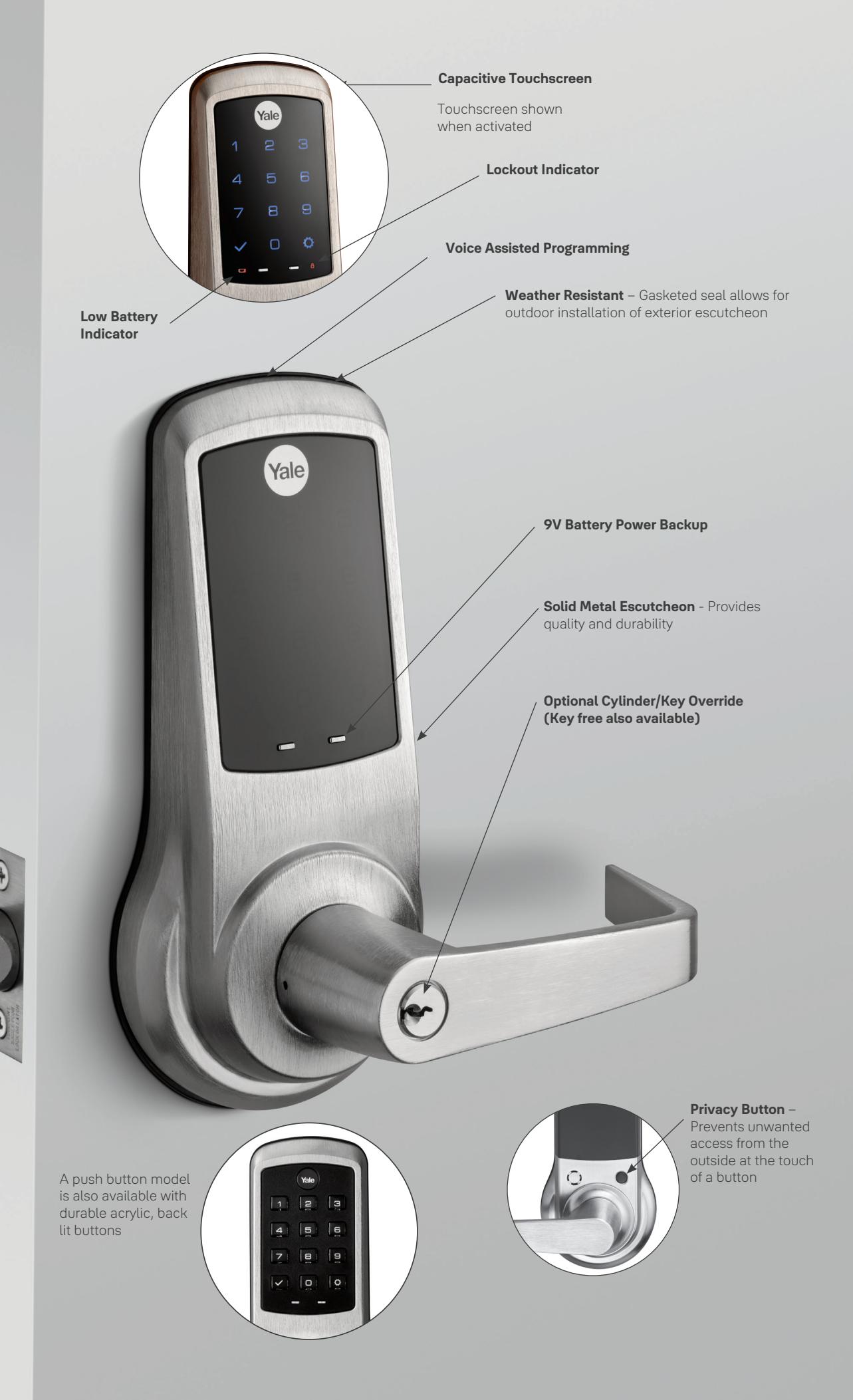

nexTouch™ Cylindrical Lock

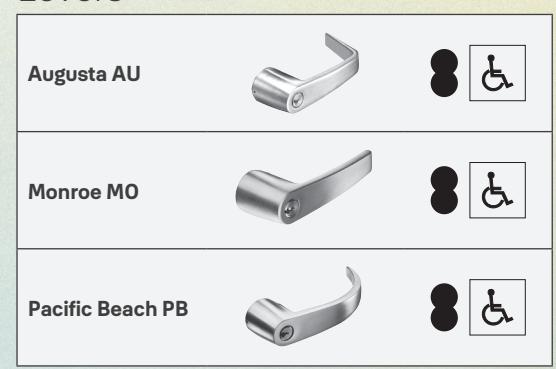

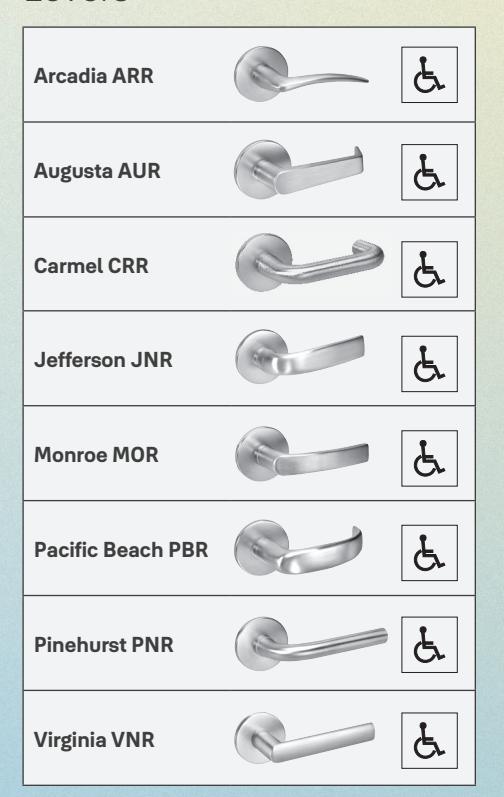

Levers
Finishes
| ANSI/BHMA Code | Finish Description |
|---|---|
|
605
(US3) |
Bright Brass,
Clear Coated |
|
613E
(US10BE) |
Dark Oxidized Satin
Bronze - equivalent |
|
626
(US26D) |
Satin Chrome Plated |
| BSP |
Black Suede Powder
Coat |
| Door Specifications |
Fits into the standard ANSI/BHMA A156.115 cylindrical lock with lever door prep with one additional 3/4" hole and 7
screws including latchbolt and strike |
|---|---|
| Backset | 2-3/4" (70mm) standard backset |
| Door Thickness | 1-3/4" (44mm) door thickness standard; thin door kit required for 1-3/8" thick doors |
| Handing | Non-handed |
| Latchbolt | 1/2" (13mm) throw deadlocking latchbolt supplied standard |
| Strike | ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124 mm x 32 mm x 32 mm) lip to center supplied standard |
| Cylinder | Accepts Yale® fixed core component cylinders; also available to accept small format interchangeable core (SFIC) |
| Keying |
Capable of accepting Yale® 6-pin standard, small and large format interchangeable core, security and protected
keyway cylinders with master keying capabilities |
| Packing |
Each box includes a paper door marker, combination wood and machine screws and easy-to-follow installation and
programming instructions; cylinder functions supplied with two keys |
| ANSI/BHMA | Certified ANSI/BHMA A156.2, Series 4000 Grade 1 |
| UL/cUL | Functions are UL - cUL Fire Listed for use on fire doors having a rating up to and including 3-hours |
| Warranty | 1-year electrical warranty; 3-year mechanical and finish warranty |
|
Environmental
Specifications |
Operating temperature: -40°F to +140°F (-40°C to +60°C) at 95% relative humidity when used with an external power
supply |
| Power Source | Four AA alkaline batteries (included) with optional hardwire input for 9VDC external power; 9V battery power backup |
| Credentials | Seos™ cards, fobs, and Yale Accentra mobile credentials |
| Interface | Capacitive touchscreen or pushbutton |
| Firmware Upgradeability | Locks support on-premise wireless configuration and firmware upgrades |

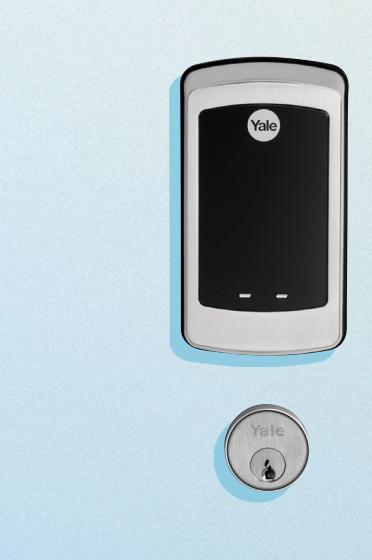

Control Access to Common Areas, Exterior Doors, and Resident Doors

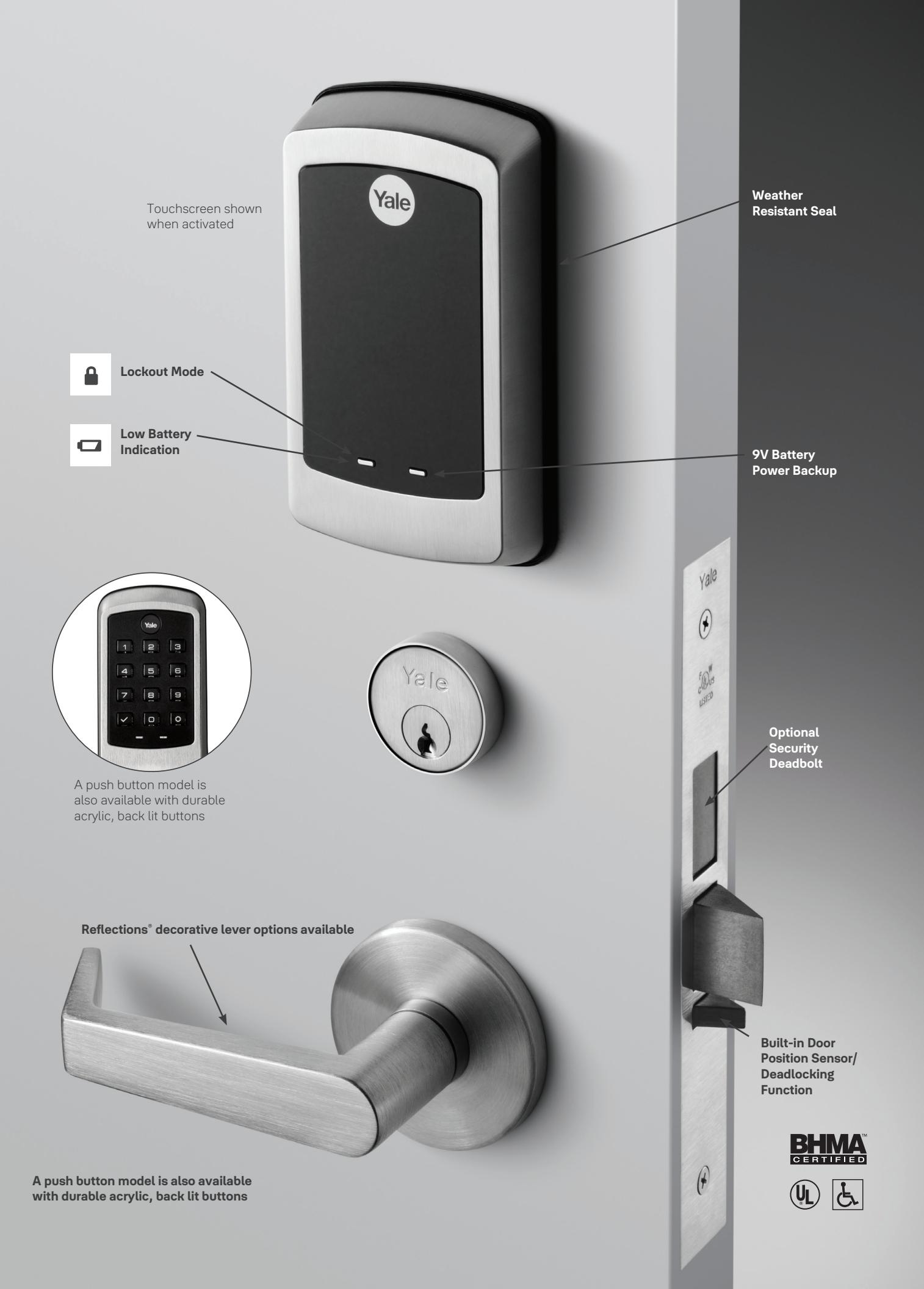

nexTouch™ Sectional Mortise Lock
Finishes
| ANSI/BHMA Code | Finish Description |
|---|---|
|
605
(US3) |
Bright Brass,
Clear Coated |
|
613E
(US10BE) |
Dark Oxidized Satin
Bronze - equivalent |
|
626
(US26D) |
Satin Chrome Plated |
| BSP |
Black Suede Powder
Coat |

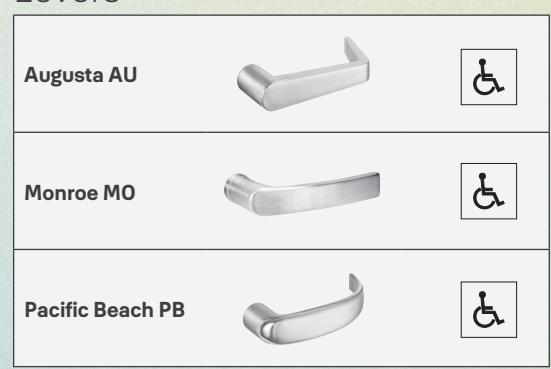

Levers
| Door Specifications | Fits into the standard mortise door prep |
|---|---|
| Backset |
Yale Reflections® levers also available. Please
2-3/4" (70mm) standard backset see catalog for more information. |
| Door Thickness | 1-3/4" (44mm) door thickness standard; please specify for other door thicknesses |
| Handing | Field reversible |
| Latchbolt | 3/4" spring latchbolt standard, 1" throw deadlocking latchbolt optional |
| Strike | Curved lip strike with 1-1/4" (32 mm) lip length standard |
| Cylinder |
Accepts conventional, interchangeable core, security and high security cylinders, and other manufacturers' keyway
cylinders |
| ANSI/BHMA | Certified ANSI/BHMA Grade 1 |
| UL/cUL | Functions are UL - cUL Fire Listed for use on fire doors having a rating up to and including 3-hours |
| Warranty | 1-year electrical warranty; 3-year mechanical and finish warranty |
|
Environmental
Specifications |
Operating temperature: -40°F to +140°F (-40°C to +60°C) at 95% relative humidity when used with an external power
supply |
| Power Source |
Four AA alkaline batteries (included) with optional hardwire input f or 9VDC external power; 9V battery power backup
on keypad |
| Credentials | Seos™ cards, fobs, and Yale Accentra mobile credentials |
| Interface | Capacitive touchscreen or pushbutton keypad |
| Firmware Upgradeability | Locks support on-premise wireless configuration and firmware upgrades |
Control Exterior Door and Stairwell Access

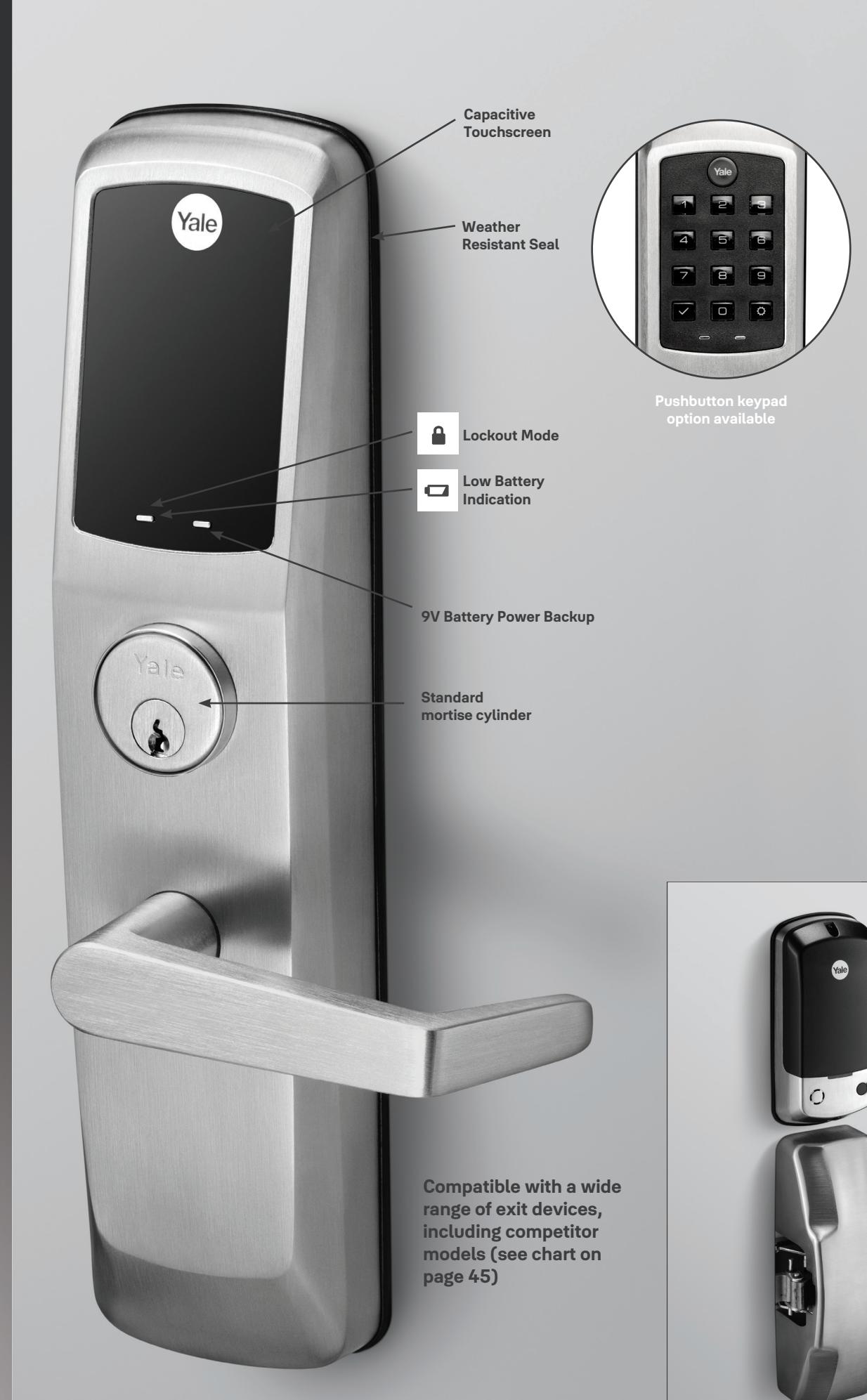

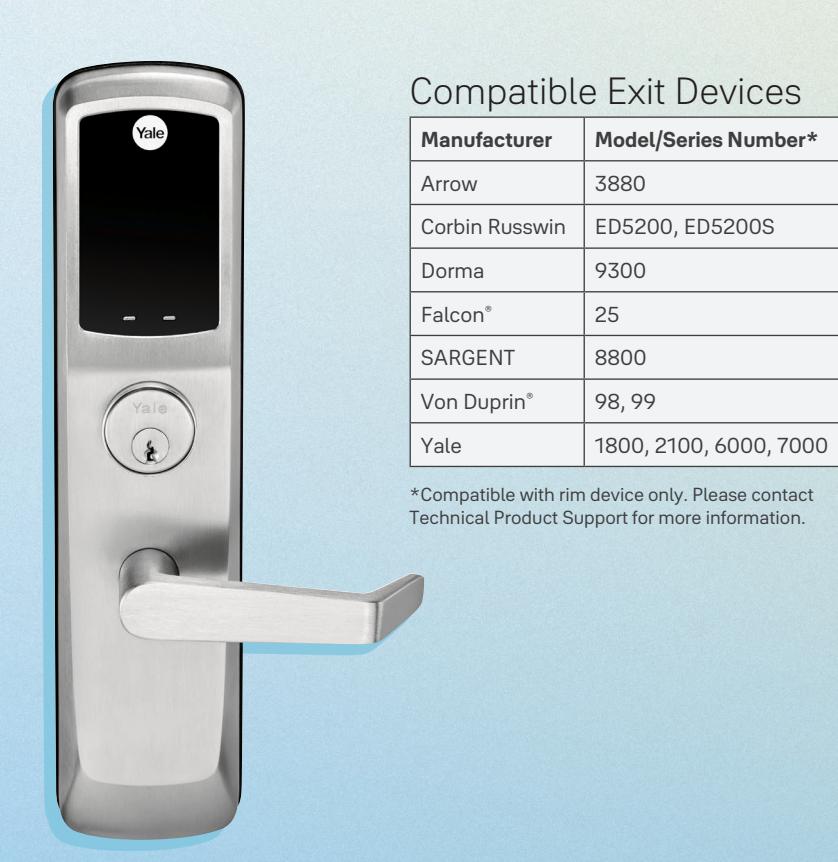

nexTouch™ Keypad Exit Trim
Levers
Finishes
| ANSI/BHMA Code | Finish Description |
|---|---|
|
605
(US3) |
Bright Brass,
Clear Coated |
|
613E
(US10BE) |
Dark Oxidized Satin
Bronze - equivalent |
|
626
(US26D) |
Satin Chrome Plated |
| BSP |
Black Suede Powder
Coat |
| Door Specifications | Retrofits onto many exit device models, see chart above | |
|---|---|---|
| Door Thickness | 1-3/4" (44mm) door thickness standard, 2-1/4" also available | |
| Handing | Field reversible | |
| Cylinder |
Accepts conventional, interchangeable core, security and high security cylinders, and other manufacturers'
keyway cylinders |
|
| Keying |
Capable of accepting Yale 6-pin standard, small and large format interchangeable core, security and protected keyway
cylinders with master keying capabilities |
|
| ANSI/BHMA | Certified ANSI/BHMA A156.3, Grade 1 | |
| UL/cUL | Functions are UL - cUL Fire Listed for use on fire doors having a rating up to and including 3-hours | |
| Warranty | 3-year electronic and mechanical warranty, 1-year finish warranty | |
|
Environmental
Specifications |
Operating temperature: -40°F to +140°F (-40°C to +60°C) at 95% relative humidity when used with an external power
supply |
|
| Power Source | Four AA alkaline batteries (included) with optional hardwire input for 9VDC external power; 9V battery power backup | |
| Credentials | Seos™ cards, fobs, and Yale Accentra mobile credentials | |
| Interface | Capacitive touchscreen or pushbutton | |
| Firmware Upgradeability | Locks support on-premise wireless configuration and firmware upgrades | |
Privacy Button
Control Access to Resident Doors
Yale Assure™ Interconnected Lock
Finishes
| ANSI/BHMA Code |
Finish
Description |
|---|---|
|
619
(US15) |
Satin Nickel
Plated, Clear Coated |
|
0BP
(US10BP) |
Oil Rubbed
Bronze - Permanent |
| BSP |
Black Suede
Powder Coat |
* Split finish available
Levers
|
Academy
AC |
|
|---|---|
|
Augusta
AU |
|
|
Delaware
DW |
|
|
Marina
MA |
|
|
McClure
MC |
|
|
Milan
MN |
|
|
Monroe
MO |
|
|
Norwood
NW |
|
|
Pacific Beach
PB |
|
|
Woodland
WL |
|
|

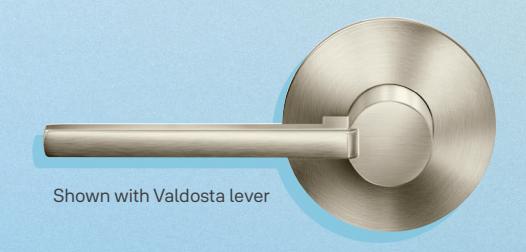

Valdosta
VL |
|
|
Virgo
VG |
| Door Specifications | 2-1/8" Face Bore, 1" Edge Bore, 4" or 5-1/2" Center to Center | |
|---|---|---|
| Backset | 2-3/8" (60mm) or 2-3/4" (70mm) | |
| Door Thickness | 1-3/8" (35mm) to 1-3/4" (44mm) | |
| Handing | Field reversible | |
| Latch Faceplate | 1" (25mm) W x 2-1/4" (57mm) H; round corner standard, square corner available to order | |
| Strike | 2-1/4" (57 mm) full lip; round corner standard, other strikes available to order | |
| Cylinder | KW-1 compatible standard, other cylinders/keyways available to order | |
| Keying | KD (Keyed Different) standard, master keying available to order | |
| Packing | Box pack | |
| ANSI/BHMA | Certified ANSI/BHMA A156.12, Grade 2 | |
| UL/cUL | Listed for 90 minute fire doors | |
| Warranty | 1-year electrical and finish warranty; 3-year mechanical warranty | |
|
Environmental
Specifications |
Outside temperature range: -22°F to +140°F (-30°C to +60°C)
Inside temperature range: 5°F to +158°F (-15°C to +70°C) Battery temperature range: -14°F to +131°F (-10°C to +55°C) Storage temperature range: -40°F to +85°F (-40°C to +85°C) |
|
| Power Source | Four AA alkaline batteries, included | |
| Credentials | Seos™ cards, fobs, and Yale Accentra mobile credentials | |
| Firmware Upgradeability | Locks support on-premise wireless configuration and firmware upgrades | |
Control Access to Resident Doors

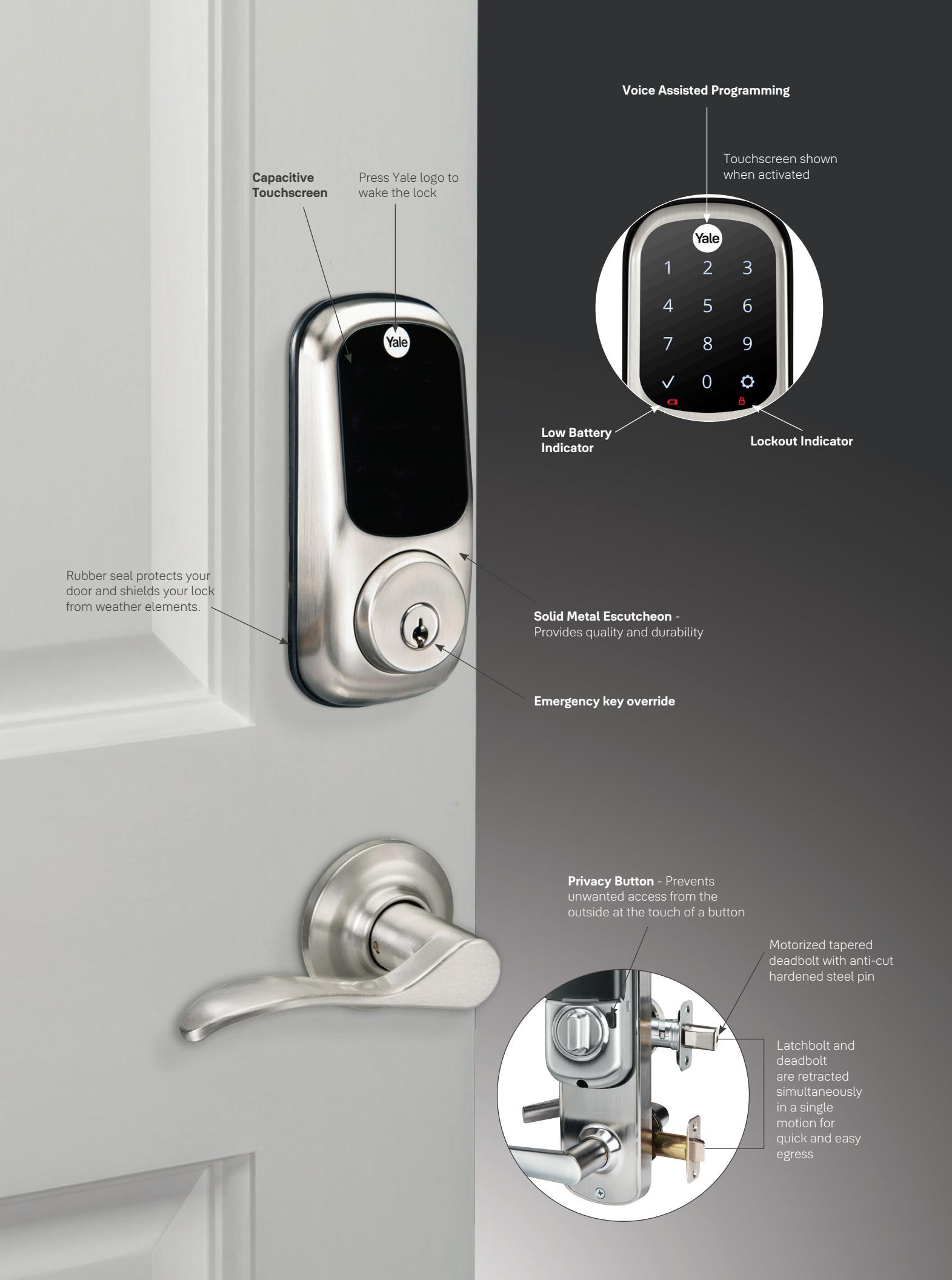

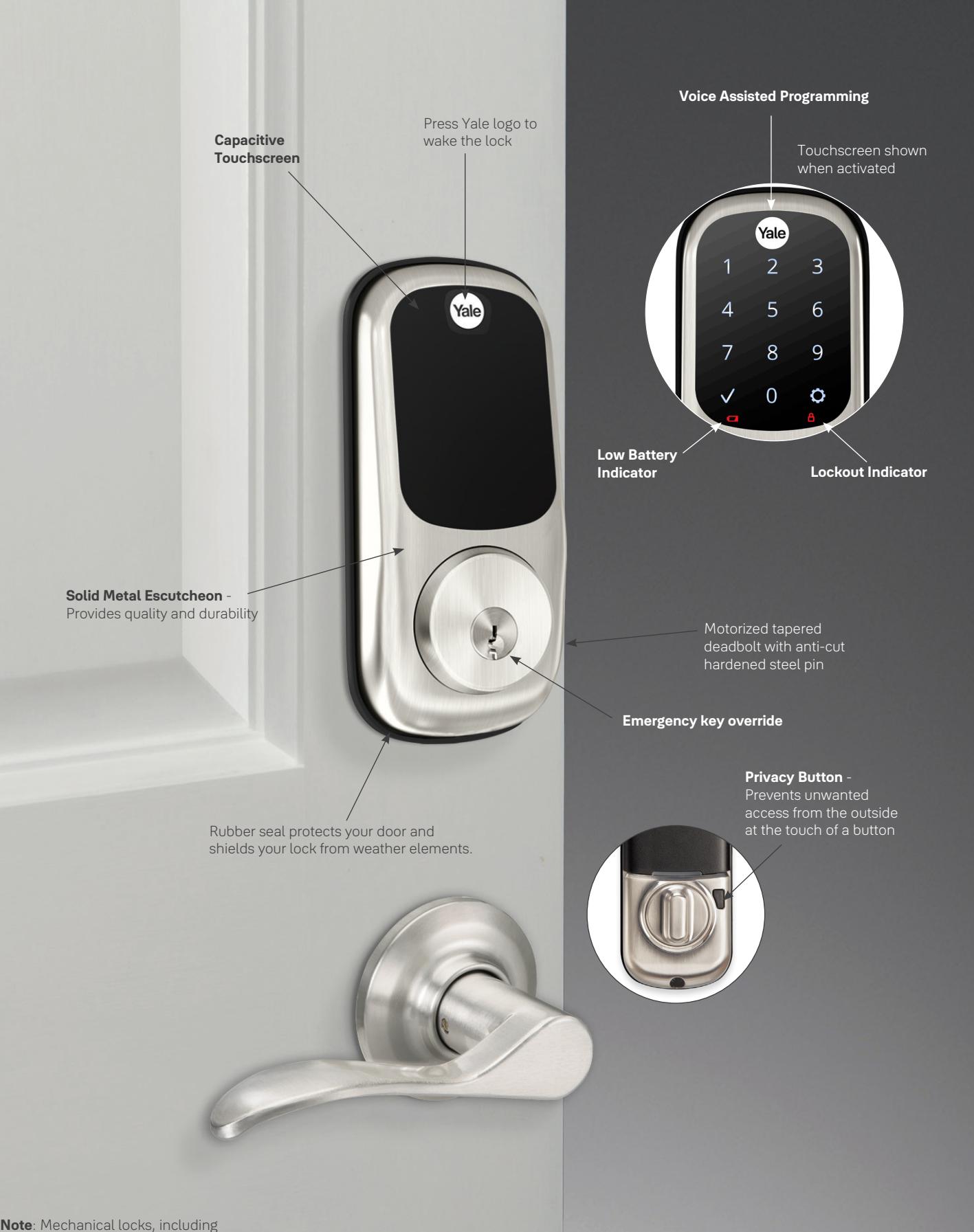

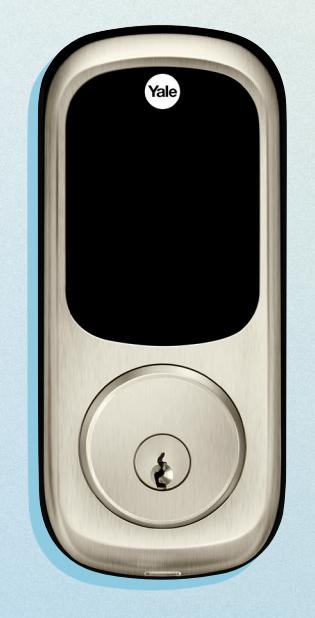

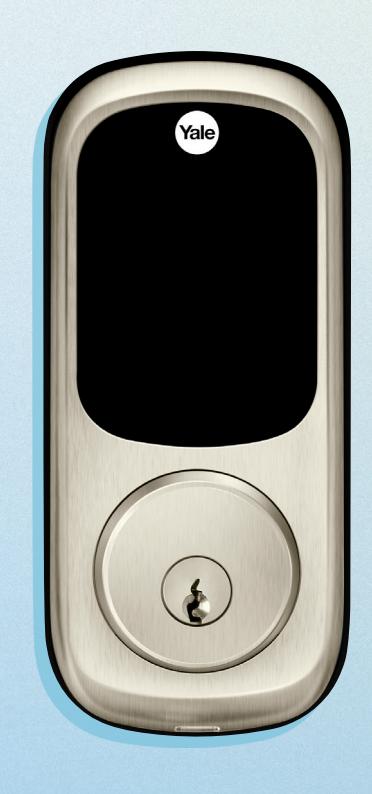

Yale Assure™ Digital Deadbolt
Finishes
| ANSI/BHMA Code | Finish Description | |
|---|---|---|
|
619
(US15) |
Satin Nickel Plated,
Clear Coated |
|
|
0BP
(US10BP) |
Oil Rubbed Bronze -
Permanent |
|
| BSP |
Black Suede Powder
Coat |
|
| Door Specifications | 2-1/8" face bore, 1" edge bore | |
|---|---|---|
| Backset | 2-3/8" or 2-3/4" backset | |
| Door Thickness |
1-3/8"* to 2-1/4"
* Thin door kit required for 1-3/8" thick doors |
|
| Handing | Auto handing after installation | |
| Latch | 2-3/8" to 2-3/4" adjustable | |
| Latch Faceplate | 1" x 2-1/4" RC (round corner) | |
| Strike | 1-1/8" x 2-3/4" RC (round corner) | |
| Cylinder | KW-1 compatible standard, other cylinders/keyways available to order | |
| Keying | KD (Keyed Different) standard, master keying available to order | |
| Packing | Box pack | |
| ANSI/BHMA | Certified ANSI/BHMA A156.36, Grade 2 | |
| UL/cUL | Functions are UL - cUL Fire Listed for use on fire doors having a rating up to and including 90 minutes | |
| Warranty | 1-year electrical and finish warranty; 3-year mechanical warranty | |
|
Environmental
Specifications |
Outside temperature range: -22°F to +140°F (-30°C to +60°C)
Inside temperature range: 5°F to +158°F (-15°C to +70°C) Battery temperature range: -14°F to +131°F (-10°C to +55°C) Storage temperature range: -40°F to +85°F (-40°C to +85°C) |
|
| Power Source | Four AA alkaline batteries, included | |
| Credentials | Seos™ cards, fobs, and Yale Accentra mobile credentials | |
| Firmware Upgradeability | Locks support on-premise wireless configuration and firmware upgrades | |
levers, are sold separately.
19
Trusted every day
Contact Us
U.S.A.
Yale Locks & Hardware
Address: 225 Episcopal Road Berlin, CT 06037-4004 Tel: 1-800-438-1951 Fax: 1-800-338-0965 us.yalehome.com yalecommercial.com
Canada:
ASSA ABLOY Door Security Solutions Canada
Address: 160 Four Valley Drive Vaughan, Ontario L4K 4T9 Tel: 1-800-461-3007 Fax: 1-800-461-8989 assaabloydss.ca
International:
ASSA ABLOY Americas International
Tel: 1-905-821-7775 Fax: 1-905-821-1429 assaabloyai.com
THE YALE BRAND , with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution.
THE ASSA ABLOY GROUP is the world´s leading manufacturer and supplier of locking solutions, dedicated to satisfying end-user needs for security, safety and convenience.
Yale Commercial is a business associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company. Copyright © 2016-2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
Part of ASSA ABLOY 42910N-7/22
