Notes:

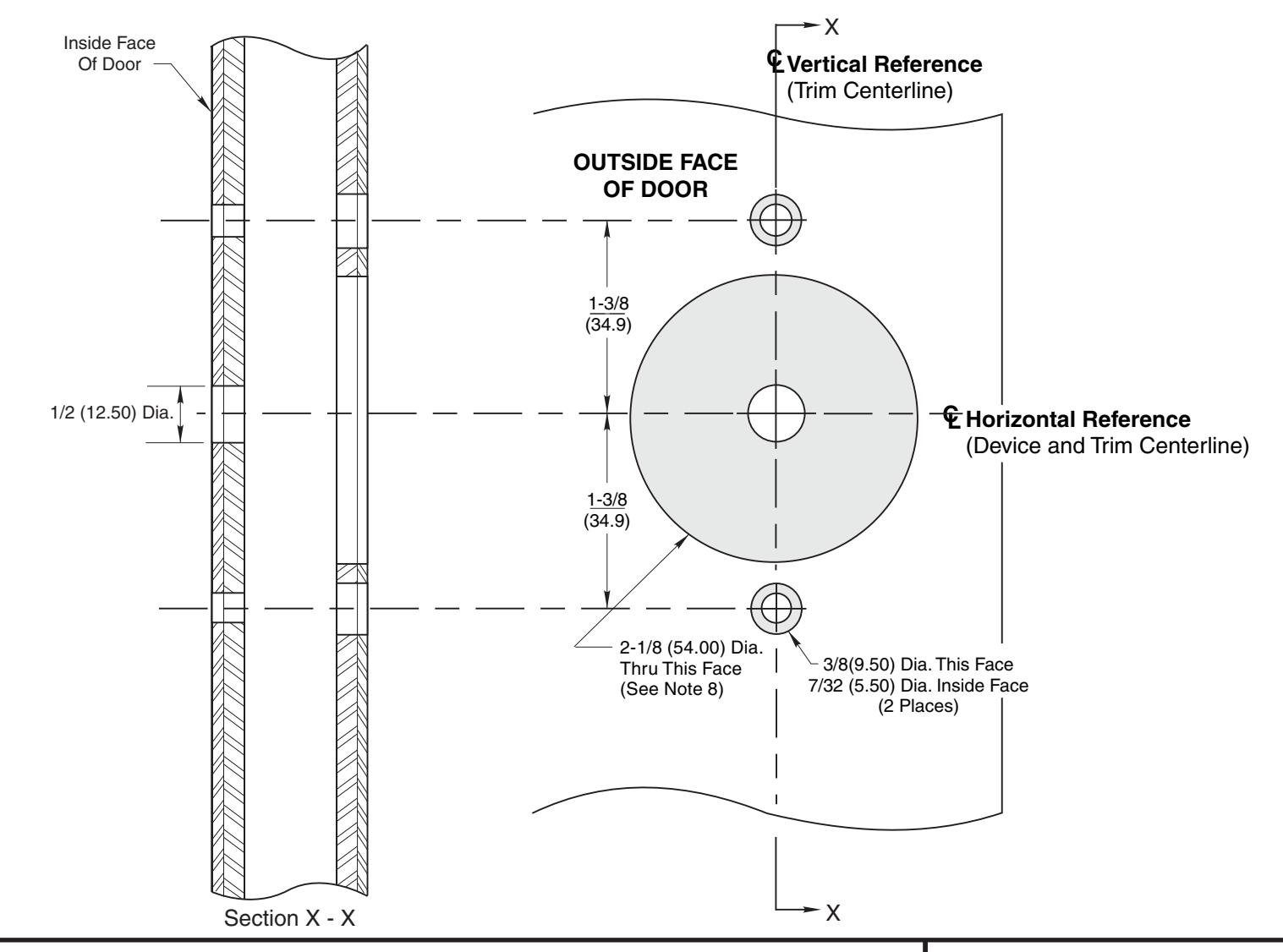

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing the trim.
• 7. Provide adequate internal support to prevent door deformation after trim is bolted to the door.
• 8. At specifiers option ANSI A115.2 cutout thru door may be substituted. If type 161 stock doors are used a filler plate (by others) is required for the door edge.
• 9. Dimensions given about a centerline are symmetrical.

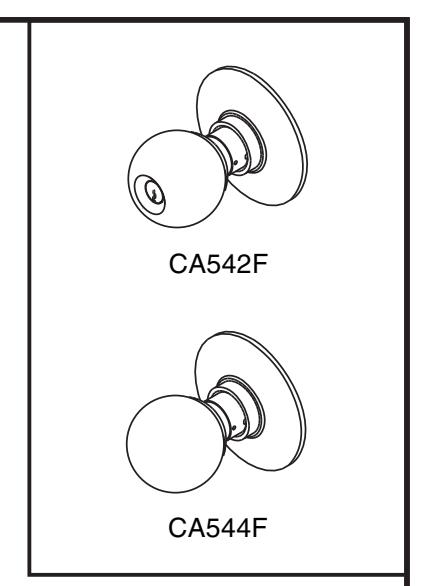

CA542F and CA544F Trim

With 2100(F), 6100(F) or 7100(F) Series Rim and Vertical Rod Exit Devices

Metal Door Preparation

www.yalelocks.com 1-800-438-1951

TEMPLATE NUMBER DATE

7400-0542

05-15
