Classroom Security Solutions Cylindrical and Mortise Locks

Today, school administrators and facility managers are responsible not only for their students' education, but also with providing a safe and secure learning environment. Unauthorized individuals must be kept out of the building while students and staff can move freely about. While there are many factors that contribute to a safe learning environment, appropriate door hardware is key.

Classroom Security Matters

On top of the responsibility of creating an atmosphere for learning, today's school administrators and facility managers must also provide a safe and secure environment. Keeping unauthorized individuals out while keeping students and staff safe is key.

Selecting the right door hardware begins with an evaluation of each school and each opening. Needs must be weighed against the benefits and challenges of each solution. On top of the safety considerations, life safety codes, fire codes and ADA compliance must also be taken into account.

In the school setting, a few security scenarios are possible:

• Door remains locked throughout the day
• Door remains unlocked EXCEPT in an emergency situation
• Door locks are controlled by a central location

Yale: Dependability and Safety

As each school makes its determination about what classroom security means, you can rest assured that Yale has at least one solution to get the job done. Many Yale products were developed specifically for school settings and provide unique functionality to keep students and staff safe and mobile.

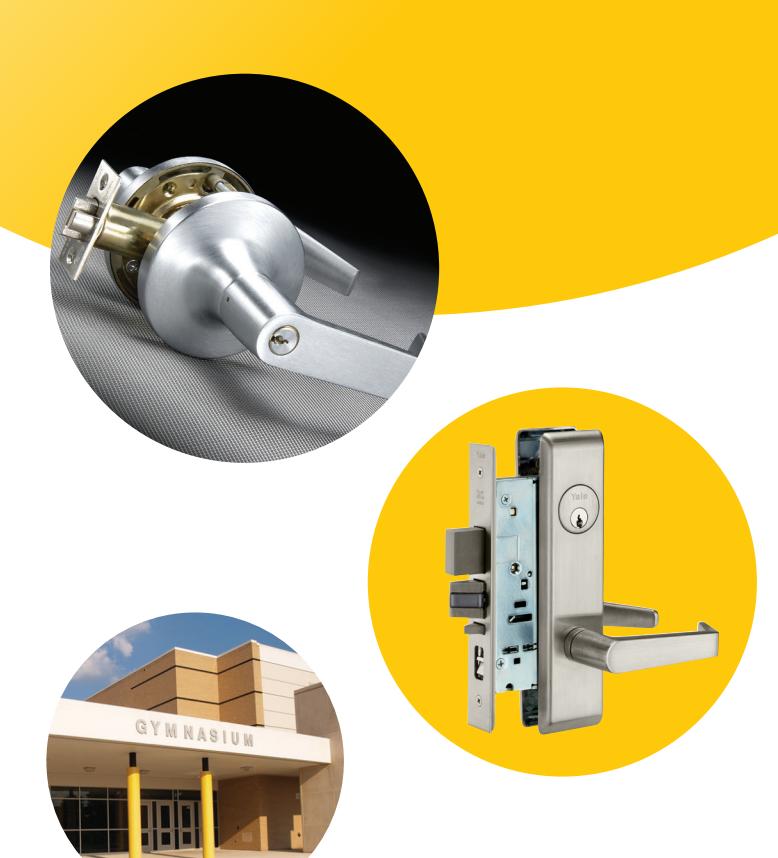

Yale mechanical Grade 1 mortise and cylindrical locks offer many functions that lend themselves to securing classrooms. Each affordable option provides its own set of benefits that allow you to customize the security on your doors.

How do you lock the outside (hallway) lever?	Yale Function No. (ANSI Function No.)	Functionality	Grade 1 Cylindrical Lock	Grade 1 Mortise Lock
Lever is always locked	5405LN / 4705LN / 8805 Storeroom or Closet (Cylindrical F86, Mortise F07)	Outside lever is always locked providing security; access to room requires key or someone from inside to open door.	X	X
Pushbutton on inside lever	5422LN / 4722LN Corridor (Cylindrical F90)	Key outside or pushbutton inside locks outside lever; if inside lever rotated, unlocks outside trim.	X
By key inside only	5417LN / 8817-2 Apartment, Exit or Public Toilet (Cylindrical F88, Mortise F09)	Outside lever can be locked by key from inside. If locked by key on inside, key in outside lever retracts latch but does not unlock.	X	X
By key, inside or outside	5408LN / 4708LN / 8808 Classroom (Cylindrical F84, Mortise F05)	Outside lever can be locked or unlocked by key; cannot lock outside lever from inside.	X	X

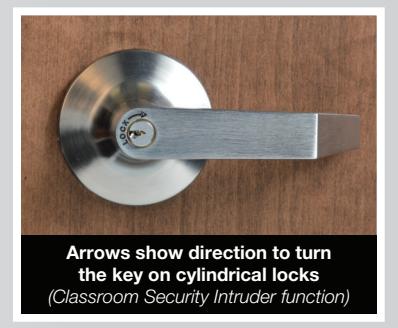

	5418LN / 4718LN Intruder Classroom (Cylindrical F110)	Key inside or outside locks/unlocks outside trim. Rotating inside lever retracts latch but outside lever remains locked. Standard with locking direction engraved on inside rose.	X
	8808-2 Intruder Latchbolt (Mortise F32)	Key inside or outside locks/unlocks outside trim. If locked by inside lever, key in outside retracts latch but does not unlock outside trim.		X

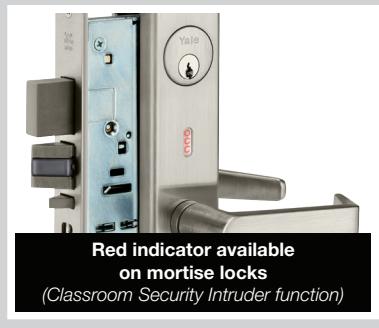

	8811-2 Intruder Deadbolt (Mortise F33)	Latch and deadbolt work in concert; key locks and unlocks latch and deadbolt from either side. When rotated, inside lever unlocks outside lever and retracts deadbolt. Available with optional visual indicator confirming whether the door is secure or not (IND). After exiting, you must relock by key to prevent entry into the room.		X
	8812-2 Intruder Deadbolt (Mortise F34)	Same as 8811-2 but with a deadlatch. Available with optional visual indicator confirming whether the door is secure or not (IND). After exiting, you must relock by key to prevent entry into the room.		X
	8818-2 Classroom Security Intruder	Key on either side locks and unlocks latch and deadbolt. Rotating inside lever retracts both latch and deadbolt but outside lever remains locked. Available with optional visual indicator confirming whether the door is secure or not (IND).		X
