ASSA ABLOY ACCENTRA Active Dummy Trim for 8700 and 8800 Series Mortise Locks 8771DT, 8772DT and 8871DT, 8872DT 1-3…_7086-0015

NOTE:

1. Tolerances shown are for cutouts. All dimensions given about centerlines must be central within tolerance unless otherwise specified.

2. Dimensions given in inches (mm).

Experience a safer and more open world

$Copyright\; @\backslash \; 2004,\; 2006,\; 2023,\; 2024\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\; Inc.\backslash \; All\backslash \; rights\backslash \; reserved.\backslash \; Reproduction\backslash \; in\backslash \; whole\backslash \; or\backslash \; in\backslash \; part\backslash \; without\backslash \; the\backslash \; express\backslash \; written\backslash \; permission\backslash \; of\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\backslash \; Inc.\backslash \; is\backslash \; prohibited.$

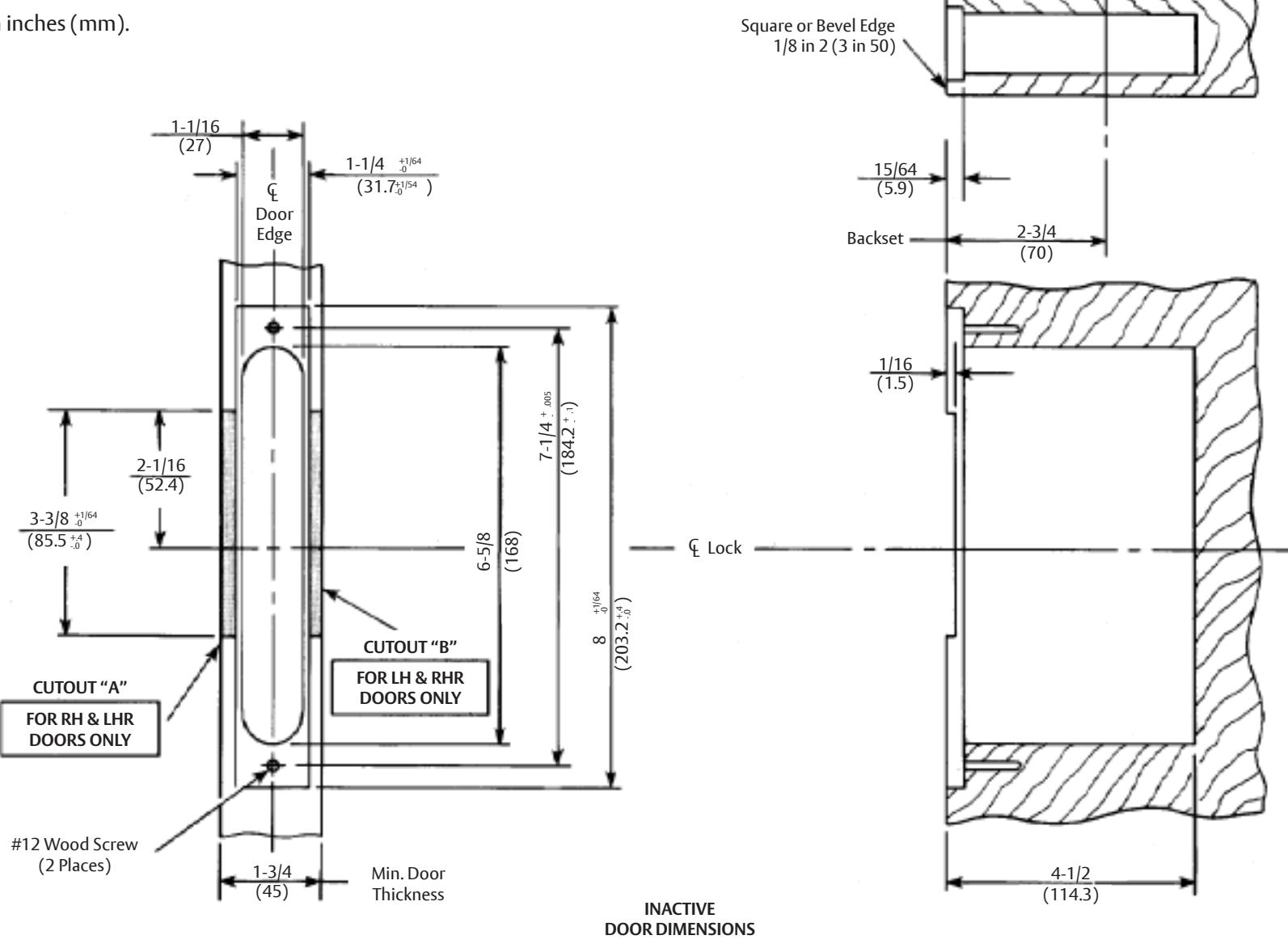

8771DT/8772DT & 8871DT/8872DT 1-3/4" Wood Pair of Doors (ANSI A115.1) Inactive Door Preparation

Template Number: 7086-0015

Sheet: 1 of 1

Date: 01/24
