ASSA ABLOY ACCENTRA Active Dummy Trim for 8700 and 8800 Series Mortise Locks 8771DT, 8772DT and 8871DT, 8872DT 1-3…_7086-0014

Notes:

1. Tolerances shown are for cutouts. All dimensions given about centerlines must be central within tolerance unless otherwise specified.

Copyright © 2004, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

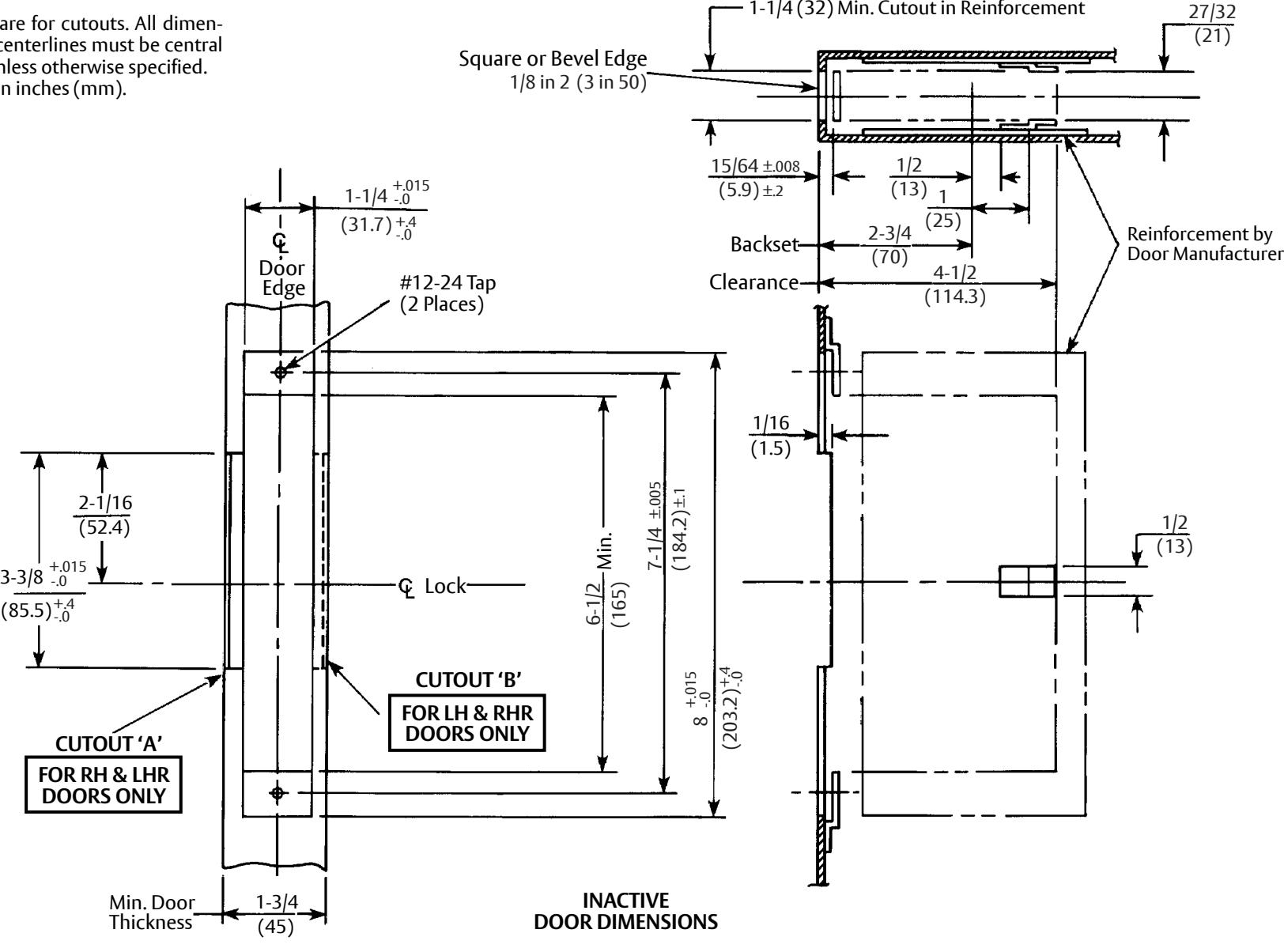

8771DT/8772DT & 8871DT/8872DT 1-3/4" H.M. Pair of Doors (ANSI A115.1) Inactive Door Preparation Date: 01/24

Template Number: 7086-0014

Sheet: 1 of 1

1-855-557-5078 www.assaabloy.com
