Experience a safer and more open world

$Copyright\; @\backslash \; 2011,\; 2024,\; ASSA\backslash \; ABLOY\backslash \; Access\; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\; Inc.\backslash \; All\backslash \; rights\; reserved.\; Reproduction\; in\; whole\; or\; in\; part\; without\; the\; express\; written\; permission\; of\; ASSA\backslash \; ABLOY\backslash \; Access\; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\; Inc.\backslash \; is\backslash \; prohibited.$

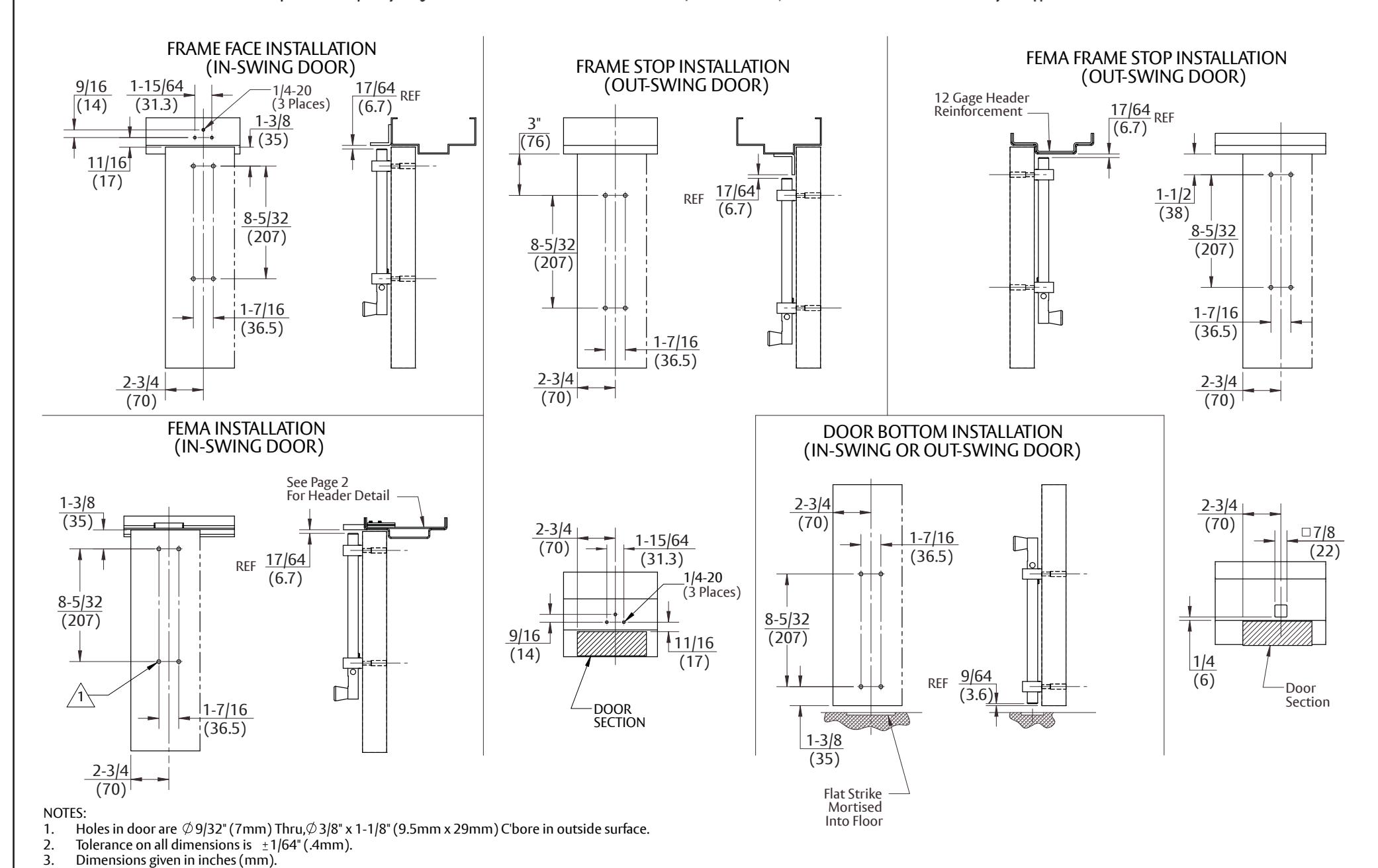

988Y Surface Bolt Standard Installation

Template Number: 7601-0010 Sheet: 1 of 2

Date: 01/24

ASSA ABLOY

1-855-557-5078 www.assaabloy.com

NOTES:

1. Dimensions given in inches (mm).

Experience a safer and more open world

Copyright © 2011, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

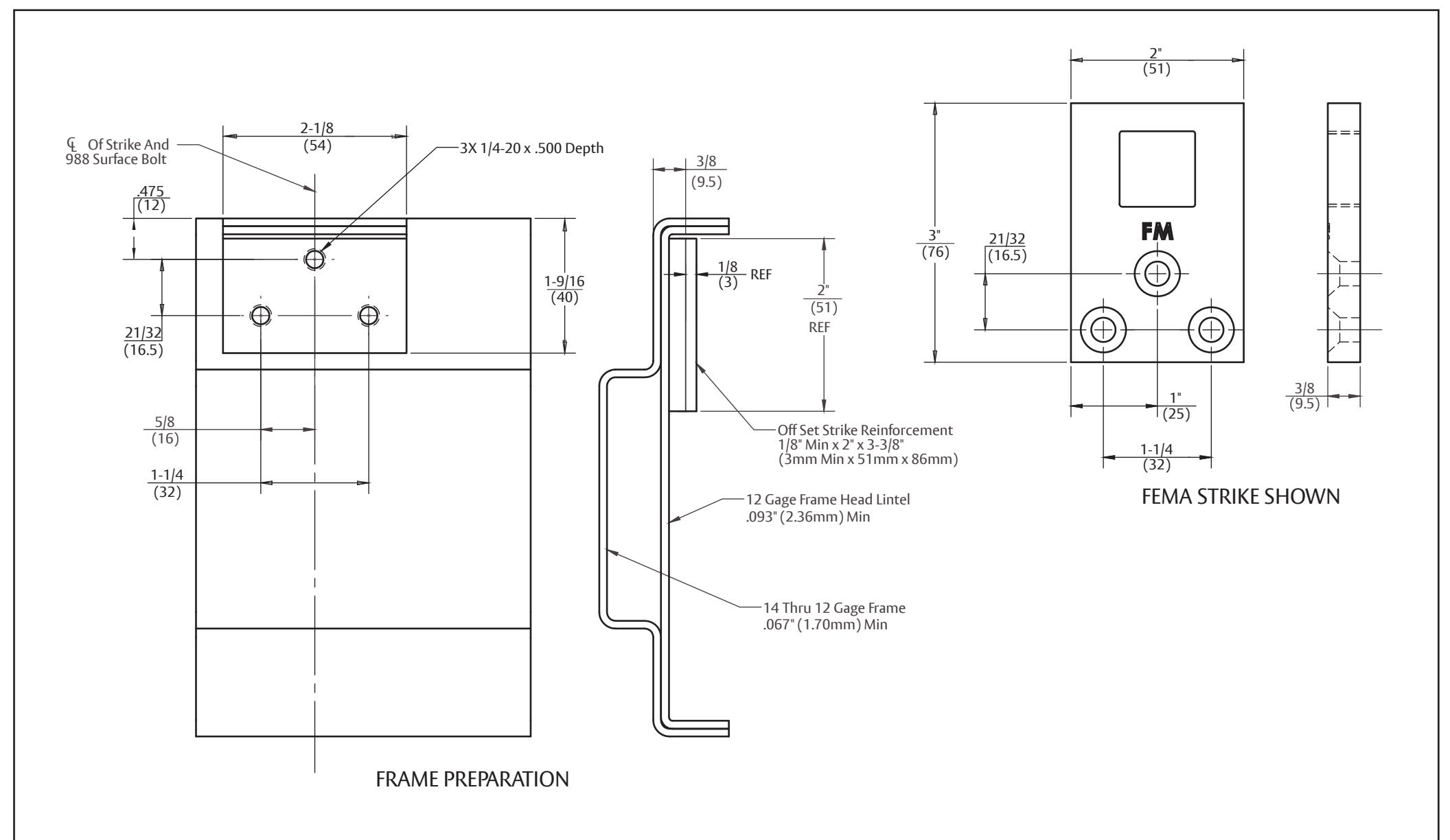

Alternate Top Strike for 988Y Surface Bolt (FEMA Listed)

Template Number: 7601-0010

Sheet: 2 of 2

Date: 01/24

ASSA ABLOY

1-855-557-5078 www.assaabloy.com
