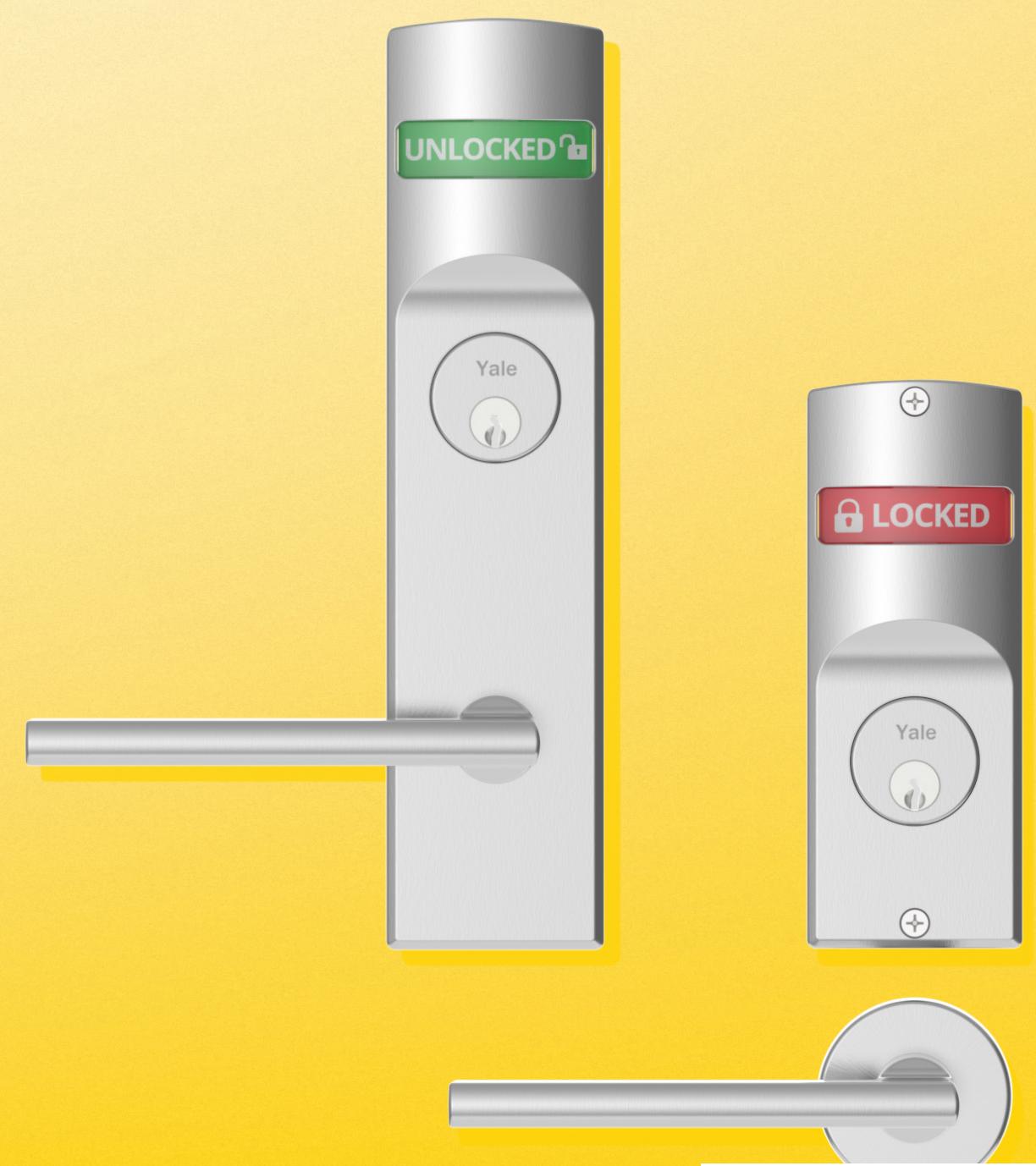

Upgrade Solutions Mortise Lock Status Indicators
Upgrade Kits
Sectional Trim
Upgrade kits are available for existing applications that already have 8800 Series mortise locks with sectional trim. Each kit includes a single side indicator plate with mechanism, screw pack, plastic template and instructions.
How To Order
| Model# |
Door
Thickness |
Hand | Finish |
Option
Code |
|---|---|---|---|---|
| YA194 | 1-3/4" | RH | 626 |
V04×
EMB |
Note: When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side
Indicator option codes must be specified on upgrade/trim kit order strings.
| Model# | Used with Functions |
Available
Option Codes |
Indicator
Location |
|
|---|---|---|---|---|
| YA190 |
8811-2, 8814, 8814-2, 8815,
8818-2, 8822, 8832, 8840, 8847, 8860, 8860-2, 8861, 8867 |
Outside Trim:
V10, V20, V30, V40, V50, |
1 . 1 . 1/ | |
| (a) | YA191 | 8812-2 |
V60
Inside Trim: |
Inside and/or
Outside* |
| YA192 | 8808, 8808-2, 8809 |
V01, V03,
V04, V06 |
||
| 9 | YA193 | 8802, 8820, 8827, 8862, 8864 |
V10, V20, V30,
V40, V50, V60 |
Outside |
| INLOCKED 'E | YA194 |
8802, 8820, 8822, 8827, 8832,
8840, 8847, 8860, 8861, 8867 |
||
| YA196 | 8862, 8864, 8865, 8866 |
V01, V03, V04,
V06 |
Inside | |
| Ů | YA198 | 8809 | ||
| 8 | YA197 | 8866 |
Outside Trim:
V10, V20, V30, V40, V50, V60 Inside Trim: V01, V03, V04, V06 |
Inside, Outside |
Escutcheon Trim
Complete trim kits are available to upgrade existing applications. Each trim kit includes levers and escutcheons with the mechanism for both sides of the door, screw pack, door marker and instructions.
How To Order
| Lever | Escutcheon | Function | Hand | Finish |
Option
Code |
|---|---|---|---|---|---|
| AU | VN | TP8802* | RH | 626 | V54 |
* The function of the existing lock is required so the proper escutcheons can be provided.
Indicator option codes must be specified on upgrade/trim kit order strings.
Note: Escutcheon applications require both sides of the door to have the unique VN1 escutcheon. Kits will be provided as a set.
Options

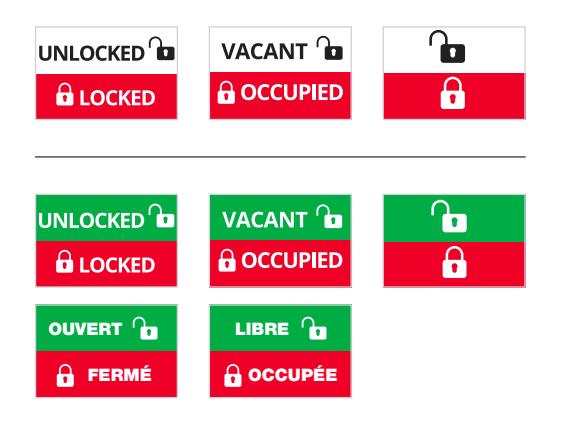

Indicator Option Codes
8800 Series indicator option codes are designed to convey wording, color and side of door desired in one simple code. To order, specify option code for complete locksets and/or upgrade/trim kits.
| Single Indicator | ||||
|---|---|---|---|---|
| Option Code | Outside Wording | Inside Wording | Color | |
| V10 | Unlocked/Locked | No Indicator | Green/Red | |
| V10F | Ouvert/Fermé | No Indicator | Green/Red | |
| V20 | Vacant/Occupied | No Indicator | Green/Red | |
| V20F | Libre/Occupée | No Indicator | Green/Red | |
| V30 | Icons Only | No Indicator | Green/Red | |
| V40 | Unlocked/Locked | No Indicator | White/Red | |
| V50 | Vacant/Occupied | No Indicator | White/Red | |
| V60 | Icons Only | No Indicator | White/Red | |
| V01 | No Indicator | Unlocked/Locked | Green/Red | |
| V01F | No Indicator | Ouvert/Fermé | Green/Red | |
| V03 | No Indicator | Icons Only | Green/Red | |
| V04 | No Indicator | Unlocked/Locked | White/Red | |
| V06 | No Indicator | Icons Only | White/Red | |
| Double Indicator | ||||
| Option Code | Outside Wording | Inside Wording | Color | |
| V11 | Unlocked/Locked | Unlocked/Locked | Green/Red | |
| V11F | Ouvert/Fermé | Ouvert/Fermé | Green/Red | |
| V21 | Vacant/Occupied | Unlocked/Locked | Green/Red | |
| V21F | Libre/Occupée | Ouvert/Fermé | Green/Red | |
| V33 | Icons Only | Icons Only | Green/Red | |
| V44 | Unlocked/Locked | Unlocked/Locked | White/Red | |
| V54 | Vacant/Occupied | Unlocked/Locked | White/Red | |
| V66 | Icons Only | Icons Only | White/Red | |

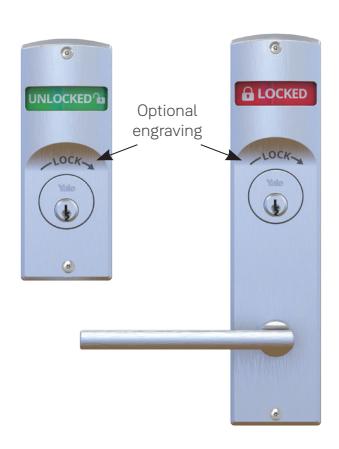

Engraving Option
Laser engraving with "LOCK" and a directional arrow is an available option for all functions and a select number of finishes.
| Option Code | Description |
|---|---|
| EMA | Engraving located on outside of door |
| EMB | Engraving located on inside of door |
| EMC | Engraving located on inside and outside of door |
Upgrades Made Easy
The newly designed status indicator option for the Yale 8800 Series mortise lock features an even more visible indicator window, made of reflective materials and able to be clearly viewed from 180°. Enjoy the ultimate in privacy assurance.

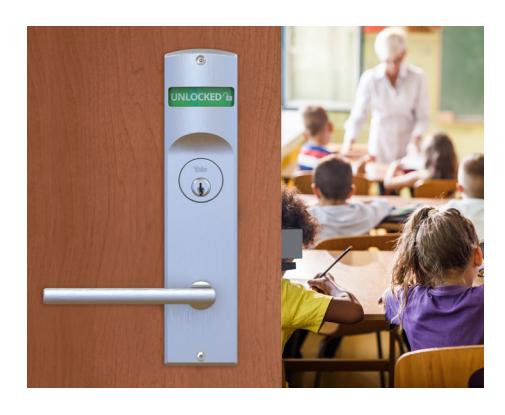

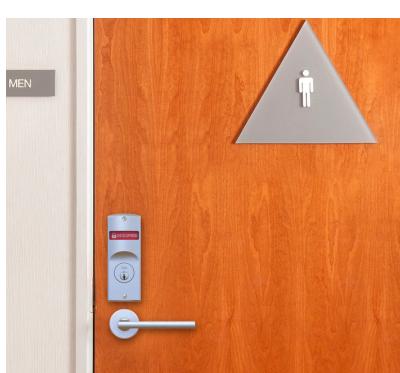

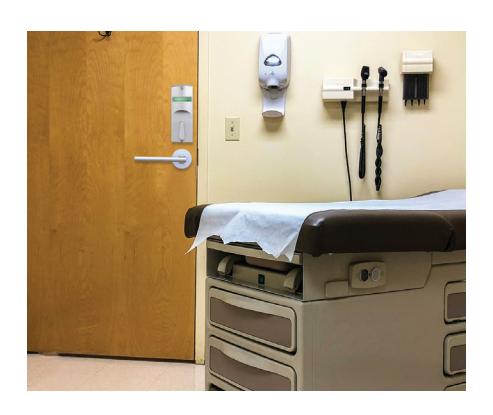

Typical Applications
- Classroom doors
- Privacy rooms
- Nursing/new mother rooms
- Patient rooms
- Restrooms
- Meeting rooms
| Features | Benefits |
|---|---|
| Available in sectional or escutcheon kits | Provides a lower cost solution to upgrading security and privacy |
| Largest viewing window available |
Provides security and safety at a glance, visible at a distance.
Status indicator window is 25% larger than competition |
| Patented curved window design |
Ensures that the status indicator is clearly visible; Status
indicator window has 180° viewing angle |
| Reflective coating on indicator panel | Increases the visibility of the indicator in low light conditions |
|
Available in a variety of functions; multiple color,
text, graphic, & language combinations available |
Suitable for multiple applications |
| Directional engraving |
Provides guidance on which way to turn the thumb turn or key
to lock/unlock the door |
| ANSI/BHMA Grade 1 certified |
Exceeds strength and durability standards for high use and
abuse applications |
Contact your local ASSA ABLOY Door Security Solutions team or visit yalecommercial.com
