ASSA ABLOY ACCENTRA 8800 Series Mortise Locks Bolt Position Dimensions Mechanical , Electrical , Exit Device Tem…_7088-0000

DO NOT SCALE

Notes:

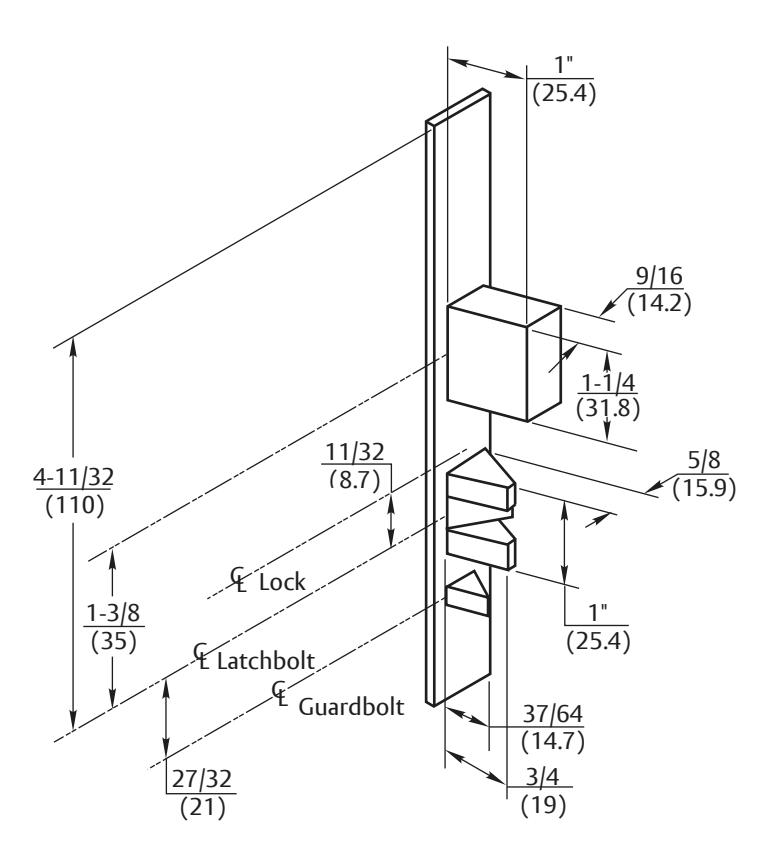

• 1. Theillustration indicates the location of thelatchbolt, deadbolt and guardbolt (when used) for all 8800 functions.
• 2. When electric door openers are specified, it is the responsibility of the hardware consultant to coordinate template information of both the lock and electric door opener with the door and frame manufacturers.
• 3. All dimensions given in inches (mm) unless otherwise noted.
• 4. Latchbolt, guardbolt and deadbolt are in the same location for all 8800 lockbodies.

Copyright © 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

8800 Mortise LocksBolt Position Dimensions Mechanical / Electrical / Exit Device Date: 11/23

Template Number: 7088-0000

Sheet: 1 of 1
