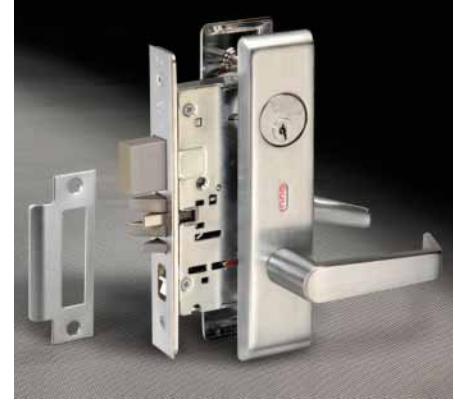

8800 mortise locks

Strength and Durability

• ANSI/BHMA certified A156.13, Series 1000, Operational Grade 1 (SL Series meets Security Grade 1).
• UL Listed for use on fire doors having a rating up to and including 3-hours.
• 3/4" projection stainless steel, 2-piece anti-friction latchbolt. Additional 1" material recessed in case.
• 1" throw deadbolt with 2 hardened steel roller pins. Additional 1/2" material recessed in case.
• 3/8" square spindles largest in the industry.
• 4 case/cover screws 5th screw added if no deadbolt function.
• 12 Gauge (.109) steel case and cap.
• 1/8" (.125) cold-rolled steel inside front.
• Optional PVD lifetime finishes provide the ultimate surface protection against environmental elements and everyday wear and tear.
• 10 year mechanical warranty, 2 year electrified.
• Windstorm certified (refer to local codes).

Flexibility

• Patented quick reversible latchbolt (Patent no. 7,108,300) to allow handing without opening the lock case or disassembling any parts.
• Lock handing can not be tampered with while installed in the door.
• Available in 17 architectural finish options, including PVD life time finishes available for Bright Brass (605e), Satin Brass (606e) and Dark Oxidized Satin Bronze (613e).
• 43 standard mechanical functions and 16 electrified functions to fit a wide variety of applications.
• 8 escutcheon styles and 7 rose styles available to match a wide range of preferences.
• Standard with a non-handed curved lip strike which eases operation of the latchbolt and ensures positive latching. Plus, it makes ordering easier and installing faster.
• Free floating front to adjust from flat to the standard bevel of 1/8" in 2".
• Offered for door thicknesses ranging from 1-3/4" up to 3-1/4".

Innovation & Design

• Available in stainless steel and zinc escutcheons which offer continuum of design within product lines.
• Available with Reflections™, a comprehensive line of highly stylized levers.

• Available with MicroShield™. This silver-based antimicrobial coating suppresses the growth of bacteria, algae, fungus, mold and mildew.
• Electrified functions are provided with ElectroLynx ®, a universal quick-connect system that simplifies electrification of a door opening.
• Request to Exit (REX), Latch Bolt Monitoring (LBM) and Dead Bolt Monitoring (DBM) available for both mechanical and electrical functions.
• Occupancy indicators available for both privacy and cylinder functions .
• Available with lead shield for use in lead-lined doors.
• Available with knurled trim for identification by touch for blind persons.
• This product can be used to earn LEED MR1 and MR2 credits for recycled content.

Security

• Security, high security and patented and restricted key systems available.
• Classroom intruder security functions available.
• Available with security trim which features:
  • wider and thicker escutcheons (2-1/2" x 3/16")
  • levers are attached to escutcheon
  • through-bolted trim with security Torx® screws
• Bump resistant cylinders available.
