Installation Template (Trim)

80-8086-0001-010

(1-85)

Yale® Mortise Locks 4600, 8600, & 8700 Series

Door Preparation:

1. Mark Door and Position Template.

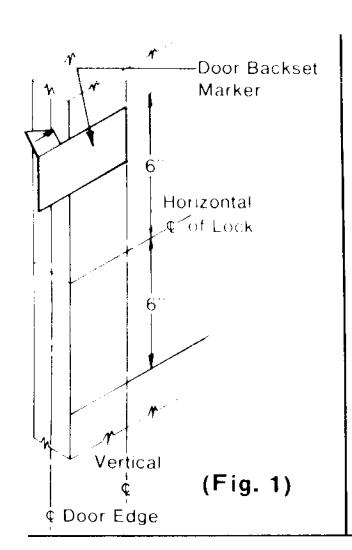

• a. Draw a horizontal centerline for the lock on both sides of door at desired height above finished floor line. Standard height for horizontal centerline is 39-15/16" above finished floor. (See Fig. 1).
• b. Using the door backset marker, draw a vertical centerline on both sides of the door. (See Fig. 1).

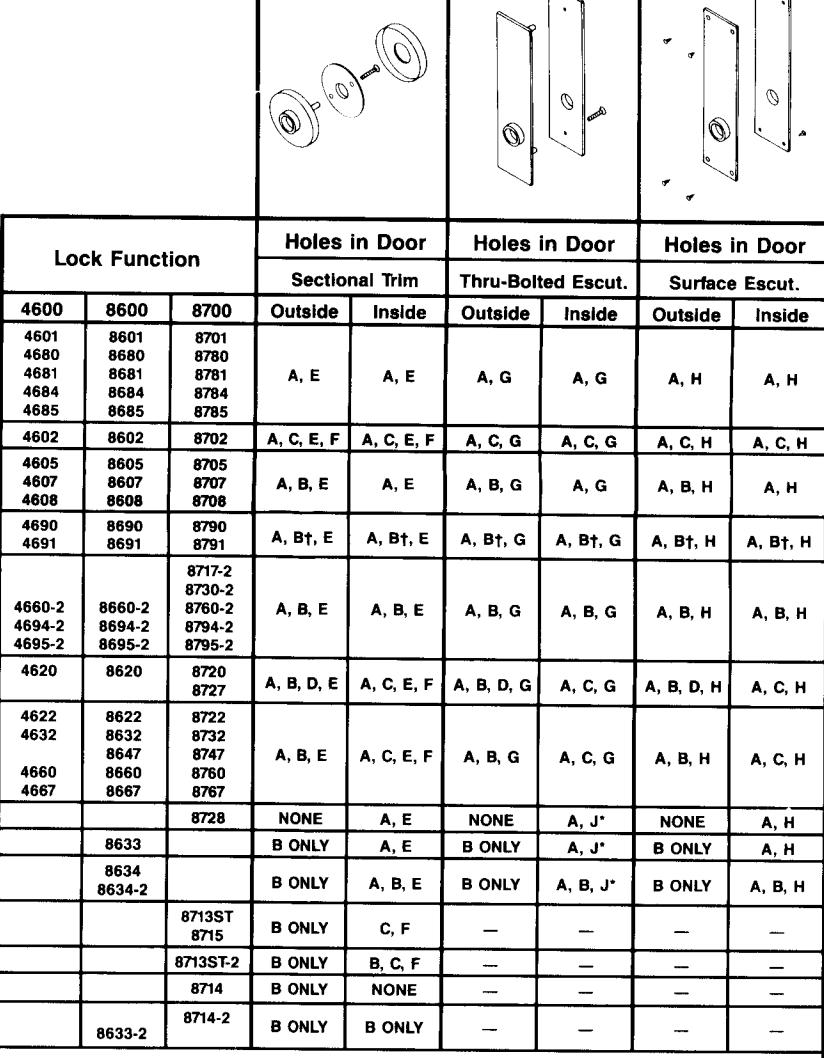

• c. Compare number of lock being installed with chart below. Determine holes to be marked.

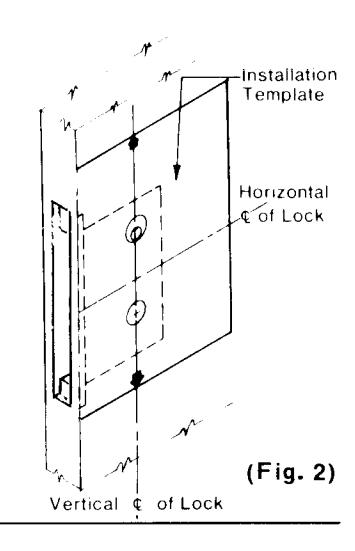

• d. Position installation template on outside of door so that horizontal centerline lines up with horizontal line on door and vertical points line up with vertical centerline on door. Mark holes to be drilled using scribe, center punch or nail.

(To avoid shifting of the template, it may be taped to the door during this step.) (See Fig. 2).

e. Repeat step 1d. for inside of door.

2. Drill Door.

a. At lock trim marks (steps 1d and 1e) bore lock trim holes. To avoid splintering wood, bore thru holes from both sides of door.

	Hole Chart
	Size
Hole	H.M. Door	Wood Door	Used for
Α	$\backslash frac\{1-1/8\}\{(29)\}$ Dia.	$\backslash frac\{1-1/8\}\{(29)\}$ Dia.	Knob
В	$\backslash frac\{1-1/4\}\{(32)\}$ Dia.	$\backslash frac\{1-1/4\}\{(32)\}$ Dia.	Cylinder
С	$\backslash frac\{3/4\}\{(19)\}$ Dia.	$\backslash frac\{3/4\}\{(19)\}$ Dia.	Thumbturn or Emergency Key
D	3/4 (19) Dia.	$\backslash frac\{3/4\}\{(19)\}$ Dia.	Hotel Indicator
E	$\backslash frac\{5/16\}\{(8)\}$ Dia.	$\backslash frac\{5/16\}\{(8)\}$ Dia.	Rose Thru-Bolts
F	. 116 Dia. (2.9) #32 Drill	$\backslash frac\{1/16\}\{(1.6)\}$ Dia.	Thumbturn Plate Attaching Screws
G	$\backslash frac\{1/2\}\{(13)\}$ Dia.	$\backslash frac\{1/2\}\{(13)\}$ Dia.	Escutcheon Plate Thru-Bolts
н	. 116 Dia. (2.9) #32 Drill	$\backslash frac\{1/16\}\{(1.6)\}$ Dia.	Surface Escutcheon Plate Attaching Screws
J	. 152 Dia. (3.9) Dia. #24 Drill	$\backslash frac\{11/64\backslash times1\}\{(4.4\backslash times25)\}$ Dp. C'bore $\backslash frac\{1/2\backslash times1/8\}\{(13\backslash times3)\}$ Dp.	1/2 Pair Thru-Bolt Escutcheon Attaching Screws

8680 4684 8684 4605 8605 4607 8607 8608 8691 4660-2 8660-2 4694-2 8694-2 4695-2 8695-2 4620 8620 8622 8632 8647 8667 8633 8634-2 8

87

*CO & WG Escutche

Lock Function

8600

4600

4601

Hole Chart
	Size
Hole	H.M. Door	Wood Door	Used for
А	$\backslash frac\{1-1/8\}\{(29)\}$ Dia.	1-1/8 (29) Dia.	Knob
В	$\backslash frac\{1-1/4\}\{(32)\}$ Dia.	$\backslash frac\{1-1/4\}\{(32)\}$ Dia.	Cylinder
С	$\backslash frac\{3/4\}\{(19)\}$ Dia.	$\backslash frac\{3/4\}\{(19)\}$ Dia.	Thumbturn or Emergency Key
D	$\backslash frac\{3/4\}\{(19)\}$ Dia.	$\backslash frac\{3/4\}\{(19)\}$ Dia.	Hotel Indicator
E	5/16 (8) Dia.	$\backslash frac\{5/16\}\{(8)\}$ Dia.	Rose Thru-Bolts
F	.116 Dia. (2.9) #32 Drill	$\backslash frac\{1/16\}\{(1.6)\}$ Dia.	Thumbturn Plate Attaching Screws
G	$\backslash frac\{1/2\}\{(13)\}$ Dia.	$\backslash frac\{1/2\}\{(13)\}$ Dia.	Escutcheon Plate Thru-Bolts
Н	. 116 Dia. (2.9) #32 Drill	1/16 (1.6) Dia.	Surface Escutcheon Plate Attaching Screws
J	. 152 Dia. (3.9) #24 Drill	11/64×1 (4.4×25) Dp. C'bore 1/2×1/8 (13×3) Dp.	Thru-Bolt Escutcheon Attaching Screws

*CO & WG Escutcheon Plates cannot be used as half trim on H.M. Doors. †Lock can be mounted with cylinder outside or inside. Check for proper application.
