7086-1001

Notes:

  • 1. All dimensions given in inches (mm).
  • 2. Not To Scale.

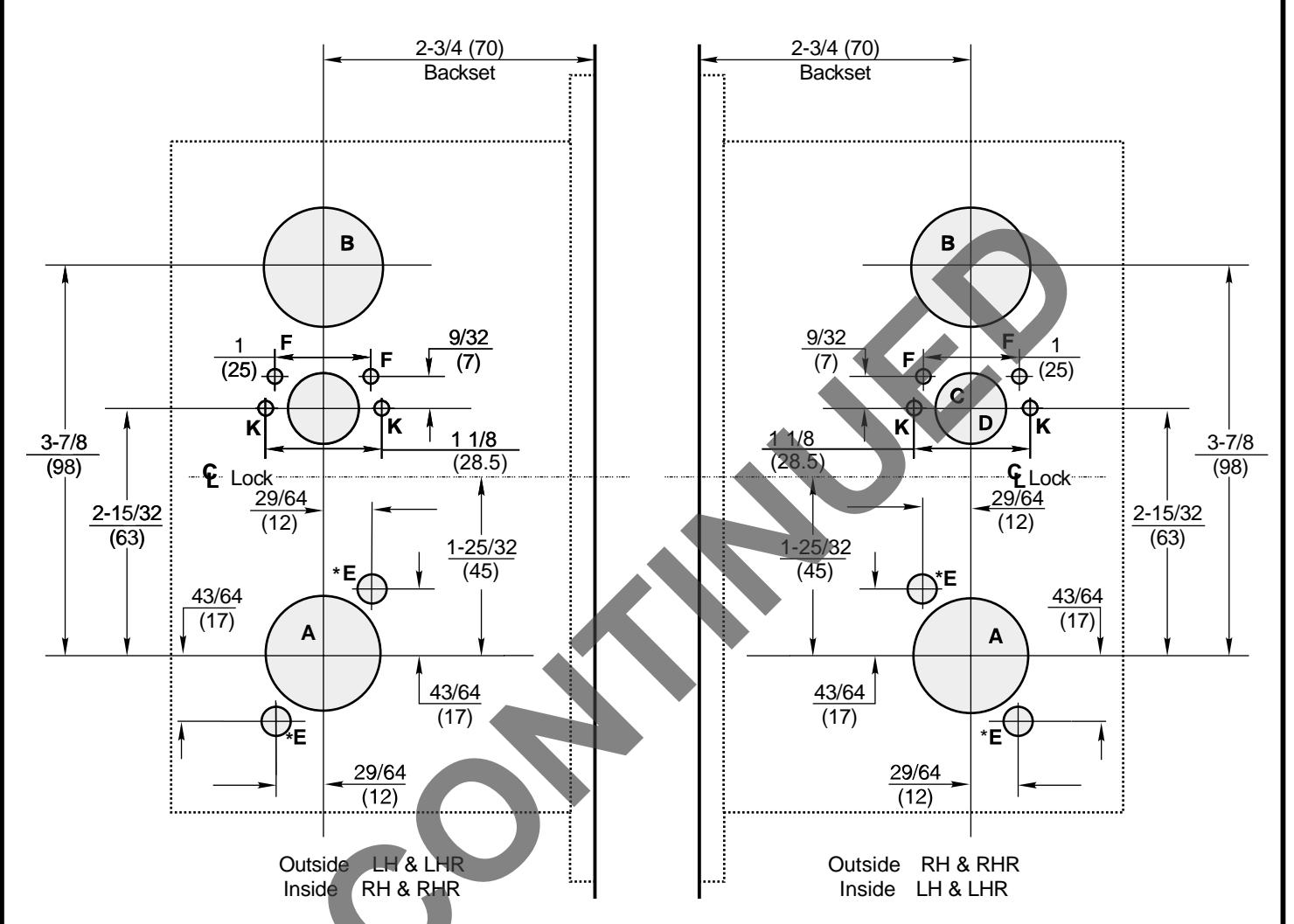

8700 Series Mortise Locks Wood and H.M. Door Preparation Thru Bolted Sectional Trim

Yale Commercial Locks and Hardware

www.yalecommercial.com

TEMPLATE NUMBER SHEET 7086-1001 1 of 2

8-04

Printed in U.S.A. 7086-100

8700 SERIES

0/00 SERIES
Lock
Function 		Holes in Door
8700 Outside Inside
8701
8770DT
8771DT
8772DT
8780 A, E A, E
8781 , , , , , , , , , , , , , , , , , , , ,
8784
8785
836 A&B
838 A&B
8702 A, C, E, F A, C, E, F
8705
8707 |
8708 A, B, E A, E
8724
8731
8790 A, B*, E A, B*, E
8791 11,0,2 1,0,2
8717-2
8730-2 | , , , ,
8760-2 A, B, E A, B, E
8794-2
8795-2
8720
8727 A, B, D, E A, C, E, F
8722
8732 A, B, E A, C, E, F
8747 , N, D, L 11, U, L, I
8760
8767 | |
8728 NONE A, E
8733 B ONLY A, E
8734 B ONLY A, B, E
8734-2 DUNLI A, D, E
8713ST B ONLY C, F
8715
8713ST-2 		B ONLY B, C, F
8714 B ONLY NONE
8714-2 DONLI INOINE
8714-2
8733-2 		B ONLY B ONLY
0733-2 l
Hole Chart
Size
Hole H.M.
Door 		Wood
Door 		Used for
Α Dia.
FL 1-1/8
(29) 		Dia.
1-1/8
(29) 		Levers/Knobs
В Dia.
1-1/4
(32) 		Dia.
1-1/4
(32) 		Cylinder
С Dia.
3/4
(19) 		Dia.
3/4
(19) 		Thumbturn or
Emergency Key
D Dia.
3/4
(19) 		Dia.
3/4
(19) 		Hotel Indicator
Е Dia.
5/16
(8) 		Dia.
5/16
(8) 		Rose
Thru-Bolts
F Dia.
. 116
(2.9)
#32 Drill 		Dia.
1/16
(1.6) 		Thumbturn Plate
Attaching Screws
K Dia.
.106
(2.7)
#36 Drill Tap
(#6-32 UNC) 		Dia.
1/16
(1.6) 		Visual
Indicator

8700 Series Mortise Locks Wood and H.M. Door Preparation Thru Bolted Sectional Trim

Yale Commercial Locks and Hardware

www.yalecommercial.com

TEMPLATE NUMBER 7086-1001 2

SHEET 2

8- 04

Lock can be mounted with cylinder outside or inside. Check for proper application.

** CO & WG Escutcheon plates cannot be used as half trim on H.M Doors.
