ASSA ABLOY ACCENTRA 8600, 8700, and 8800 Series Mortise Locks Lock and Strike Pair of Rabbeted Wood Doors Templa…_7086-0004

DO NOT SCALE

Notes:

• These holes are field drilled on 2-1/4" (57mm) thick doors only.
• These holes are field drilled.
• Tolerances shown are for cutouts. All dimensions given about centerlines must be central within tolerance unless otherwise specified.

Experience a safer and more open world

Copyright © 1999, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

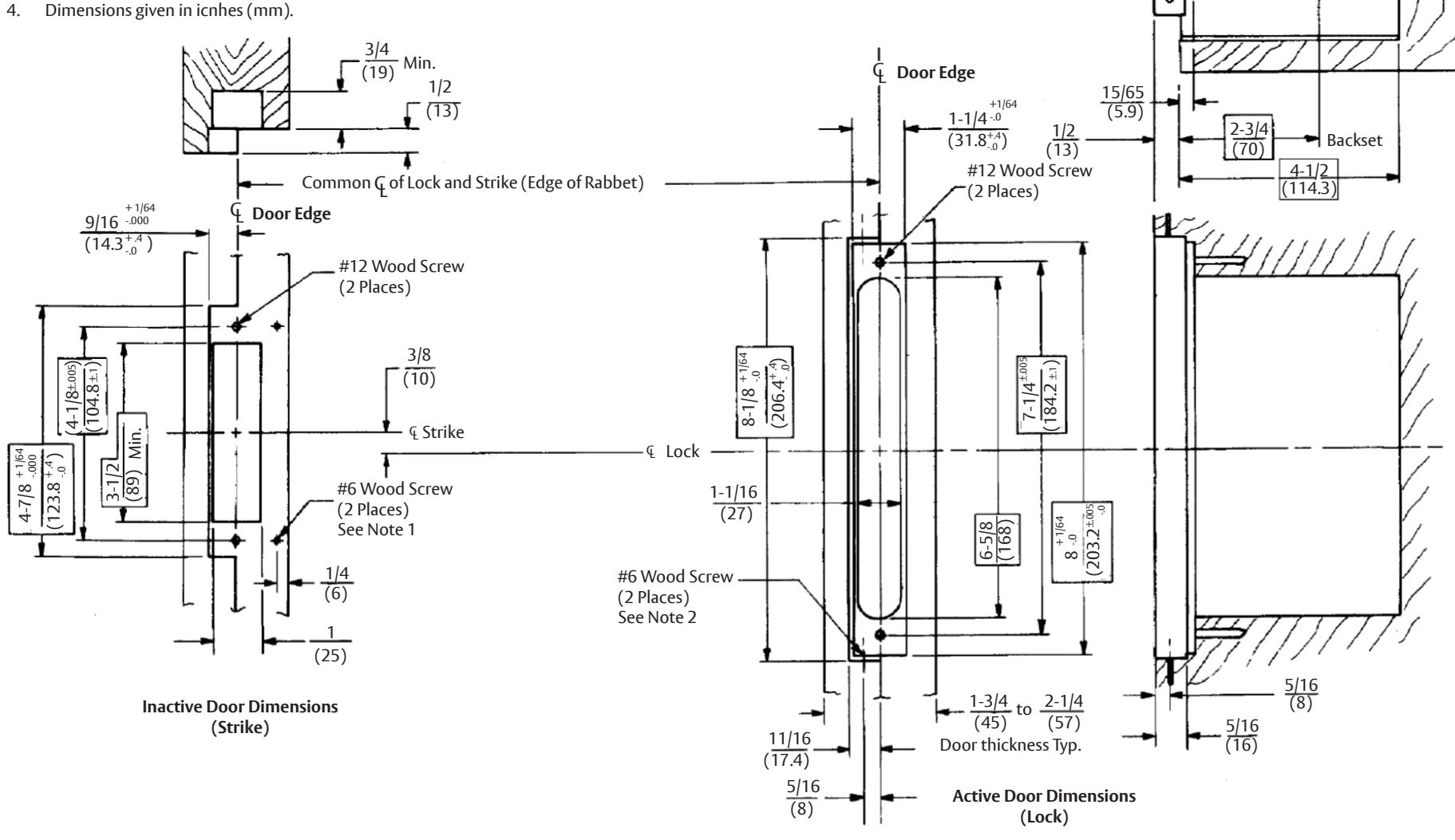

8600, 8700, & 8800 Series Mortise Locks Pair of Rabbeted Wood Doors Lock and Strike Preparation

Template Number: 7086-0004

Sheet: 1 of 1

Date: 01/24
