ASSA ABLOY ACCENTRA 8600, 8700, and 8800 Series Mortise Locks Lock and Strike Pair of Rabbeted H.M. Doors Templa…_7086-0003

DO NOT SCALE

Notes:

• These holes are field drilled on 2-1/4" (57mm) thick doors only.
• Tolerances shown are for cutouts. All dimensions given about centerlines must be central within tolerance unless otherwise specified.
• 3. Dimensions given in inches (mm).

Experience a safer and more open world

Copyright © 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

8600,8700, & 8800 Series Locks

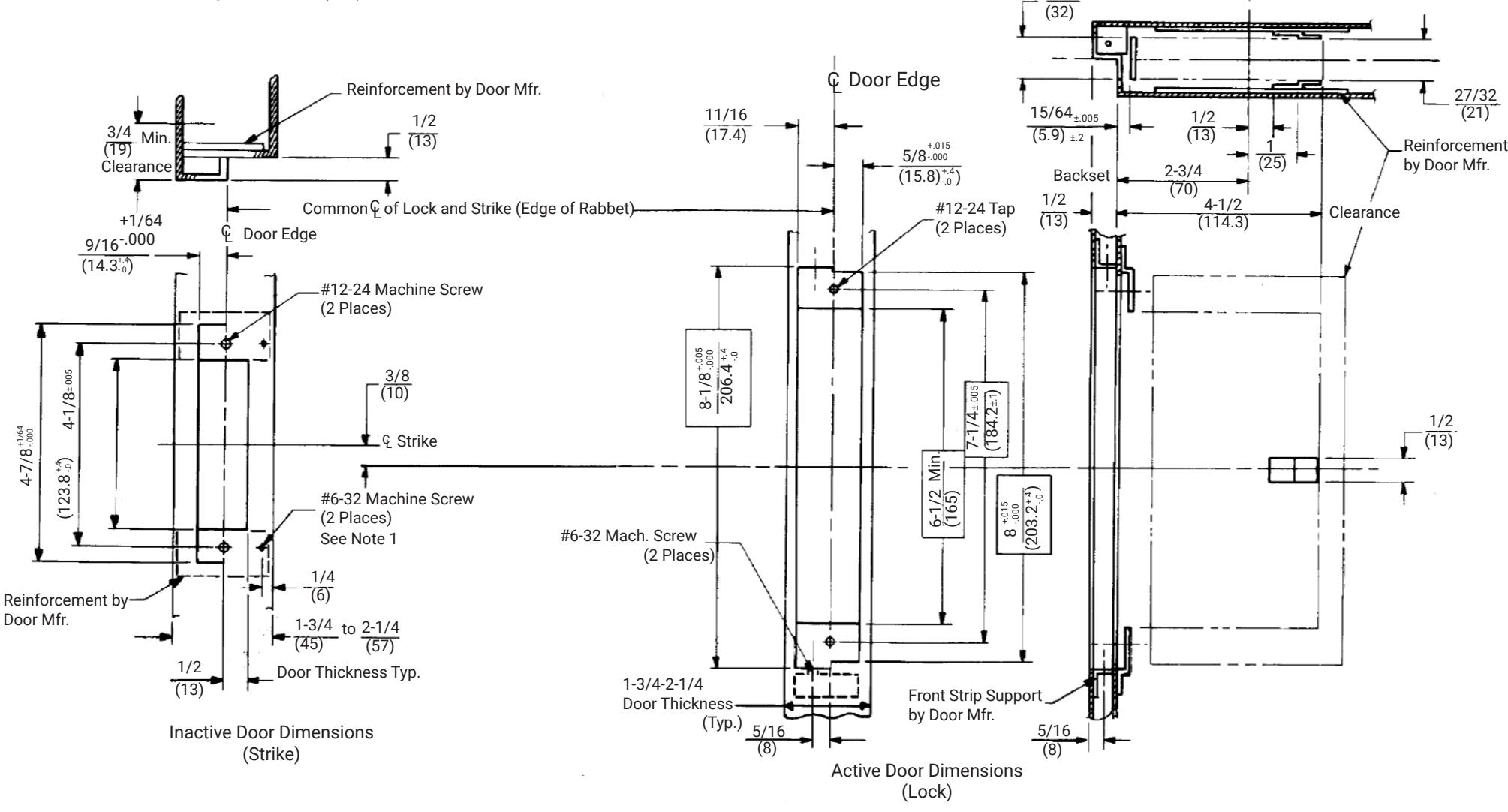

Pair of Rabbeted H.M. Doors Locks and Strike Preparation

1-855-557-5078, Ext. 2 www.accentra-assaabloy.com

Template Number: 7086-0003

Cutout in Reinforcement

1-1/4 Min.

Date: 04/24 Sheet: 1 of 1

ACCENTRA ASSA ABLOY
