ASSA ABLOY ACCENTRA 8600, 8700, and 8800 Series Mortise Locks Lock and Strike Lead Lined Doors 1-3, 4 Wood Door …_7086-0018

Experience a safer and more open world

Copyright © 2004, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

8600, 8700, & 8800 Series Mortise Locks for Lead Lined Doors

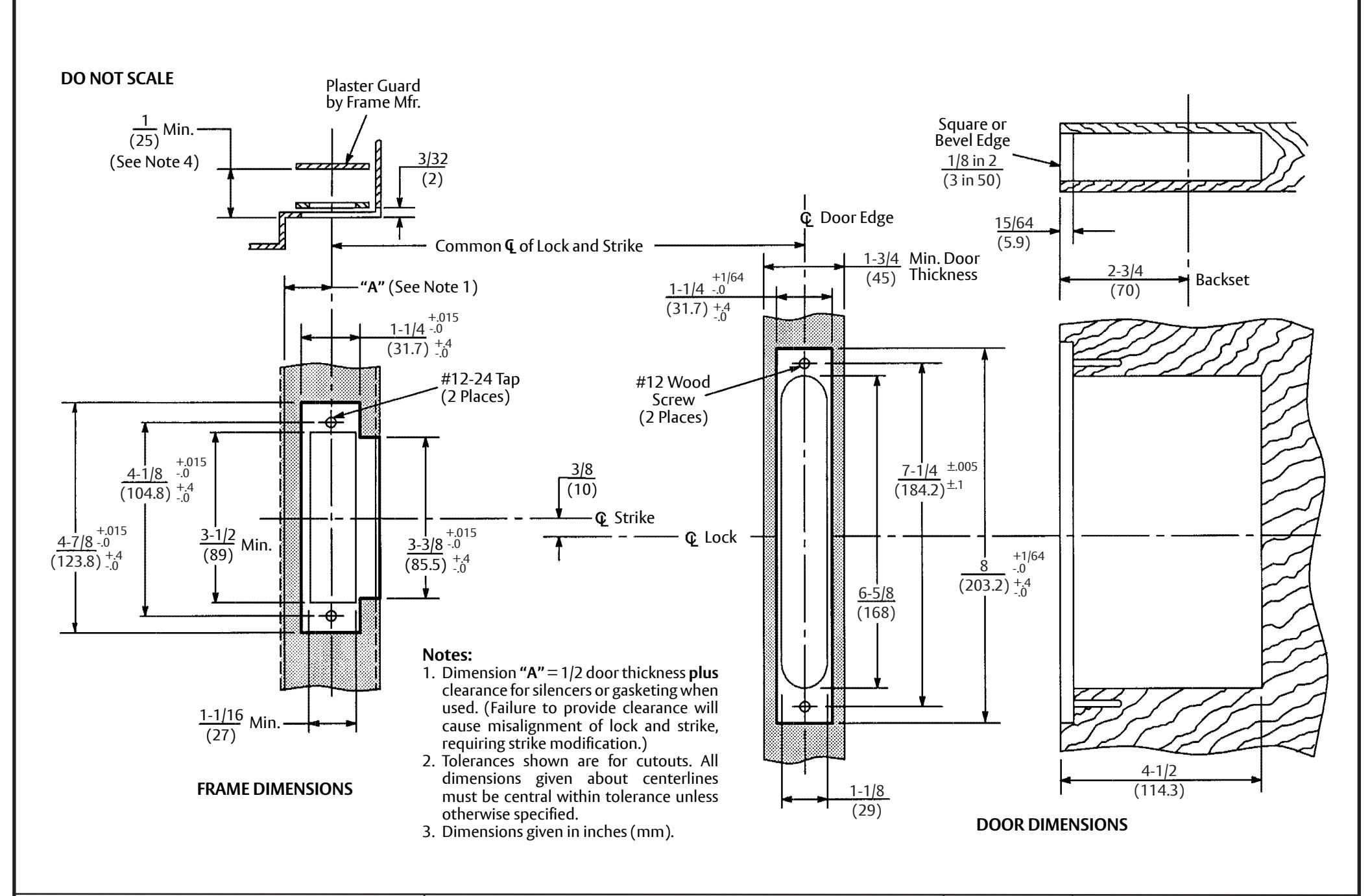

1-3/4" Wood Door and H.M. Frame (ANSI A115.W1) Lock and Strike Preparation (For All 8600, 8700, & 8800 Series Mortise Locks)

Template Number: 7086-0018 Sheet: 1 of 1

Date: 01/24

ASSA ABLOY

1-855-557-5078 www.assaabloy.com
