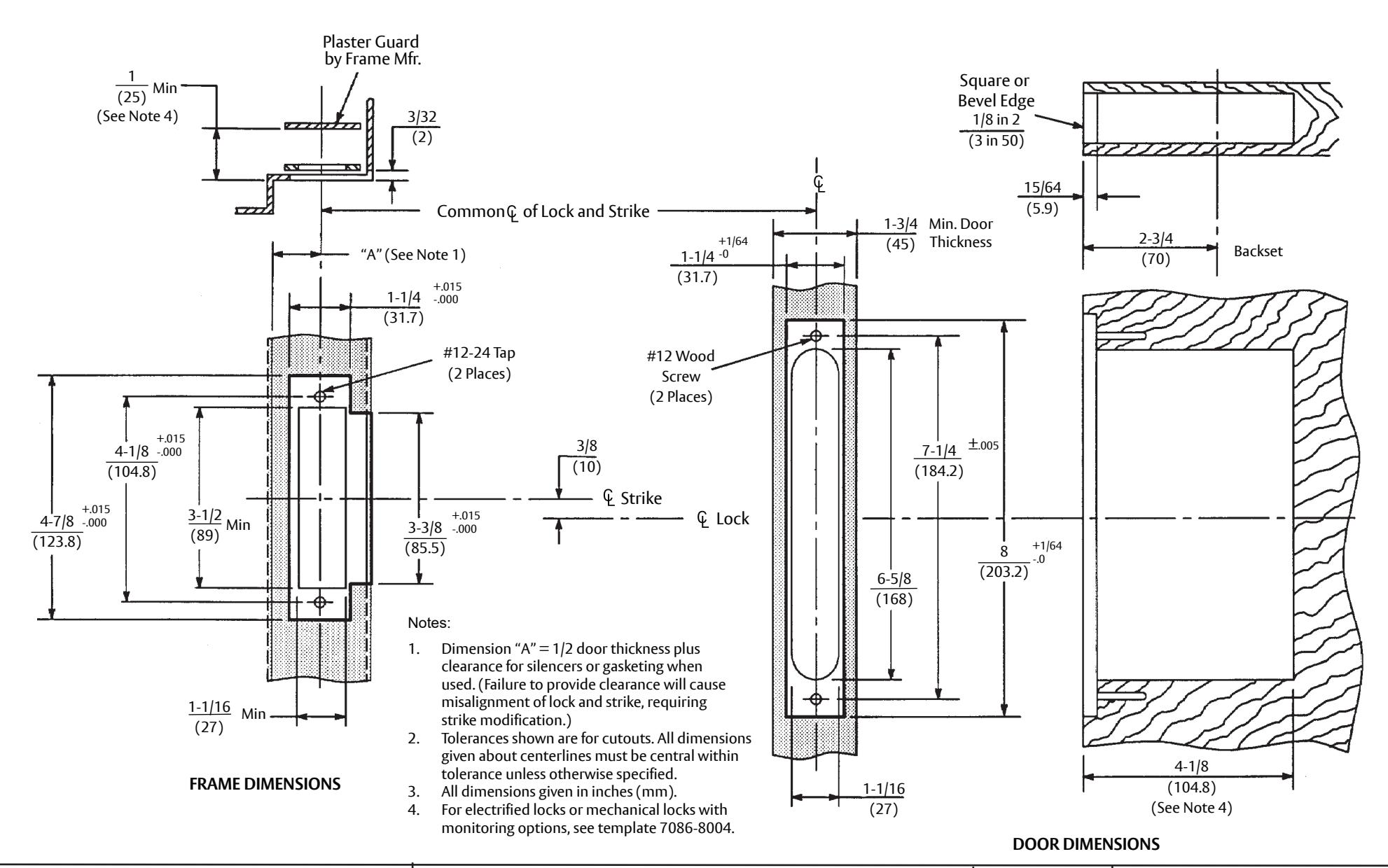

Lock and Strike Preparation for Wood Door and H.M. Frame (ANSI/BHMA A156.115-W) For All 8600 and 8700 Series Mortise Locks Except Deadbolt Functions For All 8800 Series Mortise Lock Functions
Template Number: 7086-0002
Sheet: 1 of 1
Date: 11/23
