ASSA ABLOY ACCENTRA 8600, 8700, and 8800 Series Mortise Locks (Excludes Deadbolt Functions for 8600, 8700) Lock …_7086-0001

Experience a safer and more open world

$Copyright\; \backslash \; @\backslash \; 2004,\; 2006,\; 2023,\; \backslash \; ASSA\backslash \; ABLOY\backslash \; Access\; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\; Inc.\backslash \; All\backslash \; rights\backslash \; reserved.\backslash \; Reproduction\backslash \; in\backslash \; whole\backslash \; or\backslash \; in\backslash \; part\backslash \; without\backslash \; the\backslash \; express\backslash \; written\backslash \; permission\backslash \; of\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\; Inc.\backslash \; is\backslash \; prohibited.$

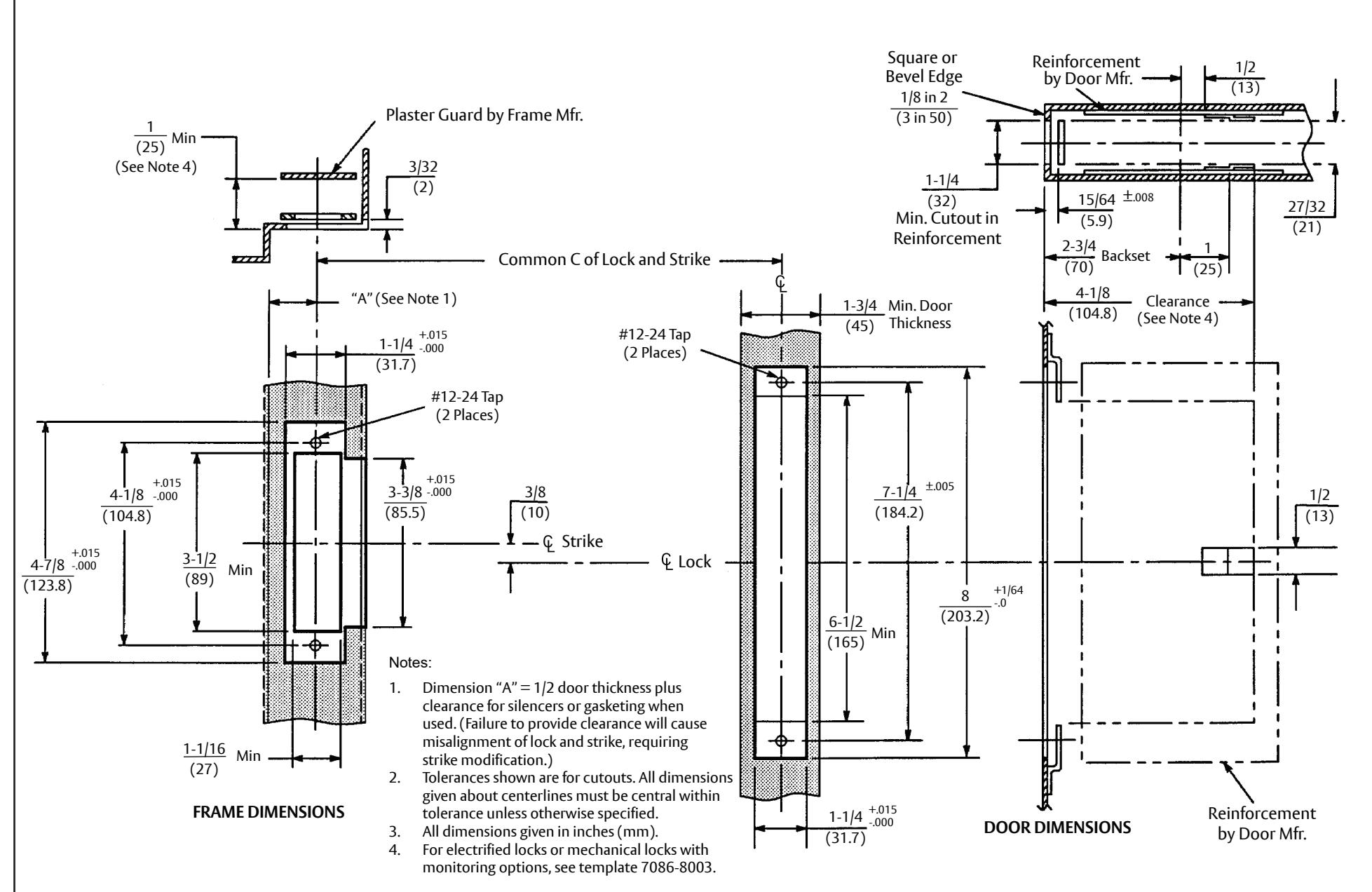

Lock and Strike Preparation for H.M. Door and Frame (ANSI/BHMA A156.115) For all 8600 and 8700 Series Mortise Locks Except Deadbolt Functions For all 8800 Series Mortise Lock Functions

Template Number: 7086-0001

Sheet: 1 of 1

Date: 11/23

ASSA ABLOY

1-855-557-5078 www.assaabloy.com
