ASSA ABLOY ACCENTRA 855 Sectional Dummy Half Trim (Lever Handle Only) for Mortise Locks Wood and H.M. Door Templ…_7086-1004
Open the original PDF document
View PDF©1996, Yale Security Inc. Printed in U.S.A. 7086-1004

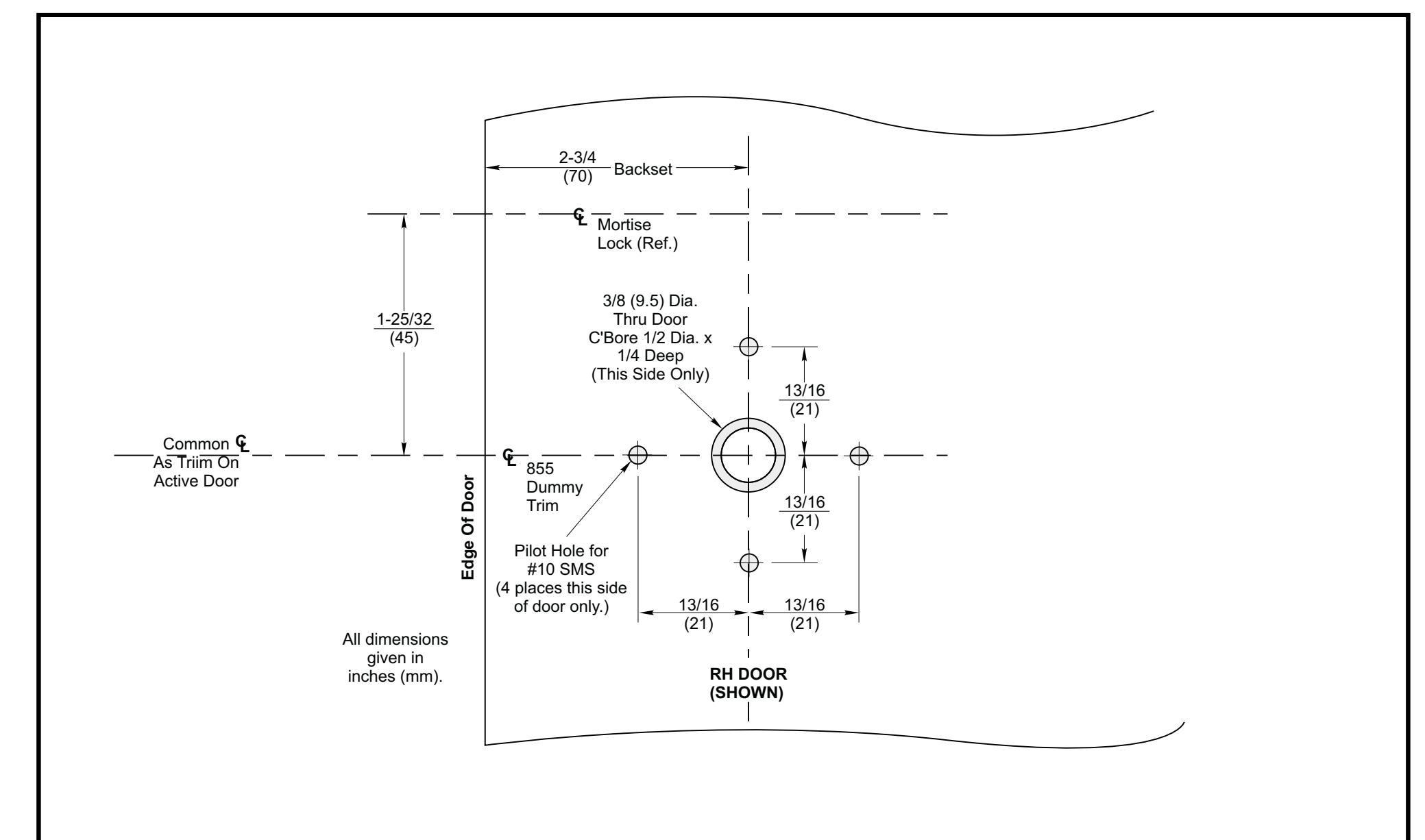

855 Sectional Dummy (Half) Trim (Lever Handle Only) Wood and H.M. Door Preparation
TEMPLATE NUMBER DATE
7086-1004 11-97
