ASSA ABLOY ACCENTRA 836B & 838B Dummy Trim and 4-7, 8 Strike for Mortise Locks Both Sides Wood Door Template_7086-0008

DO NOT SCALE

Notes:

• Tolerances shown are for cutouts. All dimensions given about centerlines must be central within tolerance unless otherwise specified.
• 2. All dimensions given in inches (mm).
• 3. See template 7086-0002 for Active Wood Door.
• For Sectional Trim see template 7086-1001. For Thru Bolted Escutcheon Trim see template 7086-1201. For Surface Applied Escutcheon Trim see template 7086-1301.

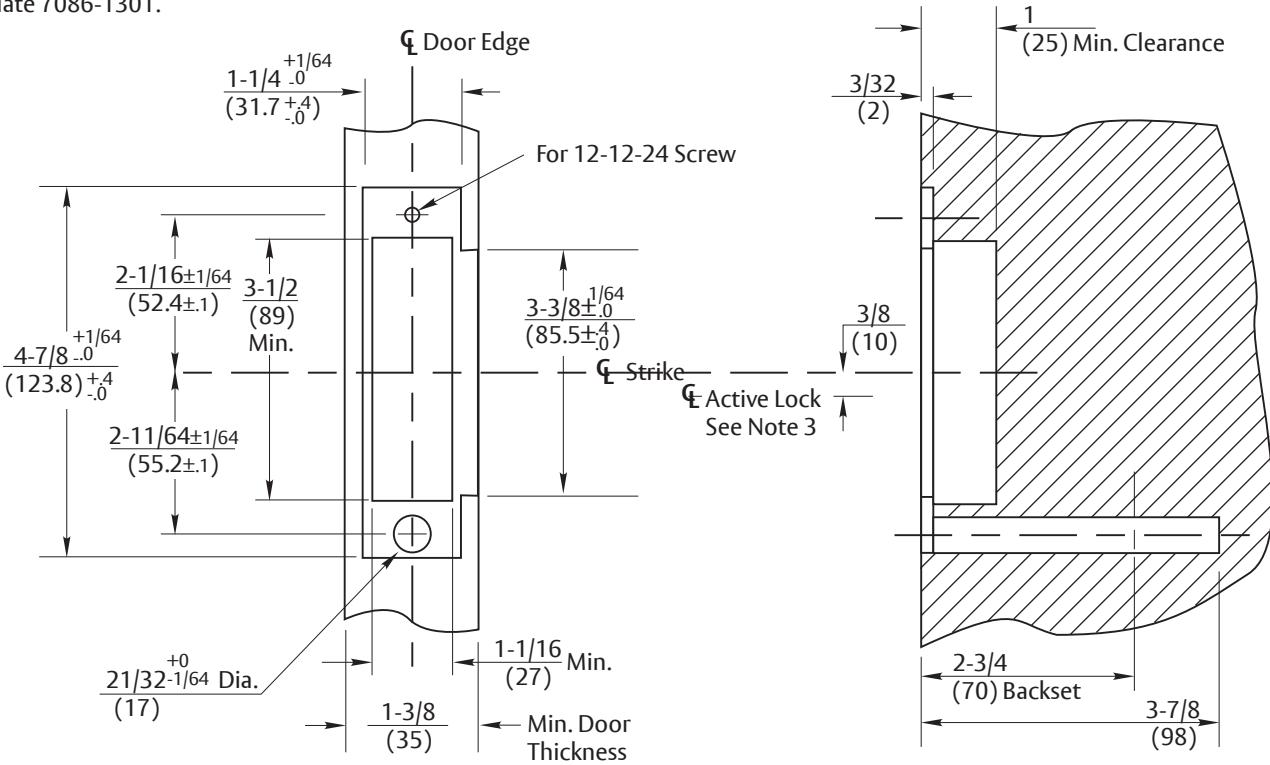

LH Inactive Door Shown RH Inactive Door Opposite

Experience a safer and more open world

$Copyright\; \backslash \; @\backslash \; 2004,\; 2009,\; 2024,\; \backslash \; ASSA\backslash \; ABLOY\backslash \; Access\; \backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\; Inc.\backslash \; All\backslash \; rights\backslash \; reserved.\backslash \; Reproduction\backslash \; in\backslash \; whole\backslash \; or\backslash \; in\backslash \; part\backslash \; without\backslash \; the\backslash \; express\backslash \; written\backslash \; permission\backslash \; of\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\backslash \; Inc.\backslash \; is\backslash \; prohibited.$

All Series Mortise Locks Wood Door Preparation 836B & 838B Dummy Trim Both Sides (ANSI 4-7/8" Strike)

Template Number: 7086-0008

Sheet: 1 of 1

Date: 01/24
