ASSA ABLOY ACCENTRA 836A & 838A Dummy Trim for Mortise Locks Both Sides (Plain Front) Wood Door Template_7086-0006

Open the original PDF document

View PDF

7086-0006

DO NOT SCALE

Notes:

  • 1. Tolerances shown are for cutouts. All dimensions given about centerlines must be central within tolerance unless otherwise specified.
  • 2. All dimensions given in inches (mm).
  • 3. For Sectional Trim see template 7086-1001. For Thru Bolted Escutcheon Trim see template 7086-1201. For Surface Applied Escutcheon Trim see template 7086-1301.

Experience a safer and more open world

Copyright @ 2004, 2006, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

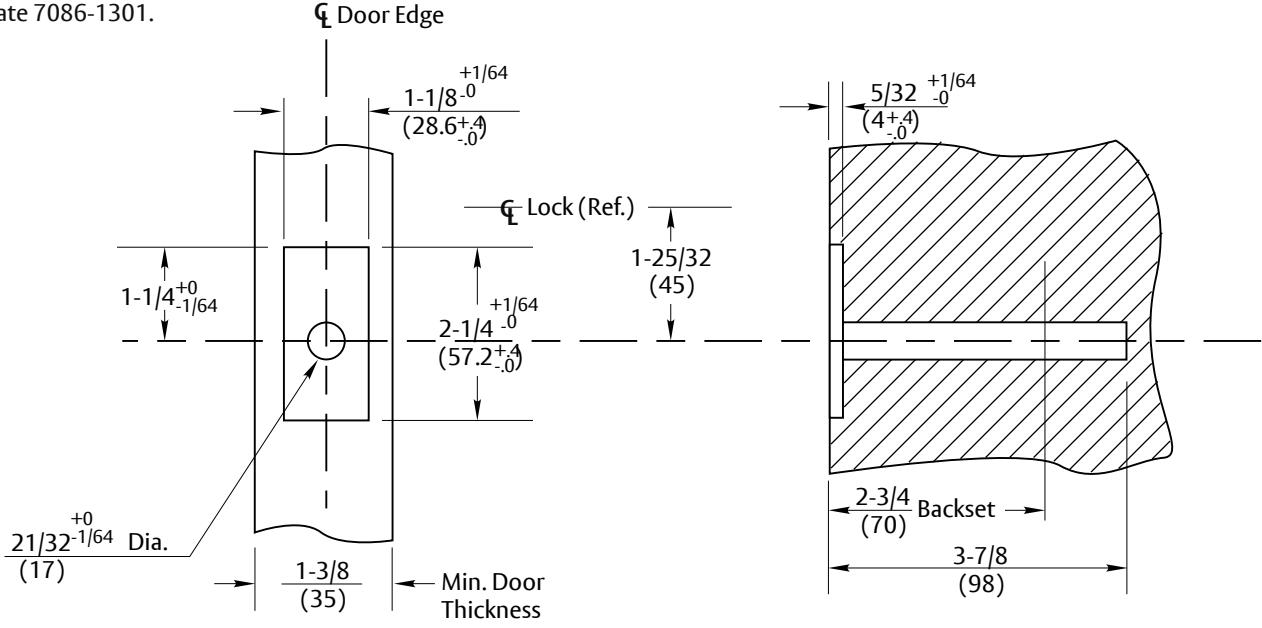

All Series Mortise Locks Wood Door Preparation 836A & 838A Dummy Trim Both Sides (Plain Front)

Template Number: 7086-0006

Sheet: 1 of 1

Date: 11/23
