N° 80 Latchlock Auxiliary Latchbolt

Installation Instructions

General Info

For wood doors 1-3/8" to 2-1/4" (35mm to 57mm) thick with wood frames.

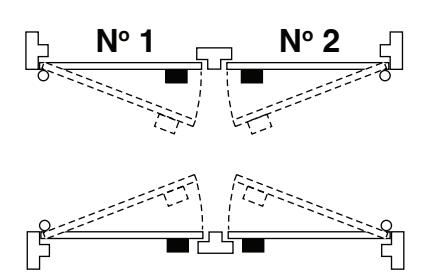

For Doors Opening Outward Use #8 Reverse Bevel Strike (Available Upon Request) Connecting bar and screws available for 2-1/4" to 3-1/4" (57mm to 82mm) doors.

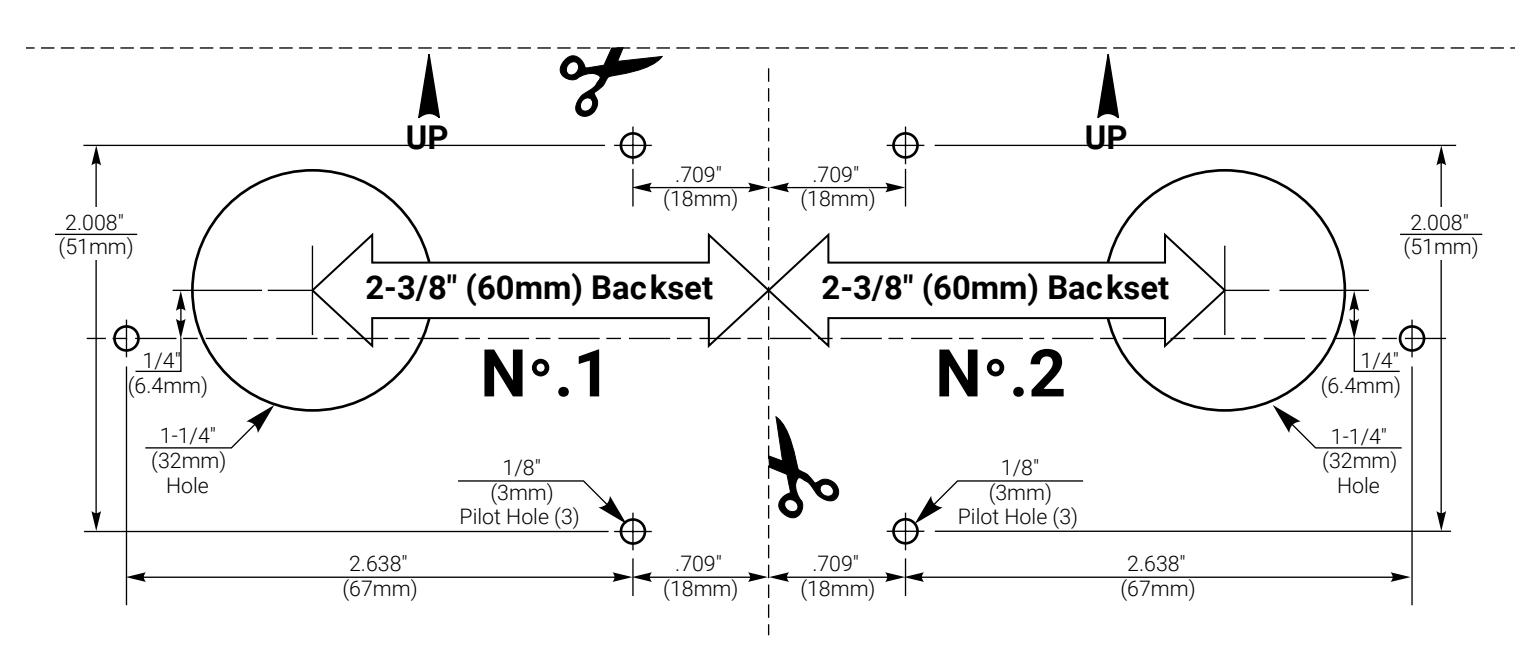

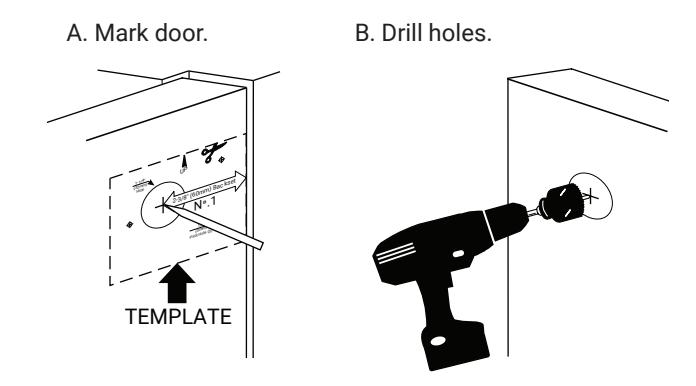

1. Wood Door Prep

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

⚠ WARNING

Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY ACCENTRA™ makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

80-9350-0001-000 01/24

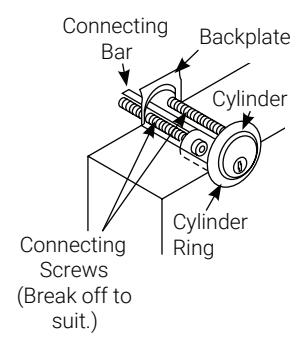

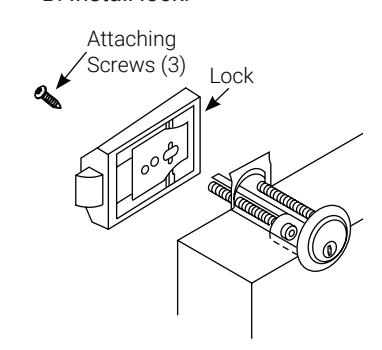

2. Lock Installation

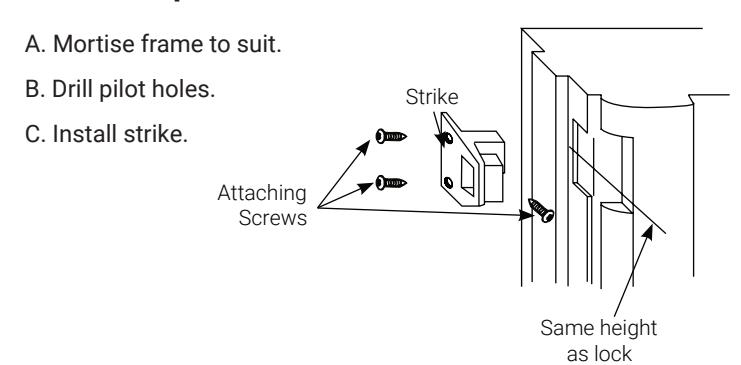

3. Frame Prep and Strike Installation

80-9350-0001-000 01/24
