ASSA ABLOY ACCENTRA 797 Auxiliary Bracket for 1500, 1800, 2100, 6000, and 7000 Series SVR Flush_7400-0797

NOTES:

• 1. Do not scale drawing. Dimensions shown in inches(mm).
• 2. LHR door shown. Preparation is typical for both door hands.
• 3. Prepare mounting holes when installing the hardware.
• 4. Holes for optional SNB: 3/8(9.50) Dia. Thru Transom.
• 5. Unless transom provides solid engagement for not less than (3) full screw threads, the SNB option is required.
• 6. Provide stiffeners, as required to prevent transom collapse due to installation with power tools, door use, or abuse.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

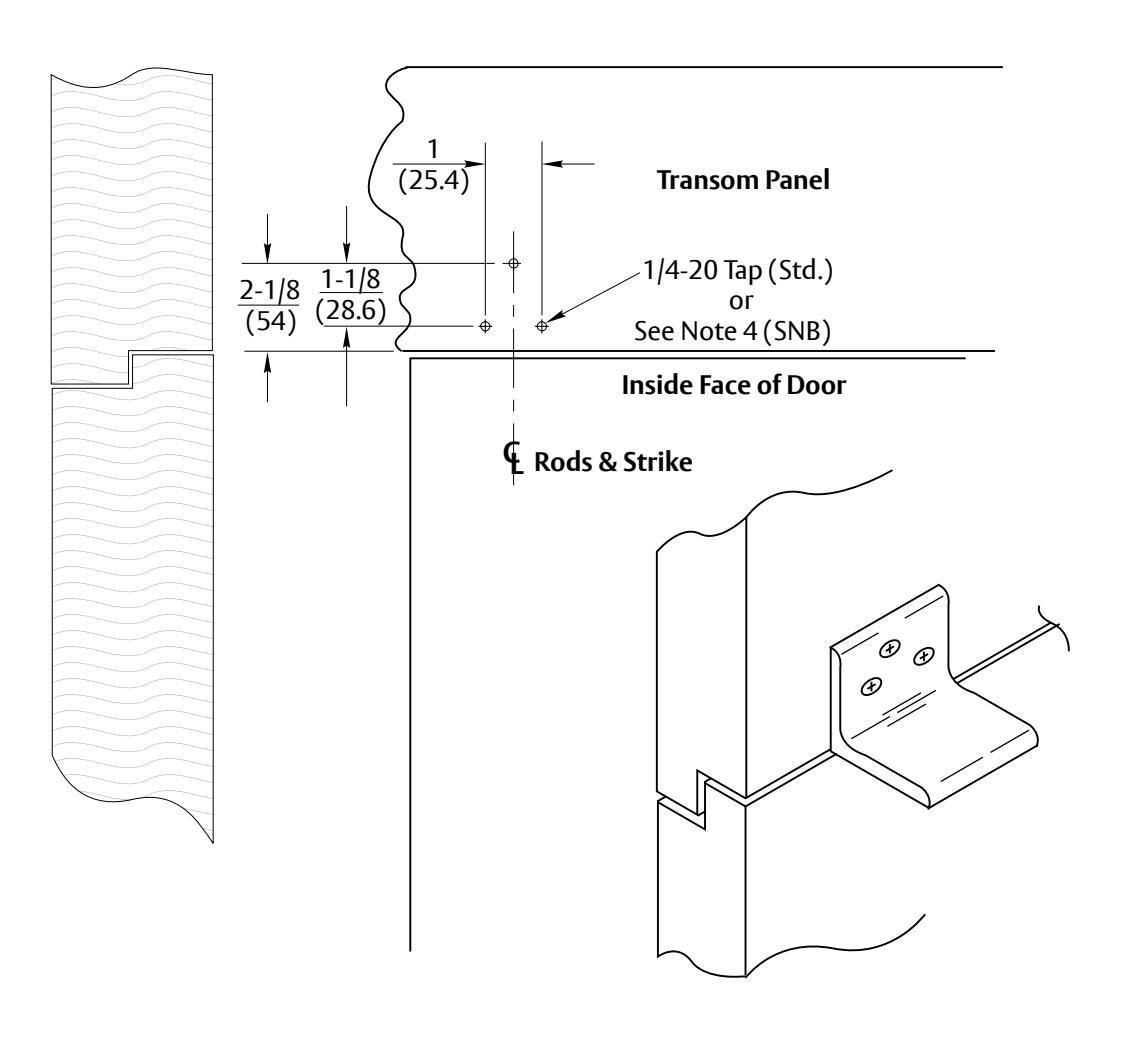

797 Auxiliary Bracket for Surface Vertical Rod Exit Devices

Application to Flush Transom

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7400-0797 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 8/99 12-23
