794 Strike

For Vertical Rod Exit Devices

Installation Instructions

NOTES:

• 1. Use in combination with Exit Device Installation Instructions.

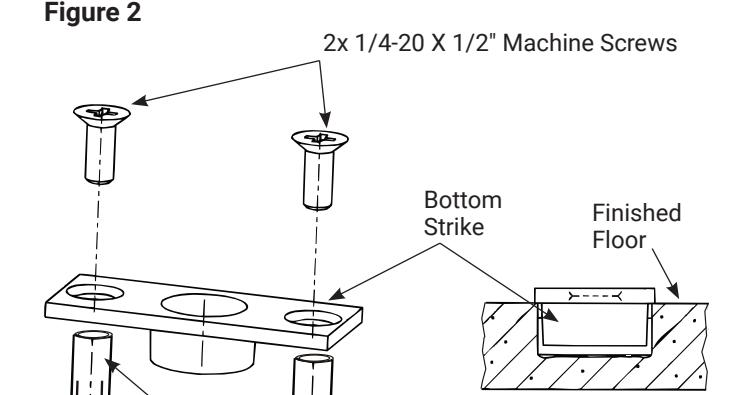

• 2. With door open, actuate pushpad to retract upper latch. Attach lower rod to bottom of slide and adjust bolt so that it clears the finished floor by 1/4". (See Figures 1 & 2 for appropriate Finished Floor application)

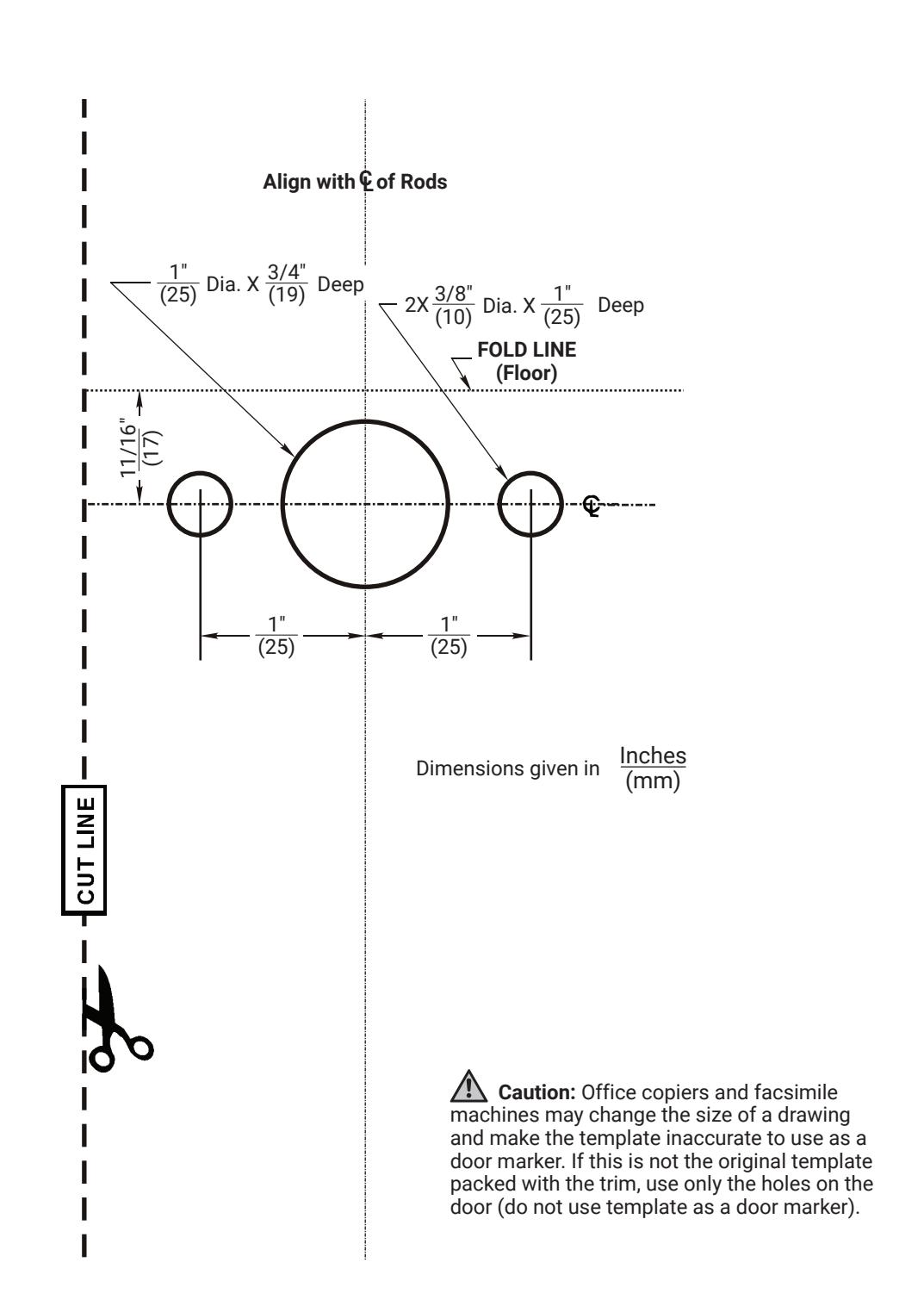

• 3. Verify location of the Flush Mounted Strike Template. Prepare the strike holes (See Figures 1 & 2 ) and install the 794 Strike (For "Threshold" door ways, prepare a 1" (25) Dia. hole through the threshold for bolt clearance). Spot and prepare (2) screw anchor holes by drilling 3/8" (10) Dia. X 1" (25) deep holes & 1" (25) Dia. x 3/4" (19) deep hole. Orient in place and attach with 1/4-20 x 1/2" (13) fasteners and anchors.
• * Install screw anchors: Place the anchor in the prepared hole, place punch through the threaded hole of the anchor, drive with a hammer until seated, remove punch and install by bolting 794 Strike to floor with (2) 1/4-20 x 1/2" (13) Machine Screws.
• 4. With door open, actuate pushpad to retract upper latch. Adjust bolt height by pulling the rod out of the guide and slide, rotate until the bolt clears the 794 Strike by 1/8".

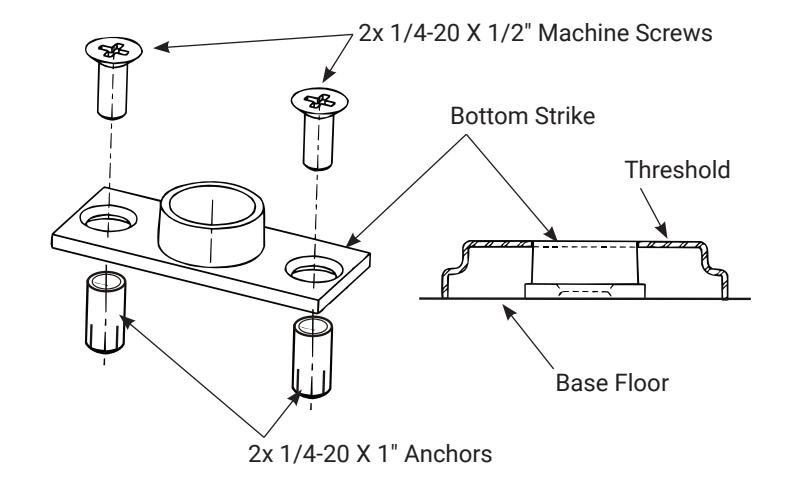

Figure 1

2x 1/4-20 X 1" Anchors

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

WARNING

80-8470-0794-000 04/24 Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

794 Strike For Vertical Rod Exit Devices Installation Instructions

794 Strike

For Vertical Rod Exit Devices Installation Instructions

BOTTOM STRIKE for THRESHOLD or FLUSH MOUNT

80-8470-0794-000 04/24
