793

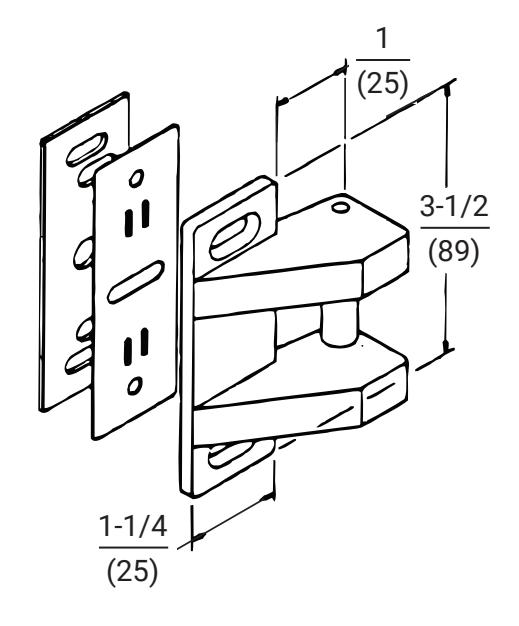

Strike Installation Instructions

For Use With Rim Exit Devices Application To Pair Opening Of Doors Without Mullion

NOTES:

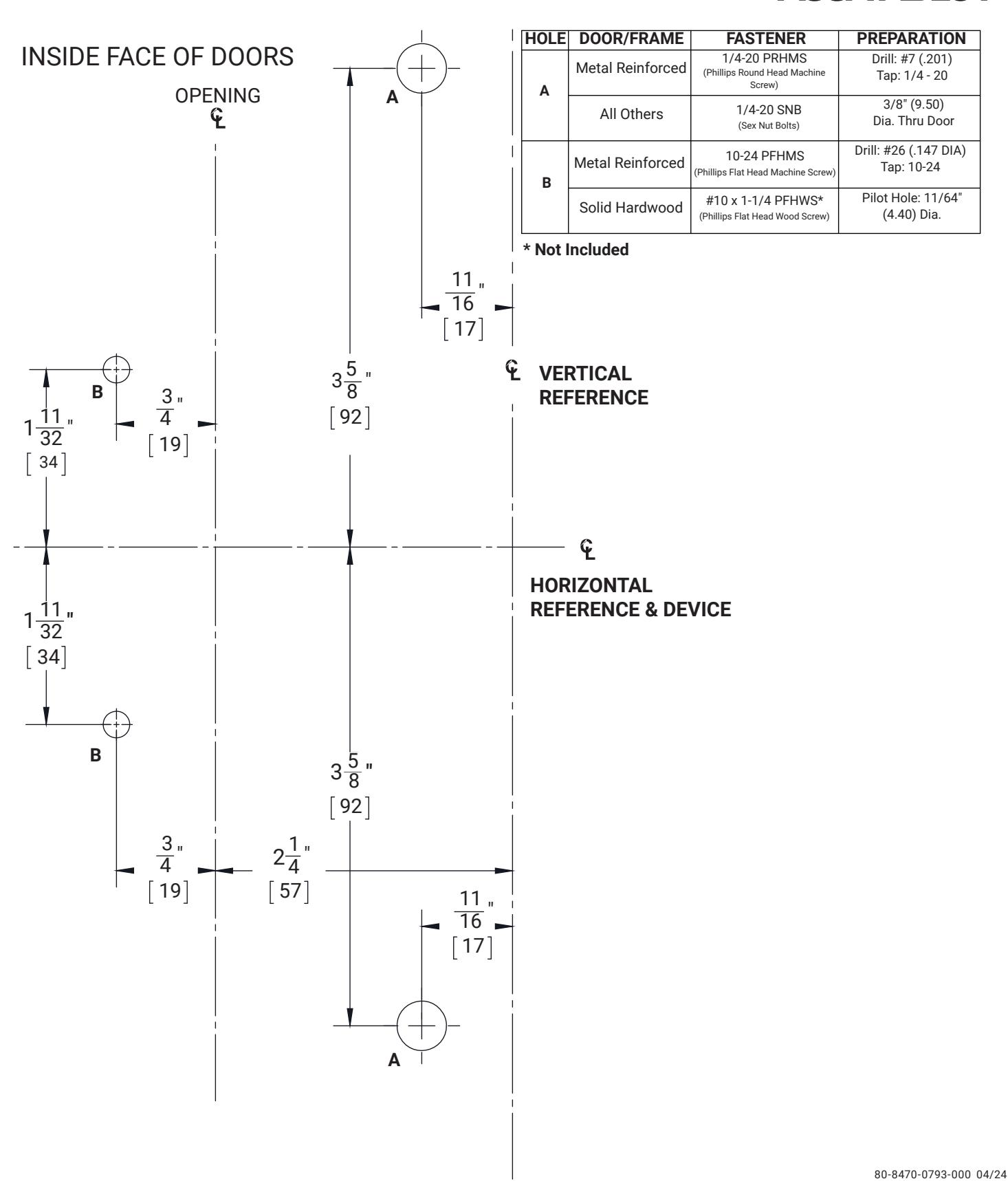

• 1. Minimum Stile Width: 4-1/2 (114).
• 2. For door reinforcements, see template 7400-000. Unreinforced doors require SNB option to mount the hardware.
• 3. For outside trim preparation, see trim template.
• 4. Prepare mounting holes when installing device.
• 5. LHR active door shown. Preparation is typical for both door hands.
• 6. All dimensions are in inches (mm).
• 7. Do not scale drawing.

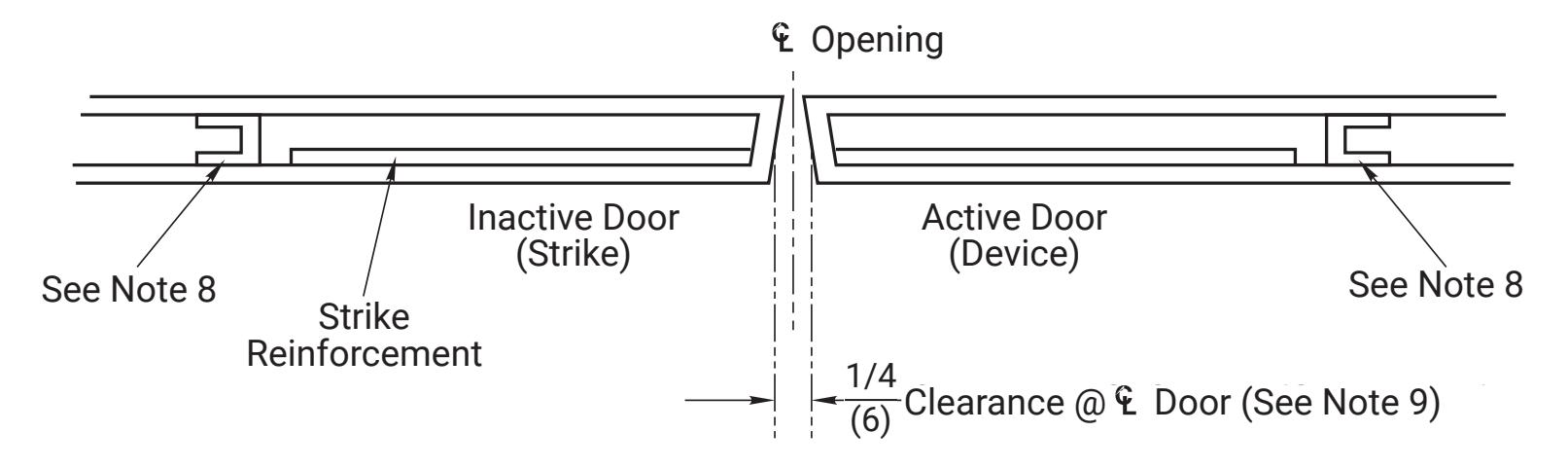

• 8. Provide door stiffeners as needed to prevent door collapse due to device action.
• 9. For other center clearances, compensate hardware locating dimensions as required.
• 10. Device mount hinge stile (not shown) requires hole location and preparation during device installation.

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

Attention Installer: Any retrofi t or other fi eld modifi cation to a fi re rated opening can potentially impact the fi re rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specifi c situation. When retrofi tting any portion of an existing fi re-rated opening, or specifying and installing a new fi re-rated opening, please consult with a code specialist or local code offi cial (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

80-8470-0793-000 04/24
