7380F Series
Multi-point Locking System
7380F series multi-point locking system
a windstorm solution engineered to save lives
Yale® 7380F Series is a three-point auto deadlocking system developed to help protect lives while primarily securing a community shelter and safe room entry. Extra heavy-duty steel components firmly fasten the door to the frame - at top, bottom and center latch points - reinforcing the opening to endure severe wind speeds and flying debris.
The 7380F is fully integrated - part of a complete ASSA ABLOY tornado and hurricane resistant solution with CECO StormPro® 361, CURRIES StormPro® 361 and FLEMING BARON F-5 doors and frames and McKINNEY® SP hinges.
certifications/compliance
Fire Listing
All functions are UL-cUL Listed for use on fire doors having a rating up to and including 3-hours.
Windstorm
Certified (refer to local codes). 7380F series are UL certified for inswing and outswing doors;
single door 4'0" x 8'0" maximum to the following guidelines:
Tornado and Hurricane Shelters
- FEMA 320
- FEMA 361
- ICC 500
Hurricane
- ANSI/BHMA A250.13
- ASTM E330, E1886, E1996
- TAS201, TAS202, TAS203
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
backset
2-3/4" (70mm) standard only.
cylinder
1-1/8" (29mm) brass, 6-pin, PARA keyway, keyed random cylinder with two nickel silver keys furnished standard. Optional cylinders available. See page 7-8.
handing
Handing must be specified (RH, LH, RHR or LHR).
bolts
Top Latchbolt: 5/8" (16mm) stainless steel housing. Through-hardened
steel latchbolt with 7/8" (22mm) projection fortified with 1/4-20 steel Holo-Krome® fasteners.
Center Deadbolt: Onepiece stainless steel with 1" (25mm) projection.
Bottom Bolt: 3/4" (19mm) diameter steel with 3/4" (19mm) projection and 1/8" (3mm) steel reinforcement plate.
fronts
Top: 1/8" (3mm) thick, throughhardened steel.
Center: 1-1/8" x 4-7/8" x 3/16" (29mm x 124mm x 5mm) thick stainless steel, one piece.
strikes
Center: 1/4" (6mm) thick, stainless steel.
Bottom: Brass with 1/4-20 Holo-Krome® fastenters.
door thickness
Standard for doors 1-3/4" (44mm).
door height
The 7380F series are standard for any door or window storm shutter from 6'8" to 8'0" height. For window storm shutter applications, 1'8" x 3'0" to 4'0" x 6'8" height refer to 7370 series catalog.
contents Introduction ............................................... 2 Features and Applications ......................2-3 Lever Designs.........................................4-5 Functions .................................................. 6 Cylinders ................................................7-8
Ordering Information.................................. 9 Sample Specification................................. 9 Parts List............................................10-15
finishes
|
ANSI/
BHMA Code |
Finish Description | |||||
|---|---|---|---|---|---|---|
| 605 | Bright Brass, Clear Coated | |||||
| 606 | Satin Brass, Clear Coated | |||||
| 609 |
Satin Brass, Blackened,
Satin Relieved, Clear Coated |
|||||
| 611 | Bright Bronze, Clear Coated | |||||
| 612 | Satin Bronze, Clear Coated | |||||
| 613 |
Dark Oxidized Satin Bronze,
Oil Rubbed1 |
|||||
| 613E |
Dark Oxidized Satin Bronze -
equivalent |
|||||
| 616 |
Satin Bronze, Blackened,
Satin Relieved, Clear Coated |
|||||
| 619 |
Satin Nickel Plated, Clear
Coated |
|||||
| 620 |
Satin Nickel Plated,
Blackened, Satin Relieved, Clear Coated |
|||||
| 625 | Bright Chrome Plated | |||||
| 626 | Satin Chrome Plated | |||||
| 629 | Bright Stainless Steel3 | |||||
| 630 | Satin Stainless Steel3 | |||||
| 693 | Black Painted | |||||
| 722 |
Black Oxidized Bronze, Oil
Rubbed2 |
|||||
- 1. New May 1, 2010
- 2. Formerly 613 prior to May 1, 2010
- 3. Trims are plated to simulate stainless steel.
features and applications
applications
This device is ideal for doors and inswing window storm shutters in Community Shelters and Safe Rooms, Corporate Campuses, Schools, Healthcare Facilities and Government Facilities.
warranty
warranty.
The 7380F series multipoint lock carries a 7-year
operation

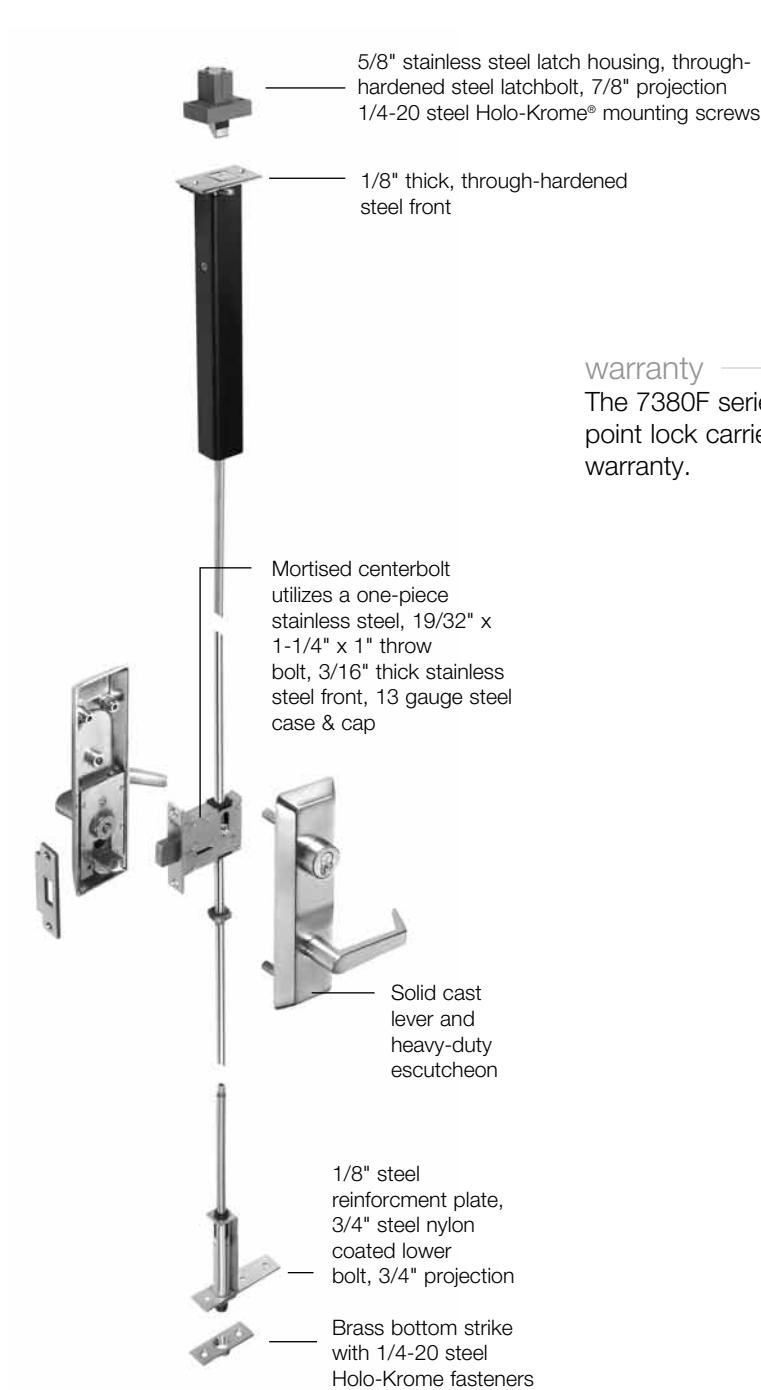

The 7380F features concealed vertical rods with a top latchbolt and bottom deadbolt which are complemented by an automatically projecting deadbolt at the center of the door. Operating the trim retracts the bolts simultaneously. Once retracted the bolts are held in position as the door swings. When the door is closed, the hold back feature of the device engages the frame and all bolts project simultaneously.
additional features
- • Solid cast levers
- • Heavy-duty escutcheon
- • Through-bolted on door for solid attachment
- • Extra heavy-duty steel components automatically secure the door to the frame at top, bottom and center locations.
- • All multi-points are activated automatically when the door is closed
microshield®
7380F series multi-point locks are available with MicroShield antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is non-toxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "YMS".
Note: MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to insure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield .

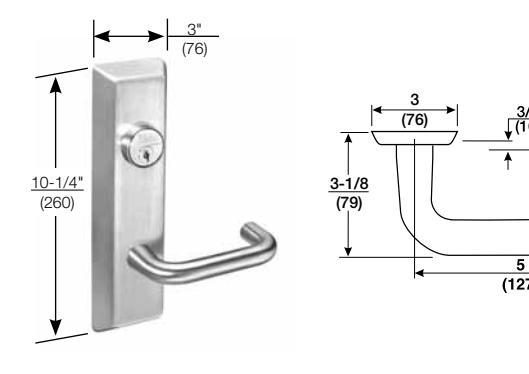

lever designs
Lever: Solid Cast Brass Escutcheon: Heavy-duty Forged
arcadia AR
carmel CR
jefferson JN
monroe MO
pacific beach PB
Dimensions are shown in inches (millimeters).

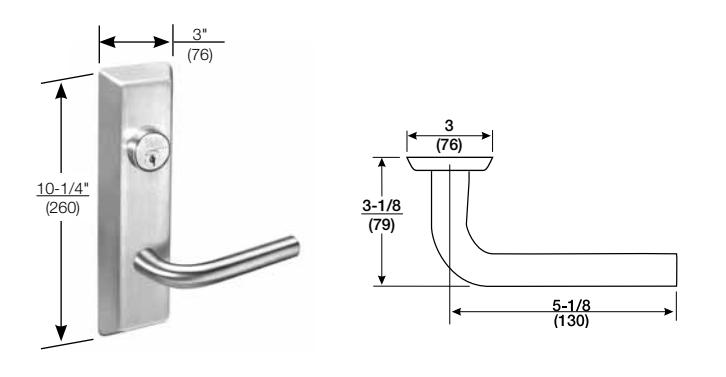

lever designs -
Lever: Solid Cast Brass Escutcheon: Heavy-duty Forged
pinehurst PN -
hampton HA
Dimensions are shown in inches (millimeters).
functions
| Outside/Inside | Series/Function | Type | Function Description |
|---|---|---|---|
| 7388F | Classroom |
• Three-point auto deadlocking
• Three-point latch retraction by lever either side, unless outside lever is locked by key outside • Inside lever always free |
|
| 7381F | Passage or Closet |
• Three-point auto deadlocking
• Three-point latch retraction by lever either side • Both levers always free |
|
| 7384F |
Passage
Lever x Blank Plate |
• Three-point auto deadlocking
• Three-point latch retraction by inside lever • Lever on one side, blank plate on the other • Lever always free |
cylinders
cylinder options
The following selection guide indicates the correct cylinder for each locking segment.
| Types of Cylinder Mechanisms | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7380F Series | Conventional | Protected Keyway | Security | High Security | |||||||||
| Fixed Core | 6-pin | 7-pin | 6-pin | 7-pin | 6-pin | 7-pin | 6-pin | 7-pin | |||||
| Mortise | 2153 | 2153 | K100 | K100 | 5153 | 5153 | N/A | N/A | |||||
| Interchangeable Core | |||||||||||||
| Cylinder Types | LFIC | 2196 | 2197 | K820 | K820 | 5196 | 5197 | N/A | N/A | ||||
| SFIC | N/A | N/A | K620 | K620 | N/A | N/A | N/A | N/A | |||||
Refer to Yale® KeyMark® and/or Cylinders and Keys Catalog sections for all details and how-to-order examples.
Yale® KeyMark®
For those applications requiring protected key control, Yale® KeyMark® cylinders guard against unauthorized key duplication. The Yale KeyMark Security Leg® keyway feature increases resistance against picking and impressioning and can easily retrofit into existing systems. For further details and availability, refer to the separate Yale KeyMark catalog.

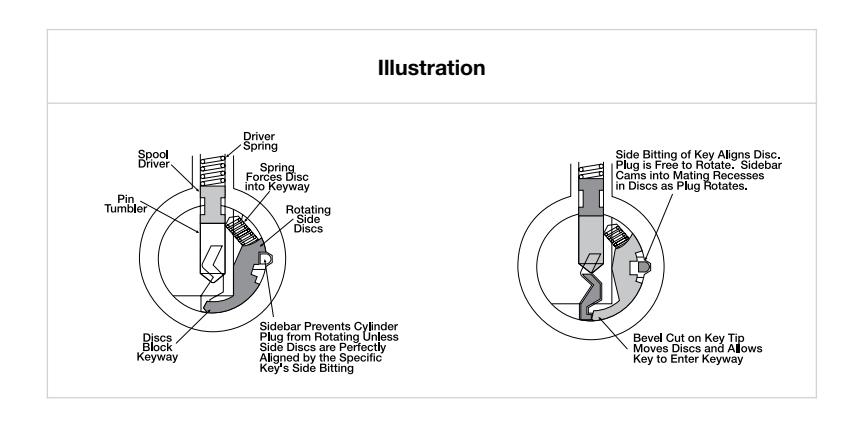

security cylinders
Security cylinders contain two independent locking mechanisms. The first is a traditional 6-pin tumbler mechanism with spool drivers for greatly increased picking resistance.
The second is an innovative 5-tumbler rotating disc mechanism with sidebar engagement. The rotating discs are spring loaded and block the bottom of the keyway.
cylinders
other manufacturers keyway cylinders/cores
| Illustration |
Model
Number |
Type | Cam | Length | Pins |
Housing
Only Model Number |
Core Only
Model Number |
|---|---|---|---|---|---|---|---|
|
Small Format IC Mortise, includes Best®
Keyway Core. Available keyed random, |
1-1/4" | 6 | |||||
| A620 |
master keyed or uncombinated. Specify
keyway A, B, C, D, E, F, G, H, J, K, L or M. |
KC1 | 1-3/8" | 6 or 7 | K660 | A600 | |
| 2553 |
Fixed Core Mortise Schlage® "C" Keyway
Cylinder. Available 0-bitted or keyed random. |
2160 | 1-1/8" | 6 | N/A | N/A |
cylinder collars
Cylinder collars are supplied as standard. Collar size is supplied to suit the length and type of the cylinder.
1765 Recessed Cylinder Collar
"A" Dimension: Thicknesses from 1/16" (2mm) to 1-15/32" (37mm) as required.
Material: Brass, Bronze
KP3 Wave Washer (Furnished standard with 1765 collar for Yale® Keymark®)
collars for use with 7380F series escutcheons
|
2153, 5153,
Fixed Core Mortise Cylinders |
K100
2196, 5196, 2197, 5197 Yale® KeyMark® LFIC Cylinders Fixed Core Cylinders |
K820, K860 Yale®
KeyMark® LFIC Cylinders |
K620, K630 K660,
K670, A620, A630 Yale® KeyMark® and Best® Keyway SFIC Cylinders |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Door
Thickness |
No. of
Pins |
Cylinder
Length |
Collar
Required |
Cylinder
Length |
Collar
Required |
Cylinder
Length |
Collar
Required |
Cylinder
Length |
Collar
Required |
Cylinder
Length |
Collar
Required |
| 6 | 1-1/8" | 1765.281 | 1-1/2" | 1765.719 | 1-1/8" | 1765.344 | 1-1/2" | 1765.719 | 1-1/4" | 1765.344 | |
| 1-3/4 | 6 or 7 | 1-1/4" | 1765.437 | 1-11/16" | 1765.924 | 1-1/4" | 1765.437 | 1-11/16" | 1765.924 | 1-3/8" | 1765.563 |
| (44) | 6 or 7 | 1-3/8" | 1765.594 | 1-1/2" | 1765.719 | ||||||
| 6 or 7 | 1-1/2" | 1765.719 | |||||||||
ordering information
From this outline select the Model Number for the Yale® 7380F Series Lockset you require.
| Design | Function | Hand | Cylinder | Finish | Keying |
Additional
Options |
|---|---|---|---|---|---|---|
| See Page 4-5 | See Page 6 | See Page 2 | See Page 7 | See Page 2 | Specify | Specify |
ordering example
| Quantity | Design | Function | Hand | Cylinder | Finish | Keying |
Additional
Options |
|---|---|---|---|---|---|---|---|
| 100 | AU | 7388F | RH | K100 | 630 | AA1 | YMS |
suggested specification
Multi-Point Auto Deadlocking Devices shall be 7380F Series as supplied by Yale Locks & Hardware.
Multi-point auto deadlocking devices are engineered for use on inswing and outswing door applications at hurricane and tornado safe shelter room locations. Concealed, fortified steel construction secures the door to the frame at top, bottom and center positions. All three locking points shall be automatically activated when the device is closed and retracted with one single motion upon exiting.
Multi-point auto deadlock shall be part of an integrated door, frame and hardware assembly UL certified to FEMA 361, ICC 500, ANSI/BHMA A250.13, ASTM E330, E1886, E1996, TAS201, TAS202, and TAS203 for both inswing and outswing doors.
Device shall be manufactured in compliance with NFPA 80 and NFPA 101 life-safety requirements and UL-cUL approved for use on fire doors having a rating up to and including 3-hours.
Latchbolts shall be constructed as follows:
- • Mortised Centerbolt:
-
Single piece, 13 gauge chrome plated steel lock case with 3/16" thick stainless steel front.
- Stainless steel, 1" throw deadbolt.
- 2-3/4" backset standard with 1/4" stainless steel centerbolt strike.
- • Top Latch:
-
Through-hardened steel latchbolt with 7/8" projection
- 1/8" steel latchbolt front
- 5/8" stainless steel latch housing secured with 1/4- 20 Holo-Krome® fasteners.
- • Bottom Bolt:
- 3/4" diameter steel nylon coated bolt with 3/4" projection and 1/8" steel reinforcement plate
- Brass strike housing secured with 1/4-20 Holo- Krome® fasteners.
Devices shall be provided with heavy-duty escutcheon trim and solid cast levers matching the design style and architectural finishes as the balance of the locksets and latches specified.
All multi-point auto deadlocking devices shall have a seven-year limited warranty.

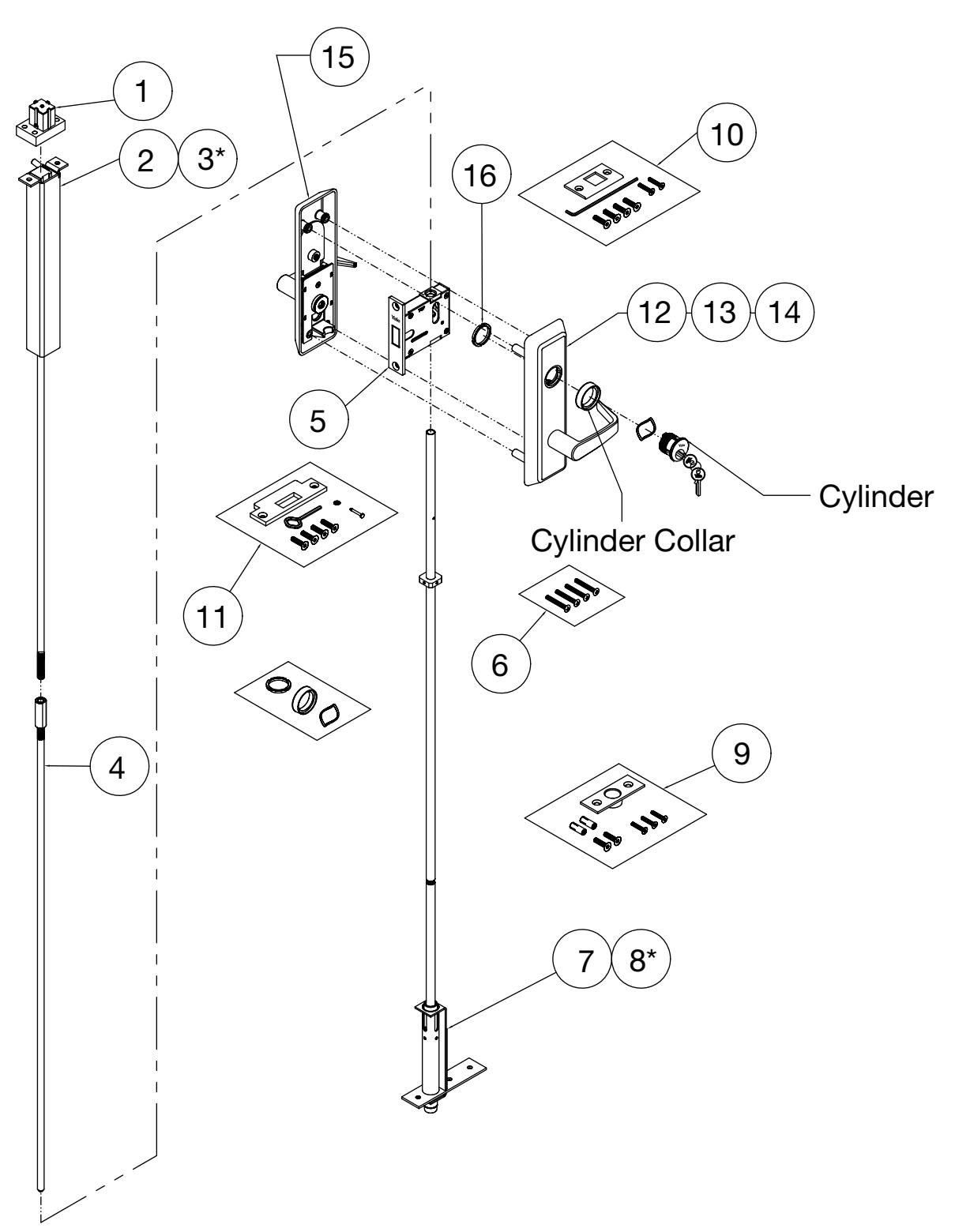

| Item # | Part # | Description |
Passage or
Closet 7381F |
Passage
Lever x Blank Plate 7384F |
Classroom
7388F |
|---|---|---|---|---|---|
| 1 | 60-7380-0008 | Top Latch Assembly | 1 | 1 | 1 |
| 2 | 60-7380-0009 | Top Bolt Sub-Assembly for 6'8"- 8' Doors | 1 | 1 | 1 |
| 3* | 60-7380-0024 | Top Bolt Sub-Assembly for 5'6" - 6'8" Doors | 1* | 1* | 1* |
| 4 | 60-7380-0010 | Rod & Coupling Sub-Assembly | 1 | 1 | 1 |
| 5 | 60-7380-0011 | Deadbolt Sub-Assembly | 1 | 1 | 1 |
| 6 | 60-7380-0013 | Trim Mounting Packet | 1 | 1 | 1 |
| 7 | 60-7380-0014 | Bottom Bolt Sub-Assembly for 6'8"- 8' Doors | 1 | 1 | 1 |
| 8* | 60-7380-0025 | Bottom Bolt Sub-Assembly for 5'6"- 6'8" Doors | 1* | 1* | 1* |
| 9 | 60-7380-0015 | Bottom Bolt Mounting Packet | 1 | 1 | 1 |
| 10 | 60-7380-0016 | Front and Top Mounting Packet | 1 | 1 | 1 |
| 11 | 60-7380-0017 | Strike and Deadbolt Mounting Packet | 1 | 1 | 1 |
| 12 | 60-7380-0026 | Outside Escutcheon Assembly - Blank (7384F) | — | 1 | — |
| 13 | 60-7380-0027 | Outside Escutcheon Assembly - Lever Only (7381F) | 1 | — | — |
| 14 | 60-7380-0028 |
Outside Escutcheon Assembly - Lever & Cylinder
(7388F) |
— | — | 1 |
| 15 | 60-7380-0029 | Inside Escutcheon (All Functions) | 1 | 1 | 1 |
| 16 | 60-7000-2421 | Cylinder Nut | — | — | 1 |
* Optional Door Height

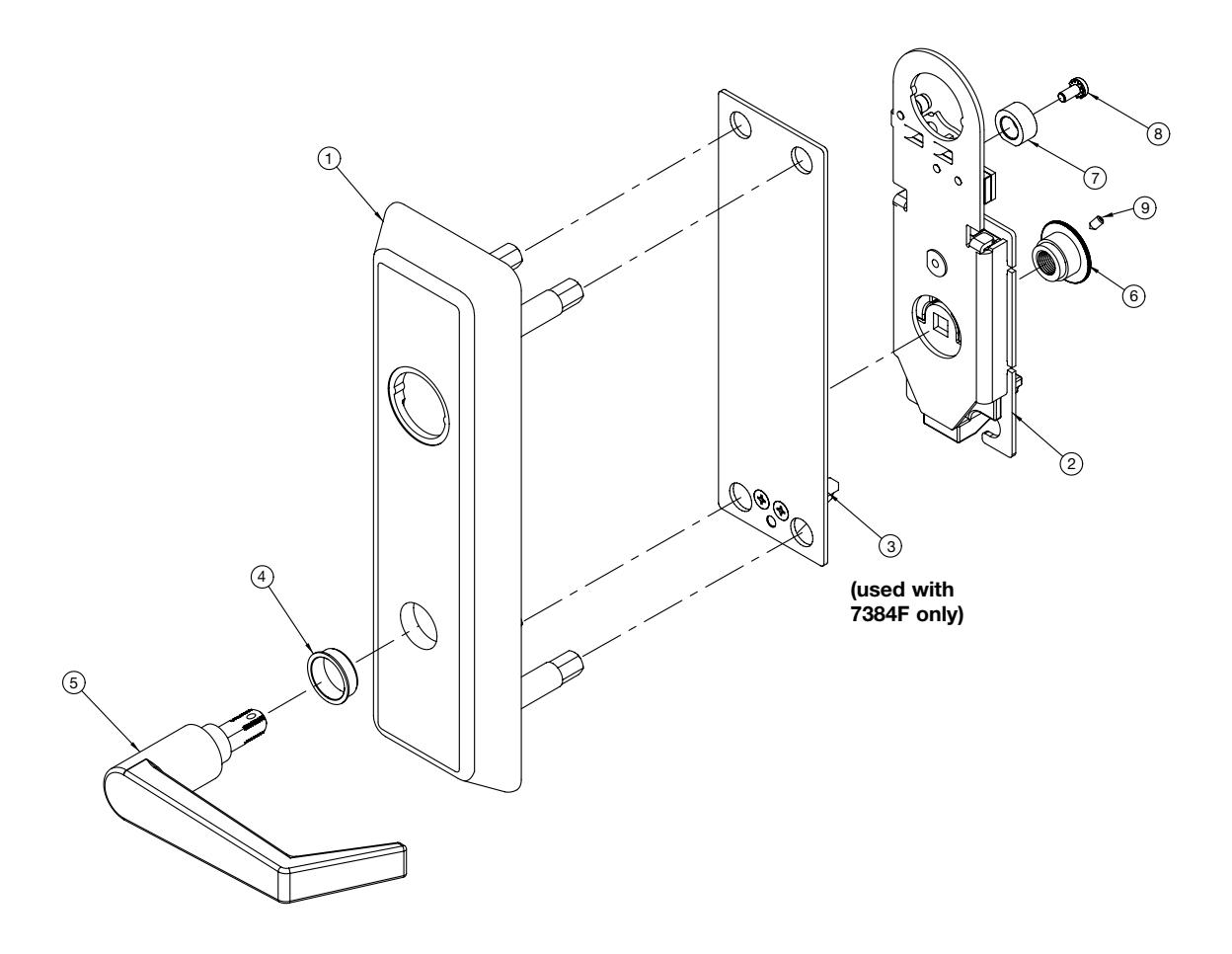

outside escutcheon assembly
| Item # | Name | Quantity |
60-7380-0027
7381F |
60-7380-0026
7384F |
60-7380-0028
7388F |
Part
Numbers |
|
|---|---|---|---|---|---|---|---|
| X | 60-7380-0070 | ||||||
| 1 | Escutcheon | 1 | X | 60-7380-0071 | |||
| X | 60-7380-0072 | ||||||
| 1 | X | Locking 60-7380-0019 | |||||
| 2 | Cassette Sub-Assembly | X | Non-Locking 60-7380-0012 | ||||
| 3 | Fire Plate Sub-Assembly | 1 | X | 60-7380-0018 | |||
| 4 | Bushing | 1 | X | X | 10-0086-9037 | ||
| Augusta | AU | X | X | 60-7380-0051 | |||
| Arcadia RH/LH | AR | X | X | 60-7380-0052/0053 | |||
| Carmel | CR | X | X | 60-7380-0054 | |||
| Jefferson | JN | X | X | 60-7380-0055 | |||
| 5 | Monroe | MO | 1 | X | X | 60-7380-0056 | |
| Pacific Beach | PB | X | X | 60-7380-0057 | |||
| Virginia | VI | X | X | 60-7380-0058 | |||
| Hampton | HA | X | X | 60-7380-0059 | |||
| Pinehurst | PN | X | X | 60-7380-0060 | |||
| 6 | Nut | 1 | X | X | 60-7380-0004 | ||
| 7 | Spacer | 1 | X | 60-7380-0006 | |||
| 8 | Screw - PPHM #8-32 x 3/8" | 1 | X | 60-7380-0003 | |||
| 9 | Set Screw | 1 | X | X | 99-9999-3100 | ||
outside escutcheon assembly
| 7381F | 7384F | 7388F |
|---|---|---|
| Part No. 60-7380-0027 | Part No. 60-7380-0026 | Part No. 60-7380-0028 |
| Outside Non-Locking | Outside Blank | Outside Locking |

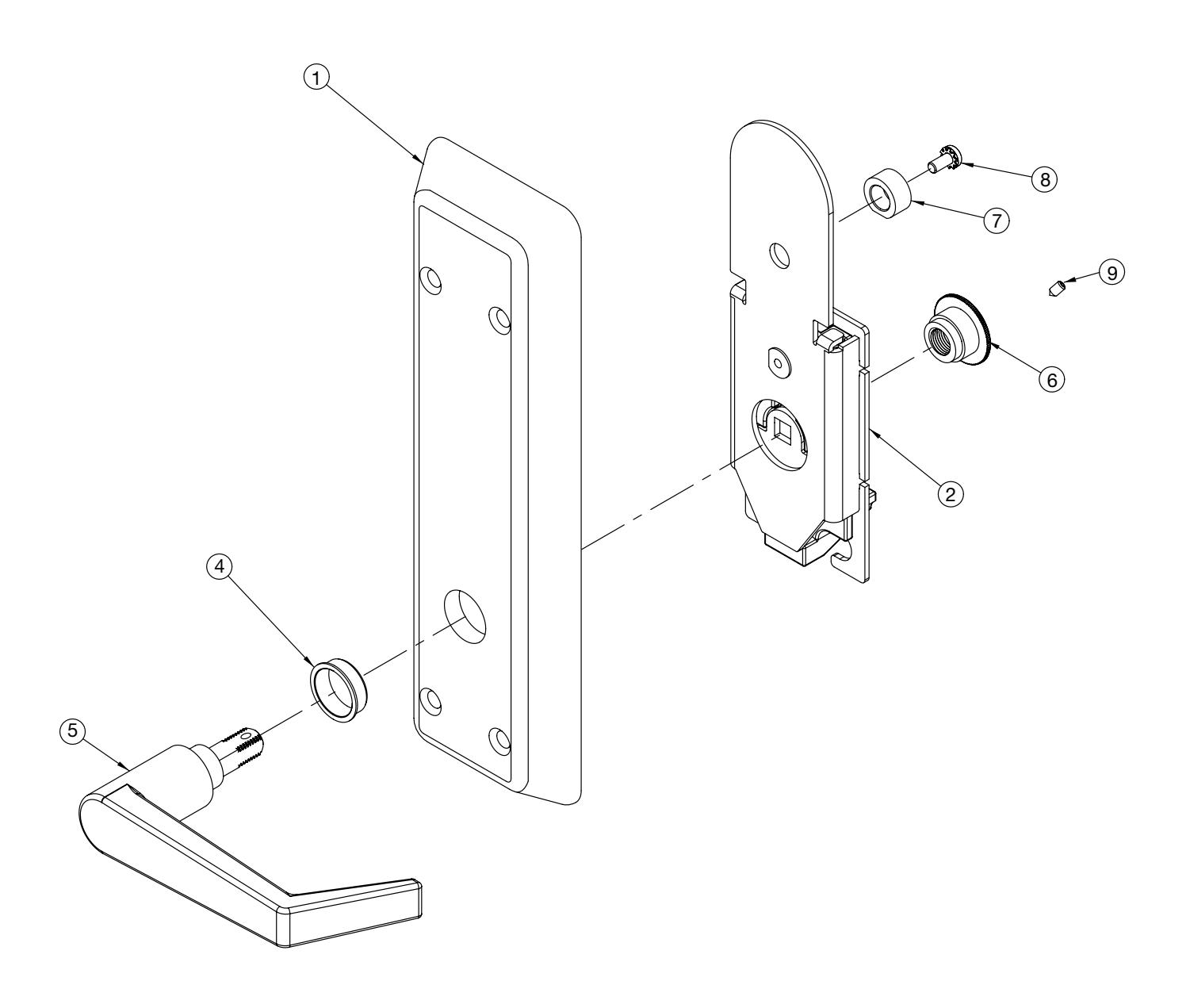

inside escutcheon assembly
| Item # | Name | Quantity |
7381F/7384F/7388F
60-7380-0029 (Compete) |
Part
Numbers |
|
|---|---|---|---|---|---|
| 1 | Escutcheon | 1 | X | 60-7380-0075 | |
| 2 | Cassette Sub-Assembly | 1 | X | 60-7380-0012 | |
| 4 | Bushing | 1 | X | 10-0086-9037 | |
| Augusta | AU | X | 60-7380-0051 | ||
| Arcadia RH/LH | AR | X | 60-7380-0052/0053 | ||
| Carmel | CR | X | 60-7380-0054 | ||
| Jefferson | JN | X | 60-7380-0055 | ||
| 5 | Monroe | MO | 1 | X | 60-7380-0056 |
| Pacific Beach | PB | X | 60-7380-0057 | ||
| Virginia | VI | X | 60-7380-0058 | ||
| Hampton | HA | X | 60-7380-0059 | ||
| Pinehurst | PN | X | 60-7380-0060 | ||
| 6 | Nut | 1 | X | 60-7380-0004 | |
| 7 | Spacer | 1 | X | 60-7380-0006 | |
| 8 | Screw - PPHM #8-32 x 3/8" | 1 | X | 60-7380-0003 | |
| 9 | Set Screw | 1 | X | 99-9999-3100 |
inside escutcheon assembly
online literature and templates
For the latest information on Yale Locks & Hardware products, visit our website at: www.yalelocks.com
Click on the "Product Information" button to find:
- • Catalogs
- • Parts manuals
- • Templates
- • Specifications
- • Installation instructions
Yale® customers can click on the ebusiness symbol on the website to register for an ebusiness account to:
- • Check the status of orders
- • Check availability of QuickShip items
- • Track your order and confirm delivery
- • Receive email notification of template changes And More...
Or contact us at:
U.S.A.
Yale Locks & Hardware
Address: 225 Episcopal Road, Berlin, CT 06037-4004 Tel: 1-800-438-1951 • Fax: 1-800-338-0965 • www.yalelocks.com
Canada:
ASSA ABLOY Door Security Solutions Canada
Address: 160 Four Valley Drive, Vaughan, Ontario L4K 4T9 Tel: 1-800-461-3007 • Fax: 1-800-461-8989 • www.assaabloy.ca
International:
ASSA ABLOY Americas International
Tel: 1-905-821-7775 • Fax: 1-905-821-1429 • www.assaabloyai.com
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
Yale® and MicroShield® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. KeyMark® and Secuity Leg® are registered trademarks of Medeco Security Locks, Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under U.S. copyright laws. All contents current at time of publication. Yale Security Inc. reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2009, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited.
YALE , with its unique global reach and range of products, is the world's favorite lock.
ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
42642-9/13RE
