7370 Series
Multi-point Locking System

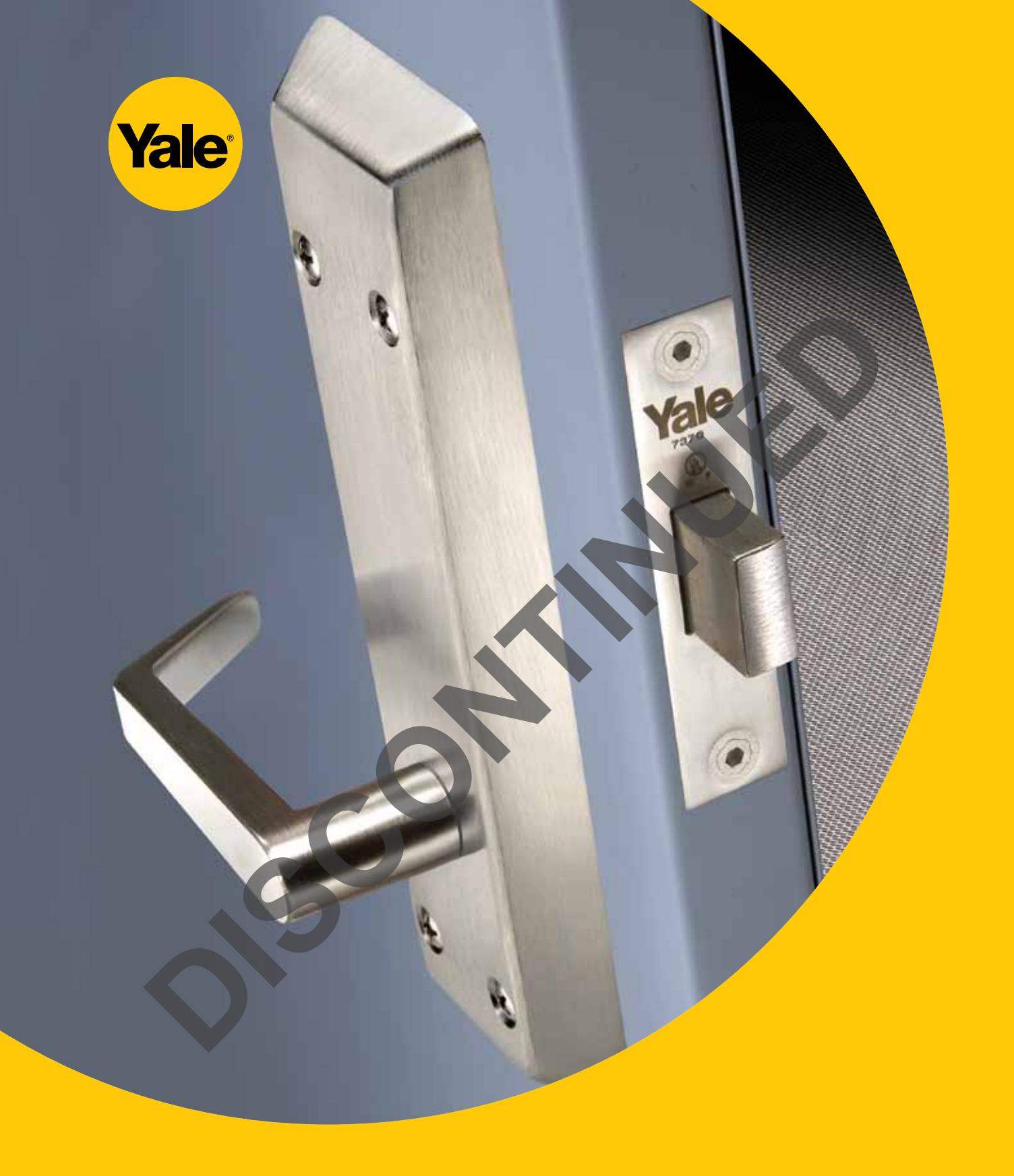

7370 series multi-point locking system
a windstorm solution engineered to save lives
Yale® 7370 series is a three-point auto deadlocking system developed to help protect lives while primarily securing the community shelter window openings. Extra heavy-duty steel components firmly fasten the shutter to the frame - at top, bottom and center latch points - reinforcing the opening to endure severe wind speeds and flying debris.
The 7370 is fully integrated - part of a complete ASSA ABLOY tornado and hurricane resistant solution with CECO StormPro® 361, CURRIES StormPro® 361 and FLEMING F-5 shutters and McKINNEY® SP hinges.
certifications/compliance -
7370 series are UL certified for inswing shutters 1'8"w x 3'0"h min. to 4'0"w x 6'8"h max. to the following guidelines:
Tornado & Hurricane Shelters
- FEMA 361
- ICC 500
Tornado
Hurricane
- ICC 500
- ANSI/BHMA A250.13
- ASTM E330, E1886, E1996
- TAS201, TAS202, TAS203
backset
2-3/4" (70mm) standard only.
bolts
Top Latchbolt: 5/8" (16mm) stainless steel housing. Throughhardened steel latchbolt with 7/8" (22mm) projection fortified with 1/4-20 steel Holo-Krome® fasteners.
Center Deadbolt: Onepiece stainless steel with 1" (25mm) projection.
Bottom Bolt: 3/4 " (19mm) diameter steel with 3/4" (19mm) projection and 1/8" (3mm) steel reinforcement plate.
cvlinder
1-1/8" (29mm) brass, 6-pin, PARA keyway, keyed random cylinder with two nickel silver keys furnished standard. Optional cylinders available. See page 7-8.
fronts
Top: 1/8" (3mm) thick, throughhardened steel.
Center: 1-1/8" x 4-7/8" x 3/16" (29mm x 124mm x 5mm) thick stainless steel, one piece.
handing
Handing must be specified (RH, LH, RHR or LHR).
strikes
Center: 1/4" (6mm) thick, stainless
Bottom: Brass with 1/4-20 Holo-Krome® fastenters.
shutter thickness
Standard for shutters 1-3/4" (44mm).
shutter height
The 7370 series are standard for window storm shutter applications 1'8"w x 3'0"h to 4'0"w x 6'8"h. See page 6 for more information. For door applications 6'8" to 8'0" height, refer to 7380F series catalog.
| contents — | |
|---|---|
| Introduction | 2 |
| Features and Applications | 2-3 |
| Lever Designs | 4-5 |
| Functions | 6 |
| Cylinders | 7-8 |
| Ordering Information | 9 |
| Sample Specification | 9 |
| Parts List1 | 0-15 |
| finishes |
|
ANSI/
BHMA Code |
Finish Description |
|---|---|
| 605 | Bright Brass, Clear Coated |
| 606 | Satin Brass, Clear Coated |
| 609 |
Satin Brass, Blackened,
Satin Relieved, Clear Coated |
| 611 | Bright Bronze, Clear Coated |
| 612 | Satin Bronze, Clear Coated |
| 613 |
Dark Oxidized Satin Bronze,
Oil Rubbed 1 |
| 613E | Dark Oxidized Satin Bronze - equivalent |
| 616 |
Satin Bronze, Blackened,
Satin Relieved, Clear Coated |
| 619 |
Satin Nickel Plated, Clear
Coated |
| 620 |
Satin Nickel Plated,
Blackened, Satin Relieved, Clear Coated |
| 625 | Bright Chrome Plated |
| 626 | Satin Chrome Plated Microsoft |
| 629 | Bright Stainless Steel 3 |
| 630 | Satin Stainless Steel 3 |
| 693 | Black Painted |
| 722 | Black Oxidized Bronze, Oil Rubbed 2 |
- 1. New May 1, 2010
- 2. Formerly 613 prior to May 1, 2010
- 3. Trims are plated to simulate stainless steel
- Finish available with MicroShield® antimicrobial coating, additional finishes by special application. Consult factory for availability.
features and applications
applications
This device is ideal for inswing window storm shutters in Community Shelters and Safe Rooms, Corporate Campuses, Schools, Healthcare Facilities and Government Facilities.
warranty
The 7370 series multi-point lock carries a 7-year warranty.

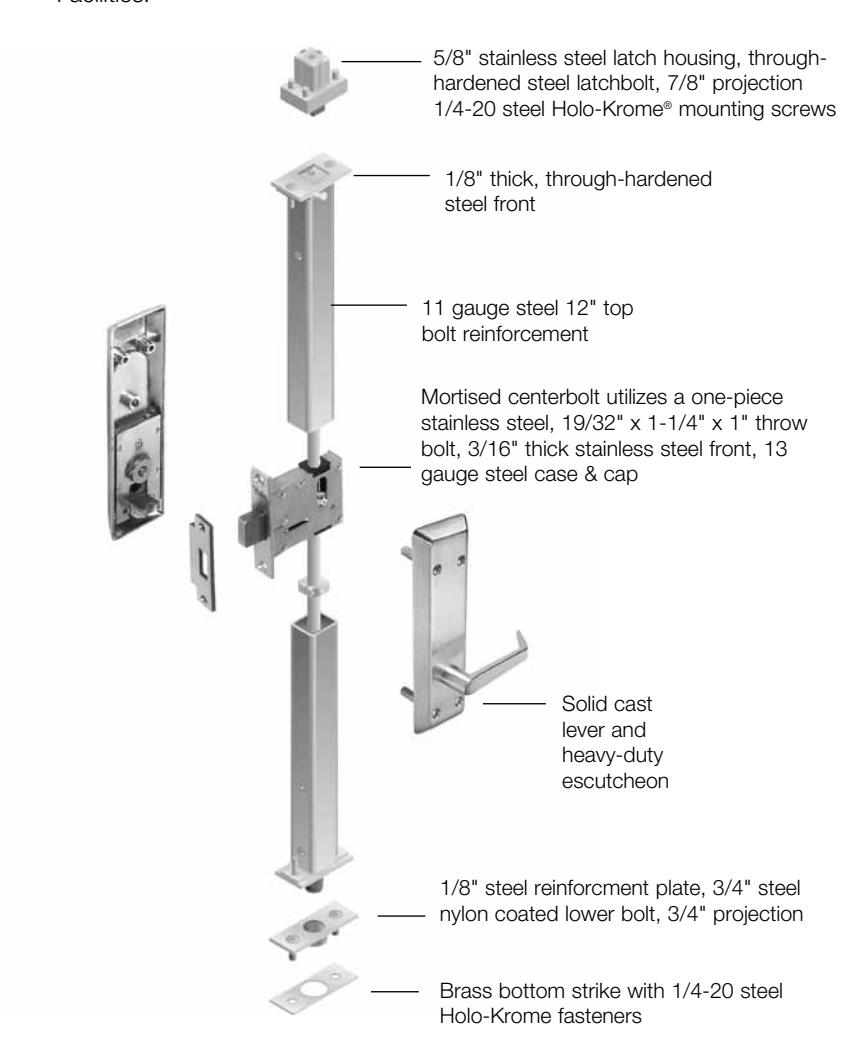

operation
The 7370 features concealed vertical rods with a top latchbolt and bottom deadbolt which are complemented by an automatically projecting deadbolt at the center of the shutter. Operating the trim retracts the bolts simultaneously. Once retracted the bolts are held in position as the shutter swings. When the shutter is closed, the hold back feature of the device engages the frame and all bolts project simultaneously.
additional features
- • Solid cast levers
- • Heavy-duty escutcheon
- • Through-bolted on shutter for solid attachment
- • Extra heavy-duty steel components automatically secure the shutter to the frame at top, bottom and center locations.
- • All multi-points are activated automatically when the shutter is closed
- • Center bolt and trim height location are set during installation allowing them to always remain in the center of the shutter, regardless of application and shutter height.
microshield®
7370 series multi-point locks are available with MicroShield antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is non-toxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "YMS".
Note: MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to insure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield .

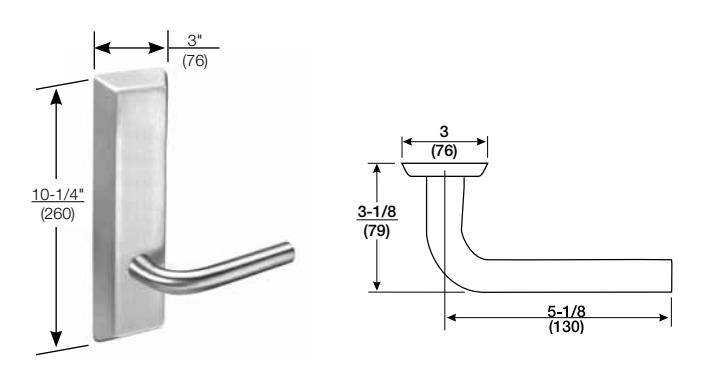

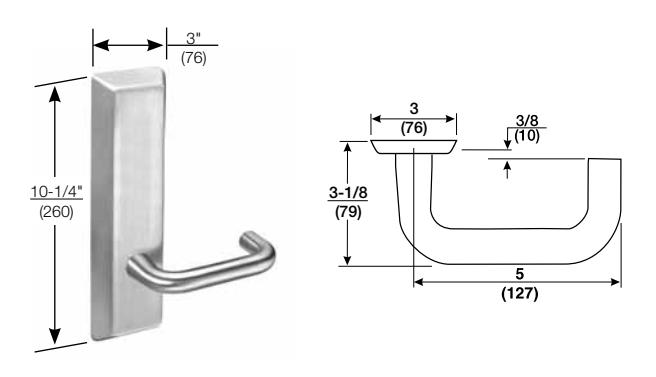

lever deisgns
Lever: Solid Cast Brass Escutcheon: Heavy-duty Forged
arcadia AR
augusta AU
carmel CR
jefferson JN
monroe MO
pacific beach PB
Dimensions are shown in inches (millimeters).
lever designs —
Solid Cast Brass Lever: Escutcheon: Heavy-duty Forged
pinehurst PN -
hampton HA
Dimensions are shown in inches (millimeters).
functions
for typical shutter applications
| Outside/Inside | Series/Function | Type | Function Description |
|---|---|---|---|
| 7374 |
Passage
Lever x Blank Plate |
• Three-point auto deadlocking
• Three-point latch retraction by inside lever • Lever on one side, blank plate on the other • Lever always free • For inswing window storm shutters |
optional functions
| Outside/Inside | Series/Function | Type | Function Description |
|---|---|---|---|
| 7378 | Classroom |
• Three-point auto deadlocking
• Three-point latch retraction by lever either side, unless outside lever is locked by key outside • Inside lever always free |
|
| 7371 | Passage or Closet |
• Three-point auto deadlocking
• Three-point latch retraction by lever either side • Both levers always free |
shutter heights
The 7370 series are for window storm shutter applications1'8"w x 3'0"h to 4'0"w x 6'8"h.
To order:
| Shutter Height | Specify |
|---|---|
| 3'0" - 4'6" | -36 |
| 4'6" - 6'8" | -54 |
cylinders
cylinder options
The following selection guide indicates the correct cylinder for each locking segment.
| Types of Cylinder Mechanisms | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7370 Series | Conventional | Protected Keyway | Security | High Security | |||||||
| Fixed Core | 6-pin | 7-pin | 6-pin | 7-pin | 6-pin | 7-pin | 6-pin | 7-pin | |||
| Cylinder Types | Mortise | 2153 | 2153 | K100 | K100 | 5153 | 5153 | N/A | N/A | ||
| Interchangeable Core | |||||||||||
| LFIC | 2196 | 2197 | K820 | K820 | 5196 | 5197 | N/A | N/A | |||
| SFIC | N/A | N/A | K620 | K620 | N/A | N/A | N/A | N/A | |||
Refer to Yale® KeyMark® and/or Cylinders and Keys Catalog sections for all details and how-to-order examples.
Yale® KeyMark®
For those applications requiring protected key control, Yale® KeyMark® cylinders guard against unauthorized key duplication. The Yale KeyMark Security Leg® keyway feature increases resistance against picking and impressioning and can easily retrofit into existing systems. For further details and availability, refer to the separate Yale KeyMark catalog.
security cylinders

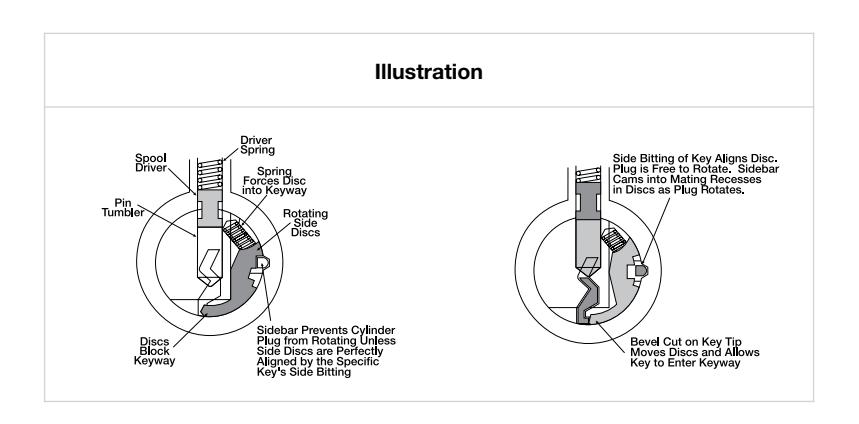

Security cylinders contain two independent locking mechanisms. The first is a traditional 6-pin tumbler mechanism with spool drivers for greatly increased picking resistance.
The second is an innovative 5-tumbler rotating disc mechanism with sidebar engagement. The rotating discs are spring loaded and block the bottom of the keyway.
cylinders
other manufacturers keyway cylinders/cores
| Illustration |
Model
Number |
Type | Cam | Length | Pins |
Housing
Only Model Number |
Core Only
Model Number |
|---|---|---|---|---|---|---|---|
|
Small Format IC Mortise, includes Best®
Keyway Core. Available keyed random, |
6 | ||||||
| A620 |
master keyed or uncombinated. Specify
keyway A, B, C, D, E, F, G, H, J, K, L or M. |
KC1 | 1-3/8" | 6 or 7 | K660 | A600 | |
| 2553 |
Fixed Core Mortise Schlage® "C" Keyway
Cylinder. Available 0-bitted or keyed random. |
2160 | 1-1/8" | 6 | N/A | N/A | |
cylinder collars
Cylinder collars are supplied as standard. Collar size is supplied to suit the length and type of the cylinder.
1765 Recessed Cylinder Collar
"A" Dimension: Thicknesses from 1/16" (2mm) to 1-15/32" (37mm) as required.
Material: Brass, Bronze
KP3 Wave Washer (Furnished standard with 1765 collar for Yale® Keymark®)
collars for use with 7370 series escutcheons
|
2153, 5153,
Fixed Core Mortise Cylinders |
K100
2196, 5196, 2197, 5197 LFIC Cylinders |
K820, K860 Yale®
Yale® KeyMark® KeyMark® LFIC Fixed Core Cylinders Cylinders |
K620, K630 K660,
K670, A620, A630 Yale® KeyMark® and Best® Keyway SFIC Cylinders |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Door
Thickness |
No. of
Pins |
Cylinder
Length |
Collar
Required |
Cylinder
Length |
Collar
Required |
Cylinder
Length |
Collar
Required |
Cylinder
Length |
Collar
Required |
Cylinder
Length |
Collar
Required |
|
| 6 | 1-1/8" | 1765.281 | 1-1/2" | 1765.719 | 1-1/8" | 1765.344 | 1-1/2" | 1765.719 | 1-1/4" | 1765.344 | ||
| 1-3/4 | 6 or 7 | 1-1/4" | 1765.437 | 1-11/16" | 1765.924 | 1-1/4" | 1765.437 | 1-11/16" | 1765.924 | 1-3/8" | 1765.563 | |
| (44) | 6 or 7 | 1-3/8" | 1765.594 | 1-1/2" | 1765.719 | |||||||
| 6 or 7 | 1-1/2" | 1765.719 | ||||||||||
ordering information
From this outline select the Model Number for the Yale® 7370 Series Lockset you require.
| Design | Function |
Height
Hand Finish |
Additional Options | |||
|---|---|---|---|---|---|---|
| See Page 4-5 | See Page 6 | See Page 6 | See Page 2 | See Page 2 | Specify | |
ordering example
| Quantity | Design | Function | Height | Hand | Finish |
Additional
Options |
|---|---|---|---|---|---|---|
| 100 | AU | 7374 | -36 | RH | 630 | YMS |
suggested specification
Multi-Point Auto Deadlocking Devices shall be 7370 Series as supplied by Yale Locks & Hardware.
Multi-point auto deadlocking devices are engineered for use on inswing shutter applications at hurricane and tornado safe shelter room locations. Concealed, fortified steel construction secures the door to the frame at top, bottom and center positions. All three locking points shall be automatically activated when the device is closed and retracted with one single motion upon exiting.
Multi-point auto deadlock shall be part of an integrated door, frame and hardware assembly UL certified to FEMA 361, ICC 500, ANSI/BHMA A250.13, ASTM E330, E1886, E1996, TAS201, TAS202, and TAS203 for inswing applications.
Latchbolts shall be constructed as follows:
- • Mortised Centerbolt:
-
Single piece, 13 gauge chrome plated steel lock case with 3/16" thick stainless steel front.
- Stainless steel, 1" throw deadbolt.
- 2-3/4" backset standard with 1/4" stainless steel centerbolt strike.
- • Top Latch:
-
Through-hardened steel latchbolt with 7/8" projection
- 1/8" steel latchbolt front
- 5/8" stainless steel latch housing secured with 1/4- 20 Holo-Krome® fasteners.
- • Bottom Bolt:
- 3/4" diameter steel nylon coated bolt with 3/4" projection and 1/8" steel reinforcement plate
- Brass strike housing secured with 1/4-20 Holo- Krome® fasteners.
Devices shall be provided with heavy-duty escutcheon trim and solid cast levers matching the design style and architectural finishes as the balance of the locksets and latches specified.
Inswinging storm shutters shall be furnished as a complete door, frame, and hardware assembly for openings measuring from 1'8" x 3'0" minimum to 4'0" x 6'8" maximum.
All multi-point auto deadlocking devices shall have a seven-year limited warranty.
|
7374
7371 |
7378
54" 1 – – 1 1 – – – – 1 1 1 1 1 1 1 |
|||||||
|---|---|---|---|---|---|---|---|---|

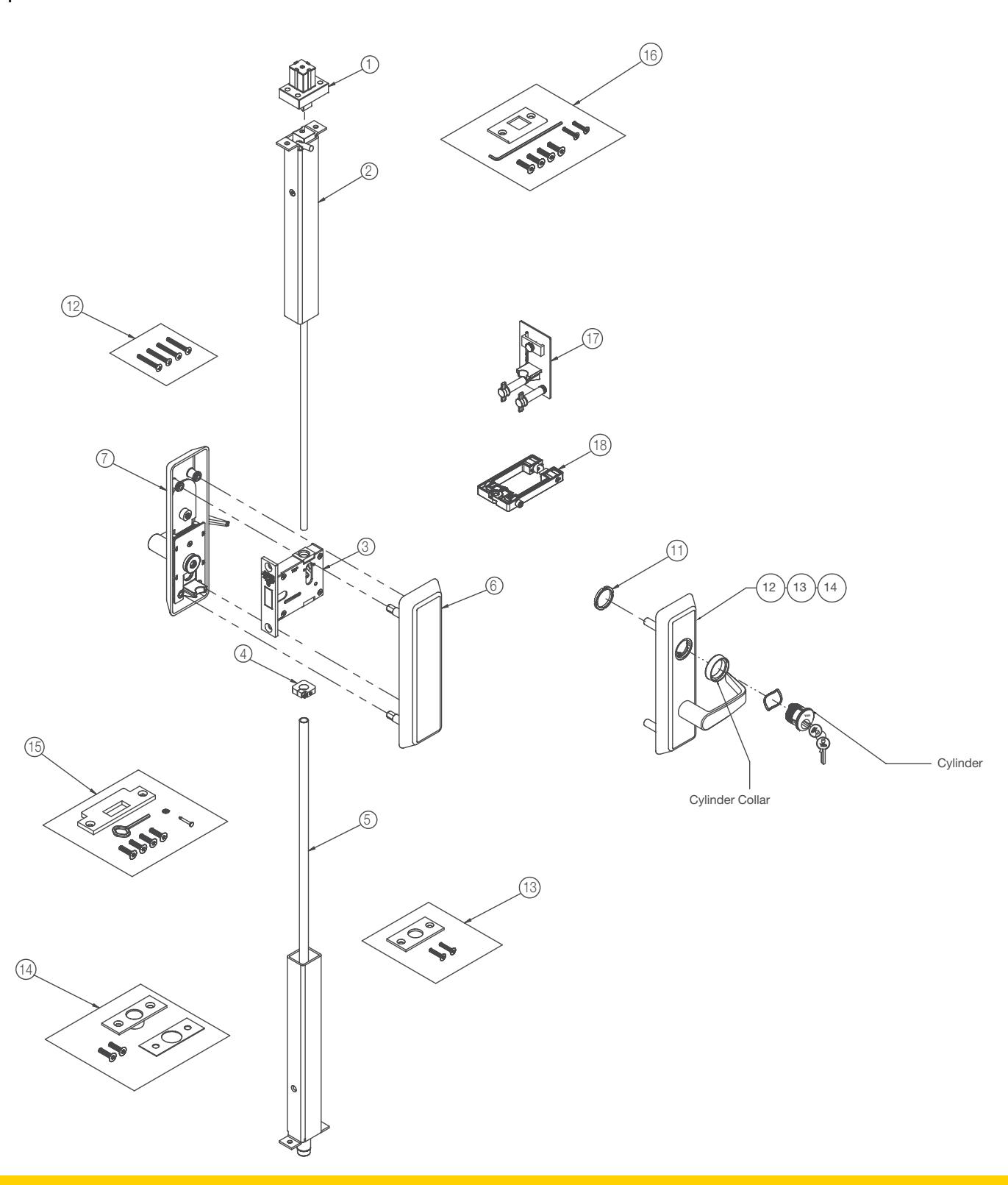

| Item | Part No. | Description | 36" | 54" | 36" | 54" | 36" | |
| 1 | 60-7380-0008 | Top Latch Assembly | 1 | 1 | 1 | 1 | 1 | |
| 60-7370-0036 | Top Bolt Sub-Assembly for 3'0" - 4'6" Shutter | 1 | – | 1 | – | 1 | ||
| 2 | 60-7370-0055 | Top Bolt Sub-Assembly for 4'6" - 6'8" Shutter | – | 1 | 1 | 1 | – | |
| 3 | 60-7370-0070 | Deadbolt-Sub-Assembly | 1 | 1 | 1 | 1 | 1 | |
| 4 | 60-7370-0040 | Platform Sub-Assembly | 1 | 1 | 1 | 1 | 1 | |
| 60-7370-0014 | Bottom Bolt Sub-Assembly for 3'0" - 4'6" Shutter | 1 | – | 1 | 1 | – | ||
| 5 | 60-7370-0015 | Bottom Bolt Sub-Assembly for 4'6" - 6'8" Shutter | 1 | 1 | – | 1 | – | |
| 60-7380-0026 | Outside Escutcheon Assembly- Blank (7374) | 1 | 1 | – | – | – | ||
| 6 | 60-7380-0027 | Outside Escutcheon Assembly - Lever only (7371) | – | – | 1 | 1 | – | |
| 60-7380-0028 | Outside Escutcheon Assembly - Lever & Cylinder (7378) | – | – | – | – | 1 | ||
| 7 | 60-7380-0029 | Inside Escutcheon Assembly - Lever only | 1 | 1 | 1 | 1 | 1 | |
| 8 | Cylinder Assembly | – | – | – | – | 1 | ||
| 9 | 81-9500-1580 | Wave Washer | – | – | – | – | 1 | |
| 10 | Cylinder Collar | – | – | – | – | 1 | ||
| 11 | 60-7000-2421 | Cylinder Nut | – | – | – | – | 1 | |
| 12 | 60-7380-0013 | Trim Mounting Packet | 1 | 1 | 1 | 1 | 1 | |
| 13 | 60-7380-0015 | Bottom Bolt Mounting Packet | 1 | 1 | 1 | 1 | 1 | 1 |
| 14 | 60-7370-0016 | Bottom Strike Packet | 1 | 1 | 1 | 1 | 1 | 1 |
| 15 | 60-7380-0017 | Strike & Deadbolt Mounting Packet | 1 | 1 | 1 | 1 | 1 | 1 |
| 16 | 60-7380-0016 | Front &Top Mounting Packet | 1 | 1 | 1 | 1 | 1 | 1 |
| 17 | 60-7370-00 | Jig Sub-Assembly Alignment | 1 | 1 | 1 | 1 | 1 | 1 |
| 18 | 60-7370-00 | Drill Jig Fixture | 1 | 1 | 1 | 1 | 1 | 1 |

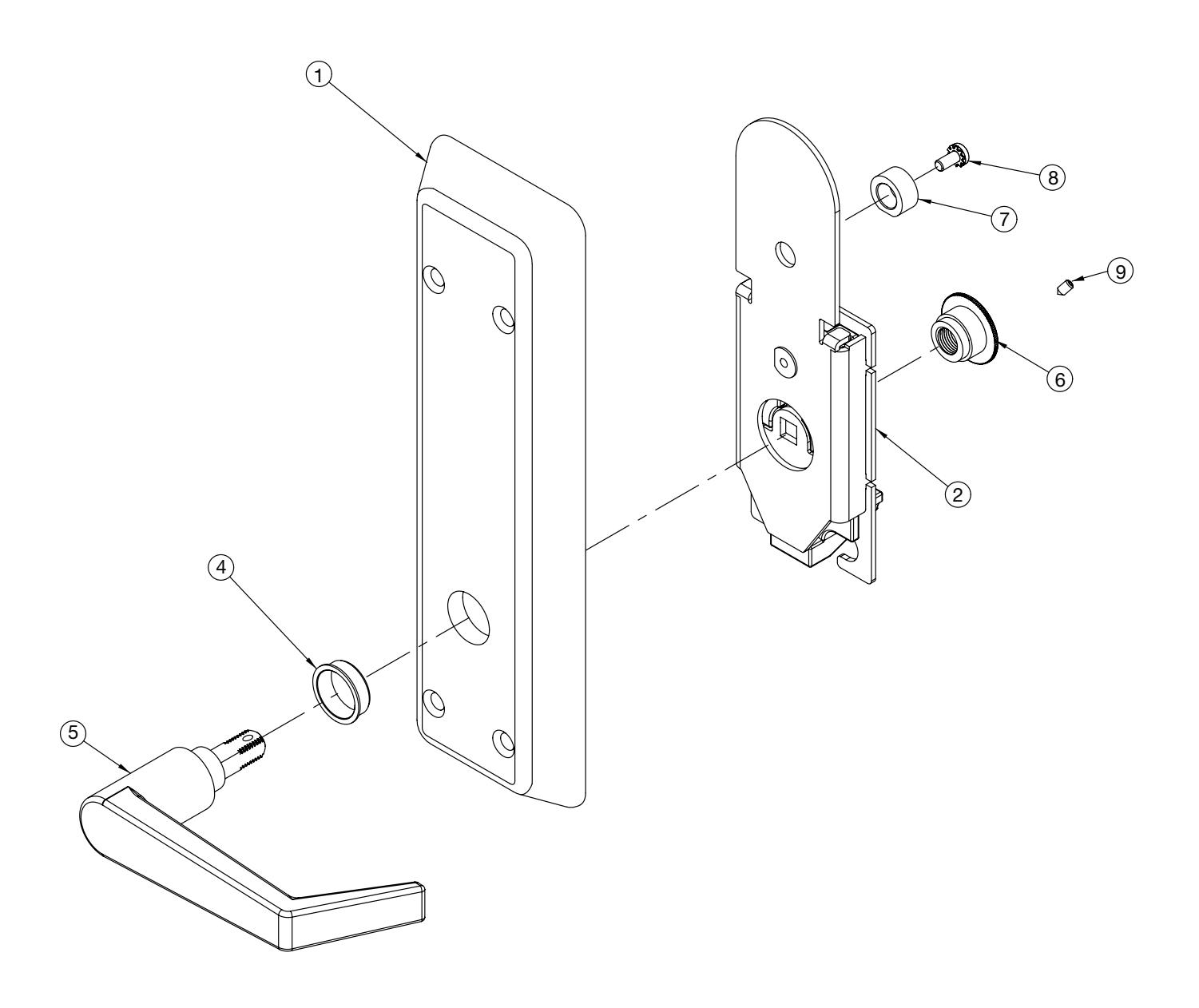

outside escutcheon assembly
| Item # | Name | Quantity |
60-7380-0027
7371 |
60-7380-0026
7374 |
60-7380-0028
7378 |
Part
Numbers |
|
|---|---|---|---|---|---|---|---|
| X | 60-7380-0070 | ||||||
| 1 | Escutcheon | 1 | X | 60-7380-0071 | |||
| X | 60-7380-0072 | ||||||
| X | Locking 60-7380-0019 | ||||||
| 2 | Cassette Sub-Assembly | 1 | X | Non-Locking 60-7380-0012 | |||
| 4 | Bushing | 1 | X | X | 10-0086-9037 | ||
| Augusta | AU | X | X | 60-7380-0051 | |||
| Arcadia RH/LH | AR | X | X | 60-7380-0052/0053 | |||
| Carmel | CR | X | X | 60-7380-0054 | |||
| Jefferson | JN | X | X | 60-7380-0055 | |||
| 5 | Monroe | MO | 1 | X | X | 60-7380-0056 | |
| Pacific Beach | PB | X | X | 60-7380-0057 | |||
| Virginia | VI | X | X | 60-7380-0058 | |||
| Hampton | HA | X | X | 60-7380-0059 | |||
| Pinehurst | PN | X | X | 60-7380-0060 | |||
| 6 | Nut | 1 | X | X | 60-7380-0004 | ||
| 7 | Spacer | 1 | X | 60-7380-0006 | |||
| 8 | Screw - PPHM #8-32 x 3/8" | 1 | X | 60-7380-0003 | |||
| 9 | Set Screw | 1 | X | X | 99-9999-3100 |

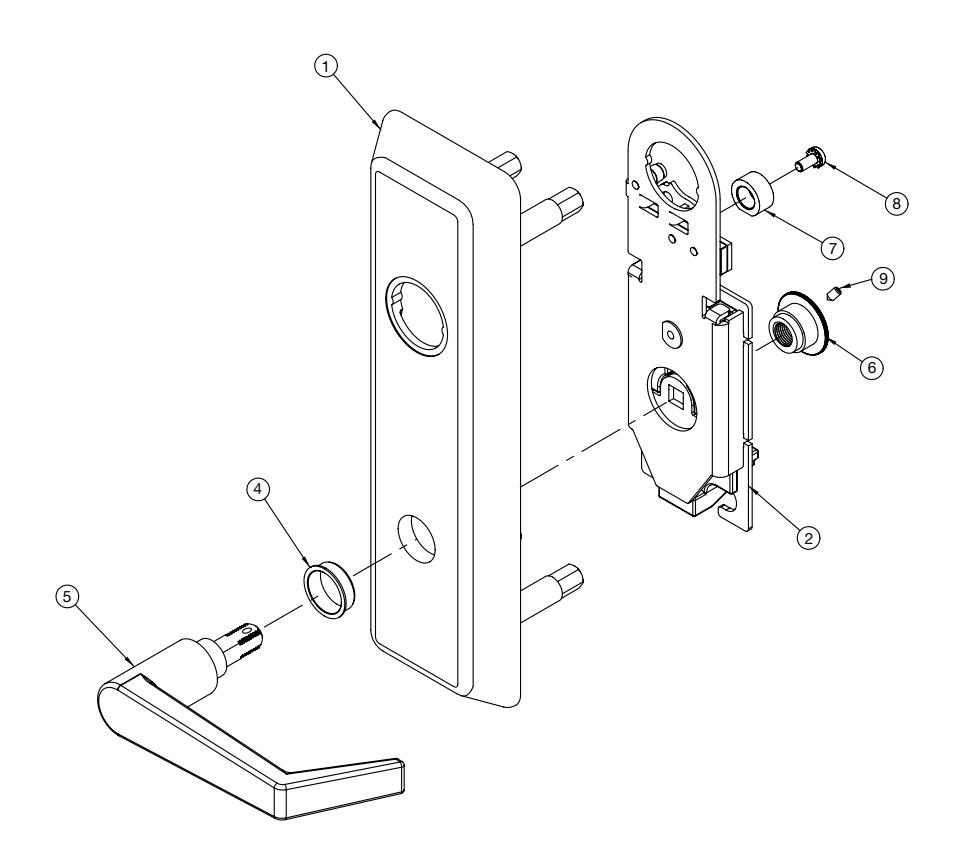

outside escutcheon assembly
| 7371 | 7374 | 7378 |
|---|---|---|
| Part No. 60-7380-0027 | Part No. 60-7380-0026 | Part No. 60-7380-0028 |
| Outside Non-Locking | Outside Blank | Outside Locking |
inside escutcheon assembly
| Item # | Name | Quantity |
7371/7374/7378
60-7380-0029 (Compete) |
Part
Numbers |
|---|---|---|---|---|
| 1 | Escutcheon | 1 | X | 60-7380-0075 |
| 2 | Cassette Sub-Assembly | 1 | X | 60-7380-0012 |
| 4 | Bushing | 1 | X | 10-0086-9037 |
|
Augusta
AU |
X | 60-7380-0051 | ||
|
Arcadia RH/LH
AR |
X | 60-7380-0052/0053 | ||
|
Carmel
CR |
X | 60-7380-0054 | ||
|
Jefferson
JN |
X | 60-7380-0055 | ||
| 5 |
Monroe
MO |
1 | X | 60-7380-0056 |
|
Pacific Beach
PB |
X | 60-7380-0057 | ||
|
Virginia
VI |
X | 60-7380-0058 | ||
|
Hampton
HA |
X | 60-7380-0059 | ||
|
Pinehurst
PN |
X | 60-7380-0060 | ||
| 6 | Nut | 1 | X | 60-7380-0004 |
| 7 | Spacer | 1 | X | 60-7380-0006 |
| 8 | Screw - PPHM #8-32 x 3/8" | 1 | X | 60-7380-0003 |
| 9 | Set Screw | 1 | X | 99-9999-3100 |
inside escutcheon assembly
online literature and templates
For the latest information on Yale Locks & Hardware products, visit our website at: www.yalelocks.com
Click on the "Product Information" button to find:
- • Catalogs
- • Parts manuals
- • Templates
- • Specifications
- • Installation instructions
Yale® customers can click on the ebusiness symbol on the website to register for an ebusiness account to:
- • Check the status of orders
- • Check availability of QuickShip items
- • Track your order and confirm delivery
- • Receive email notification of template changes And More...
Or contact us at:
U.S.A.
Yale Locks & Hardware
Address: 225 Episcopal Road, Berlin, CT 06037-4004 Tel: 1-800-438-1951 • Fax: 1-800-338-0965 • www.yalelocks.com
Canada:
ASSA ABLOY Door Security Solutions Canada
Address: 160 Four Valley Drive, Vaughan, Ontario L4K 4T9 Tel: 1-800-461-3007 • Fax: 1-800-461-8989 • www.assaabloy.ca
International:
ASSA ABLOY Americas International
Tel: 1-905-821-7775 • Fax: 1-905-821-1429 • www.assaabloyai.com
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
Yale® and MicroShield® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. KeyMark® and Secuity Leg® are registered trademarks of Medeco Security Locks, Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under U.S. copyright laws. All contents current at time of publication. Yale Security Inc. reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2010, 2013 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited.
YALE , with its unique global reach and range of products, is the world's favorite lock.
ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
42712-9/13RE
An ASSA ABLOY Group brand
